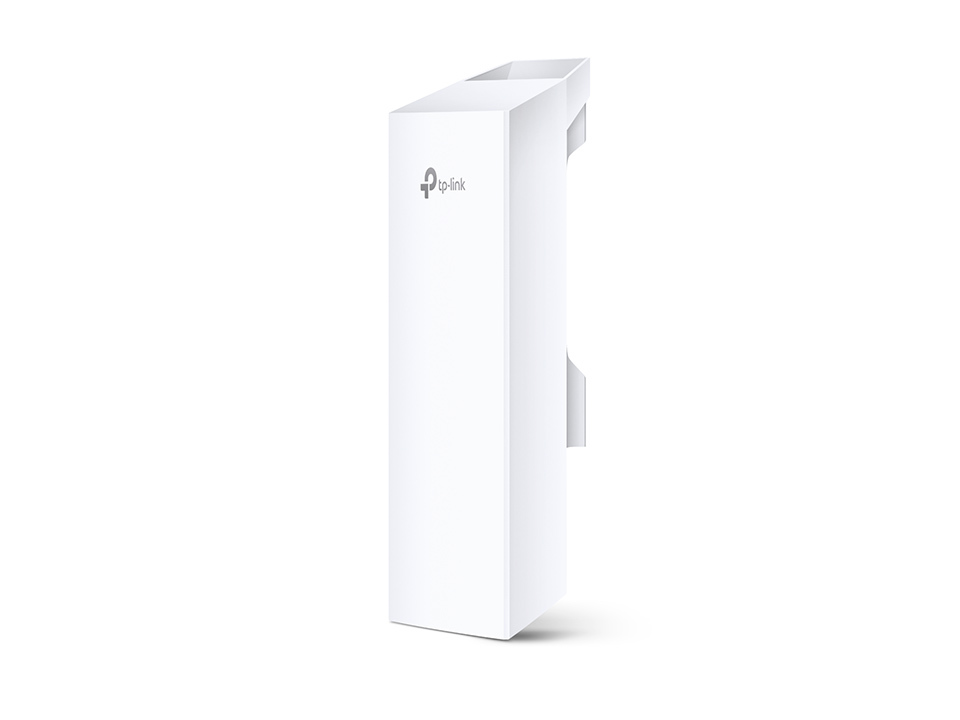

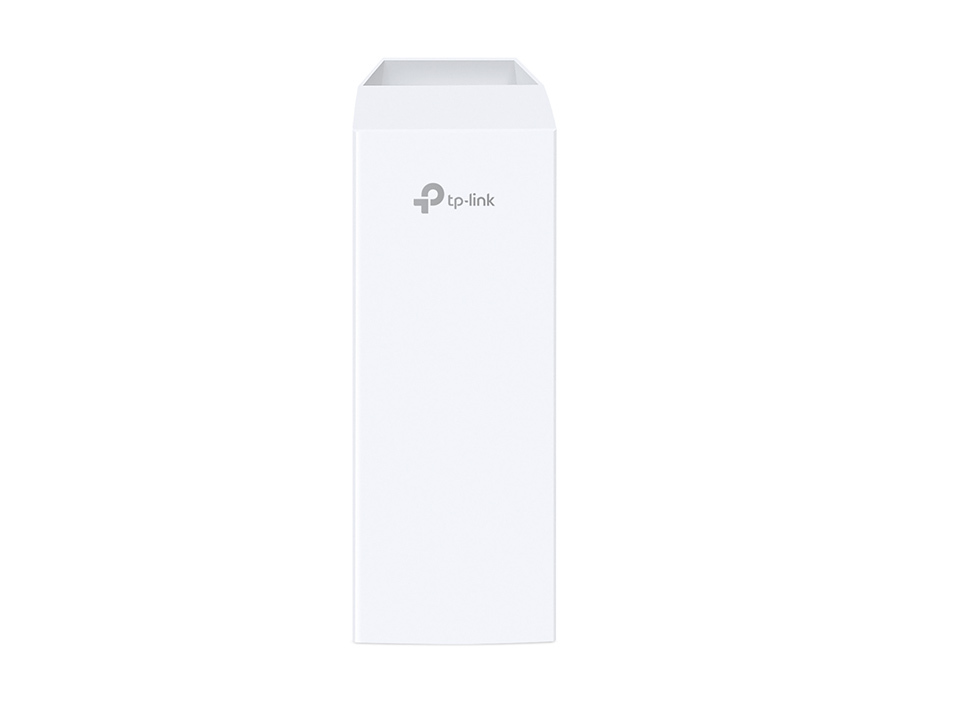

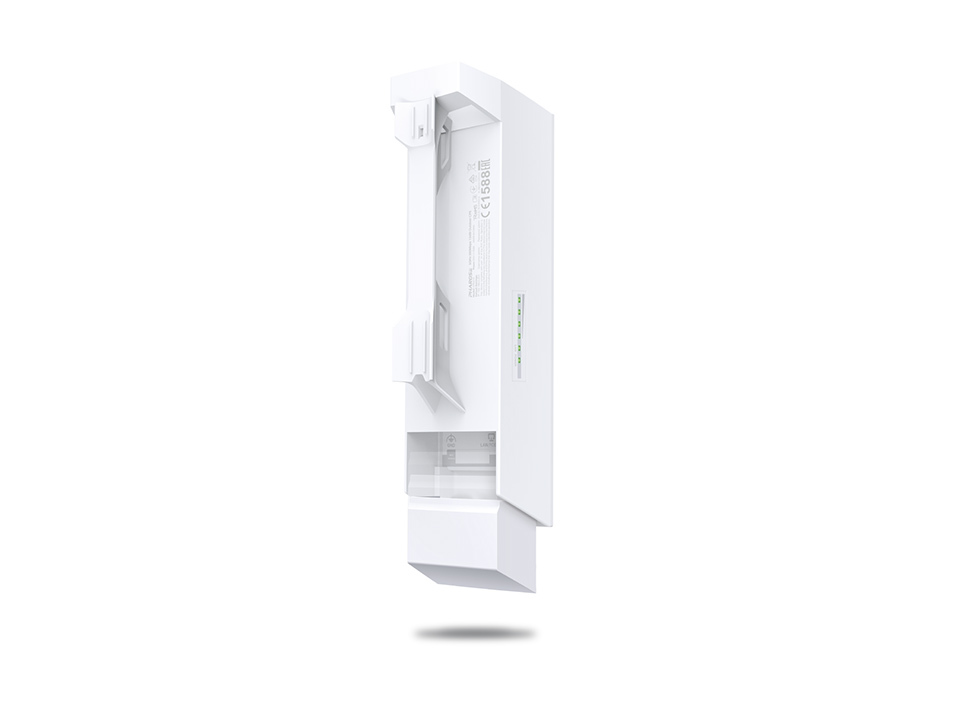

TP-Link CPE510 300 Mbit/s Hvid Strøm over Ethernet (PoE)

SKU: 988853916
EAN: 6935364070922

TP-Link CPE510, 300 Mbit/s, 300 Mbit/s, 10,100 Mbit/s, 300 Mbit/s, 5.15 - 5.85 GHz, 5 GHz
Mere info
419,00 DKK Ex. moms: 335,20 DKK På lager

Produktbeskrivelse

What this product does
TP-LINK’s 5GHz 300Mbps 13dBi Outdoor CPE, the CPE510 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE510 an ideal choice for both business and home users.

Enterprise Hardware Design
With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE510 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -30℃ (-22℉) to +70 ℃ (158℉).

Advanced Antenna System
Built-in High Gain Dual-Polarized Antenna and dedicated metal reflection ensures higher gain and lower noise interference.

High Power & High Sensitivity
In advanced, high power Tx (up to 27dBm/500mw) and high sensitivity Rx (up to -95dBm) radio front-end design breaks down the barriers of traditional Wi-Fi transmission range, making CPE510 an ideal product for outdoor wireless networking applications.
Professional Outdoor Design
CPE510 is designed to work in harsh environments, even in some of the world’s most hostile climate conditions.

Weatherproof Design
With its outdoor weatherproof enclosure and industrial-level hardware design, CPE510 can continue operating in various weather conditions, such as sunshine, rainfall, wind, snow or extremely low/high temperature environment(-30°C~70°C).

Double Protection against ESD Attacks
Besides its grounding terminal, CPE510 offers another way to eliminate ESD attacks via the PoE adapter and Ethernet cable with grounding wire. The CPE510’s additional security measures provide up to 15KV ESD and 6000V lightning protection for more reliable operation.

TP-LINK MAXtream TDMA Technology
As network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience, to mitigate these effects, the CPE510 uses MAXtream TDMA Technology.

Pharos Control – Centralized Management System
CPE510 also comes equipped with centralized management software that helps users easily manage all the devices in their network from a single PC - Pharos Control. Functions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.

PharOS
User-friendly web-based management system allows professionals to apply more specific configurations

Specifikationer

2.4 GHz Ingen
5 GHz Ja
6 GHz Ingen
Maksimal dataoverførselshastighed 300 Mbit/s
Maksimal dataoverførselshastighed (5 GHz) 300 Mbit/s
Ethernet LAN-datahastigheder 10,100 Mbit/s
Gennemløbs datahastighed 300 Mbit/s
Frekvensbånd 5.15 - 5.85 GHz
Båndbredde 5 GHz
Netværksstandarder IEEE 802.11a, IEEE 802.11n
Kabelteknologi 10/100Base-T(X)
Automatisk kanalvalg Ja
Automatisk kanalscanning Ja
VLAN understøttelse Ja
Vituelle LAN funktioner Tagged VLAN
Trådløs isolation Ja
Maksimal udendørsinterval 15000 m
Modtager, følsomhed 802.11a: 54M: -75dBm, 48M: -76dBm, 36M: -83dBm, 6-24M: -95dBm 802.11n: MCS15: -73dBm, MCS14: -74dBm, MCS13: -76dBm, MCS12: -80dBm, MCS11: -83dBm, MCS10: -88dBm, MCS9: -90dBm, MCS8: -93dBm, MCS7: -73dBm, MCS6: -74dBm, MCS5: -76dBm, MCS4: -80dBm, MCS3: -83dBm, MCS2: -88dBm, MCS1: -90dBm, MCS0: -93dBm
Sikkerhedsalgoritmer AES, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK
Filtrering af MAC-adresser Ja
IP-adresse filtrering Ja
Service Set Identifier (SSID) funktioner SSID-udsendelse, SSID-udsendelse til/fra
IGMP snooping Ja
Automatisk trådløs forsendelsessystem (WDS) Ja
Universal Plug and Play (UPnP) Ja
Administrationsprotokoller TDMA
Webbaseret administration Ja
Syslog Ja
Administrationsplatform Pharos Control
Firmware kan opgraderes Ja

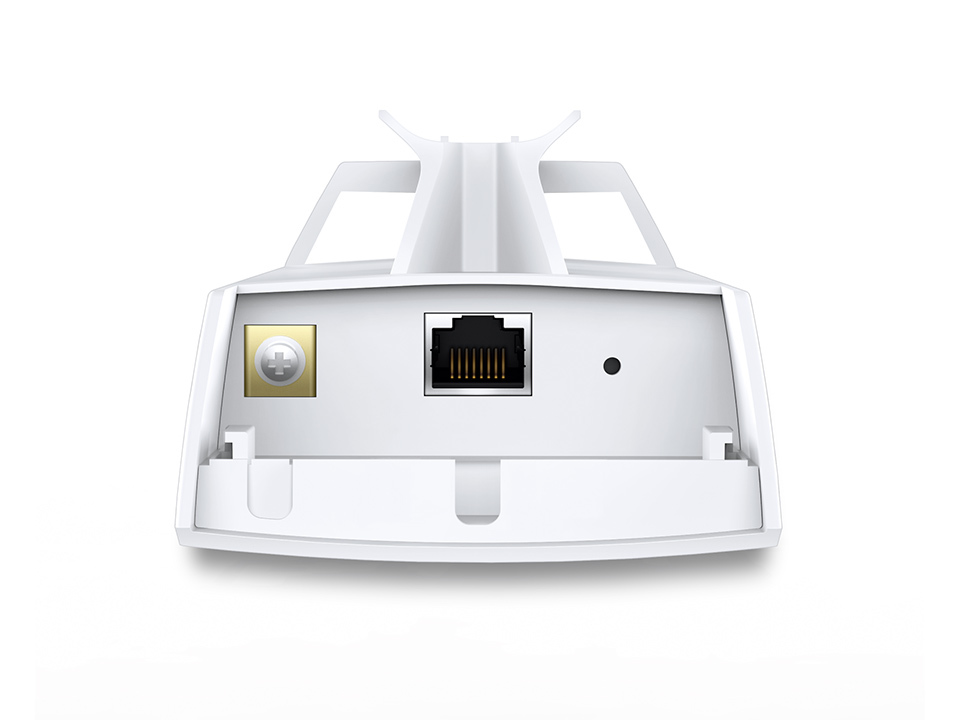

Ethernet LAN-porte (RJ-45) 1
WAN-forbindelse Ethernet (RJ-45)
DC-in-stik Ja
Strøm over Ethernet (PoE) Ja
DC spændingsområde 16 - 27 V
Strømforbrug (typisk) 13 W
Placering Pæl, Væg
Produktfarve Hvid
Husmateriale Plast
Kode for international beskyttelse (IP) IP5X
Knap til nulstilling Ja
LED-indikatorer Ja
Certificering - FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark - RoHS
Antenne type Intern
Antenneretningstype Omniretningsbestemt
Antennefunktioner Integreret antenne
Antenner, antal 1
Niveau for antennestyrke (maks.) 13 dBi
Indbygget processer Ja
Processormodel Qualcomm Atheros
Processorfrekvens 560 MHz
Processor arkitektur MIPS 74Kc
Flashhukommelse 8 MB
Intern hukommelse 64 MB
Kompatible operativsystemer Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Bredde 224,4 mm
Dybde 79 mm
Højde 60,3 mm
Pakkebredde 132 mm
Pakkedybde 270 mm
Pakkehøjde 106 mm
Pakkevægt 720 g
Antal produkter inkluderet 1 stk
PoE-adapter inkluderet Ja
Kabler inkluderet Vekselstrøm
Monteringssæt Ja
Relativ luftfugtighed ved drift (H-H) 10 - 90%
Driftstemperatur (T-T) -30 - 70 °C
Opbevaringstemperatur (T-T) -40 - 70 °C
Relativ luftfugtighed ved opbevaring (H-H) 5 - 95%
