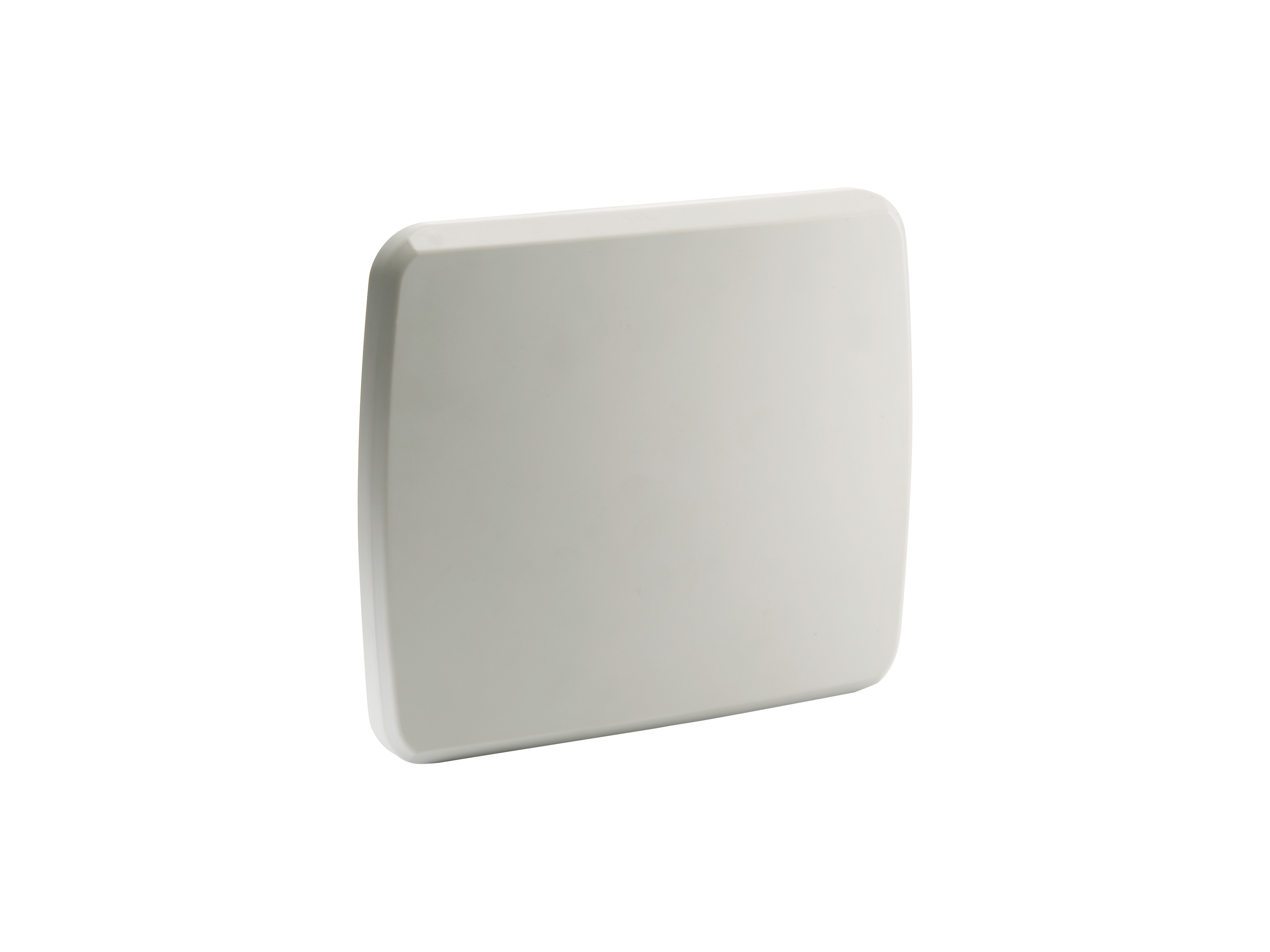

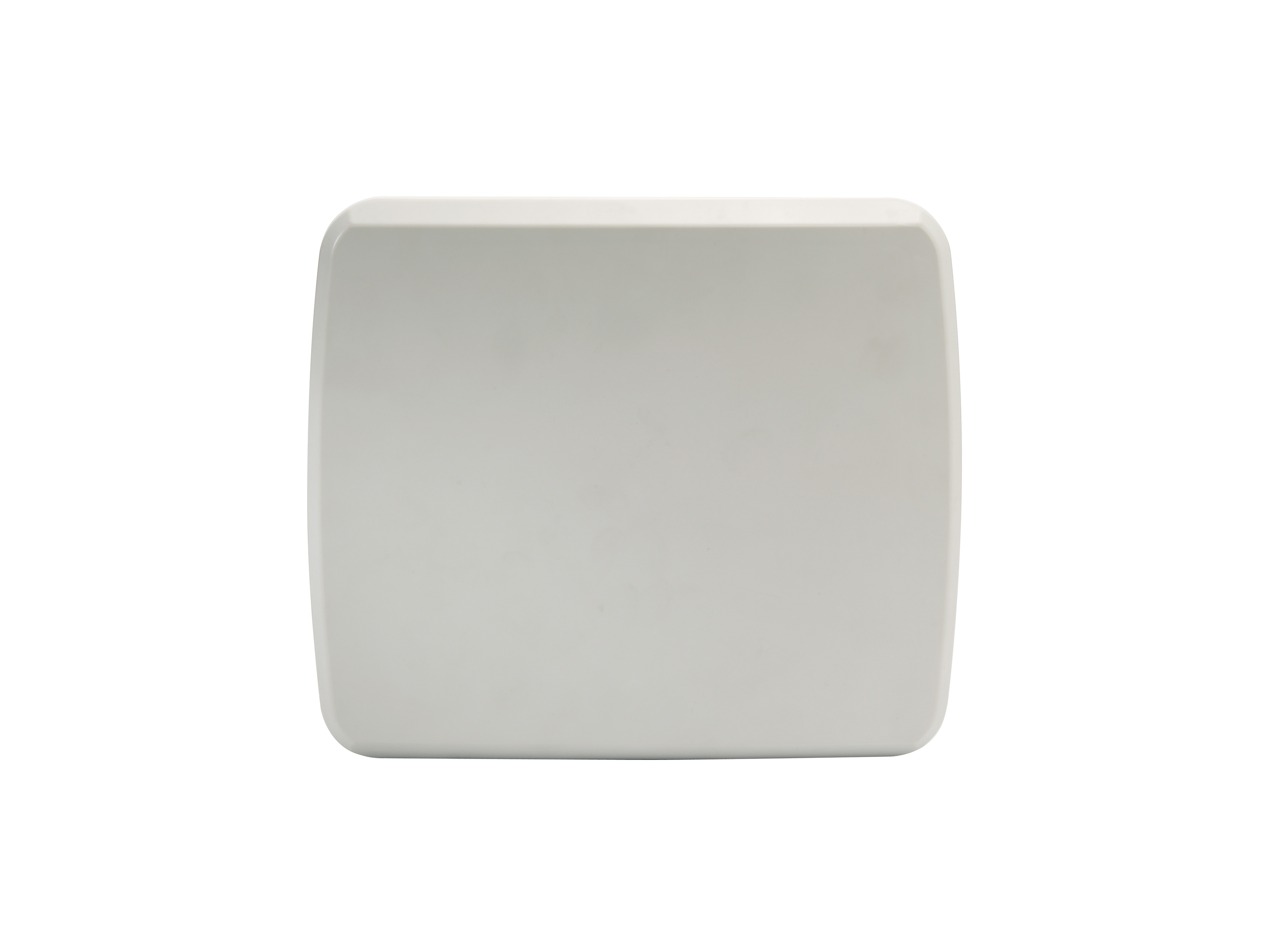

LevelOne WAN-9180 antenne Retningsbestemt antenne N-type 18 dBi

SKU: 987659445
EAN: 4015867164907

LevelOne WAN-9180, 18 dBi, 5.15 - 5.875 GHz, IEEE 802.11a, IEEE 802.11n, 50 ohm (Ω), 15°, 15°
Mere info
1.709,00 DKK Ex. moms: 1.367,20 DKK På lager

Produktbeskrivelse

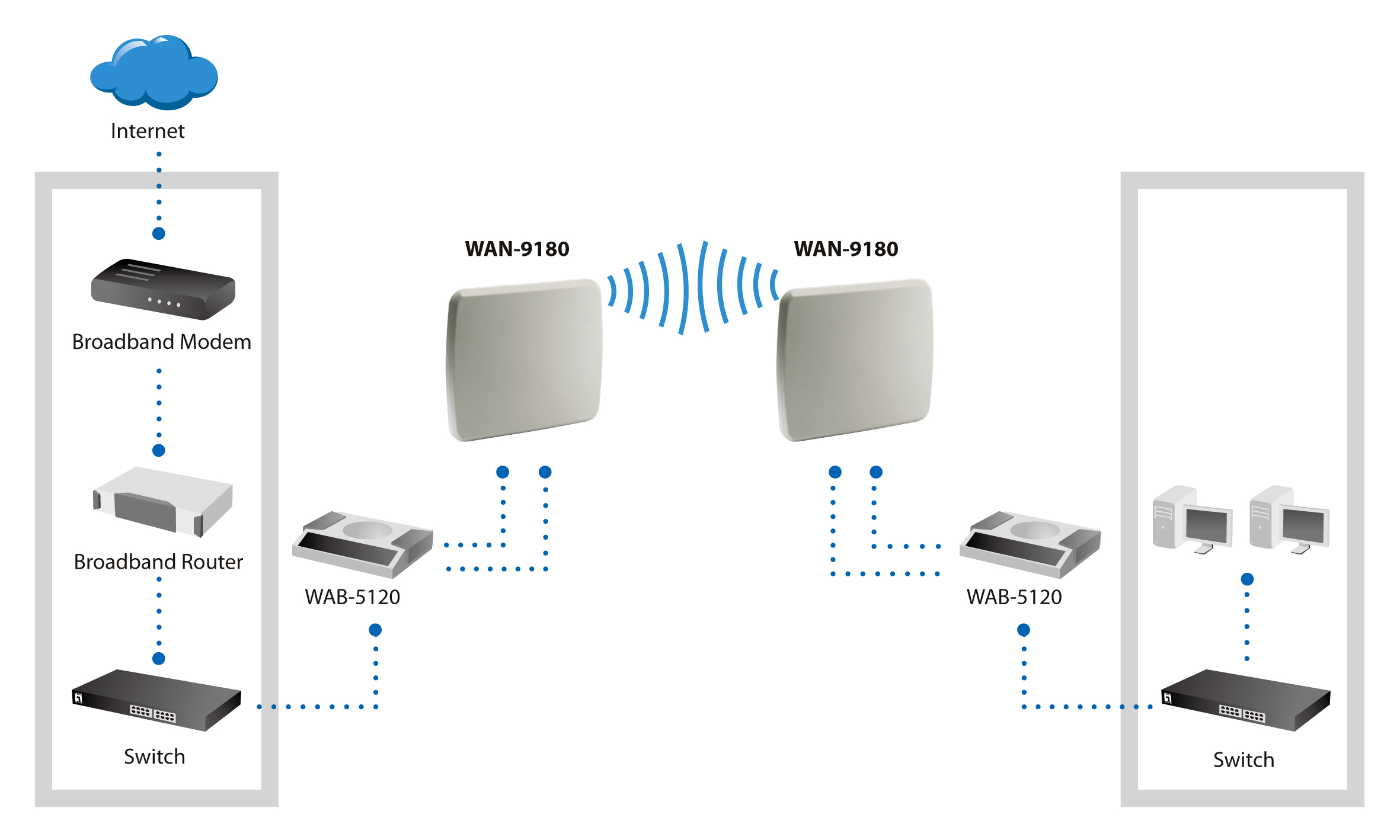

The LevelOne WAN-9180 18dBi Directional Dual-Polarization antenna is designed for outdoor wireless connections. With array pattern located at +45° and -45° polarization, you can improve signal strength in a crowded area with possible signal interference. It improves signal strength and coverage in 5GHz band, towards a concentrated enhanced direction.

This panel antenna is easy to mount and install on flat areas such as wall or window. Designed for outdoor elevated installation with high sustainability in strong wind. With IP-67 rating, it is completely protected against dust and humidity ingress.

- Operates in 5GHz band, according to IEEE 802.11a/n specifications
- Antenna diversity at 18dBi high gain performance
- Dual-Polarization to avoid interference
- Easy to install on the wall surface
- Wideband frequency performance enables future growth and increases flexibility

Specifikationer

Harmoniseret systemkode (HS) 85177100
Antal pr. pakke 1 stk
Produktfarve Grå
Pakkevægt 188 g
Bredde 256 mm
Højde 19 mm
Vægt 435 g
Dybde 227 mm
Relativ luftfugtighed ved drift (H-H) 0 - 95%
Pakkebredde 343 mm
Pakkedybde 235 mm
Pakkehøjde 47 mm
Driftstemperatur (T-T) -40 - 80 °C
Oprindelsesland Taiwan
Netværksstandarder IEEE 802.11a, IEEE 802.11n
Formål Indendørs & udendørs
Frekvensbånd 5.15 - 5.875 GHz

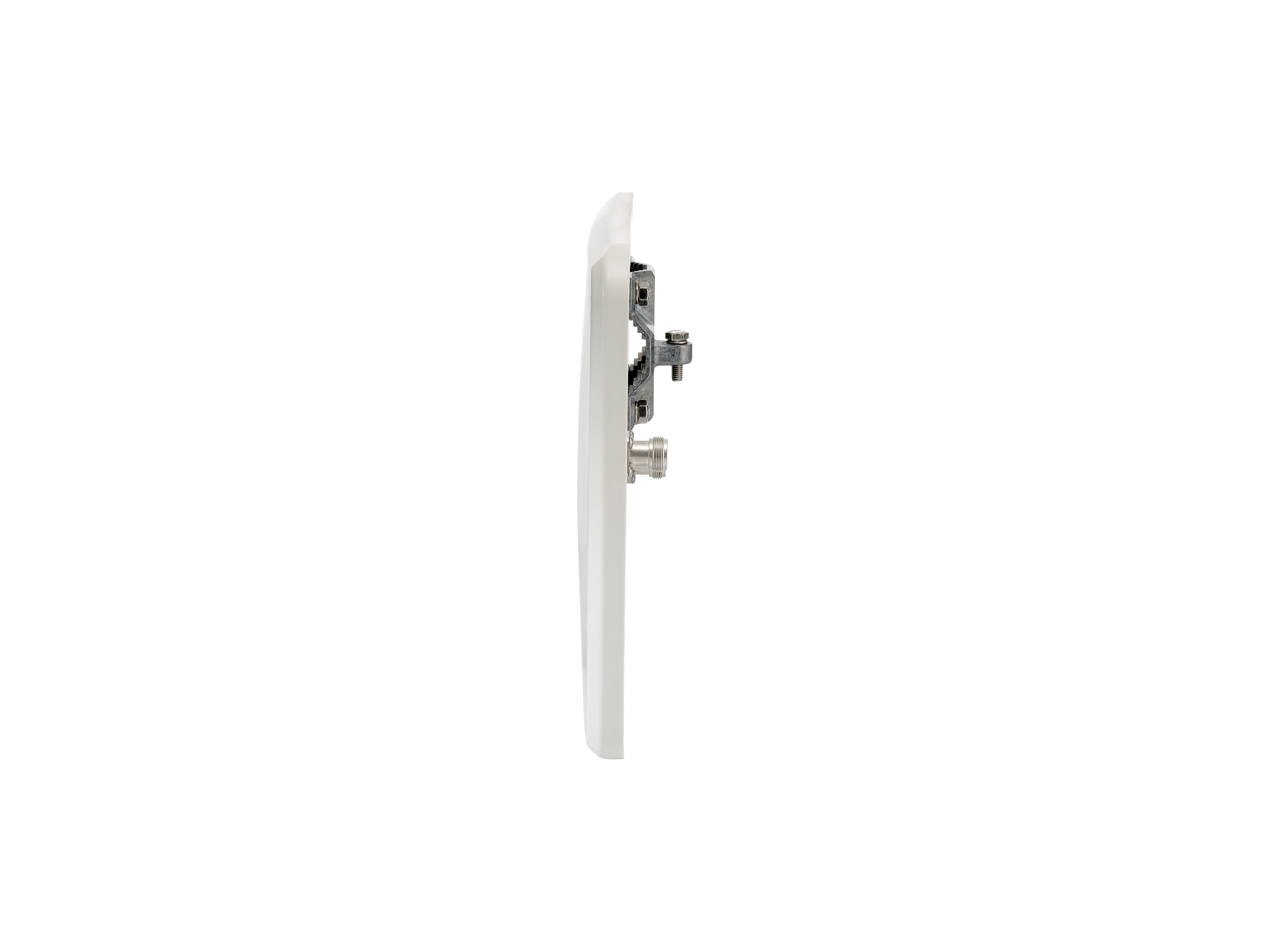

Montering Væg
Husmateriale Acrylonitrilbutadienstyren, Aluminium
Hurtig installationsvejledning Ja
Monteringssæt Ja

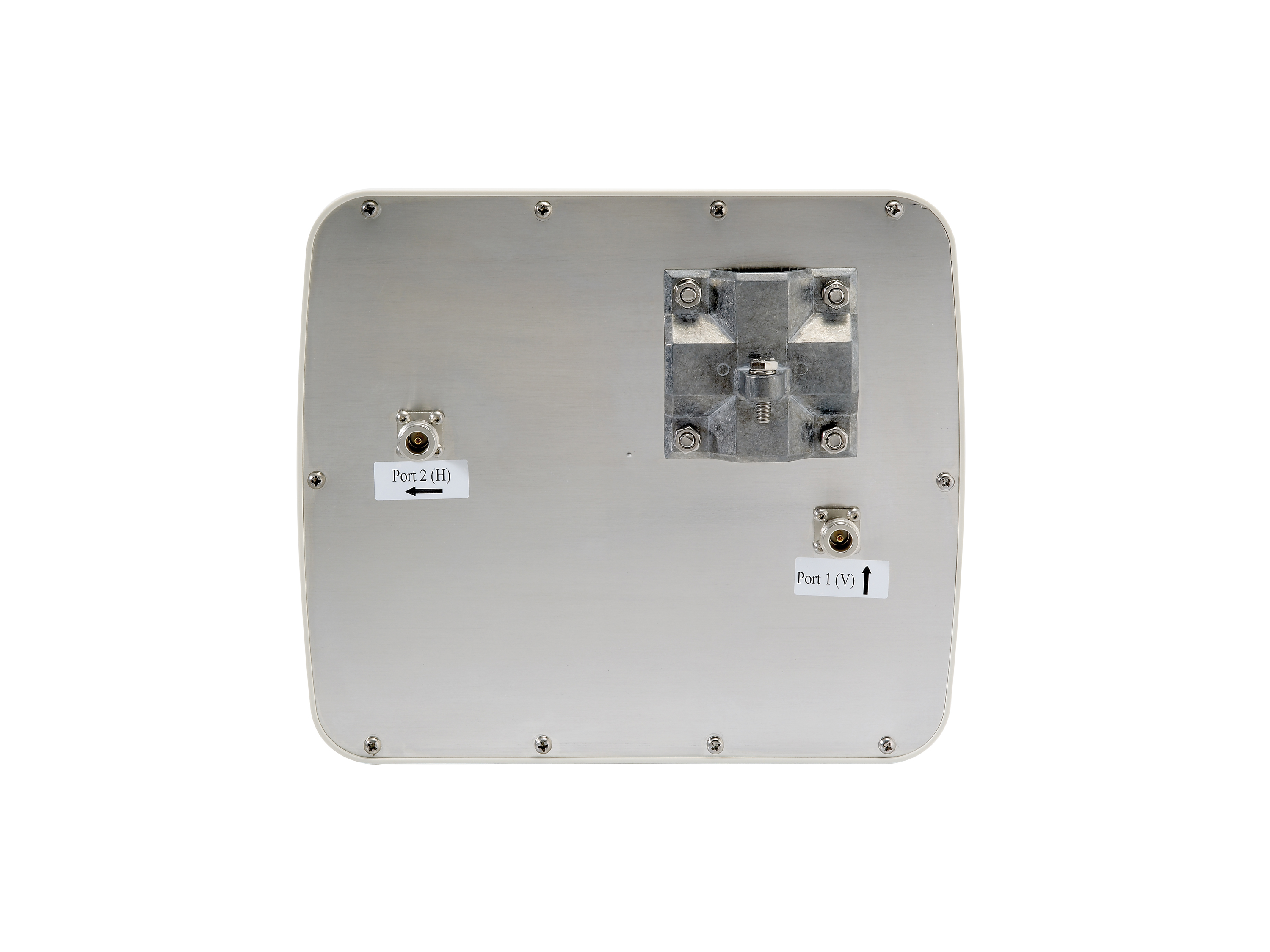

Antennestik type N-type
Stik køn Hunstik
Vandfast Ja
Impedens 50 ohm (Ω)
Antenne type Retningsbestemt antenne
Niveau for antennestyrke (maks.) 18 dBi
Horisontal strålebredde 15°
Vertikal strålebredde 15°
Polarisering Dobbelt polarisering
Stående spændingsbølgeforhold (VSWR) 2,2
Overlevelses vindhastighed 216 km/t
Effekthåndtering 10 W
