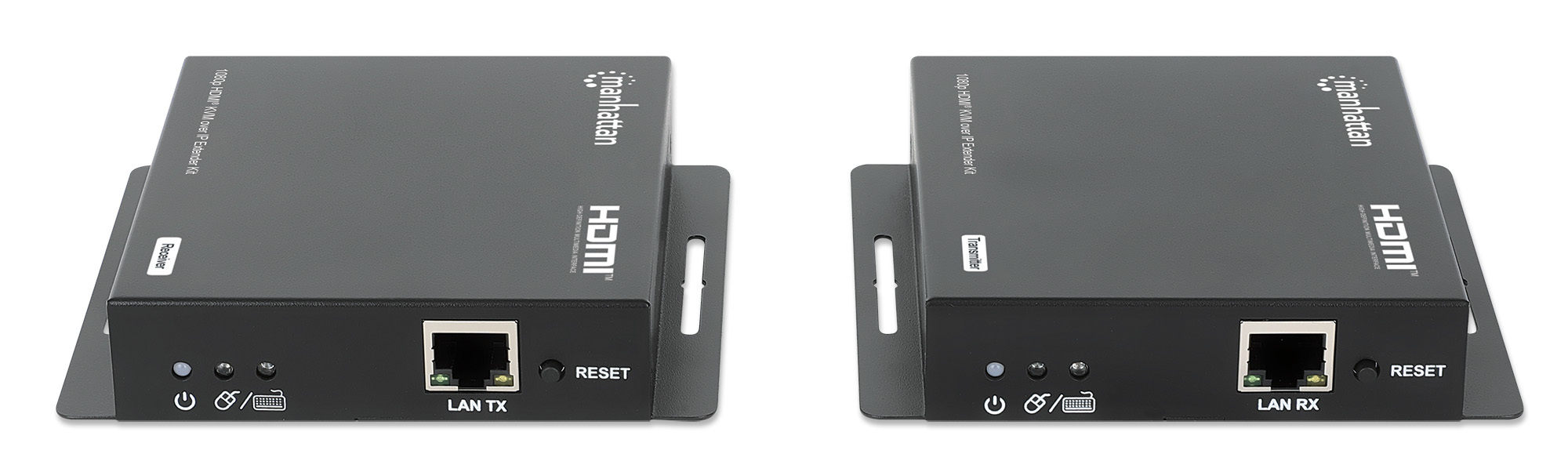

Manhattan 208413 AV forlænger AV sender & modtager Sort

SKU: 1003114181
EAN: 0766623208413

Manhattan 208413, 1920 x 1080 pixel, AV sender & modtager, 120 m, Ledningsført, 3D, HDCP
Mere info
1.309,00 DKK Ex. moms: 1.047,20 DKK På lager

Produktbeskrivelse

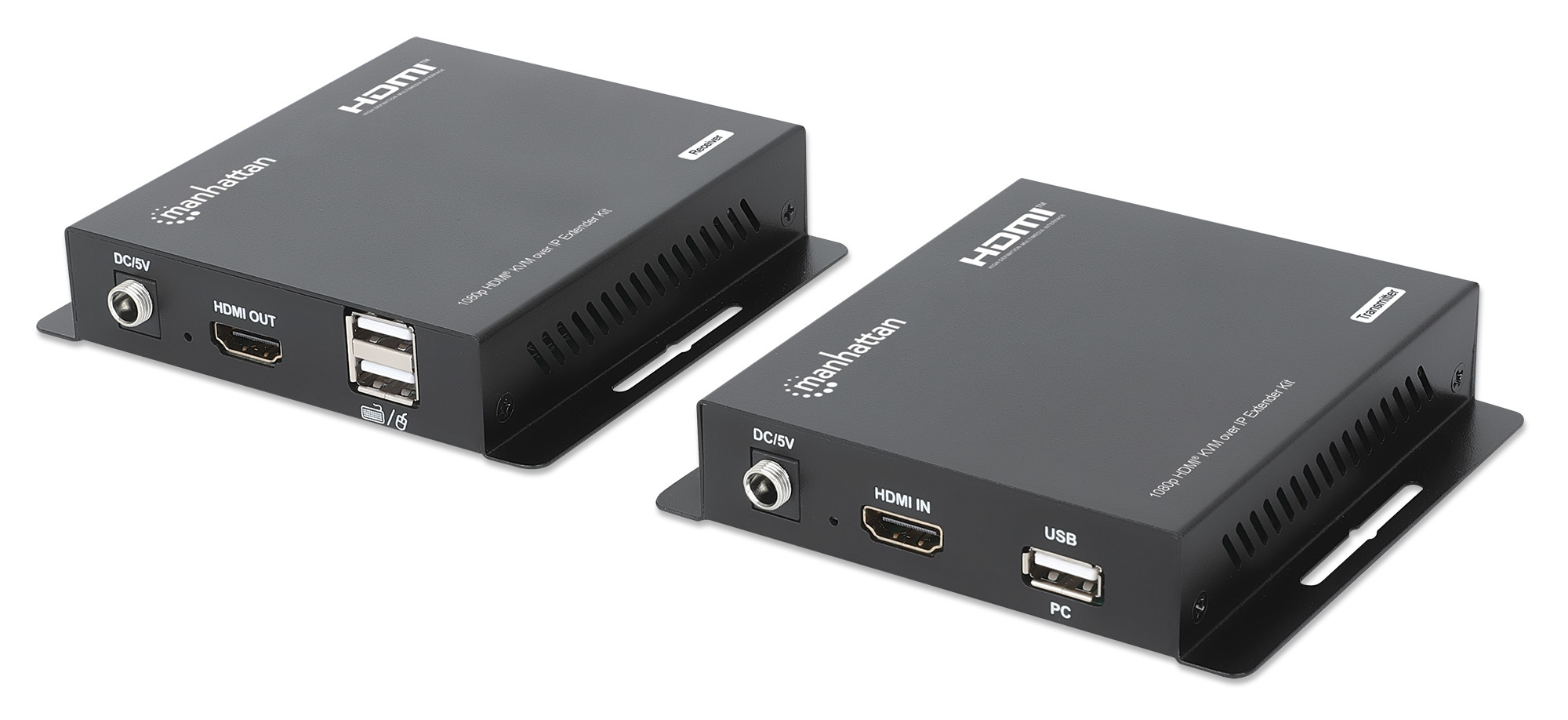

HDMI over IP Extender with KVM function - Remote access via HDMI display, USB keyboard and mouse

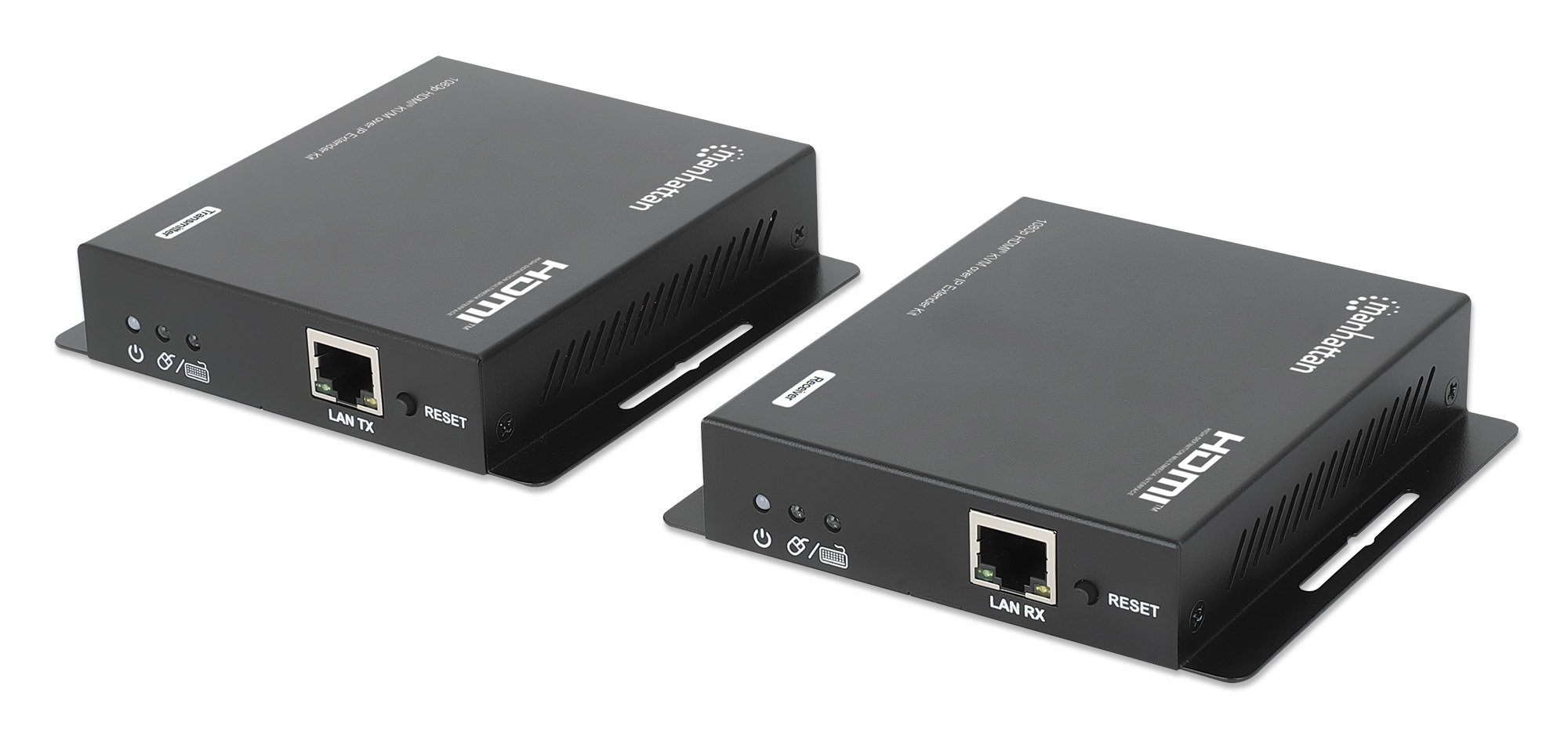

The Manhattan 1080p HDMI KVM over IP Extender Kit lets you access any computer (or other HDMI source) from a keyboard, mouse and display up to 120 m (394 ft.) away. You can either make a direct connection through a single RJ45 Ethernet cable (Cat6 or higher recommended for maximum range and performance) or you connect it to a switch in your existing network to overcome distance limitations.

Versatile Connectivity Options

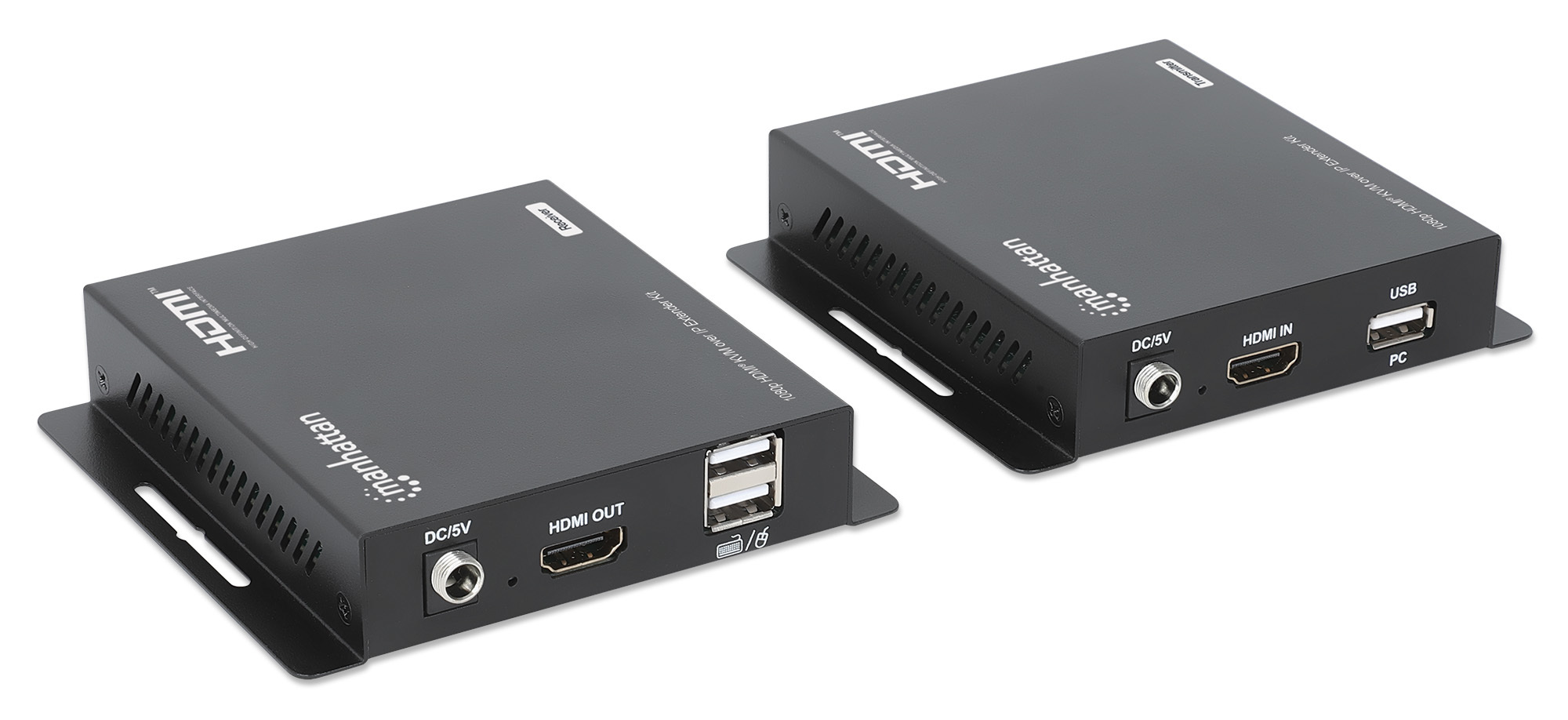

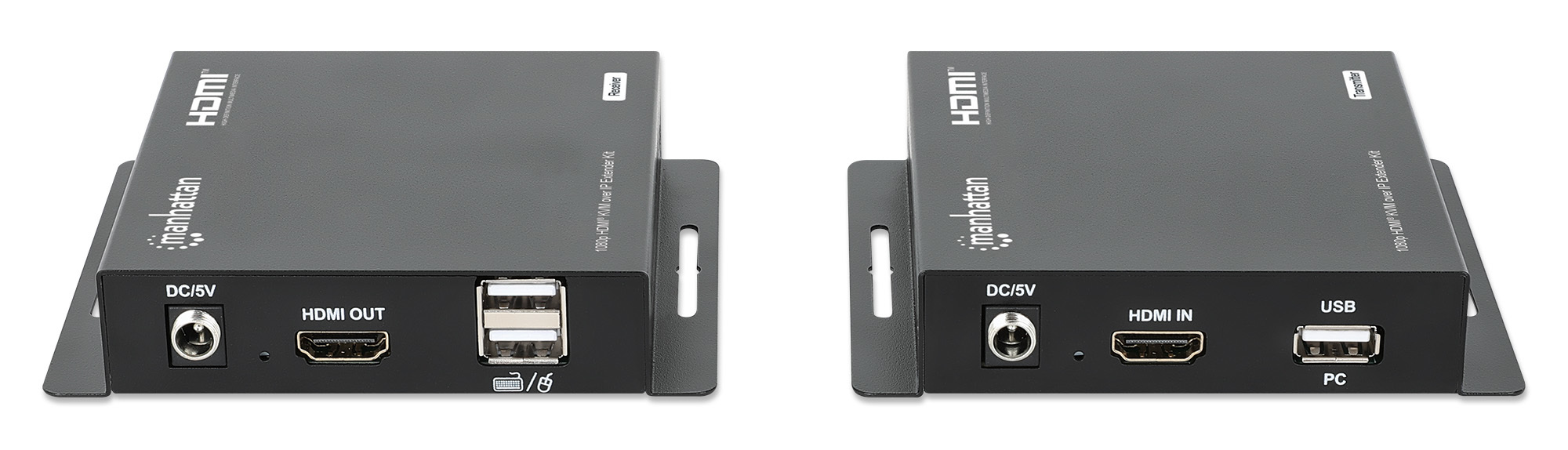

Use this HDMI over IP Extender with KVM function as a regular HDMI extender or as an HDMI KVM switch. As an extender, the HDMI and Ethernet ports can send up to 1080p@60Hz (1920 × 1080) HDMI from your NVR/DVR, Blu-ray player, set-top box or game console to a remote display. As a full-control HDMI KVM switch, both modules also feature USB-A ports that connect your PC, laptop or MacBook® to the transmitter and your keyboard/mouse to the receiver. Since the HDMI KVM extender is independent of your OS, you can use any computer you choose as your remote workstation. This flexibility makes it ideal for in-store POS (Point of Sale) systems and digital cash desks with touchscreens. Built-in mounting brackets on both modules are that let you tidily install its rugged metal housing on the wall or ceiling.

Specifikationer

Type AV sender & modtager
Maksimal opløsning 1920 x 1080 pixel
Understøttede kabeltyper Cat6
Maksimal overførselsafstand 120 m
Maksimal opdateringshastighed 60 Hz
LED-indikatorer Aktivitet, Link, Strøm, USB
Understøttede videotilstande 480p, 720p, 1080i, 1080p
Båndbredde 4,95 Gbit/sek.
HDCP Ja
Materiale Metal
3D Ja
Plug and play Ja
HDCP-version 1.4
Produktfarve Sort
Forbindelsesteknologi Ledningsført
RJ-45 indgangs-porte 1
RJ-45 udgangs-porte 1
HSMI-indgang 1
Antal HDMI-udgange 1
HDMI-version 1.3
Antal USB-porte 3
USB version 2.0
USB-stik type USB Type-A
DC-in-stik Ja
Strømkilde type DC
Vekselstrømsindgangsspænding 100 - 240 V
Vekselstrømsindgangsfrekvens 50 - 60 Hz
Driftsspænding 5 V
Indgangsstrøm 0.4 A
Udgangsstrøm 1 A
Strømforbrug (sender) (maks) 3,5 W
Strømforbrug (modtager) (maks) 2 W
Ekstern strømadapter Ja
Driftstemperatur (T-T) 0 - 50 °C
Opbevaringstemperatur (T-T) -20 - 60 °C
Relativ luftfugtighed ved drift (H-H) 5 - 90%
Bredde 104 mm
Dybde 112 mm
Højde 23 mm
Vægt 430 g
Pakkebredde 295 mm
Pakkedybde 495 mm
Pakkehøjde 322 mm
Pakkevægt 840 g

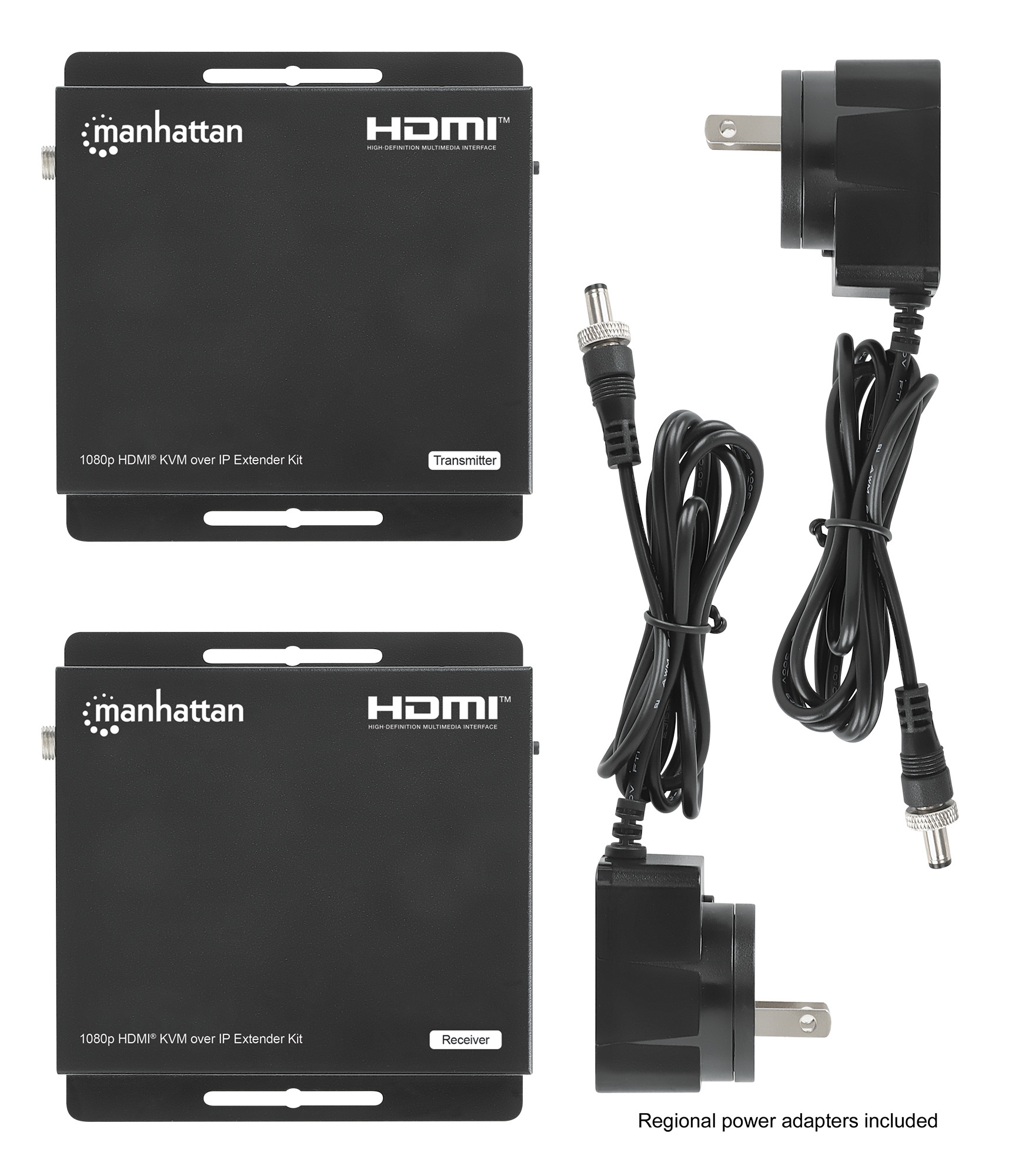

AC-adapter inkluderet Ja
Brugervejledning Ja
Monteringsbeslag inkluderet Ja
Compliance-certifikater UKCA, REACH, Federal Communications Commission (FCC), RoHS, CE
Hovedkassens bredde (udvendigt) 295 mm
Hovedkassens længde (udvendigt) 495 mm
Hovedkassen højde (udvendigt) 322 mm
Hovedkassens bruttovægt (udvendigt) 10 kg
Produkter pr. hovedkasse (udvendigt) 10 stk
