Manhattan 207638 AV forlænger AV sender & modtager Sort

SKU: 992821049
EAN: 0766623207638

Manhattan 207638, 4096 x 2160 pixel, AV sender & modtager, 100 m, Ledningsført, Sort, HDCP
Mere info
2.579,00 DKK Ex. moms: 2.063,20 DKK På lager

Produktbeskrivelse

Easily extend an ultra-high-definition signal via single Ethernet cable.
The Manhattan 4K HDMI HDBaseT over Ethernet Extender Kit is the ideal solution for connecting virtually any digital HDMI source (PlayStation, Xbox, Blu-ray player, satellite receiver, digital recorder, etc.) to an HD display or projector up to 70 m (230 ft.) away - UHD up to 40 m (130 ft.) - via a single Ethernet cable. These powered 4K HDMI HDBaseT over Ethernet Extender Kits provide reliable 1080p or 4K resolution video and multichannel audio transmission over longer distances than HDMI cables alone. Plus, the transmitter and receiver modules have additional 3.5 mm ports for bi-directional Infrared (IR), allowing for the control of the devices at either location.

Flexible Solution for Many A/V Applications
Ideal for trade shows, classrooms, home theatre, conference rooms, business office and retail applications, the Manhattan 4K HDMI HDBaseT over Ethernet Extender Kit is a cost-effective solution that boosts and extends an HDMI signal to where it's needed. Ethernet cabling - UTP, SSTP or SFTP (cables not included) - is less expensive and easier to install than HDMI cabling and in-line signal repeaters. When used with our HDMI HDBaseT over Ethernet Extender Kit, these cables deliver a clear, sharp and vivid picture over longer distances.

Quality Construction and Easy Installation

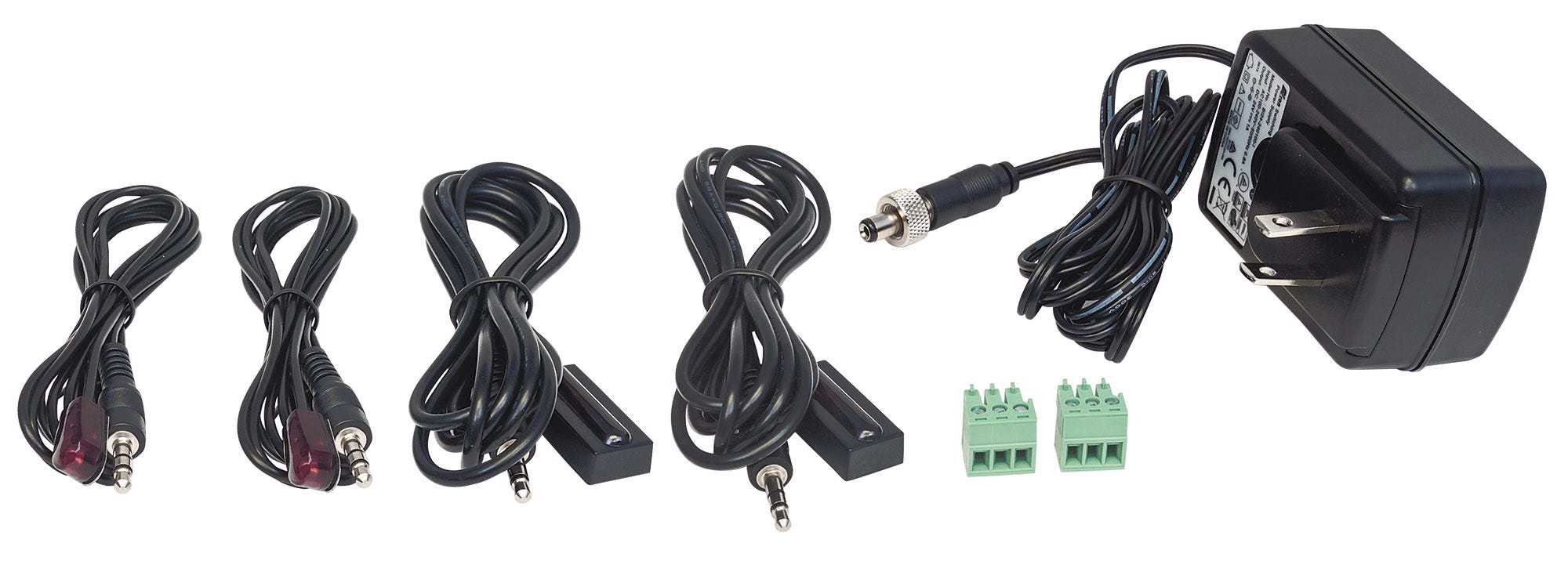

HDCP compliant with HDMI, the Manhattan 4K HDMI HDBaseT over Ethernet Extender Kit is tested to guarantee performance and reliability. It installs quickly without having to run software or install additional hardware. It comes with a power adapter, which powers the receiver or transmitter over Ethernet from the unit using the power adapter, which frees up a power plug for more important applications.

Specifikationer

Type AV sender & modtager
Produktfarve Sort
Bredde 65 mm
Højde 17 mm
Vægt 600 g
Dybde 115 mm
Relativ luftfugtighed ved drift (H-H) 20 - 96%
Opbevaringstemperatur (T-T) -20 - 60 °C
Certificering CE, FCC, RoHS2
Driftsspænding 24 V
Driftstemperatur (T-T) 0 - 40 °C
Forbindelsesteknologi Ledningsført
Materiale Metal
Hurtig start guide Ja
LED-indikatorer Ja
Plug and play Ja
Båndbredde 340 MHz
Indgangsstrøm 1 A
Maksimal overførselsafstand 100 m
Understøttede grafikopløsninger 3840 x 2160, 4096 x 2160
HDCP Ja
Maksimal opløsning 4096 x 2160 pixel
Understøttede videotilstande 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
Understøttede kabeltyper Cat5e, Cat6
AC-adapter inkluderet Ja
DC-in-stik Ja
Monteringssæt Ja
RJ-45 indgangs-porte 1
RJ-45 udgangs-porte 1
Baud hastighed 115 Kbit/s
HSMI-indgang 1
Antal HDMI-udgange 1
HDBaseT certificeret Ja
