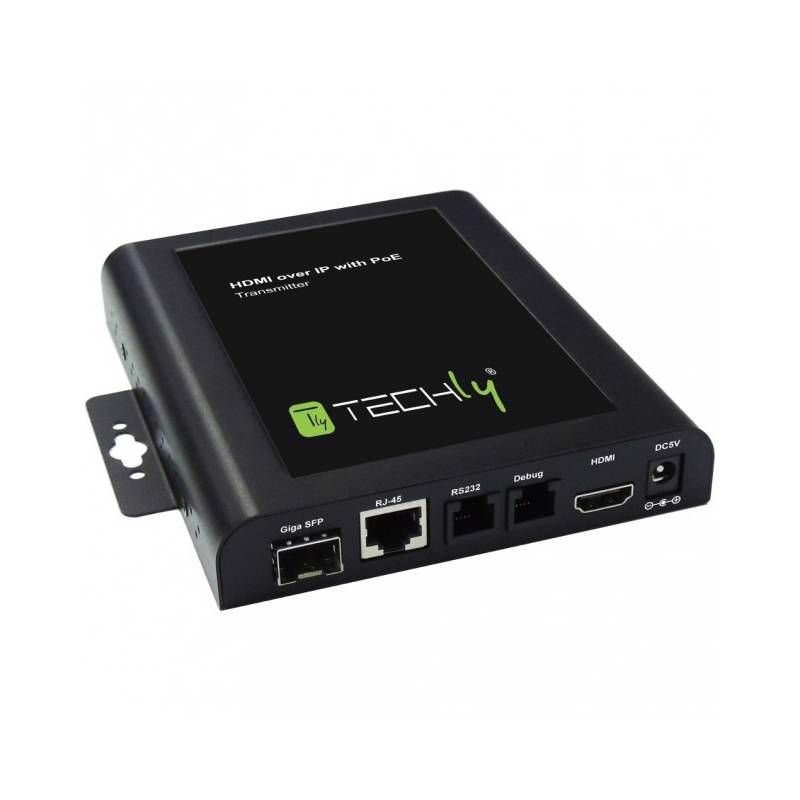

Techly IDATA EXTIP-VW AV forlænger AV sender Sort

The HDMI extender over IP with PoE is an innovative HDMI-over-PoE digital signage.
Designed as a transmitter (HDMI Transmitter over IP PoE) and receiver (HDMI Receiver over IP PoE), it is exceptionally scalable and offers a combination of devices Video Wall up to 8 × 16.
It offers various connectivity options Video Wall for public places such as sports bars, cinemas, stations, and is very popular in places such as rescue centers, institutions for managing security or traffic monitoring units.
You can manage / configure the transmitter / receiver HDMI over IP with PoE intuitively with the setup wizard Video Wall, which is supplied in the package or from the web pages of configuration.

The video signal is distributed by connecting the transmitter HDMI-over-Ethernet (HDMI Transmitter over IP with PoE) to the HDMI video source. Each monitor displays, is connected a receiving unit (receiver with HDMI over IP PoE) to complete the system. The solution is highly flexible and the types Point-to-Point and Point-to-Multipoint could be arranged conveniently.
To meet a variety of application requirements, including the multipoint connection is easily achievable and manageable through IGMP v1 / 2 and a managed network switch, where multiple video sources can be distributed freely to monitor required.
The layout of the video display can be changed with the supplied software utilities. With the advanced technology multicasting bandwidth is not loaded heavily on the number of units shown.

Attention: the transmitter IDATA EXTIP-VW works only in conjunction with the receiver IDATA EXTIP-VWR (sold separately)

Technical specifications
- Up to 8 transmitters 128 and receivers in a single system
- HDMI Video Format
- Network connector: 1000Mbps RJ-45 SFP
- Signal type: HDMI 1.3 and HDCP 1.2 compliant
- HDMI Connector: type A 19 pin female
- Supported cables: CAT5e / 6/7 UTP / FTP / STP cable, Fiber Optic
- Video resolution: 1080p HDTV (1920x1080 @ 60Hz)
- LED: PWR: LED power indicator; LINK: LAN connection indicator; DATA: Link indicator data
- Buttons: Edit Link / Unlink; Mode Engineering
- Power consumption: 5V / 2.5A DC, 802.3af PoE; Power consumption: max. 8W
