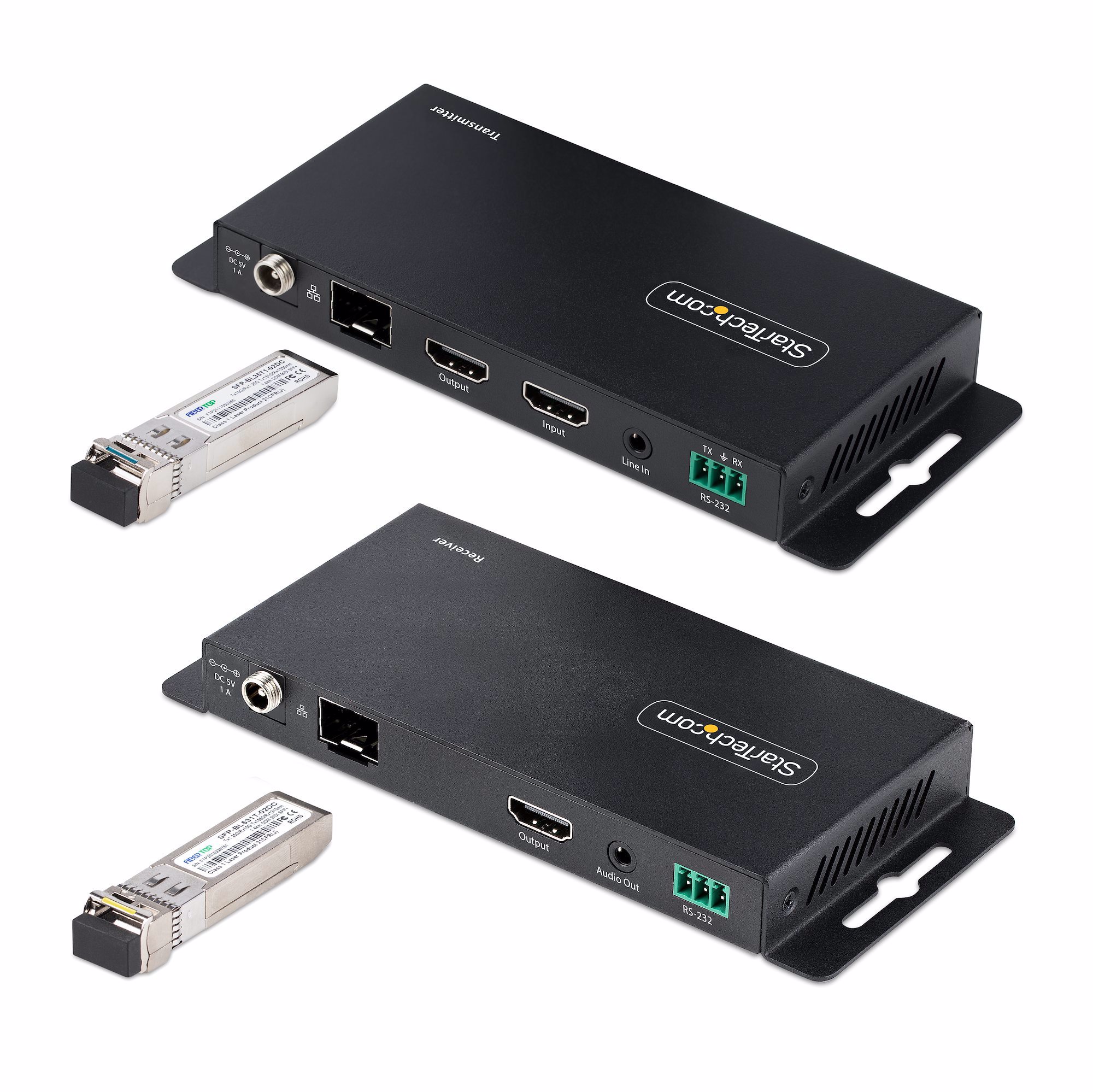

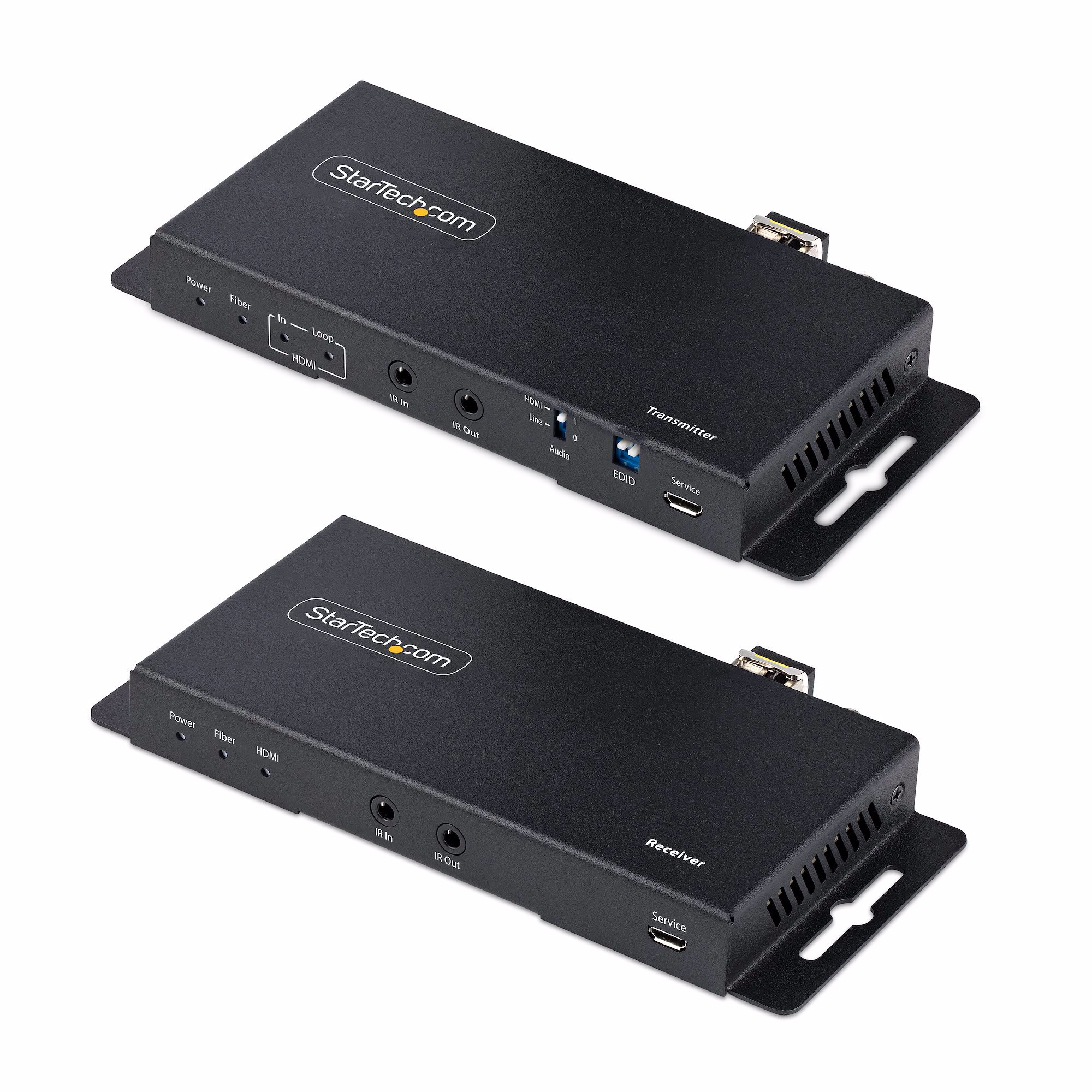

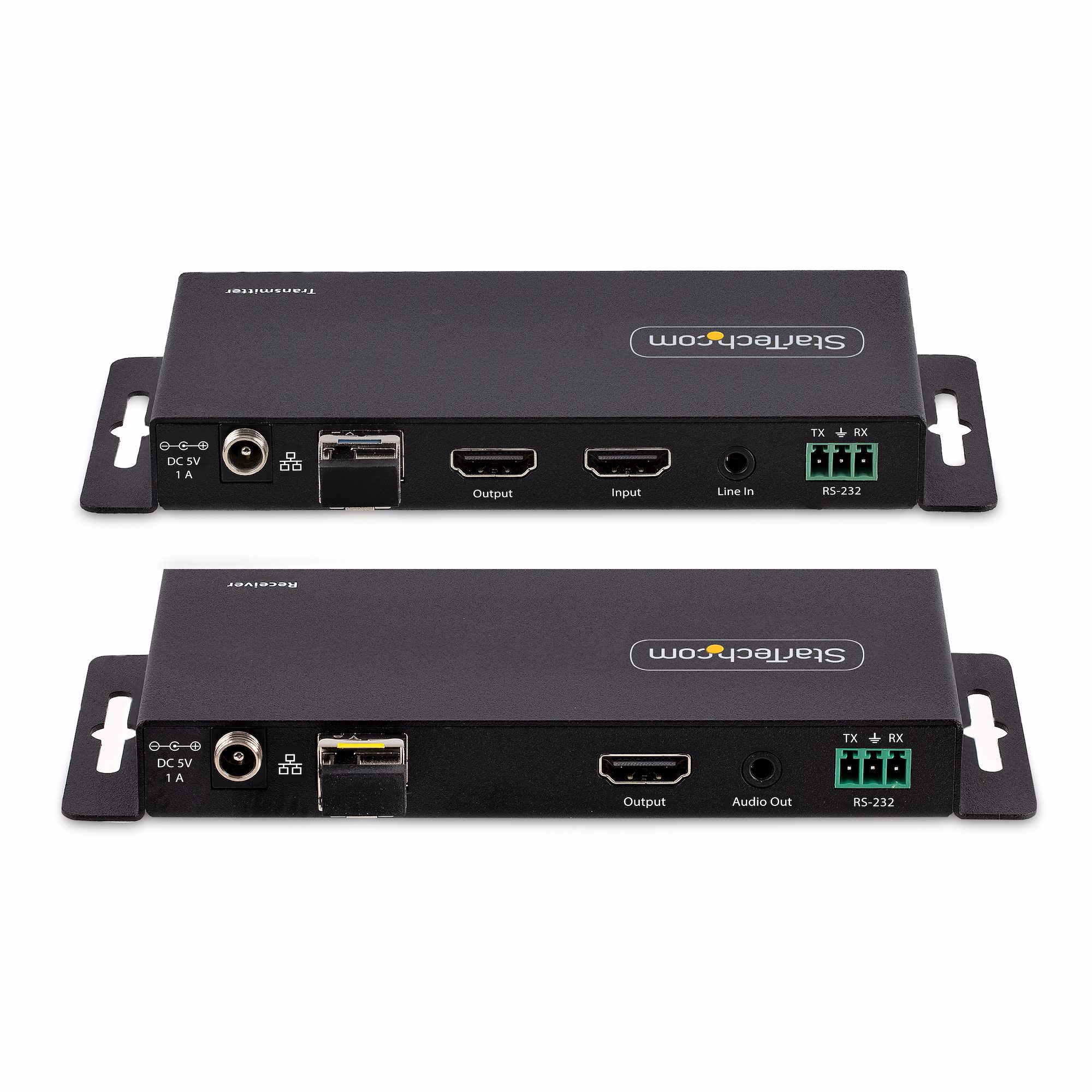

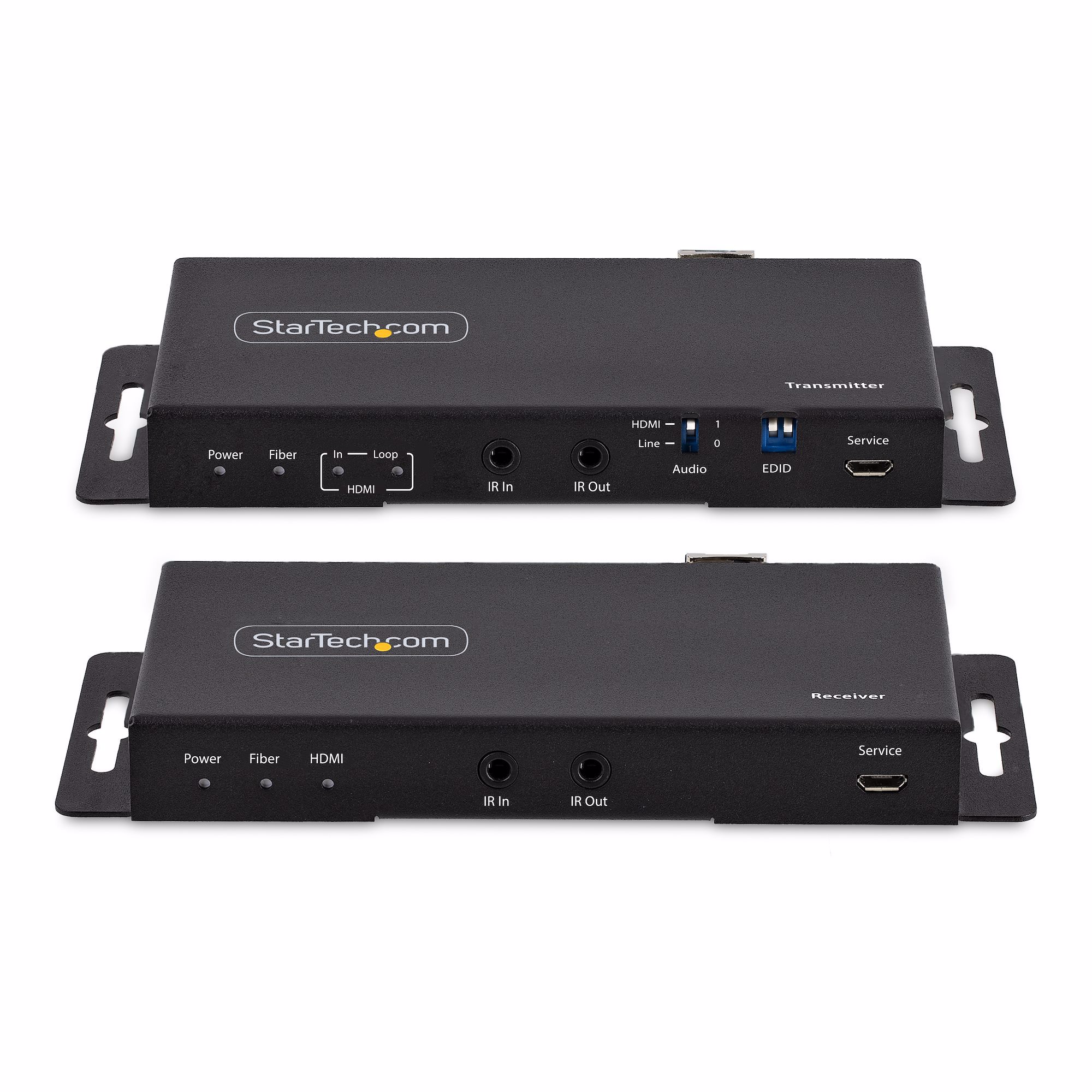

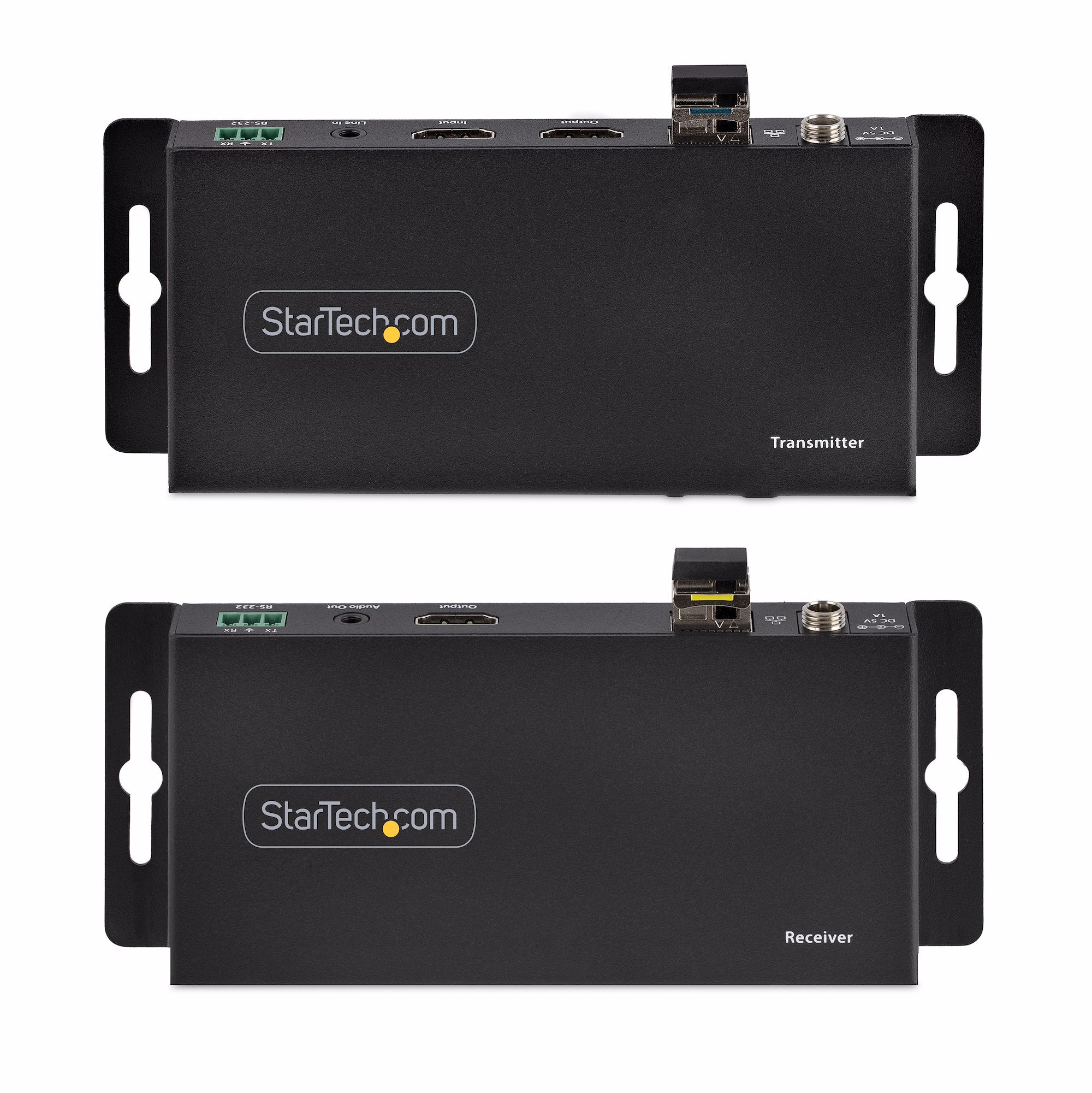

StarTech.com ST121HD20FXA2 AV forlænger AV sender & modtager Sort

SKU: 1001131188
EAN: 0065030897303

StarTech.com ST121HD20FXA2, 4096 x 2160 pixel, AV sender & modtager, 1000 m, Ledningsført, Sort, HDCP
Mere info
6.289,00 DKK Ex. moms: 5.031,20 DKK På lager

Produktbeskrivelse

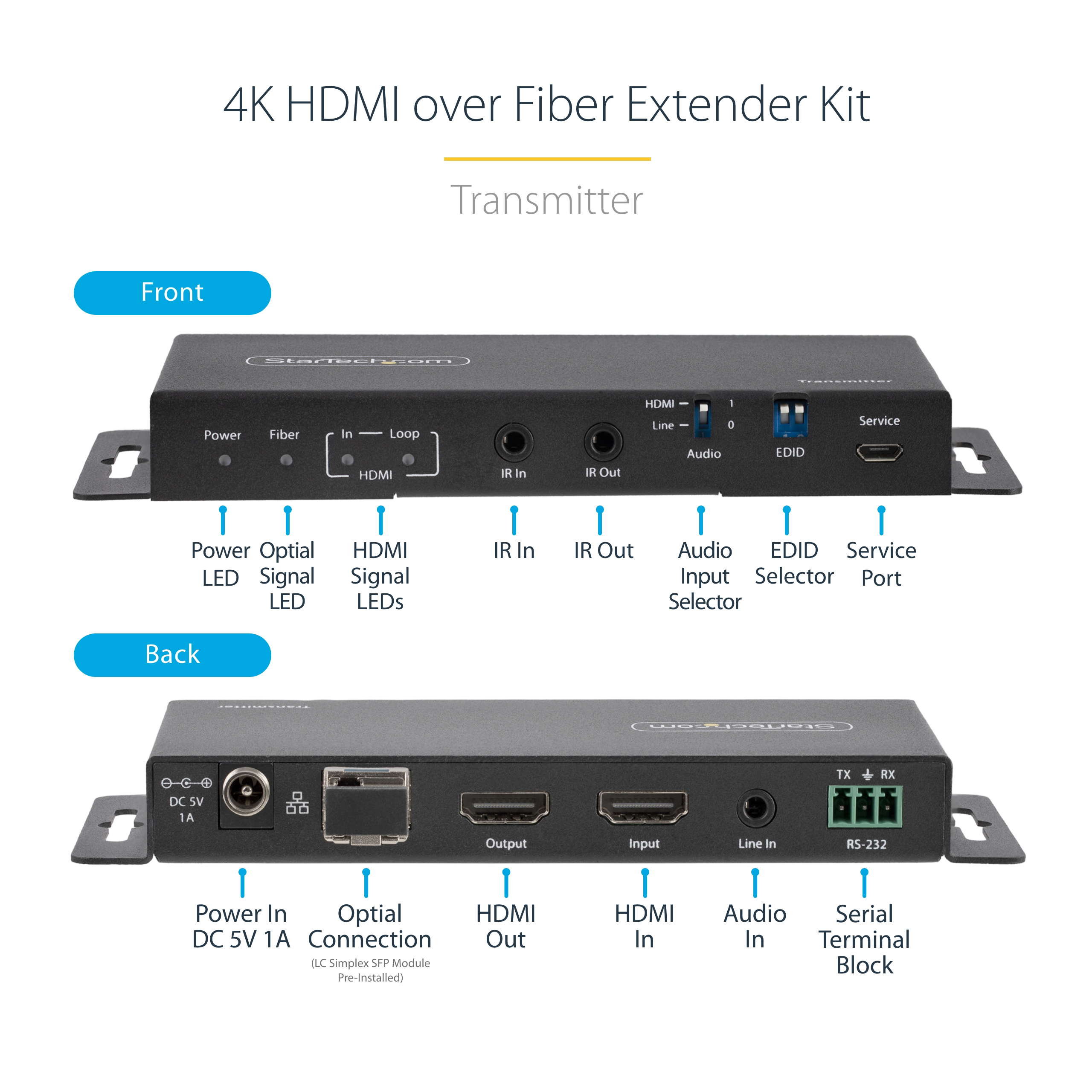

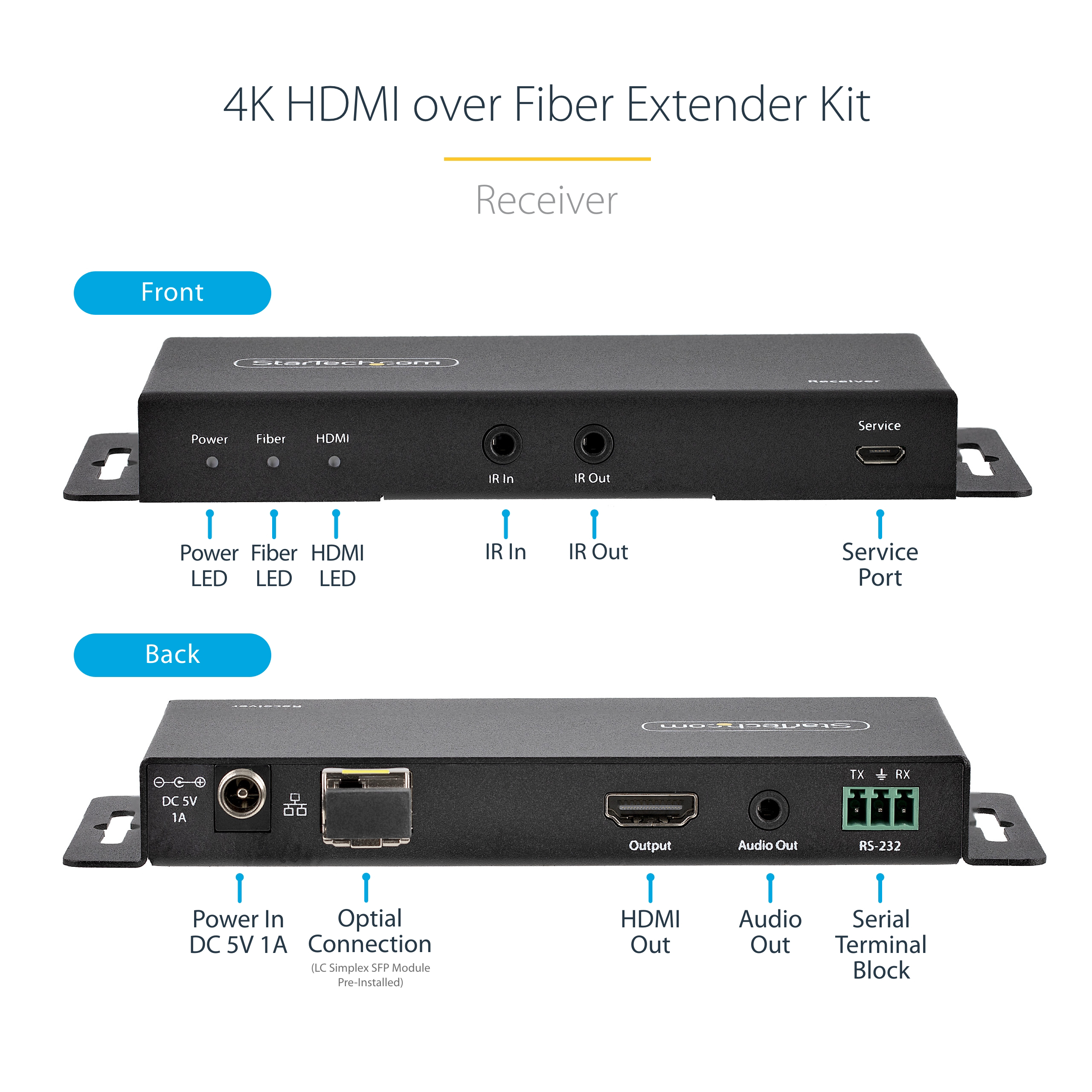

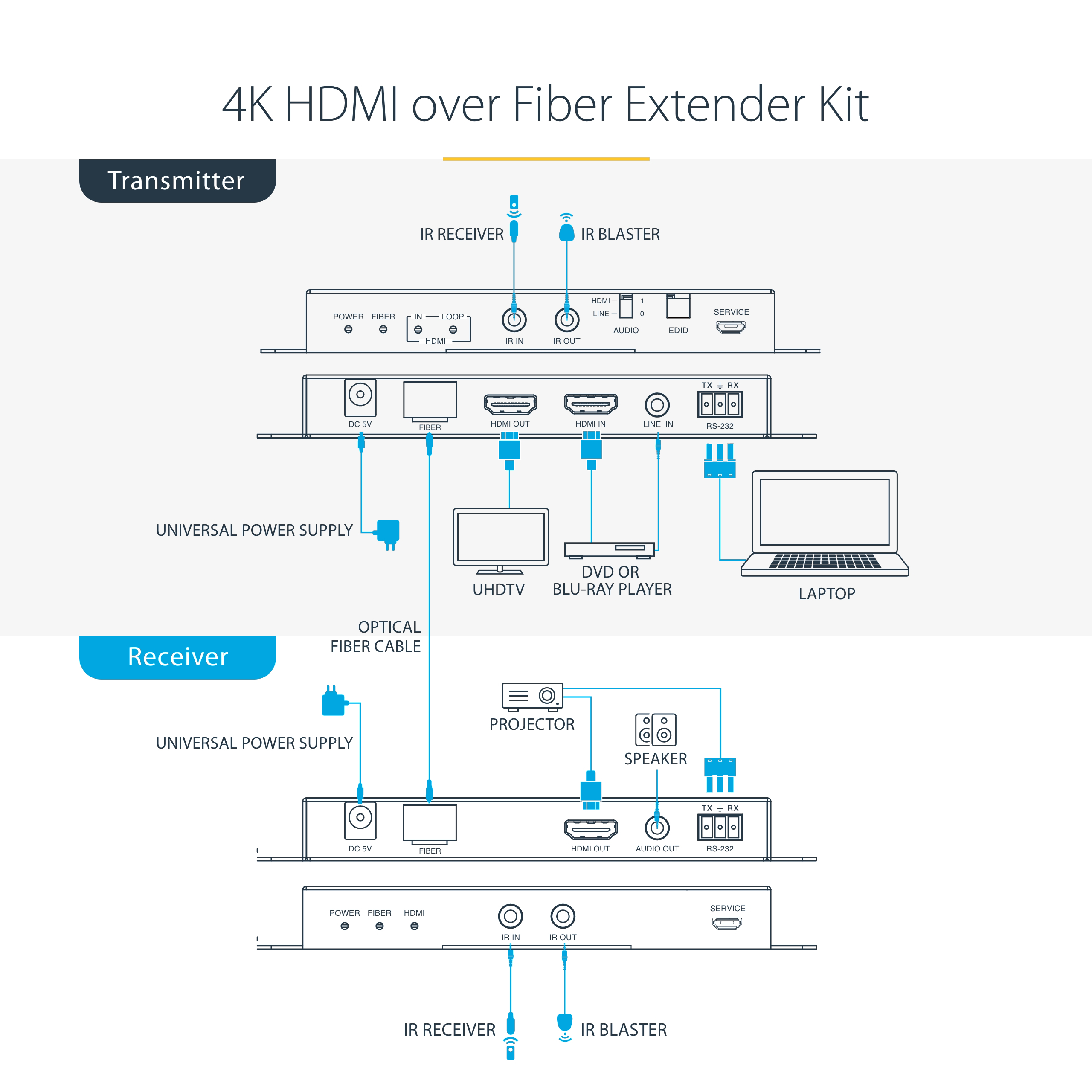

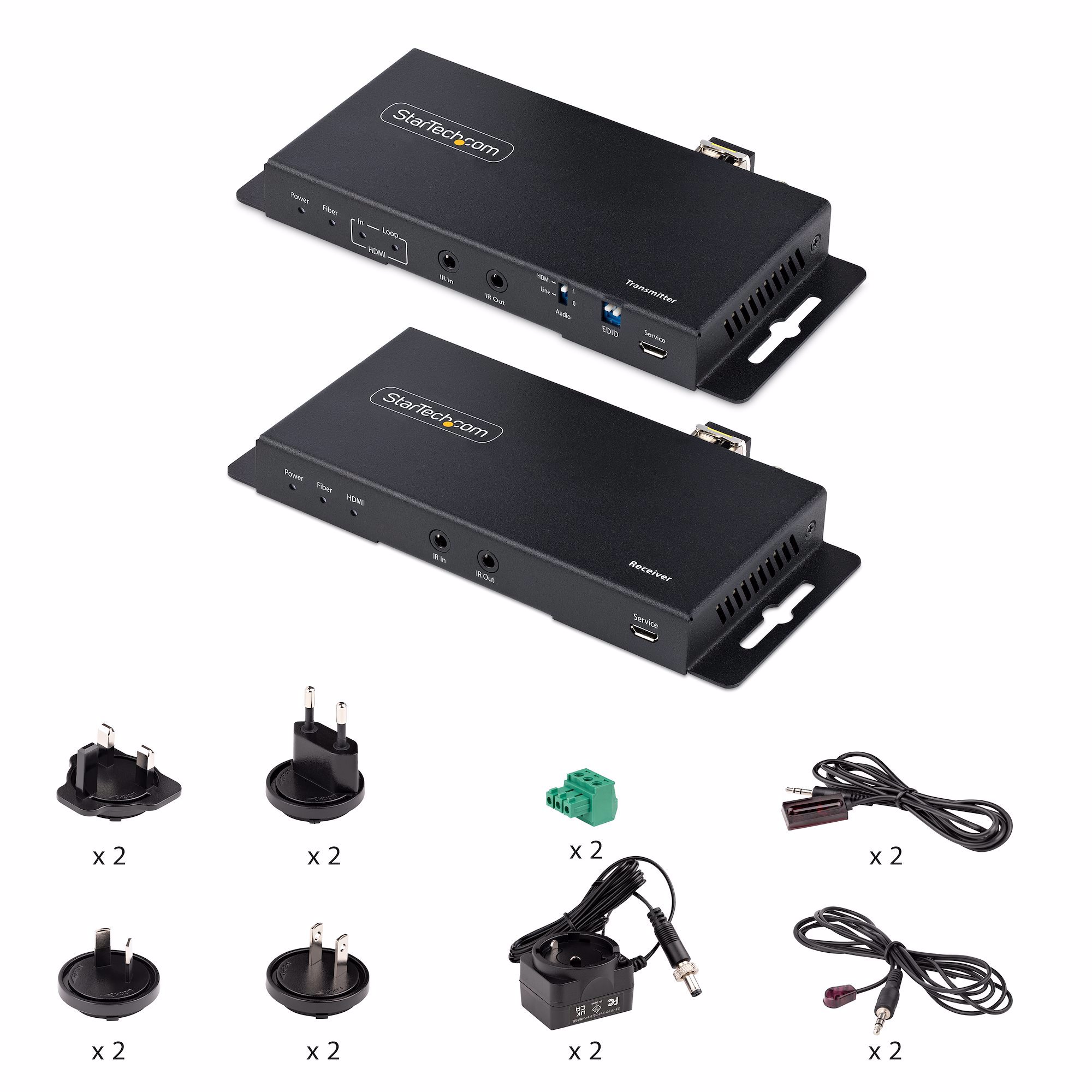

Extend an HDMI® audio and video signal over optical fiber at resolutions of up to 4K 60Hz with 7.1 channel audioThis HDMI over Fiber Extender Kit extends an Ultra HD (UHD) 4K 60Hz HDMI signal, with 7.1ch audio, up to 3300ft over Single Strand LC fiber cable. This converter kit includes both the transmitter and receiver for a complete end-to-end solution.Works with Single Mode or Multimode FiberThis HDMI extender works over Single Mode or Multimode fiber cabling, allowing the utilization of existing fiber infrastructure. The single strand optical fiber provides full-bandwidth video while being immune to Electro-Magnetic Interference (EMI), making it ideal for use in challenging environments.Fiber TypeSingle ModeMulti ModeSupported DistanceUp to 3300ft (1000m)Up to 1000ft (300m)Audio CapabilitiesAudio extraction functionality enables playback of the HDMI source audio via the 3.5mm audio output on the receiver unit. Simultaneous audio playback across both HDMI and 3.5mm outputs is supported, providing flexibility for a variety of audio setups.Hassle-Free InstallationThe point-to-point connection, using LC single strand fiber between the A/V transmitter and receiver, eliminates the need for IP configuration, drivers, or network equipment. The HDMI extension kit features a durable steel housing with built-in mounting brackets, allowing for a tidy and secure installation.The HDMI over Fiber kit features a local HDMI output and IR/serial extension for a convenient and versatile setup. Ideal for setups that include projectors with RS232 controls, or A/V equipment with IR remote controls. The enhanced EDID Copy functions ensure the correct display information is used during the setup process. LED indicators allow for status monitoring. 8kV air and 6kV contact Electrostatic Discharge (ESD) protection ensures the safety and longevity of the equipment.This product is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance.The StarTech.com Advantage

Specifikationer

Type AV sender & modtager
Produktfarve Sort
Pakkevægt 1 kg

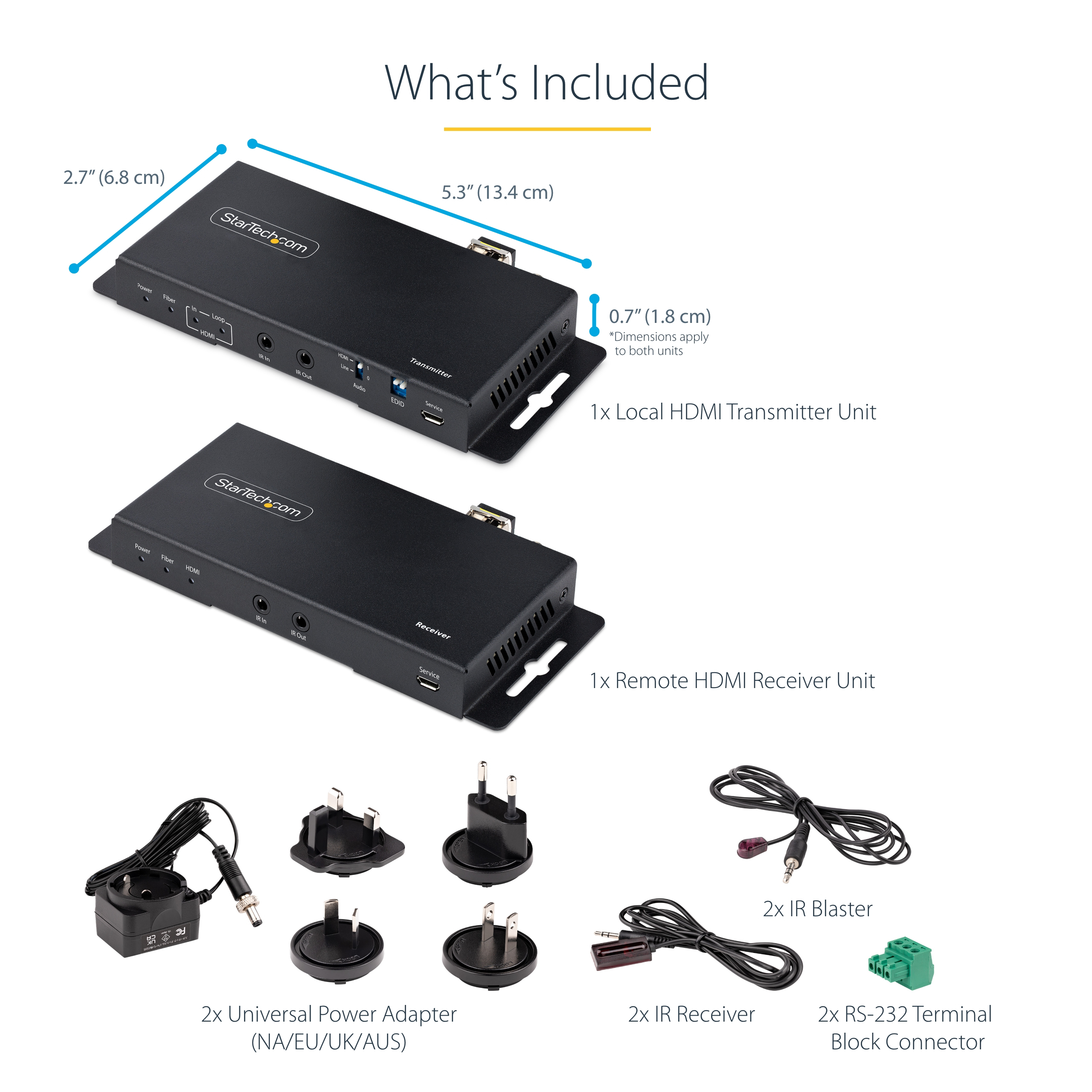

Bredde 68 mm
Højde 18 mm
Vægt 280 g
Dybde 134 mm
Relativ luftfugtighed ved drift (H-H) 20 - 90%
Opbevaringstemperatur (T-T) -20 - 60 °C
Pakkebredde 200 mm
Pakkedybde 300 mm
Pakkehøjde 60 mm
Driftsspænding 5 V
Driftstemperatur (T-T) 0 - 40 °C
Vekselstrømsindgangsspænding 100 - 240 V
Forbindelsesteknologi Ledningsført
Fibertilstandsstruktur Multitilstand, Enkeltilstand
Lyd-output kanaler 7.1 kanaler
Strømstiktype Type M
Hurtig start guide Ja
Hovedkassens bredde (udvendigt) 325 mm
Hovedkassens længde (udvendigt) 530 mm
Hovedkassen højde (udvendigt) 402 mm
Produkter pr. hovedkasse (udvendigt) 20 stk
LED-indikatorer Aktivitet, Strøm
Båndbredde 18 Gbit/sek.
Indgangsstrøm 0.35 A
Fiber optisk strømstik LC
Maksimal overførselsafstand 1000 m
Fiberkanal porte 2
Bæredygtighedscertifikater CE, RoHS
HDCP Ja
Maksimal opløsning 4096 x 2160 pixel
Maksimal opdateringshastighed 60 Hz
AC-adapter inkluderet Ja
Udgangsstrøm 1 A
USB-stik type Micro-USB B
DC-in-stik Ja
Chipsæt SiFotonics SD1503/SD1513
Antal USB-porte 2
Overholdelse af bæredygtighed Ja
Seriel grænsefladetype RS-232
Antal serielle porte 2
Line-in Ja
HDMI-version 2.1
HDCP-version 2.2
Udvidet display identifikationsdata (EDID) Ja
Fjernbetjening (IR) indgang 2
Baud hastighed 115,2 Kbit/s
High Dynamic Range (HDR) understøttet Ja
HSMI-indgang 1
Antal HDMI-udgange 2
HDR-teknologi (High Dynamic Range) High Dynamic Range 10 (HDR10)
Elektrostatisk afladning association (ESD) 8 kV
Fjernbetjening (IR) udgang 2
Linie-udgang (RCA) 1
Infrarødt (IR) frekvens rækkevidde 20 - 60 kHz
IR blaster inkluderet Ja
IR-modtager inkluderet Ja
Elektrostatisk udledningsbeskyttelse (ESD) Ja
