StarTech.com STDHVHDBT AV forlænger AV sender & modtager Sort

SKU: 992021032
EAN: 0065030864572

StarTech.com STDHVHDBT, 4096 x 2160 pixel, AV sender & modtager, 70 m, Sort
Mere info
7.299,00 DKK Ex. moms: 5.839,20 DKK På lager

Produktbeskrivelse

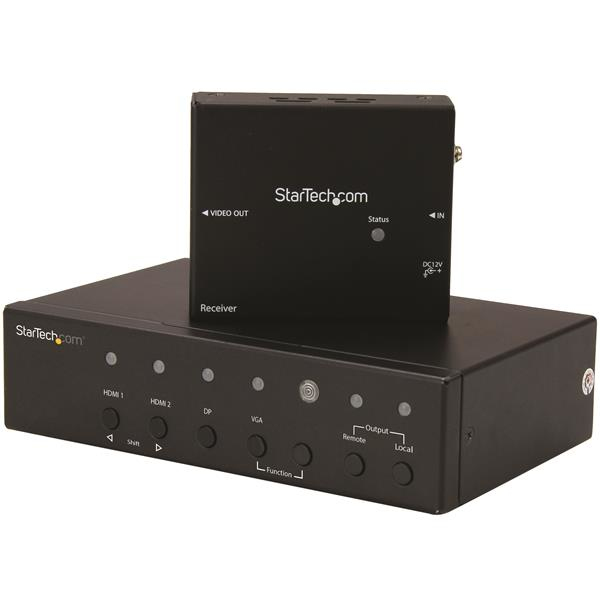

Connect your laptop to a remote display over standard CAT5e or CAT6 cabling, and easily swap between HDMI, DP or VGA video sourcesThis multi-input video extender kit uses HDBaseT™ technology to extend your video signals up to 230 feet (70 meters) over a single CAT5e or CAT6 cable. It features a built-in video switch that enables you to choose which video source is outputted from four independent video sources (2 x HDMI, 1 x VGA and 1 x DisplayPort).The video extender supports Ultra HD 4K and Full HD 1080p video resolutions, with support for the accompanying digital 7.1 audio.Seamless multi-interface operation, with a switch and extender in oneThis HDBaseT extender features a built-in converter switch, so you can connect two HDMI sources as well as a VGA and a DisplayPort video source to the same remote HDMI display, without having to use additional adapters or scalers or a separate video switch.With support for multiple video sources and HDBaseT, this extender is the perfect solution for adding a large display to your boardroom or classroom, enabling BYOD laptops with HDMI, DisplayPort or VGA outputs to share their display with the room.Effortless control with automatic or priority switchingThe extender switch ensures hassle-free operation, with two different auto-switching modes: auto-detect switching, which detects and selects a newly connected device, or priority selection, which lets you choose which port should be activated by default for automatic switching.The multi-input video extender kit is perfect for digital signage applications, where an automatic switch can replace a failed source with a secondary input to avoid embarrassing video outages. Plus, the combined built-in HDBaseT functionality means you can connect a remote digital signage display with one kit that reduces failure points.Hassle-free integration with your existing infrastructureThe kit extends your video signal over a single cable, unlike some video extender systems that require two cables and only offer minimal audio support. Extending your video with one cable reduces potential failure points and also lowers your cabling costs.Using standard CAT5e, CAT6 or CAT7 cables, the HDBaseT extender works with existing Ethernet infrastructure that's already built into large commercial buildings such as shopping centers, stadiums, schools, and hospitals, making it the perfect solution for deploying digital signage.Astonishing 4K picture quality from an impressive distanceWith high-quality HDMI cables beginning signal degradation at 30 feet, it can be difficult to maintain the brilliance of 4K video even at shorter distances. But with HDBaseT, you’ll be amazed at how your Ultra HD picture -- four times the resolution of high-definition 1080p, is just as brilliant even at distances up to 130 feet from your video source.Even if you're not running 4K, HDBaseT supports High-Definition 1080p and lower resolutions at even greater distances, up to 230 feet from your source, giving you peace of mind knowing that this extender will comfortably work with any HDMI video source and display.What is HDBaseT?HDBaseT is a zero-latency connectivity standard that’s revolutionizing HDMI distribution. HDBaseT uses an advanced method of modulation that enables you to distribute uncompressed HDMI audio and video, along with additional signals, over a single Ethernet cable. Offering greater versatility than traditional HDMI extenders and longer distances than HDMI cables alone, HDBaseT is the clear choice for every integrator and system designer, because it can do so much, with just a single cable.The STDHVHDBT is TAA compliant and backed by a StarTech.com 2-year warranty with free lifetime technical support.The StarTech.com Advantage

Specifikationer

Type AV sender & modtager
Produktfarve Sort
Pakkevægt 1,68 kg
Bredde 160 mm
Højde 40 mm
Vægt 918 g
Dybde 100 mm
Relativ luftfugtighed ved drift (H-H) 0 - 80%
Opbevaringstemperatur (T-T) -10 - 60 °C
Pakkebredde 205 mm
Pakkedybde 298 mm
Pakkehøjde 62 mm
Certificering CE, FCC, REACH, TAA
Driftsspænding 12 V
Driftstemperatur (T-T) 0 - 40 °C
Stativ-montering Ja
Vekselstrømsindgangsspænding 100 - 240 V
Strømforbrug (typisk) 18 W
Lyd-output kanaler 7.1 kanaler
Strømstiktype Type M
Hurtig start guide Ja
Hovedkassens bredde (udvendigt) 322 mm
Hovedkassens længde (udvendigt) 406 mm
Hovedkassen højde (udvendigt) 262 mm
Produkter pr. hovedkasse (udvendigt) 6 stk
LED-indikatorer Ja
Plug and play Ja
3,5 mm ind Ja
Indgangsstrøm 0.6 A
Maksimal overførselsafstand 70 m
Bæredygtighedscertifikater RoHS
Kabler inkluderet LAN (RJ-45), Telefon (RJ-11)
Maksimal opløsning 4096 x 2160 pixel
Maksimal opdateringshastighed 60 Hz
Understøttede videotilstande 720p, 1080p, 2160p
Understøttede kabeltyper Cat5e, Cat6
AC-adapter inkluderet Ja
Udgangsstrøm 1,5 A
DC-in-stik Ja
Lydsystem Multikanal
Fjernbetjening inkluderet Ja
Monteringssæt Ja
Inkluderede strømstik typer ANZ, EU, NA, UK
Ekstern strømadapter Ja
Fjernbetjeningstype IrDA
Gummifødder Ja
RJ-45 indgangs-porte 1
RJ-45 udgangs-porte 1
Daisy kæde Ingen
Fjernbetjening (IR) indgang 1
Monteringsbeslag inkluderet Ja
Understøttelse af lyd Ja

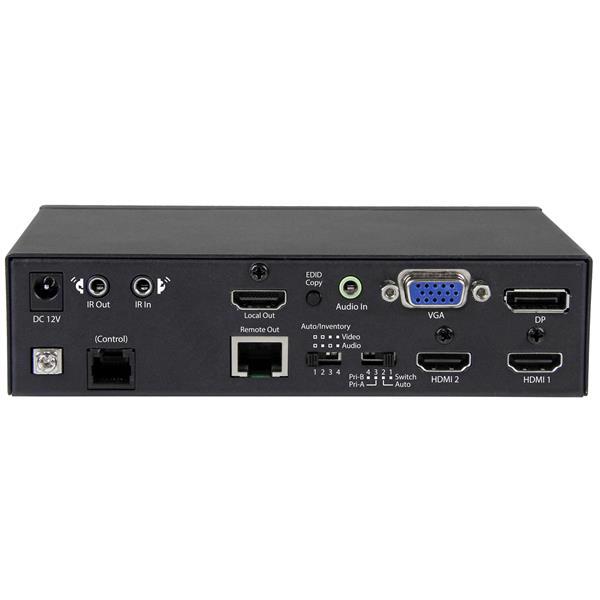

VGA (D-Sub) indgangsporte 1
HSMI-indgang 2
Antal HDMI-udgange 2
Fjernbetjening (IR) udgang 1
DisplayPorts indgang 1
HDBaseT certificeret Ja
