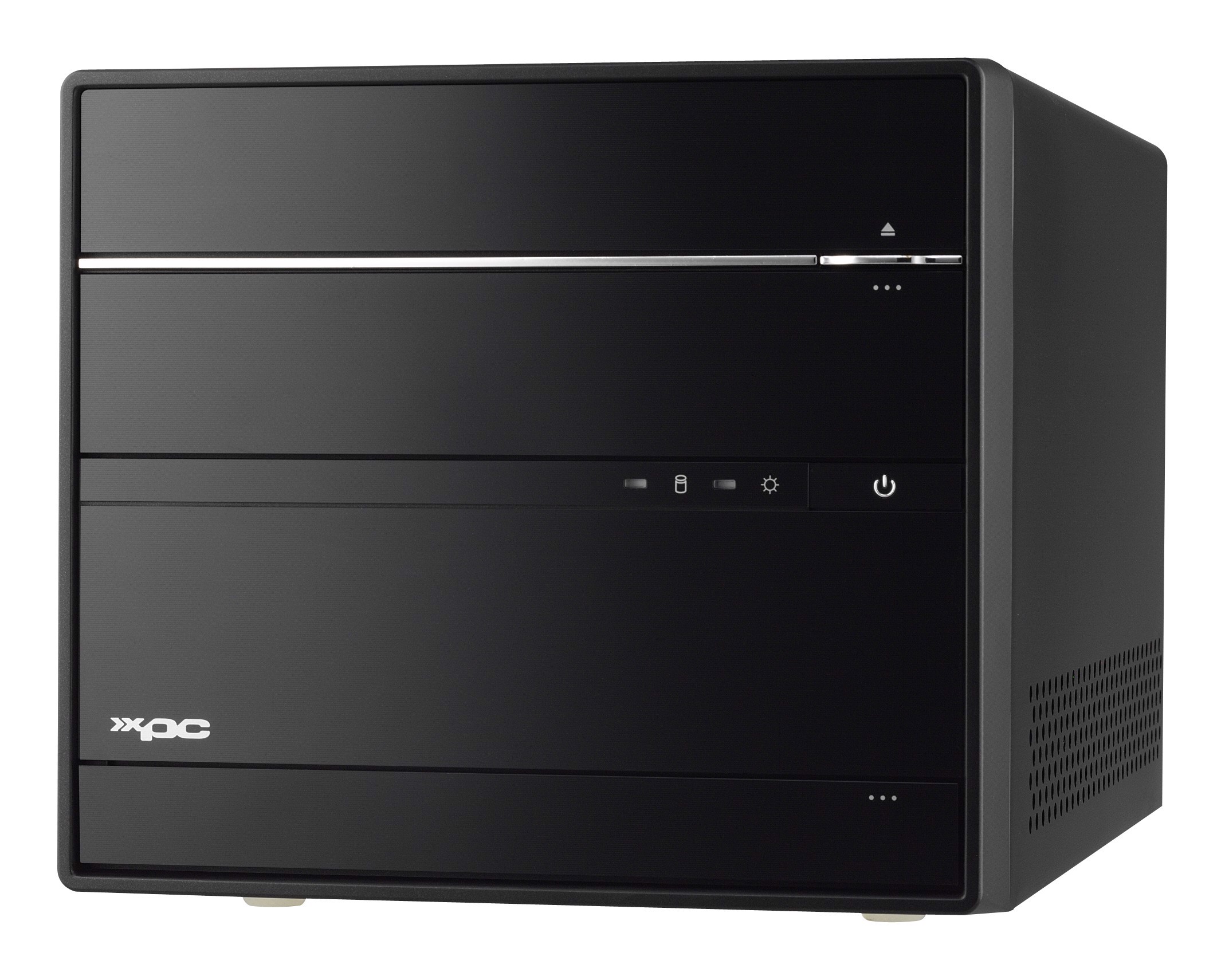

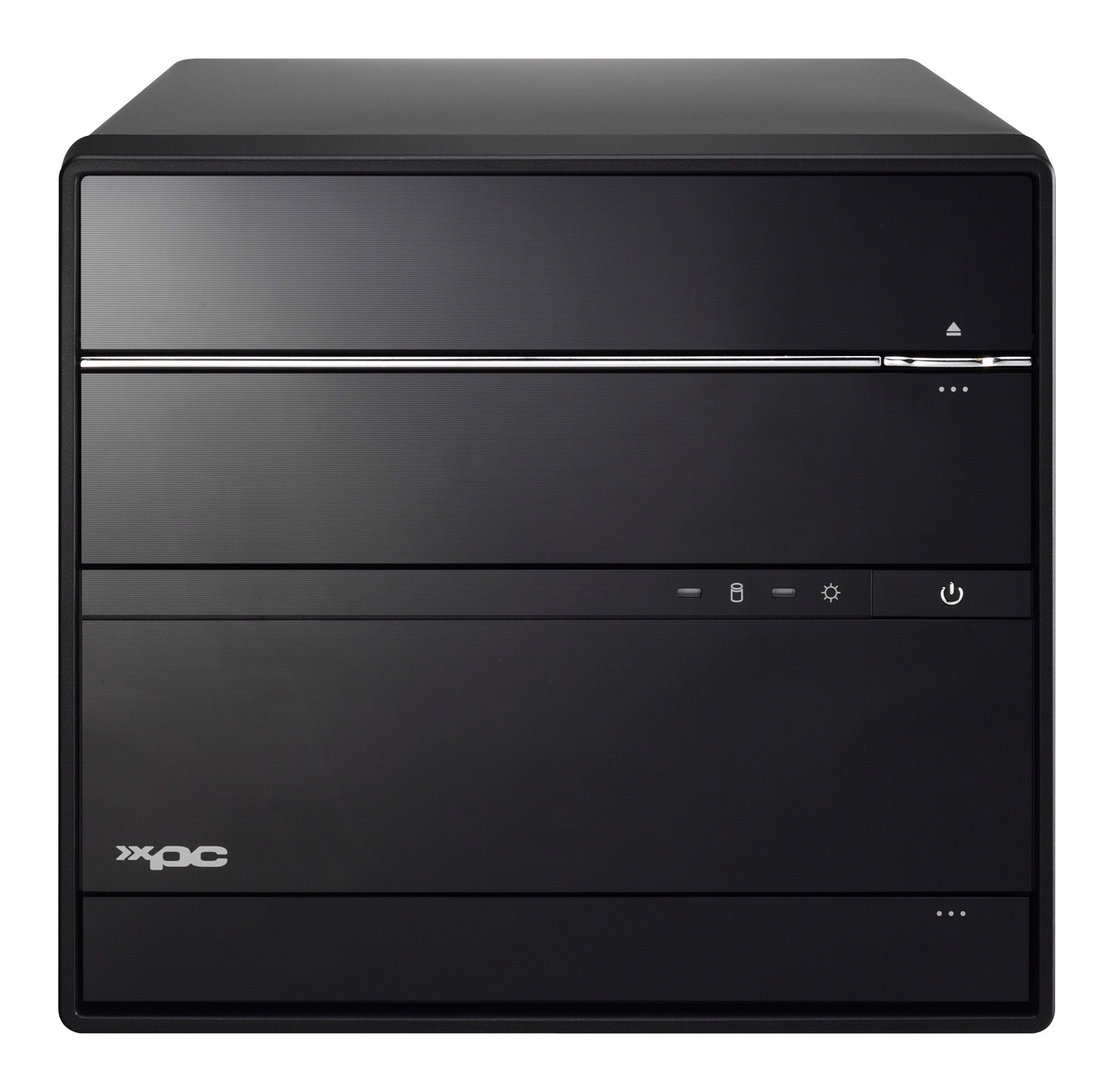

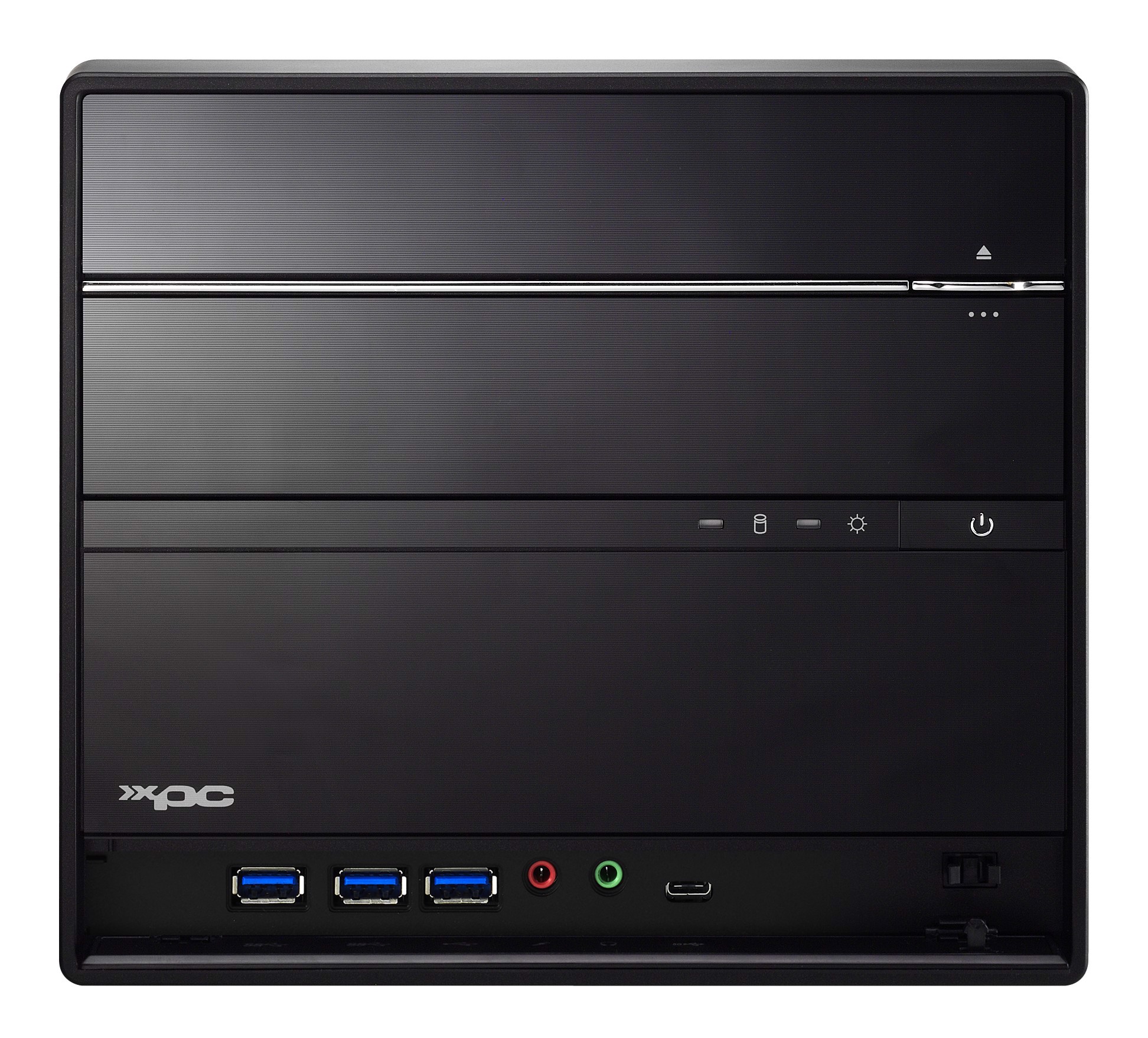

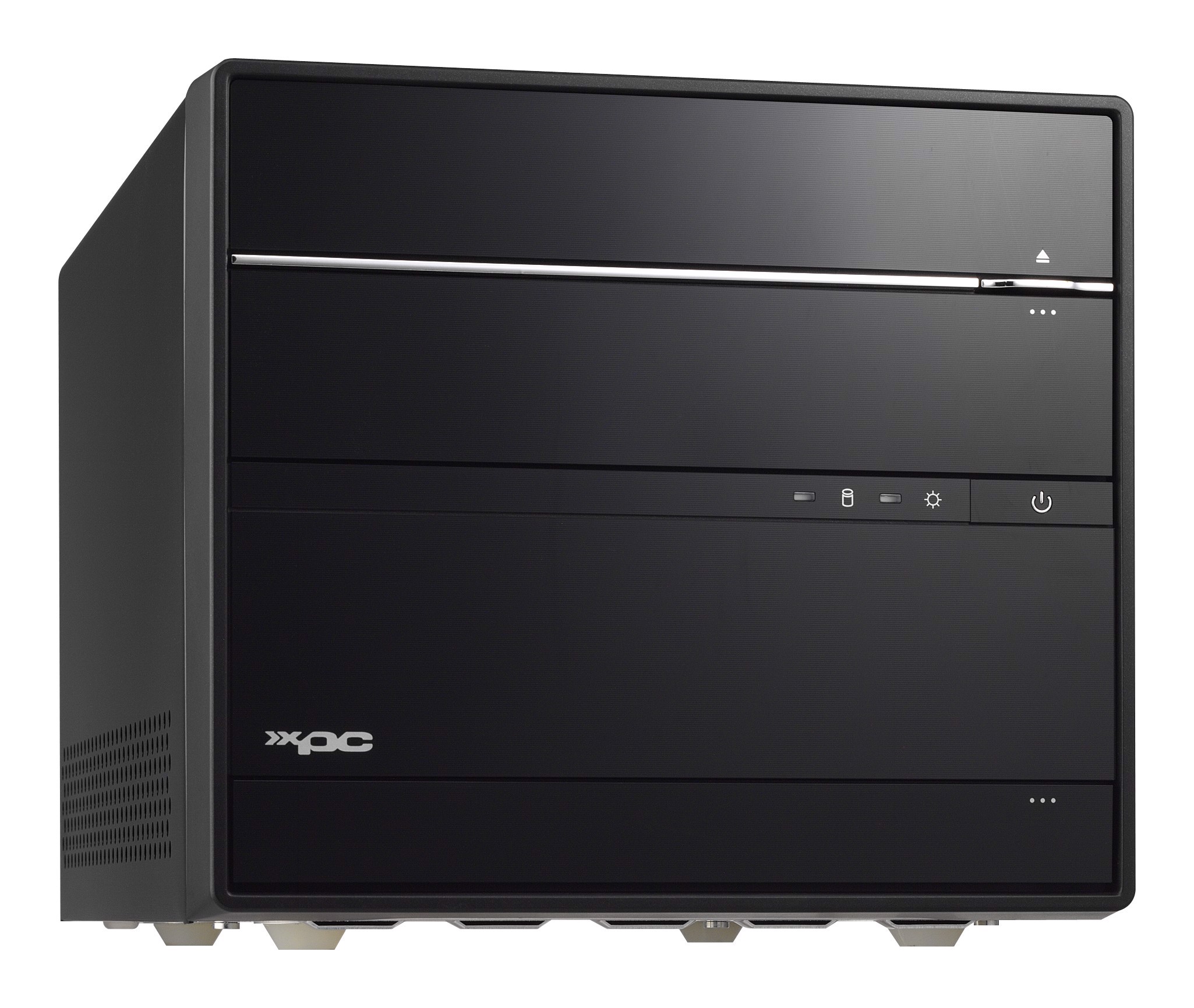

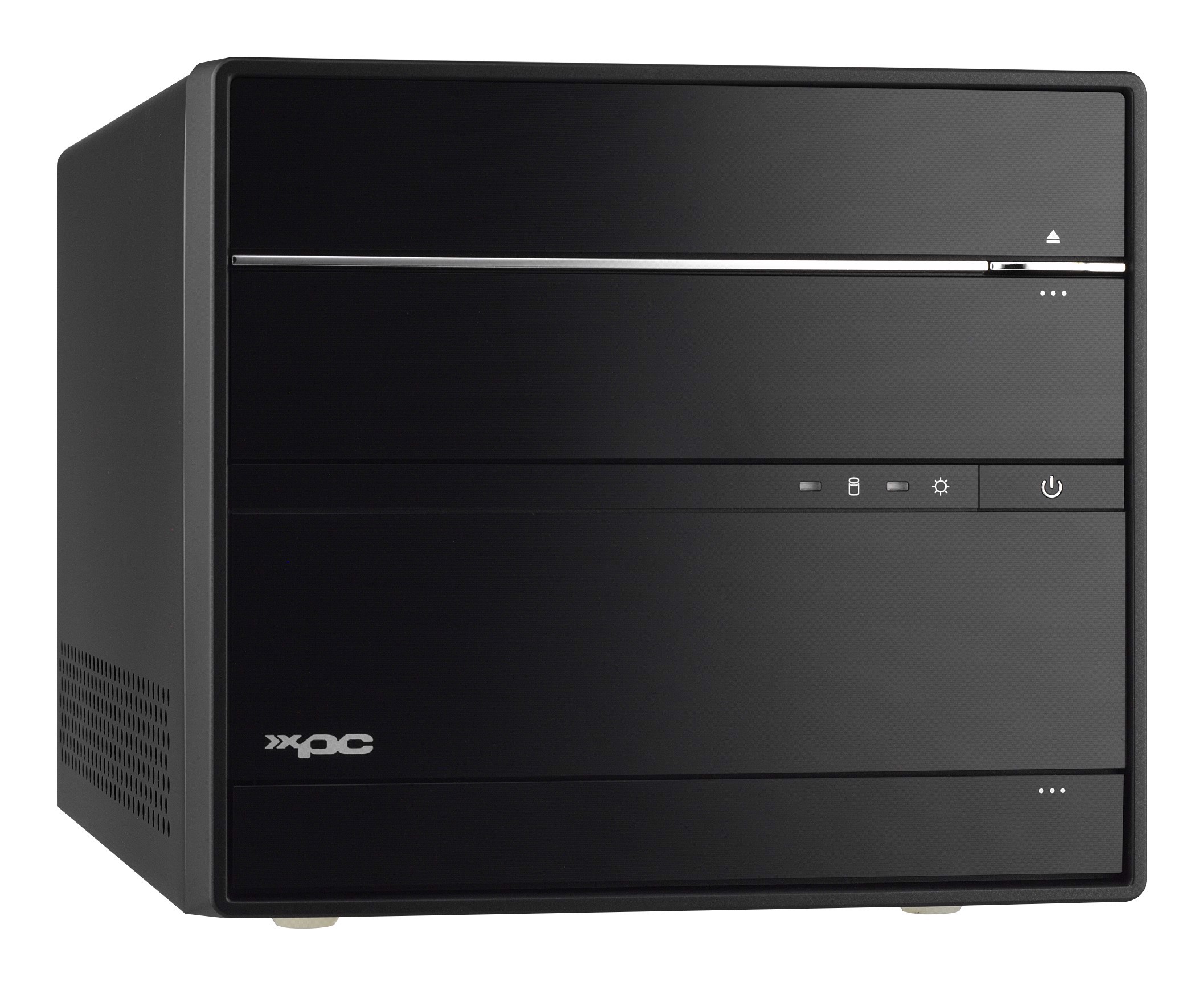

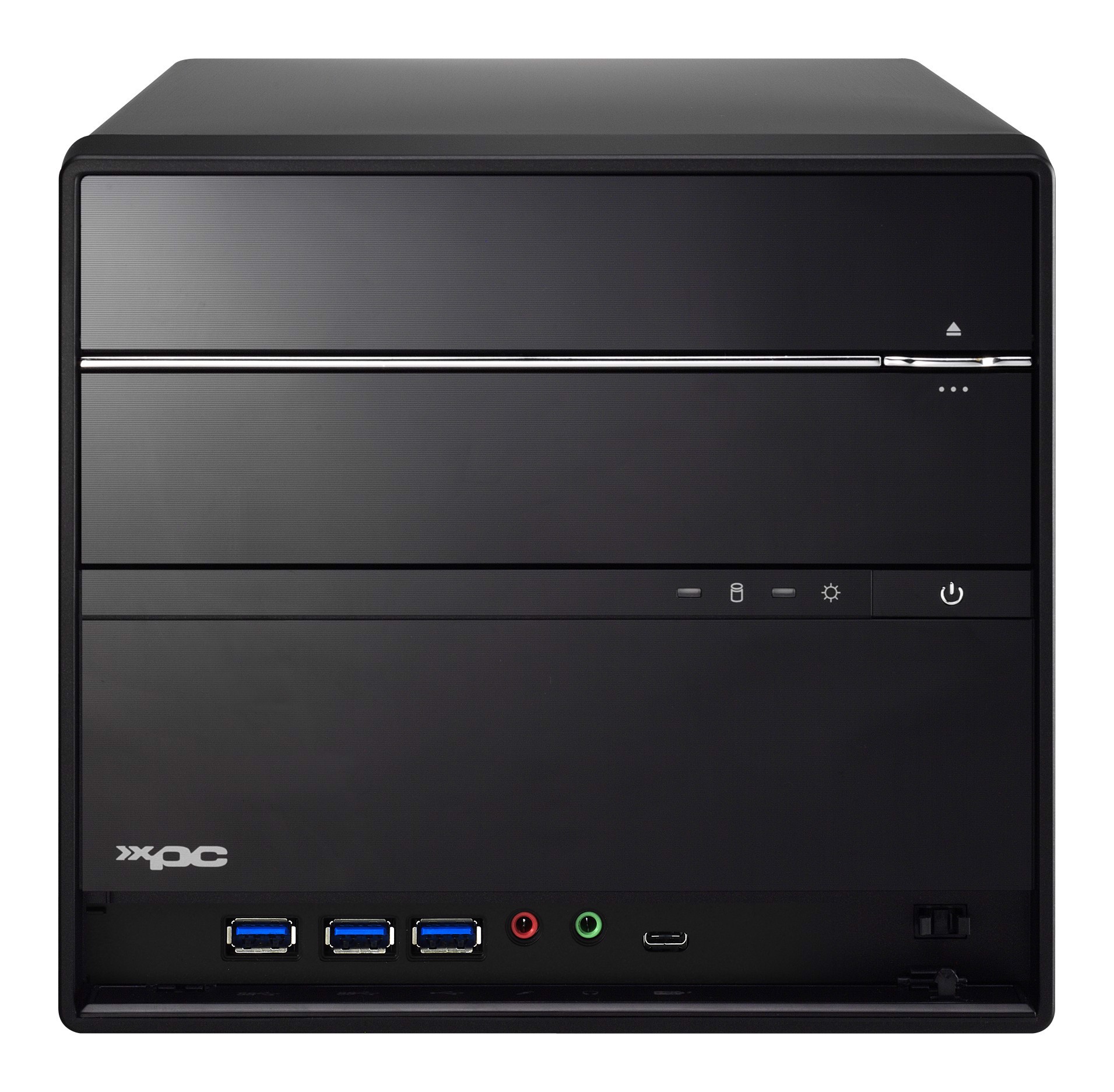

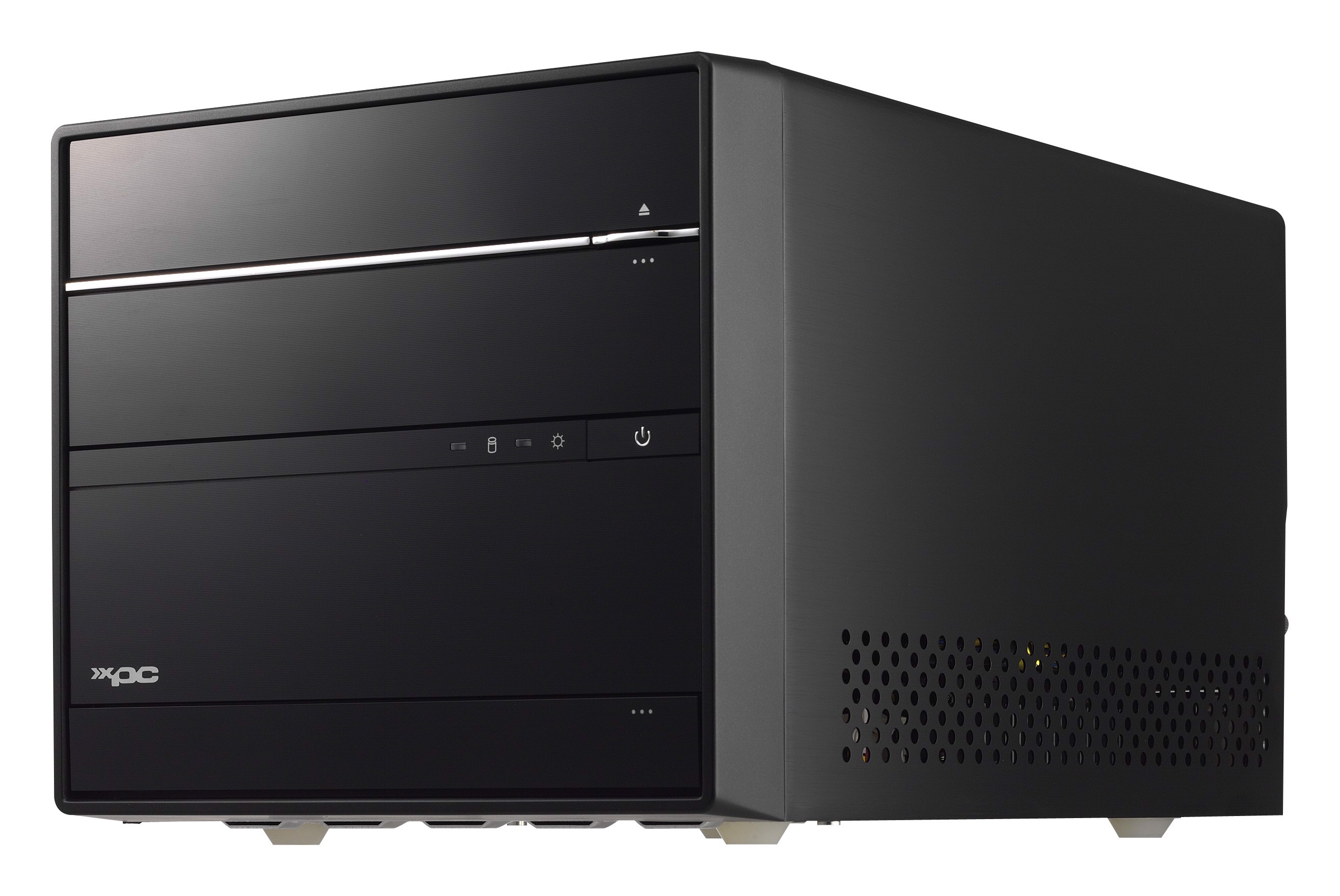

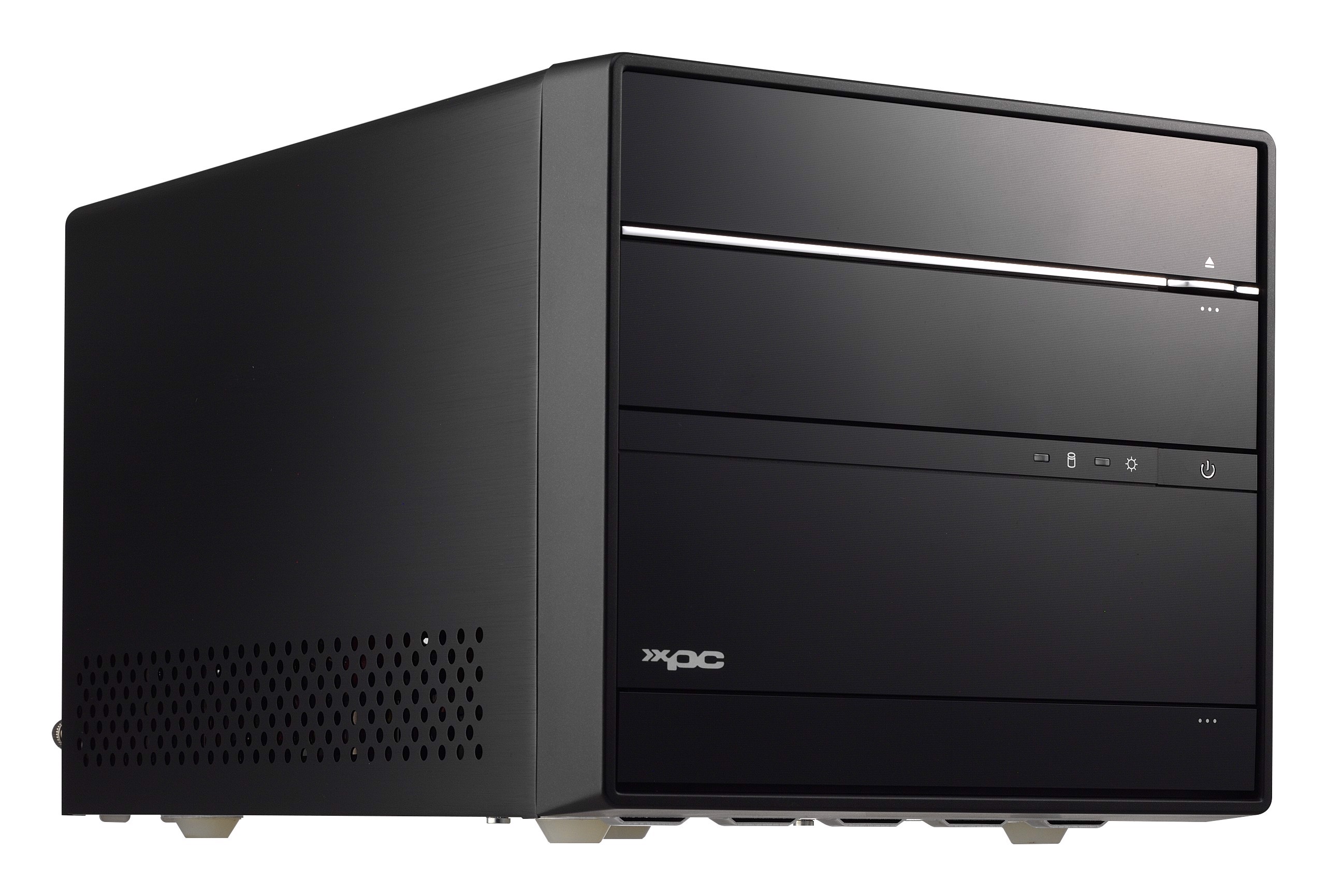

Shuttle SH570R6 Plus Terning Sort Intel H570 LGA 1200 (Socket H5)

SKU: 999769158
EAN: 0887993003870

Shuttle SH570R6 Plus, Terning, PC barebone, Intel H570, LGA 1200 (Socket H5), DDR4-SDRAM, 500 W
Mere info
3.909,00 DKK Ex. moms: 3.127,20 DKK På lager

Produktbeskrivelse

Supports 10th/11th generation Intel Core processors and up to three UHD displays

The Shuttle XPC Barebone SH570R6 Plus shows how discreet a modern PC can look and at the same time how powerful it can be. Its black-brushed aluminium case has barely a volume of 14 litres, but packs everything you need for a high-performance workstation for example. This includes the power of 10th/11th gen. Intel Core processors ("Comet Lake-S" and "Rocket Lake-S"), a dual-slot graphics card, fast M.2 NVMe SSD drives, two 3.5'' hard drives in RAID and up to 128 GB of DDR4 memory, plus a Blu-ray drive. Even without a dedicated graphics card, up to three UHD displays are supported optionally.

Specifikationer

Indbygget processer Ingen
Thermal Design Power (TDP) 125 W
Hukommelses slots type DIMM
Antal hukommelsesstik 4
Maksimal intern hukommelse 128 GB
Understøttede hukommelsesclock-hastigheder 2666,2933,3200 MHz
Understøttede hukommelsestyper DDR4-SDRAM
Hukommelseskanaler To-kanals
Hukommelsesspænding 1.2 V
Understøttet datalagringsdrev typer HDD & SSD
Understøttede lagerdisk størrelser 2.5,3.5,M.2
On-board grafikkort Ja
Ethernet LAN Ja
Wi-Fi Ingen

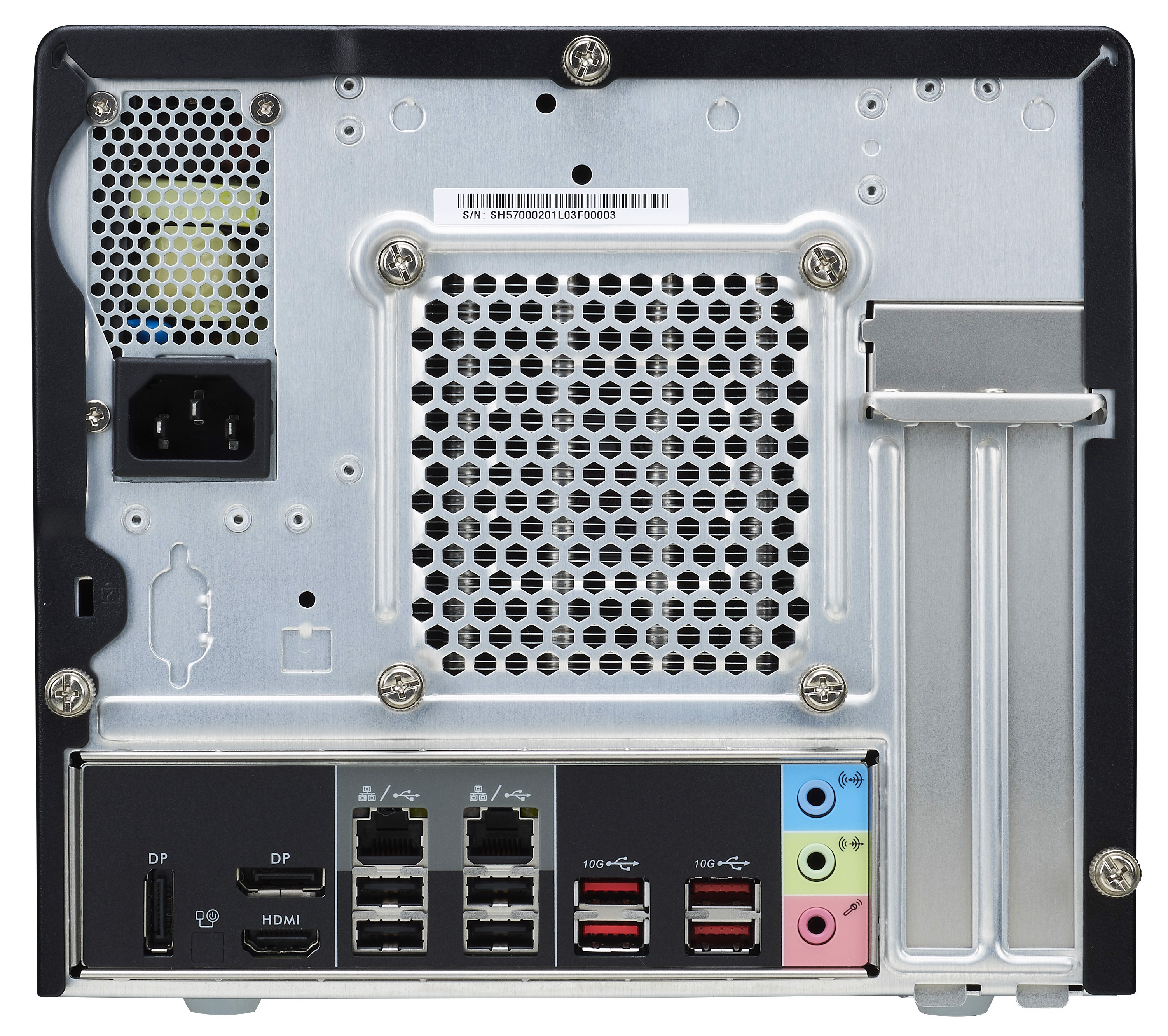

LAN Kontroller Intel® I210-AT, Intel® I219-LM
Antal USB 2.0-porte 4
Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte 3
Antal HDMI-porte 1
Ethernet LAN-porte (RJ-45) 2
Antal USB 3.2 Gen 1 (3.1 Gen 1) type-C-porte 1
Antal USB 3.2 Gen 2 (3.1 Gen 2) type-A-porte 4
HDMI-version 2.0b
Antal DisplayPorts 2
DisplayPort-version 1.4
Mikrofonindgang Ja
Udgange til hovedtelefoner 1
PCI Express slots version 4.0
PCI Ekspres x4 slots 1
PCI Express x16 slots 1
Kabinettype Terning
Produktfarve Sort
Kølingstype Aktiv
Produkttype PC barebone
LED-indikatorer Ja
Husmateriale Aluminium
Slot til kabellås Ja
Kabellåseslids type Kensington
Bundkort chipsæt Intel H570
Processor sokkel LGA 1200 (Socket H5)
Antal understøttede processorer 1
Kompatibel processor serie Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
BIOS-type UEFI AMI
Trusted Platform Module (TPM) Ja
Trusted Platform Module (TPM) version 2.0
Lyd-output kanaler 5.1 kanaler
Lydchip Realtek ALC897
Harmoniseret systemkode (HS) 84713000
Understøttede Windows-operativsystemer Windows 10, Windows 11
Understøttede Linux-operativsystemer Ja
Strømforsyningstype Intern strømforsyning
Strømforsyning 500 W
Antal strømforsyninger 1
Vekselstrømsindgangsspænding 100 - 240 V
Vekselstrømsindgangsfrekvens 50 - 60 Hz
Bredde 215 mm
Dybde 332 mm
Højde 190 mm
Vægt 3,5 kg
Pakkevægt 4,5 kg
Strømledning inkluderet Ja
Hurtig start guide Ja
Drivere inkluderet Ja
