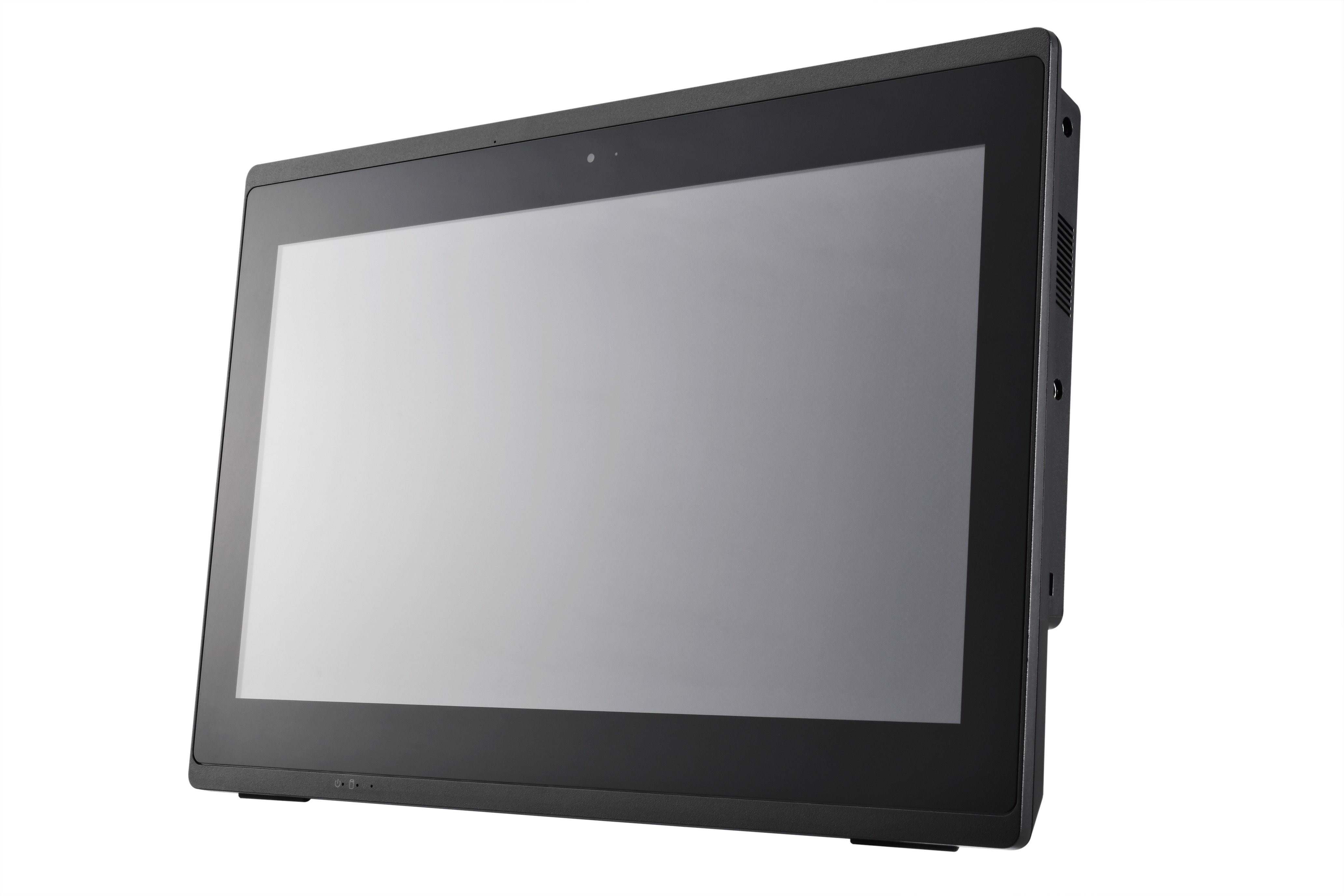

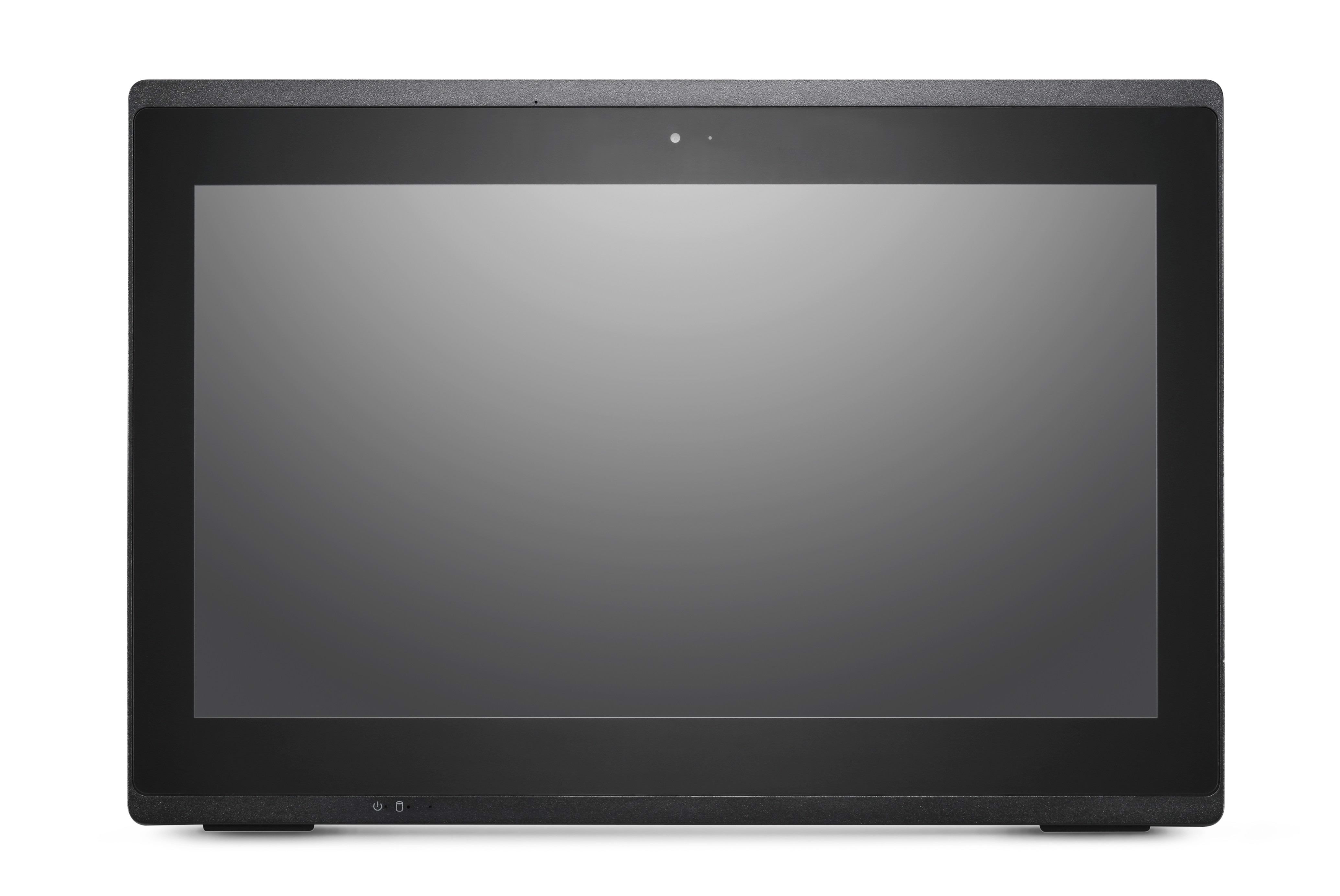

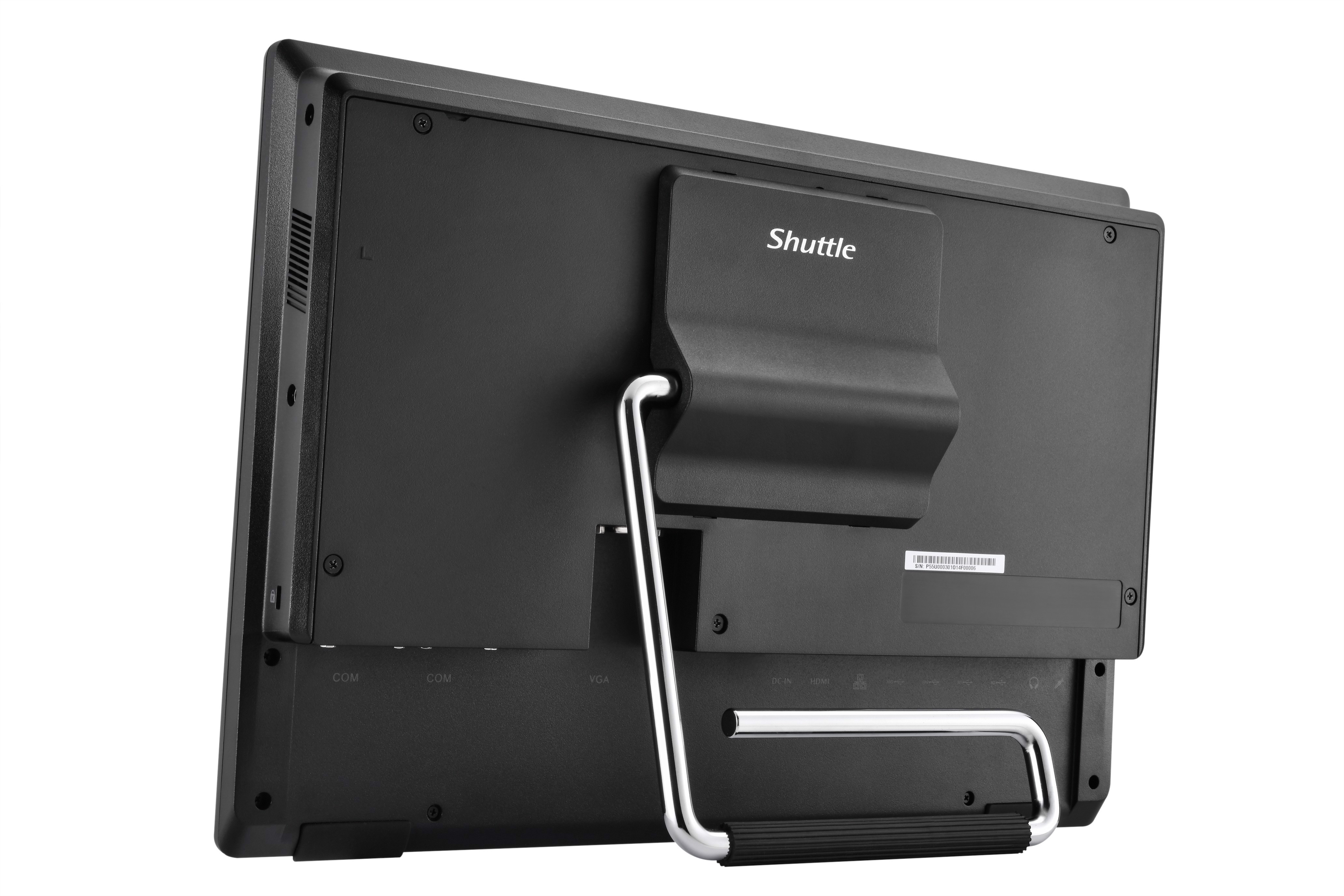

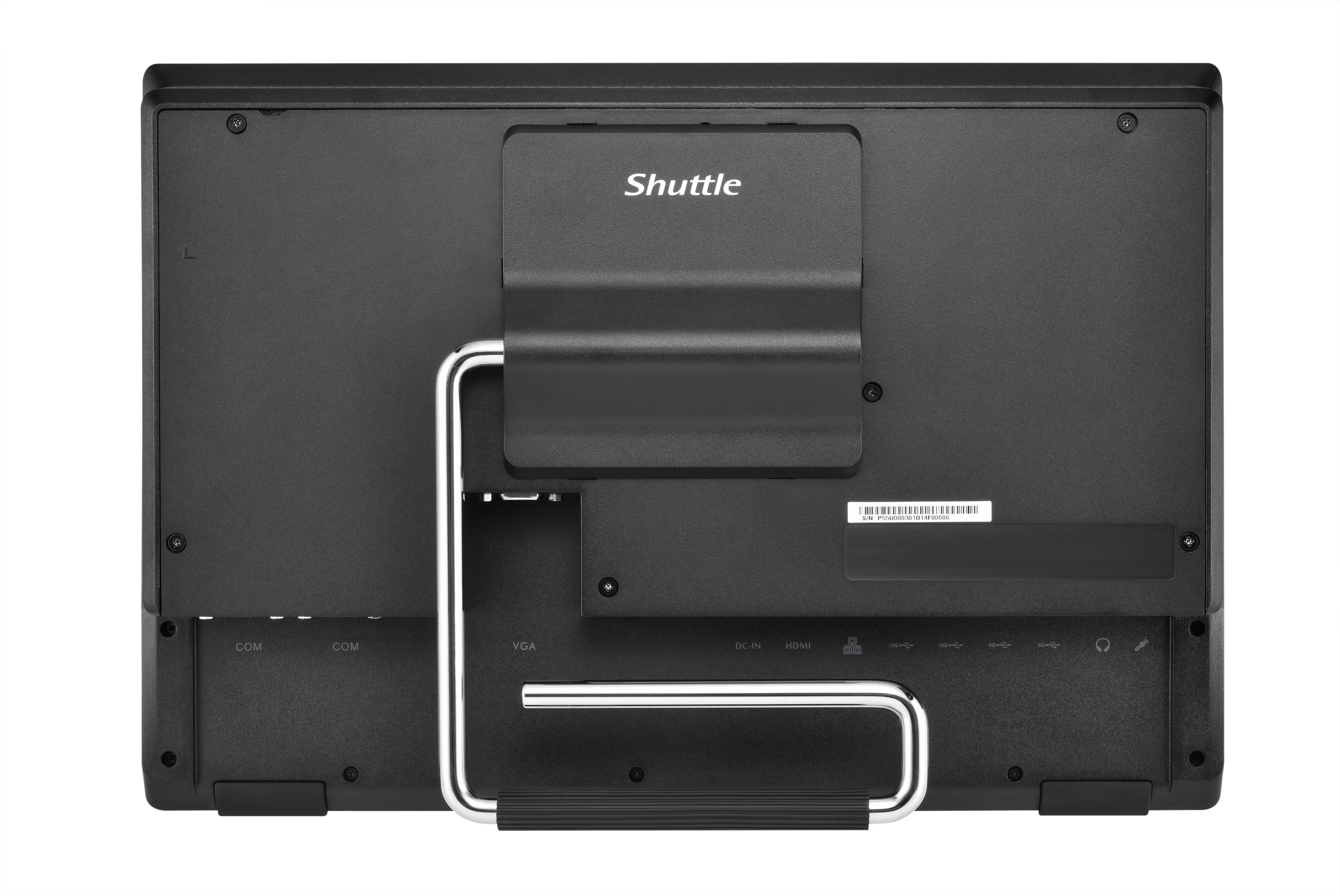

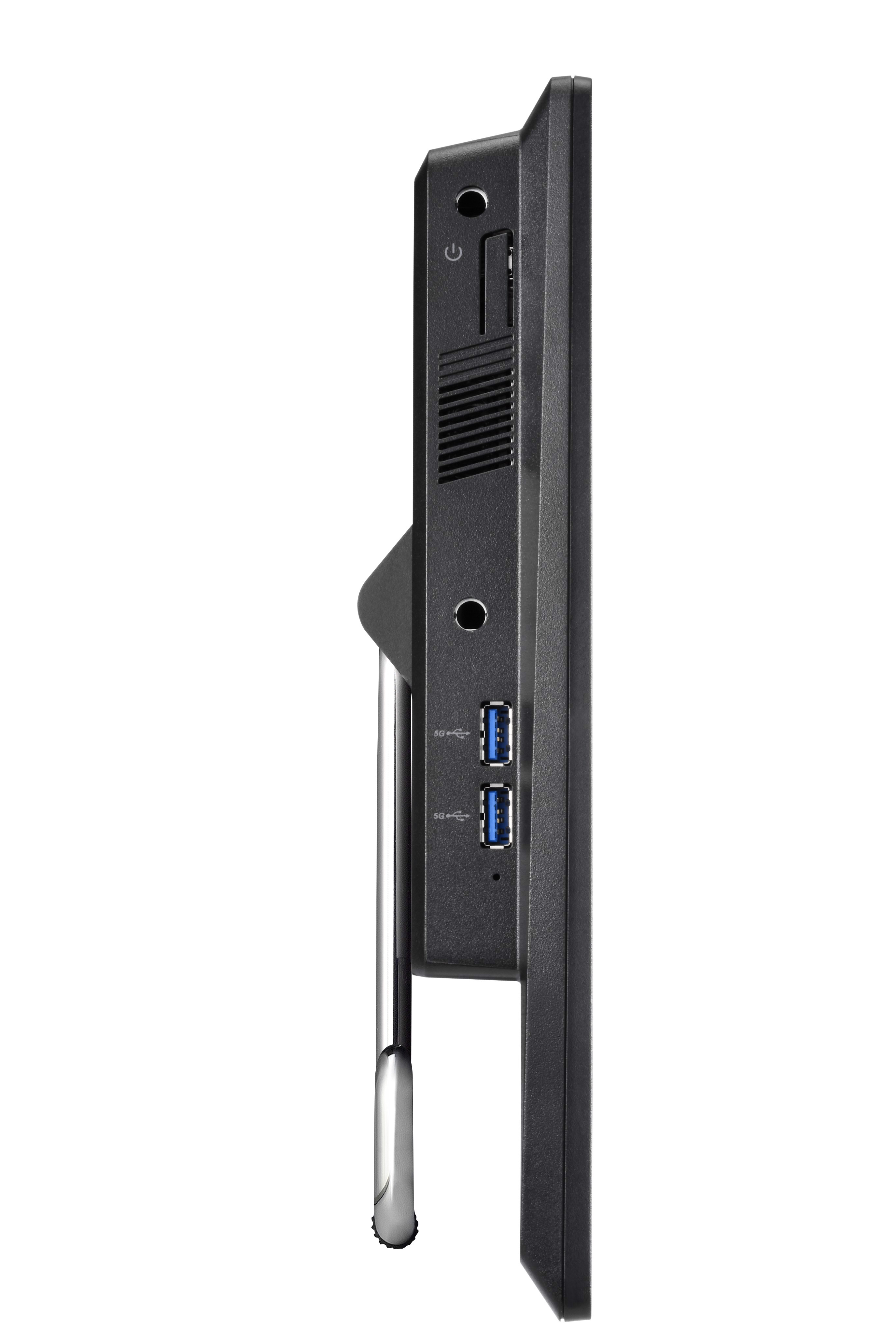

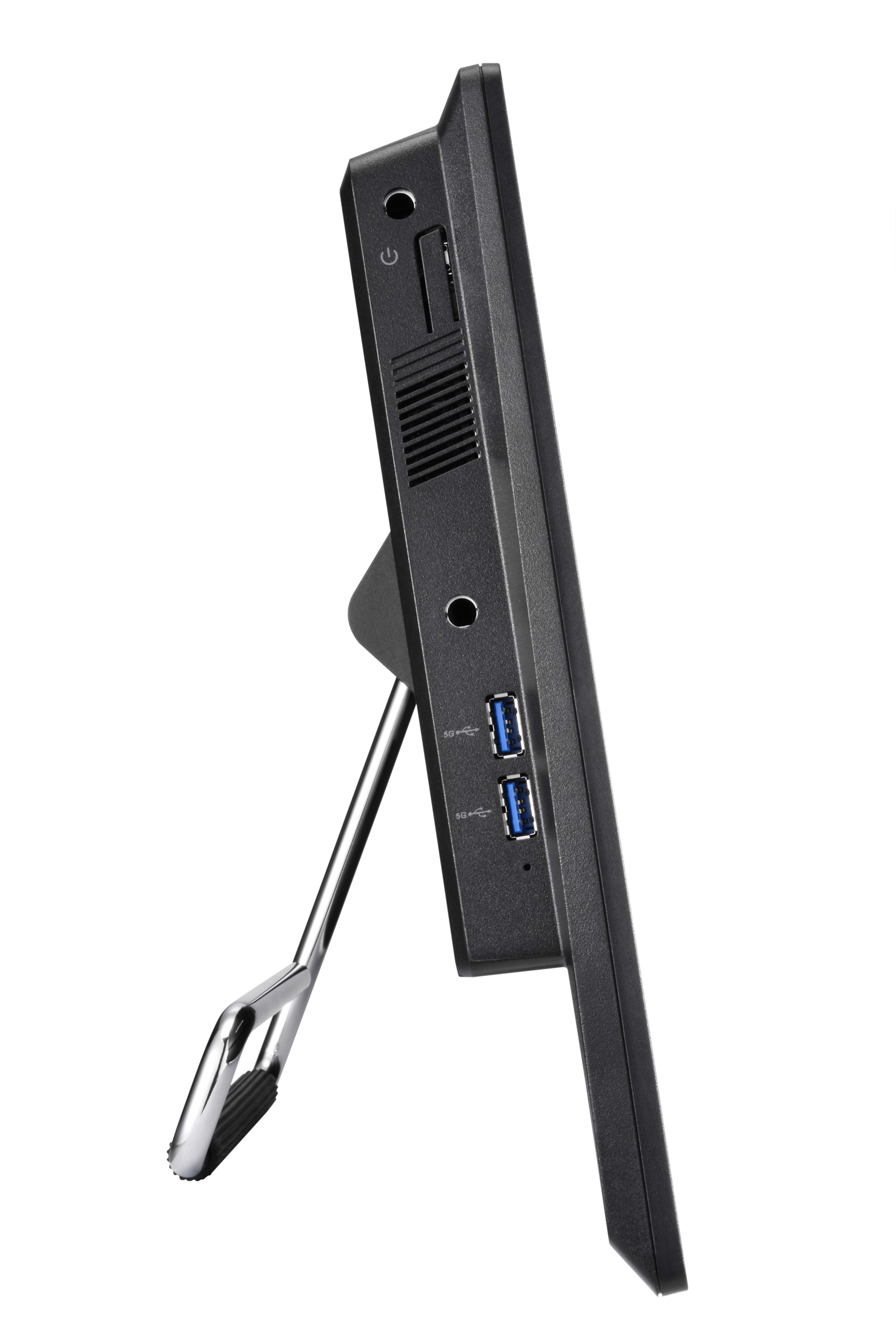

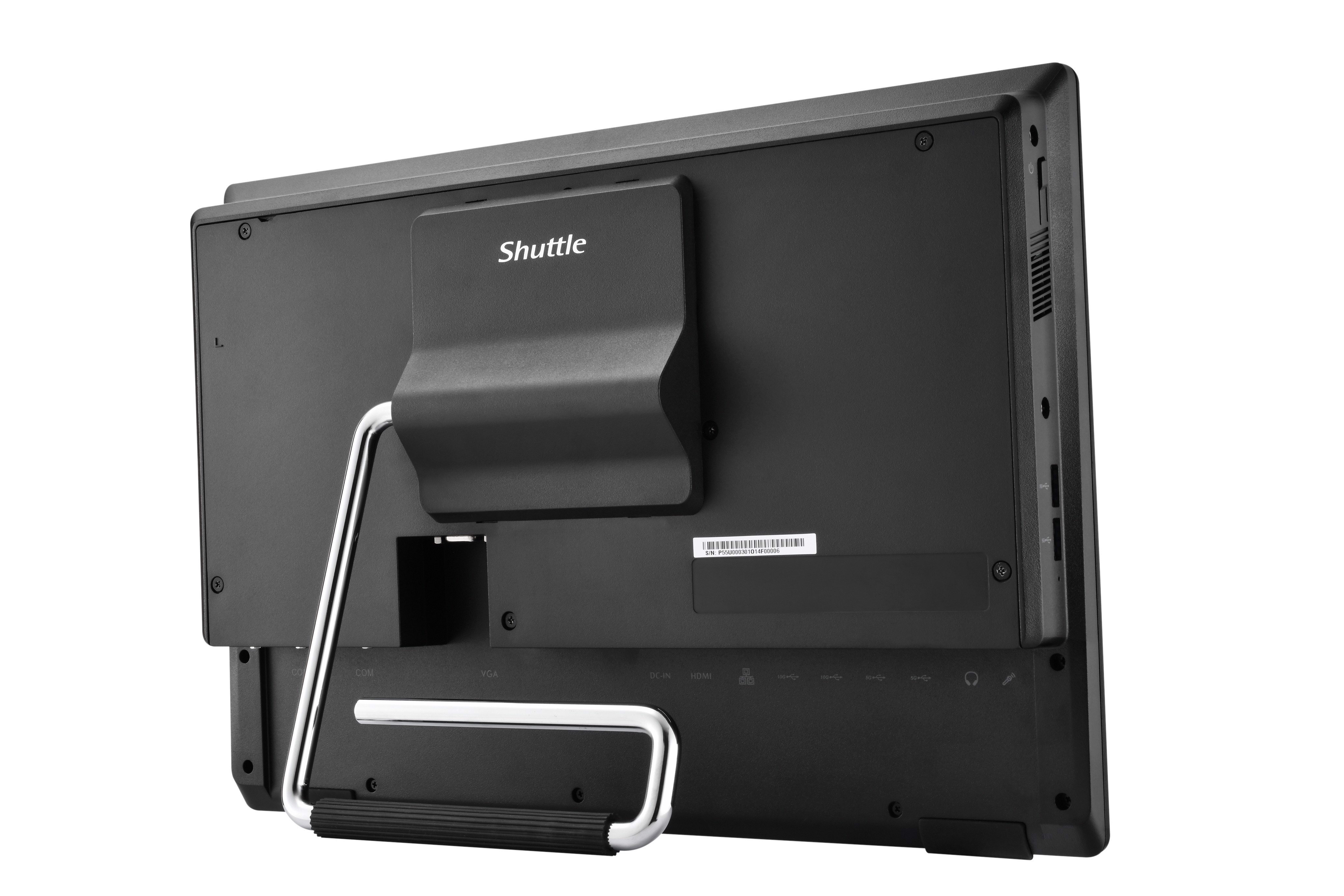

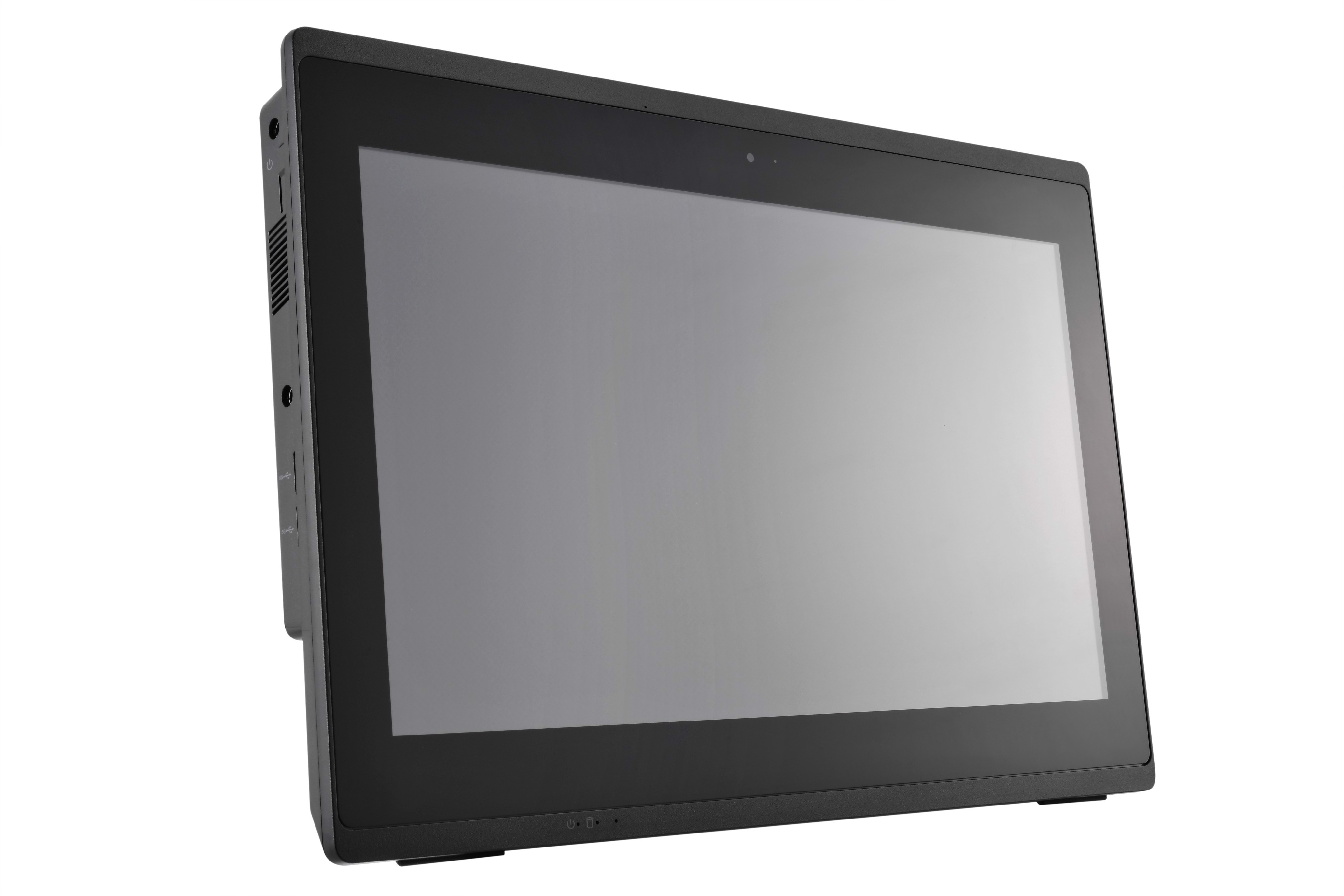

Shuttle All In One Barebone P55U All-in-One Sort 7305 Intel® SoC LGA 1700 Indbyggede højttaler(e)

SKU: 1003326962
EAN: 0887993007113

Shuttle All In One Barebone P55U, All-in-One, All-in-One PC barebone, Intel® SoC, LGA 1700, DDR5-SDRAM, PCI Express
Mere info
4.929,00 DKK Ex. moms: 3.943,20 DKK På lager

Produktbeskrivelse

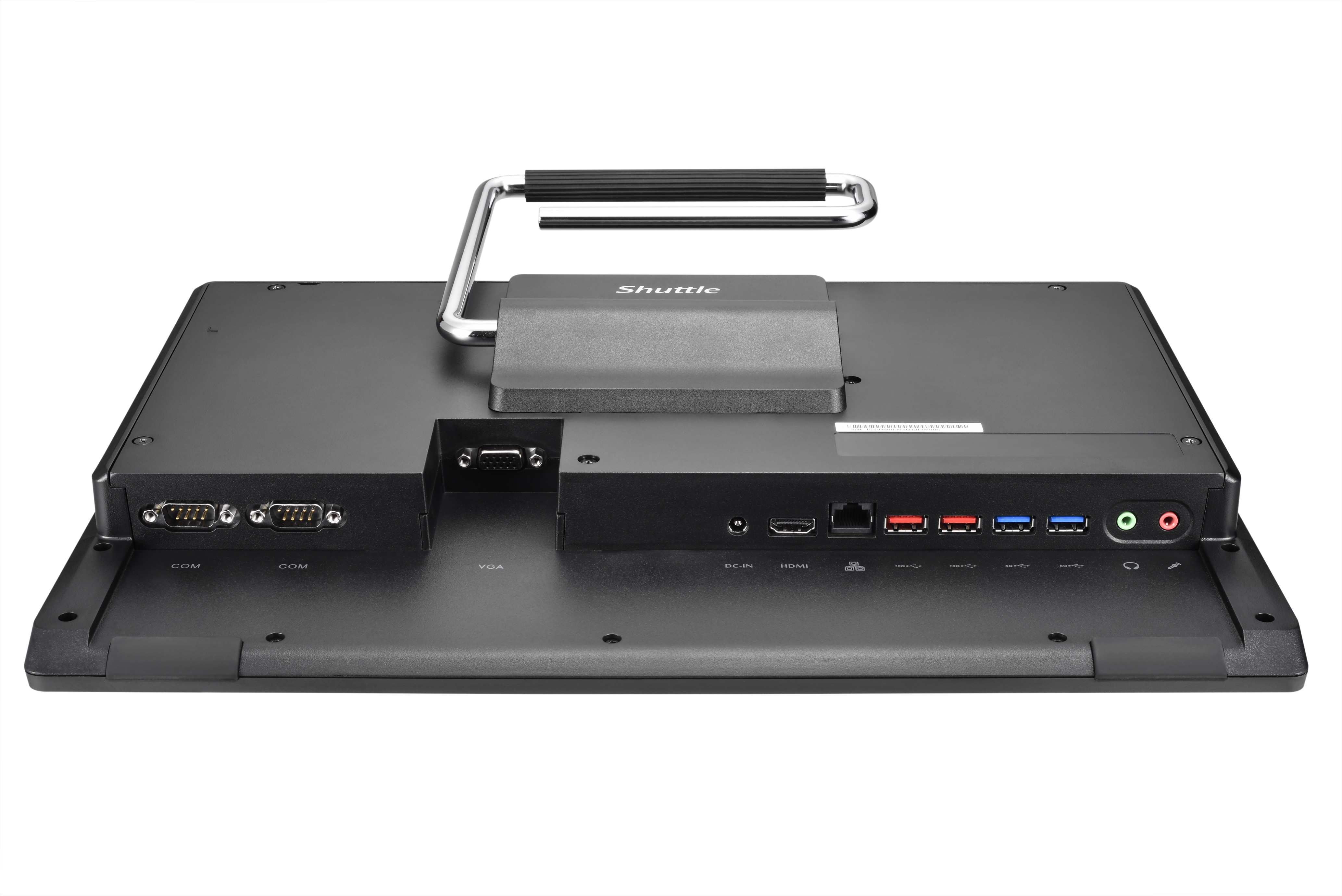

The Shuttle XPC all-in-one PC series P55U comes with a capacitive 15.6" multi-touchscreen in Full-HD resolution and is powered by a Gen12/13 Intel ULV processor. The modern processor architecture has a very positive effect on power consumption and computing performance. The existing WLAN function can optionally be supplemented with a 4G/5G function with up to 4 antennas. Thanks to its passive heatpipe cooling, the system is virtually noiseless, maintenance-free and approved for 24/7 nonstop operation. Particularly suitable for vertical applications is the arrangement of connectors at the bottom and the IP54 compliant front panel which is dust-protected and protected from splashing of water.

Specifikationer

Indbygget processer Ja
Processorproducent Intel
Processorserie Intel® Celeron®
Processormodel 7305
Processorkerner 5
Processortråde 5
Performance-kerner 1
Effektive kerner 4
Processor-cache 8 MB
Hukommelses slots type SO-DIMM
Antal hukommelsesstik 2
Maksimal intern hukommelse 64 GB
Understøttede hukommelsesclock-hastigheder 4800 MHz
Understøttede hukommelsestyper DDR5-SDRAM
Hukommelseskanaler To-kanals
Hukommelsesspænding 1.1 V
Fejlkorrigerende kode Ingen
Ikke-fejlkorrigerende kode Ja
Understøttet datalagringsdrev typer SSD
Understøttede lagerdisk størrelser M.2
SSD-formfaktor M.2
Grænseflade til lagerdisk PCI Express
NVMe Ja
On-board grafikkort Ja
Grafikadapter familie Intel
On-board grafikkort, model Intel® UHD Graphics
Antal understøttede skærme 3
Skærm diagonal 39,6 cm (15.6")
Skærmopløsning 1920 x 1080 pixel
Berøringsskærm Ja
HD-type Fuld HD
Billedformat 16:9
Skærmens lysstyrke 250 cd/m²
Paneltype IPS
Indbyggede højttaler(e) Ja
Antal højttalere 2
Udgangseffekt (RMS) 2 W
Ethernet LAN Ja
Wi-Fi Ja
Bedste Wi-Fi standard Wi-Fi 5 (802.11ac)
Wi-Fi-standarder 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN-controller model Realtek RTL8821CE
LAN Kontroller Intel I219V
Bluetooth Ja
Bluetooth-version 4.2
Antal USB 2.0-porte 0
Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte 4
Antal HDMI-porte 1
Antal VGA-porte (D-sub) 1
Ethernet LAN-porte (RJ-45) 1
Antal USB 3.2 Gen 2 (3.1 Gen 2) type-A-porte 2
HDMI-version 2.0b
Mikrofonindgang Ja
Udgange til hovedtelefoner 1
Antal COM-porte 2
DC-in-stik Ja
Antal M.2 (M) slots 2
Kabinettype All-in-One
Produktfarve Sort
Kølingstype Passiv
Produkttype All-in-One PC barebone
LED-indikatorer Strøm, SSD
Slot til kabellås Ja
Kabellåseslids type Kensington
VESA montering Ja
Panel montering grænseflade 100 x 100 mm
Bundkort chipsæt Intel® SoC
Processor sokkel LGA 1700
Antal understøttede processorer 1
BIOS-type AMI EEPROM
Indbygget kamera Ja
Trusted Platform Module (TPM) Ja
Trusted Platform Module (TPM) version 2.0
Lydchip Realtek ALC888S
Compliance-certifikater BSMI, CB, CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA, VCCI, cTUVus
Harmoniseret systemkode (HS) 84714100
Understøttede Windows-operativsystemer Windows 10 x64, Windows 11 x64
Understøttede Linux-operativsystemer Ja
Bæredygtighedscertifikater ENERGY STAR
Strømforsyningstype Ekstern AC-adapter
Strømforsyning 90 W
Antal strømforsyninger 1
Vekselstrømsindgangsspænding 100 - 240 V
Vekselstrømsindgangsfrekvens 50/60 Hz
Udgangsspænding for vekselstrømsadapter 19 V
Vekselstrømsadapterens udgangsstrøm 4,74 A
Driftstemperatur (T-T) 0 - 40 °C
Relativ luftfugtighed ved drift (H-H) 10 - 90%
Bredde 393,6 mm
Dybde 39,8 mm
Højde 272,5 mm
Vægt 3,25 kg
Pakkevægt 4,5 kg
Strømledning inkluderet Ja
AC-adapter inkluderet Ja
Hurtig start guide Ja
Drivere inkluderet Ja
