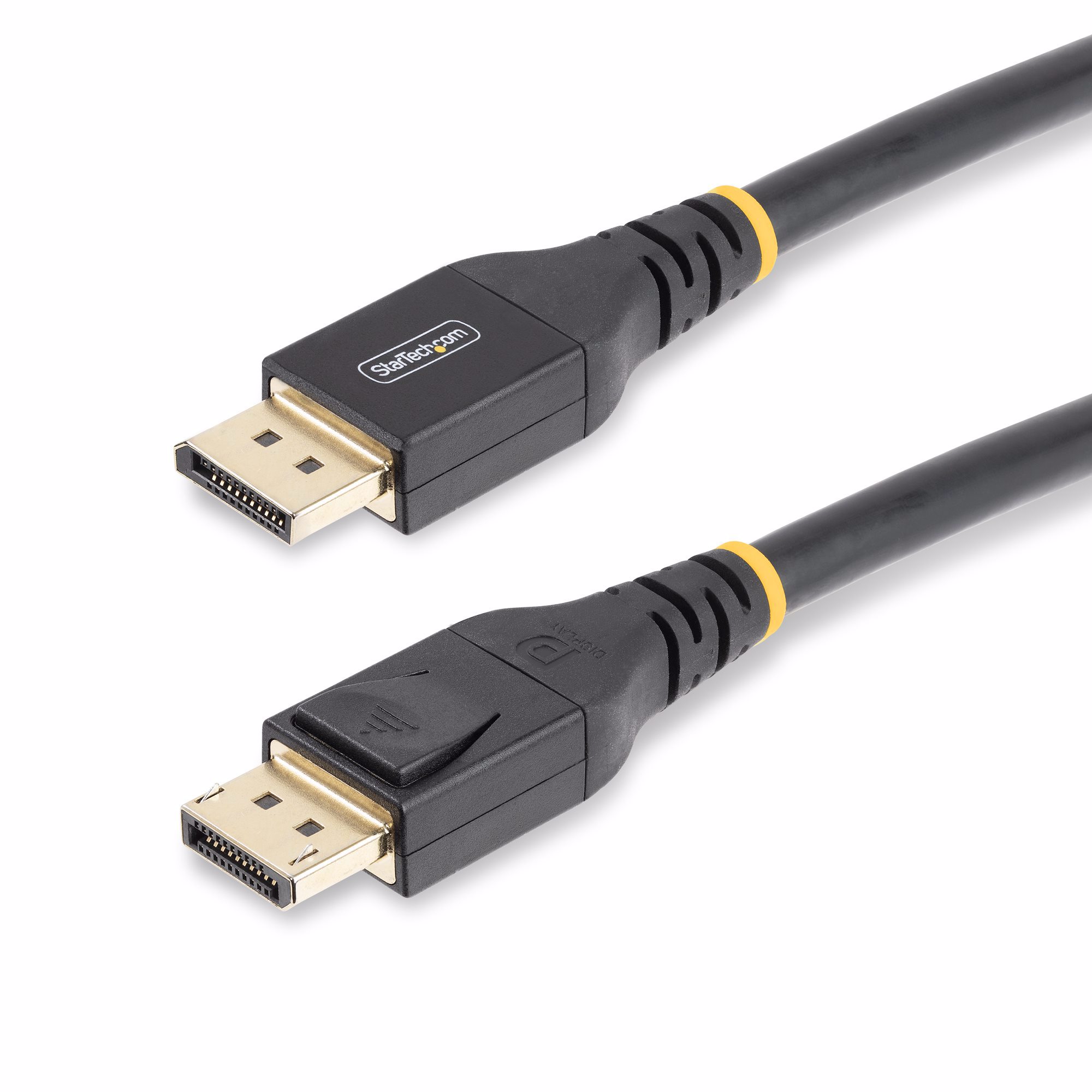

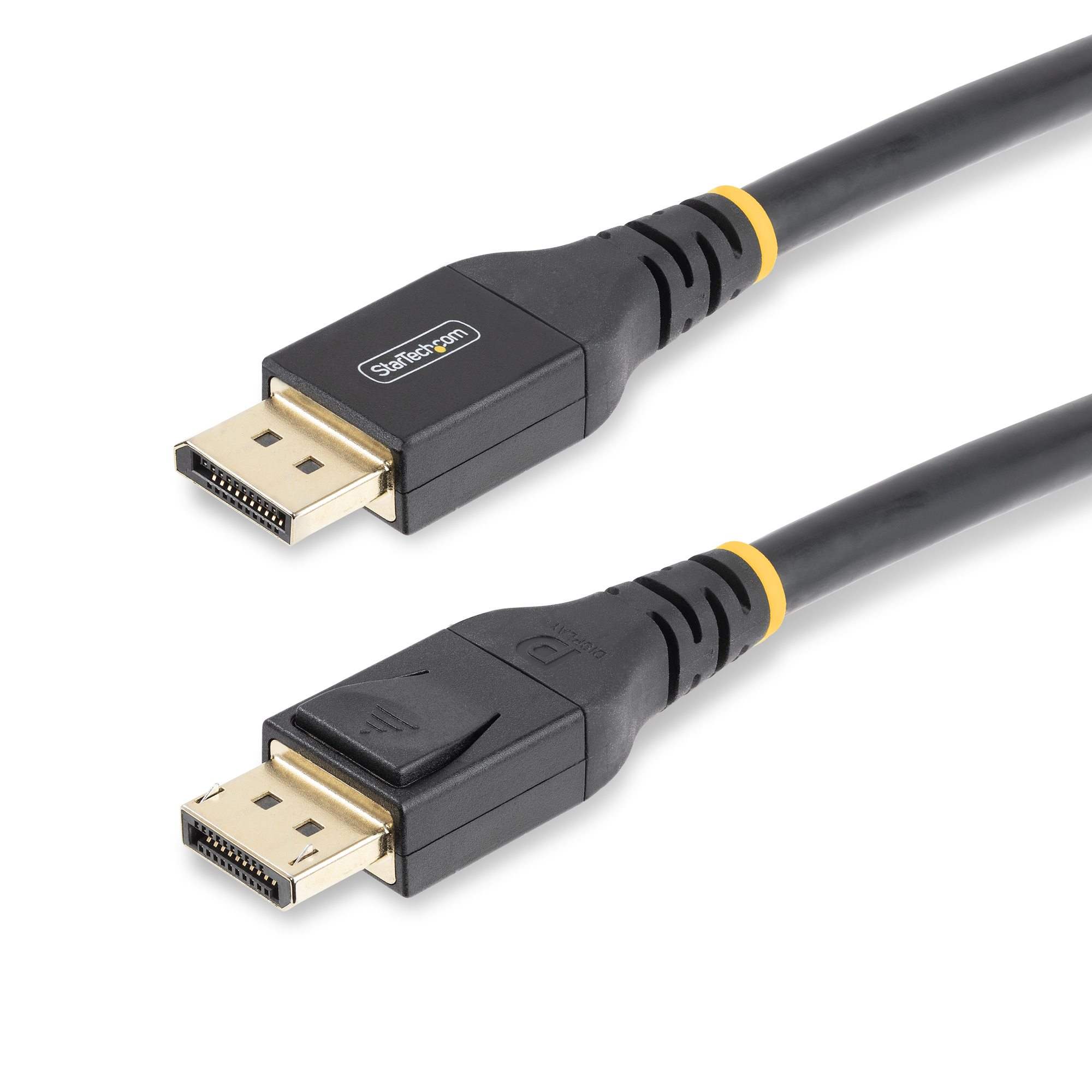

StarTech.com DP14A-7M-DP-CABLE DisplayPort kabel 7,7 m Sort

SKU: 1001657796
EAN: 0065030899956

StarTech.com DP14A-7M-DP-CABLE, 7,7 m, DisplayPort, DisplayPort, Hanstik, Hanstik, 7680 x 4320 pixel
Mere info
1.029,00 DKK Ex. moms: 823,20 DKK På lager

Produktbeskrivelse

Facilitate a longer 8K connection without requiring an external power source

Connect a 4K/8K DisplayPort 1.4-enabled monitor to a source or MST-enabled hub, using this Active DisplayPort 1.4 Cable. The active signal booster delivers reliable audio and 8K video output at up to 25ft (7.6m) without a DisplayPort repeater and external power source. This active DP 1.4 cable is unidirectional with conveniently labeled connectors for source and display to simplify setup.

Durable Design

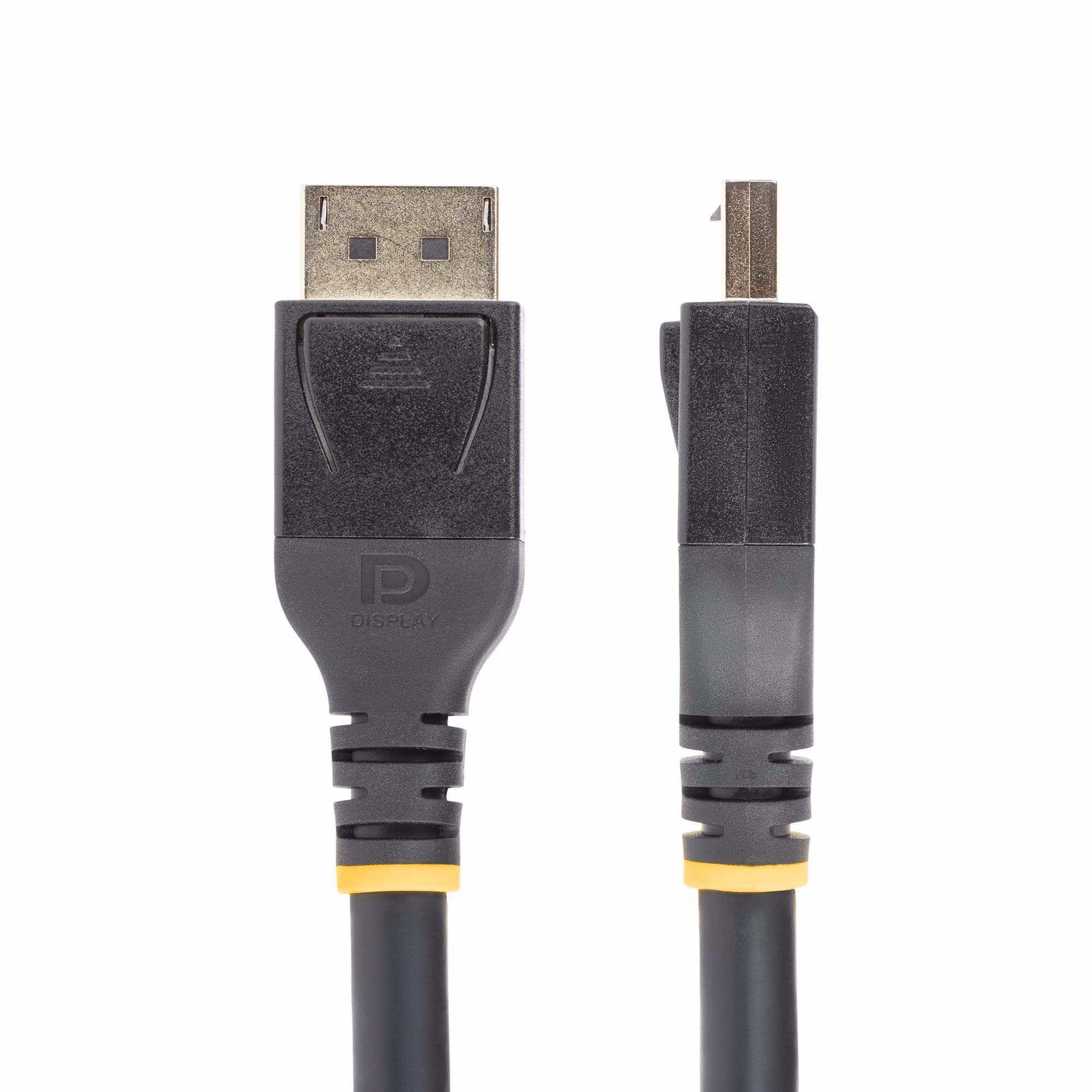

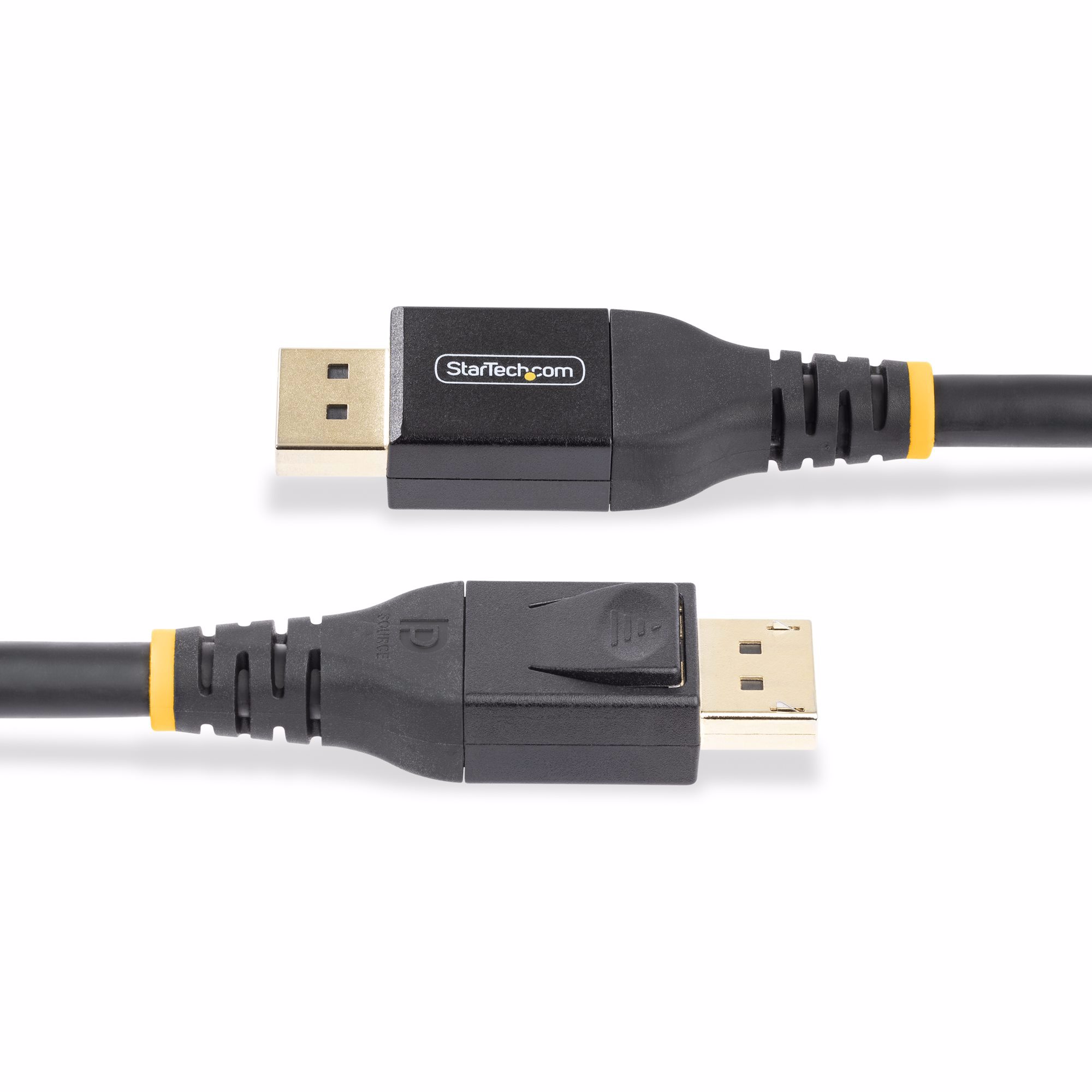

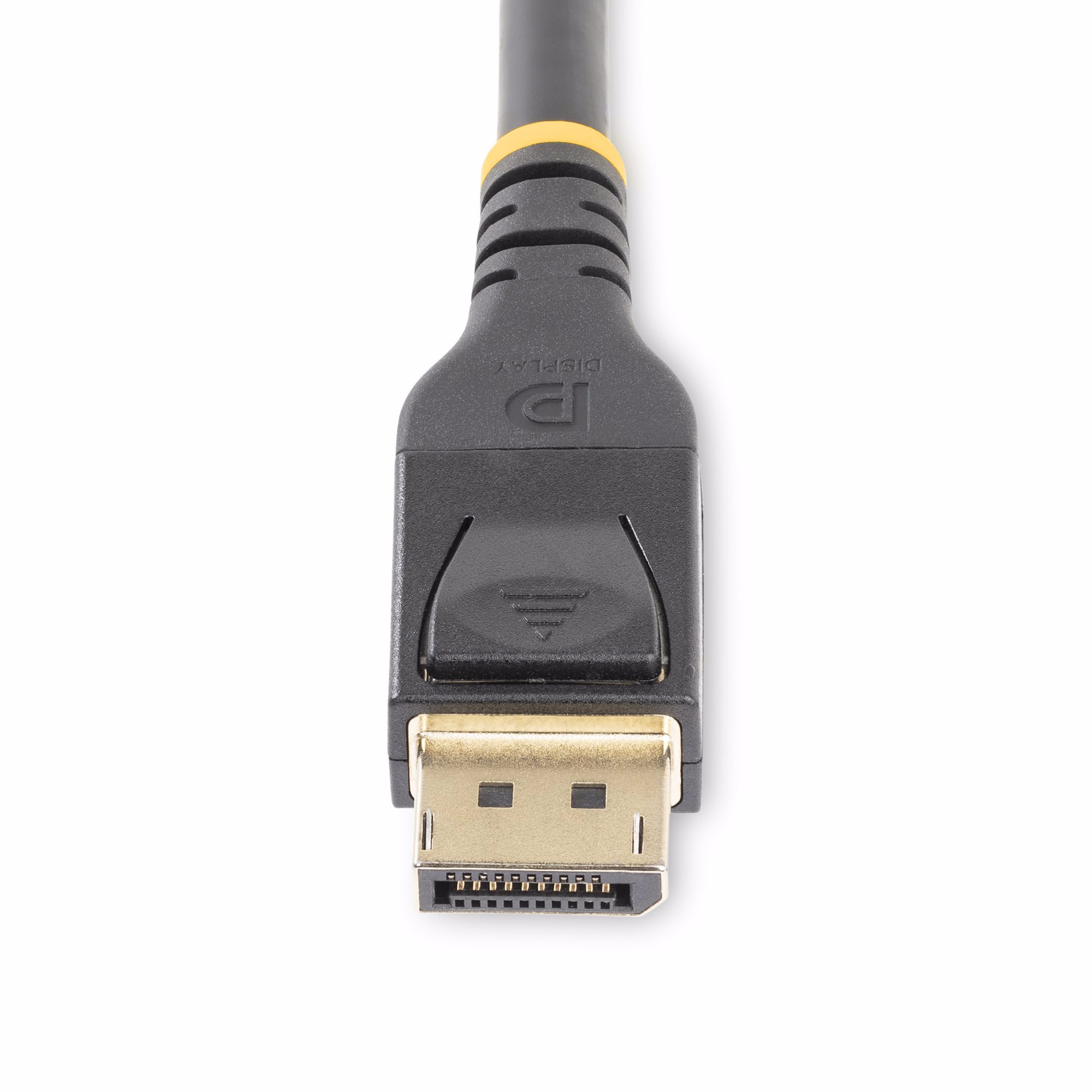

This long DisplayPort cable features a flexible TPE outer jacket to reduce wear from corner bends and long cable runs. Robust strain reliefs enable soft and flexible bends, for convenient positioning of the cable. The latching DP connectors are gold plated for improved conductivity and anti-tarnish properties, and attaches securely to the device to prevent accidental disconnection.

Supported DisplayPort 1.4 Features:

This 8K DisplayPort cable supports all DP 1.4 features:

• Resolutions up to 8K 60Hz, 4K 120Hz, 1440p 240Hz with a compatible DP source and display
• HDCP 2.2 support
• High Bit Rate 3 (HBR3) bandwidth of 32.4Gbps
• High Dynamic Range 10 (HDR10)
• Display Stream Compression 1.2 (DSC 1.2)

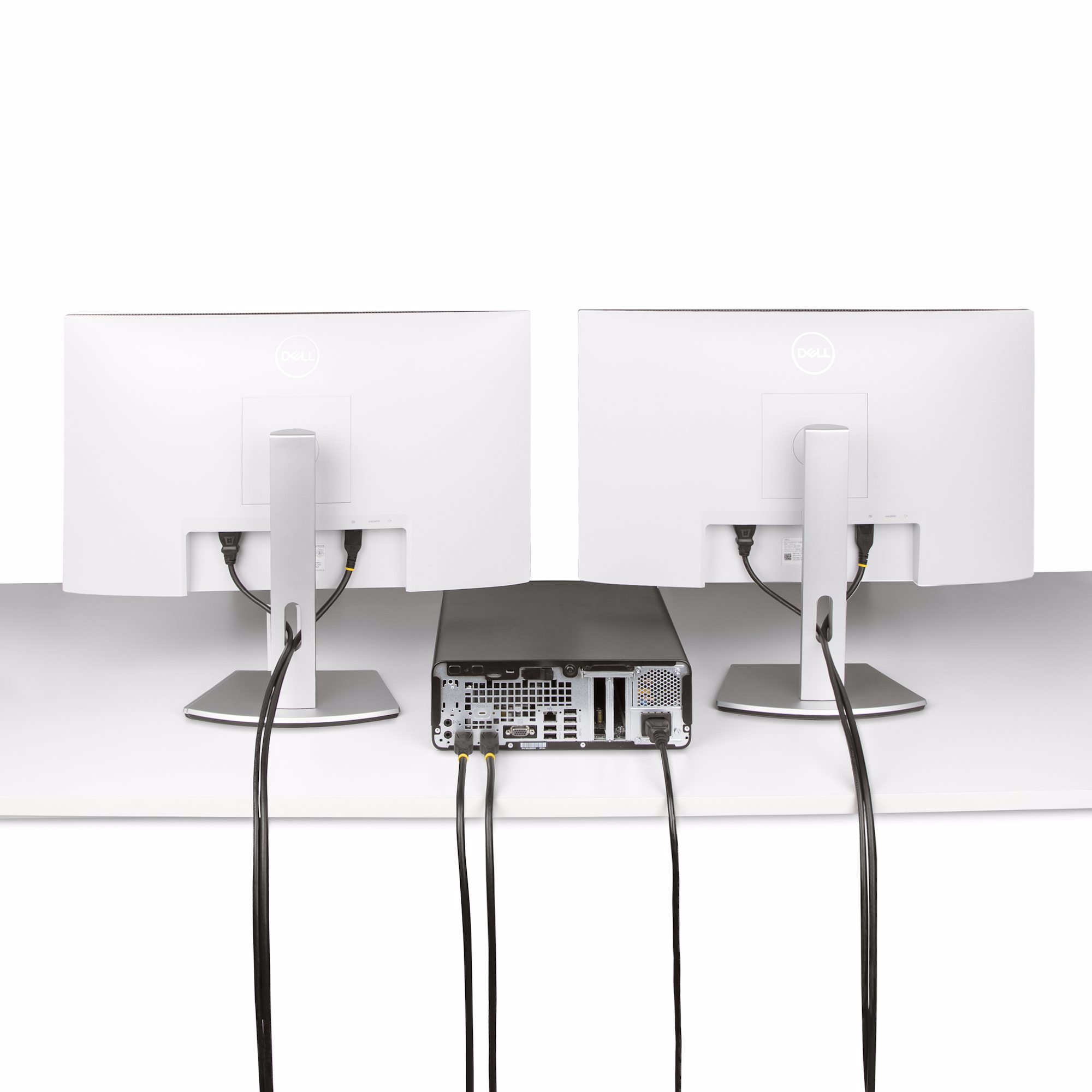

• Multi-Stream Transport (MST) for daisy-chaining multiple monitors
• 32 Uncompressed Digital Audio Channels
• Backward compatible with 5K 60Hz, 4K 120Hz and previous DP versions

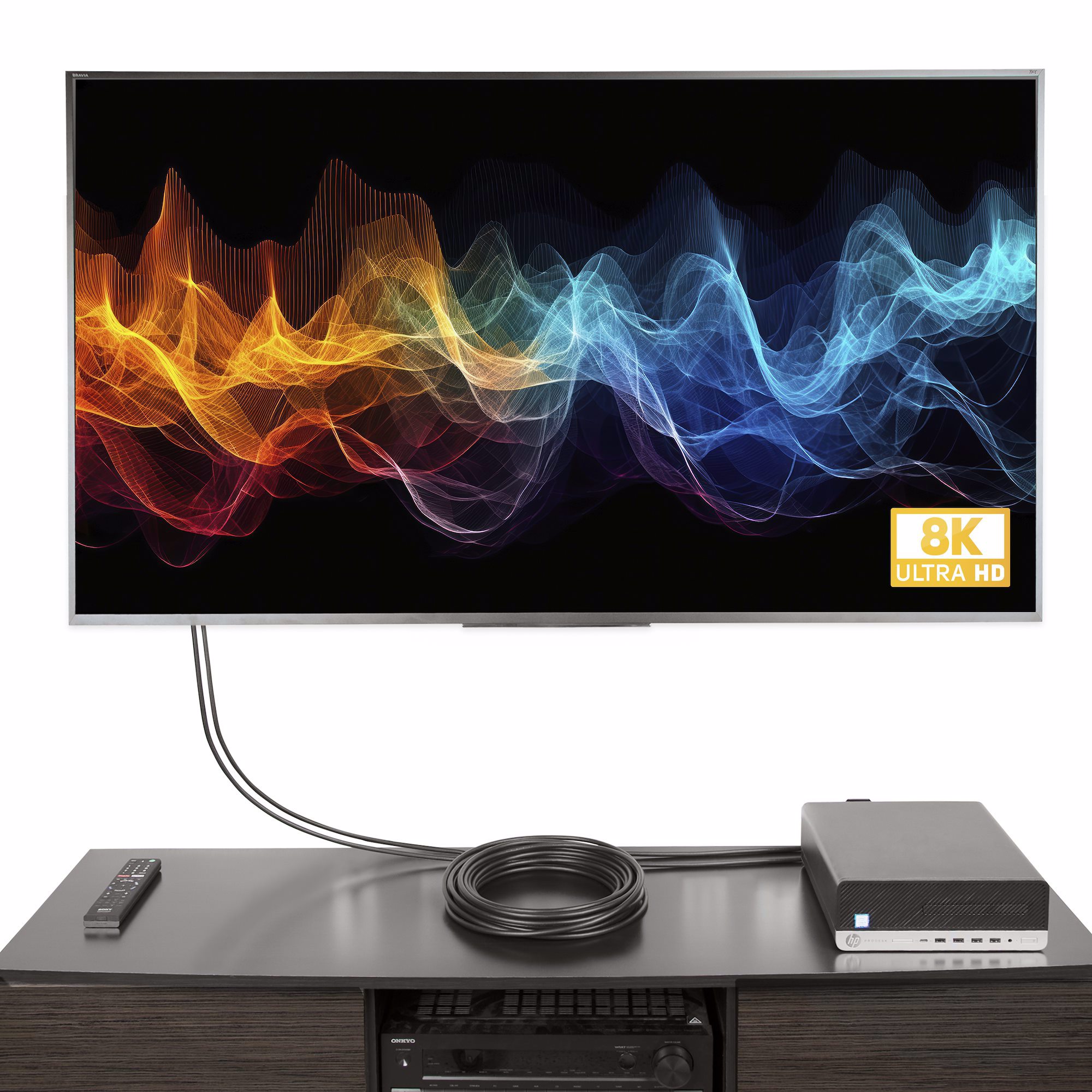

The Active DP Cable is constructed with aluminum-mylar shielding to minimize EMI interference for clear and reliable audio/video output. This DP cable is designed for long-term reliability, and is the ideal solution for setting up boardrooms, video walls, and TV signage.

The StarTech.com Advantage

Specifikationer

Multi-Stream Transport (MST) Ja
Vurdering af brandmodstandsevne VW-1
Driftstemperatur (T-T) 0 - 50 °C
Opbevaringstemperatur (T-T) -20 - 60 °C
Relativ luftfugtighed ved drift (H-H) 0 - 85%
Compliance-certifikater RoHS
Kabeldiameter 7,5 mm
Pakkebredde 330 mm
Pakkedybde 252 mm
Pakkehøjde 100 mm
Pakkevægt 500 g
Hovedkassens bredde (udvendigt) 430 mm
Hovedkassens længde (udvendigt) 380 mm
Hovedkassen højde (udvendigt) 290 mm
Produkter pr. hovedkasse (udvendigt) 20 stk
Overholdelse af bæredygtighed Ja
HBR3-support Ja
Båndbredde 32400 MB/s
Dataoverførselshastighed 25,92 Gbit/sek.
AWG-ledningsstørrelse 24/28
Materiale for kapper Termoplastisk elastomer (TPE)
Kabelafskærmning Aluminium mylar folie
Kabelmateriale Kobber
Display Stream Compression (DSC) version 1.2
Display Stream Compression (DSC) Ja
HDCP-version 2.2
HDCP Ja
Maksimal opdateringshastighed 144 Hz
Understøttede grafikopløsninger 3840 x 2160, 7680 x 4320
DisplayPort-version 1.4
Stikforbindelse kontakter plettering Guld
Stik 2 formfaktor Lige
Stik 1 formfaktor Lige
Produktfarve Sort
Maksimal opløsning 7680 x 4320 pixel
Stik 2 køn Hanstik
Stik 1 køn Hanstik
Stik 2 DisplayPort
Stik 1 DisplayPort
Kabellængde 7,7 m
