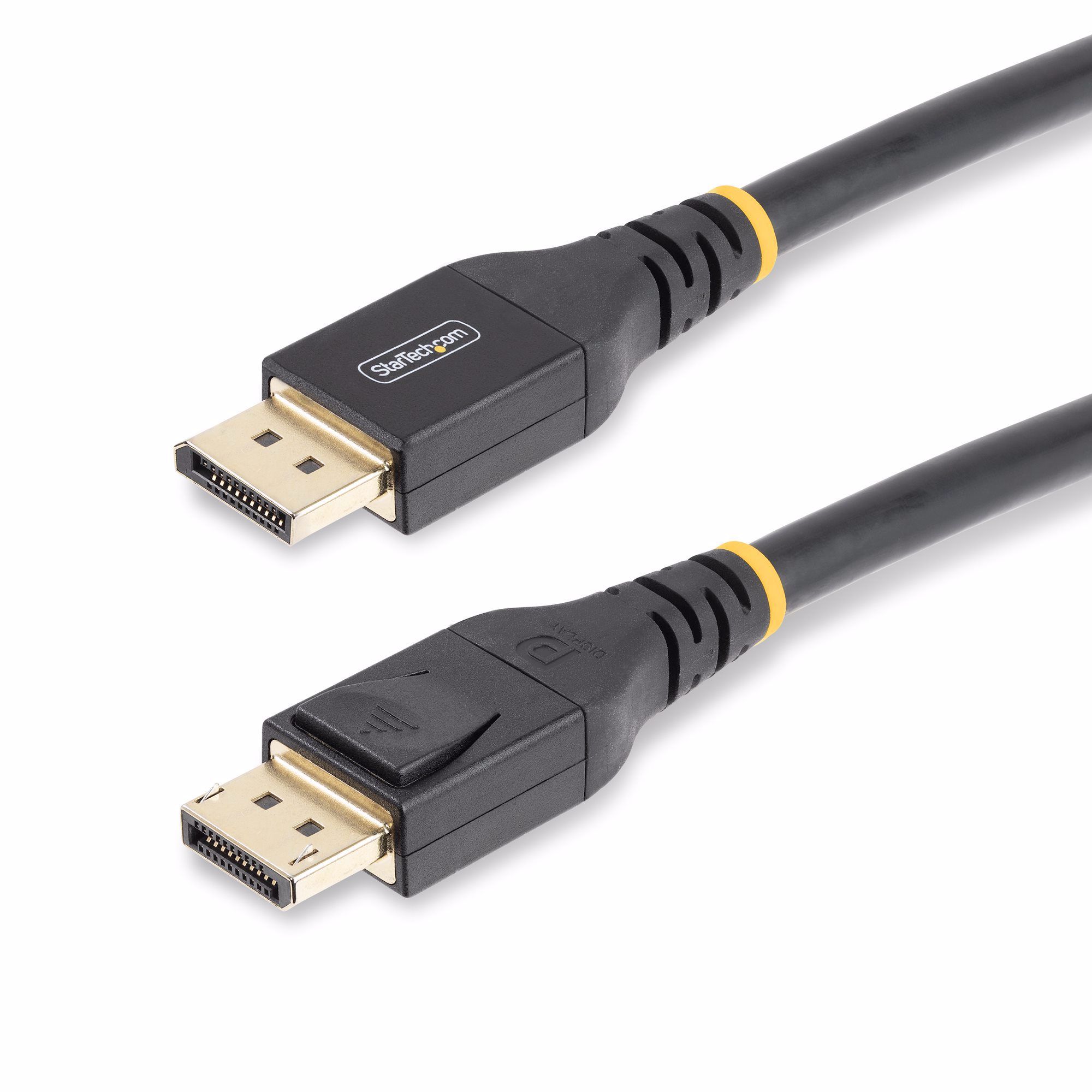

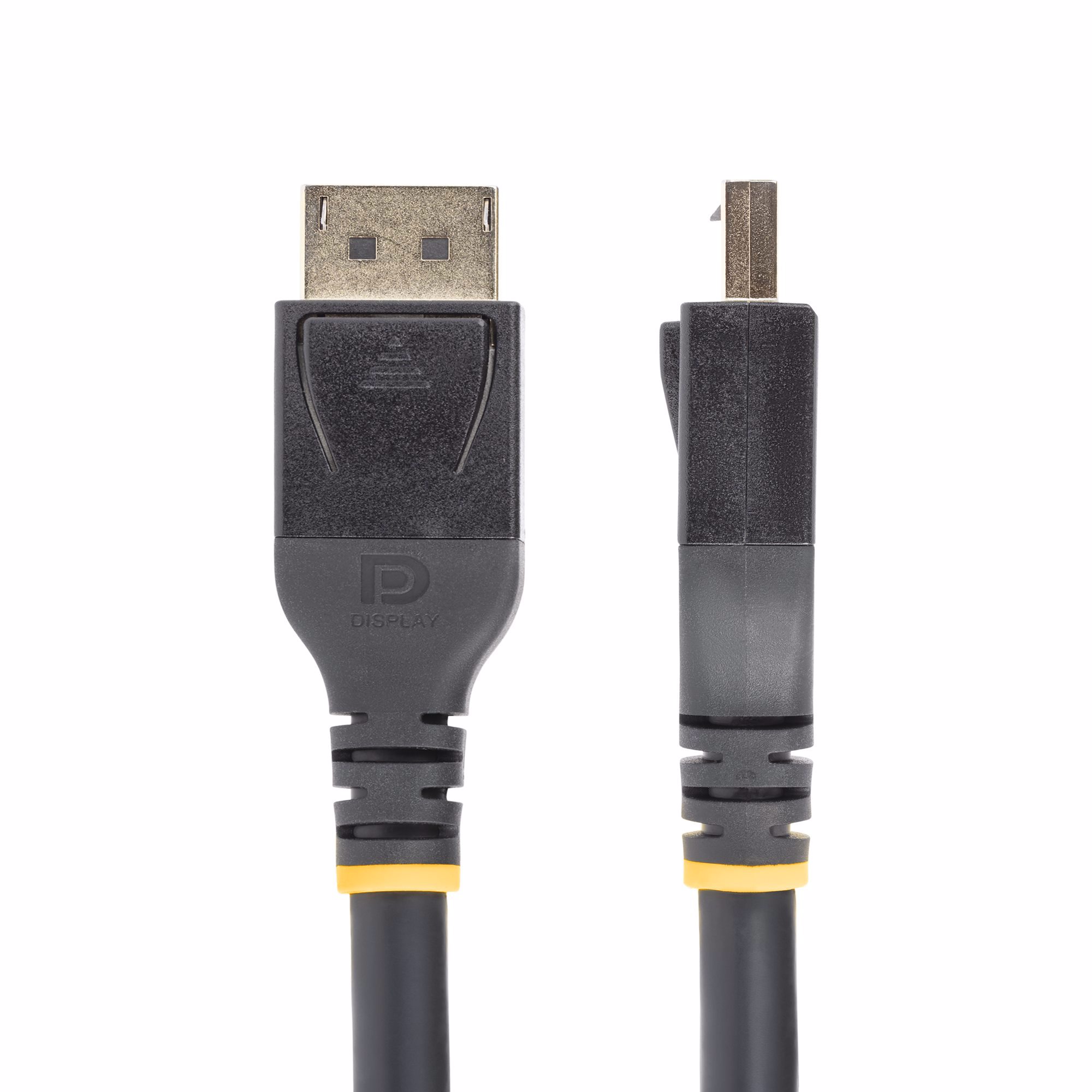

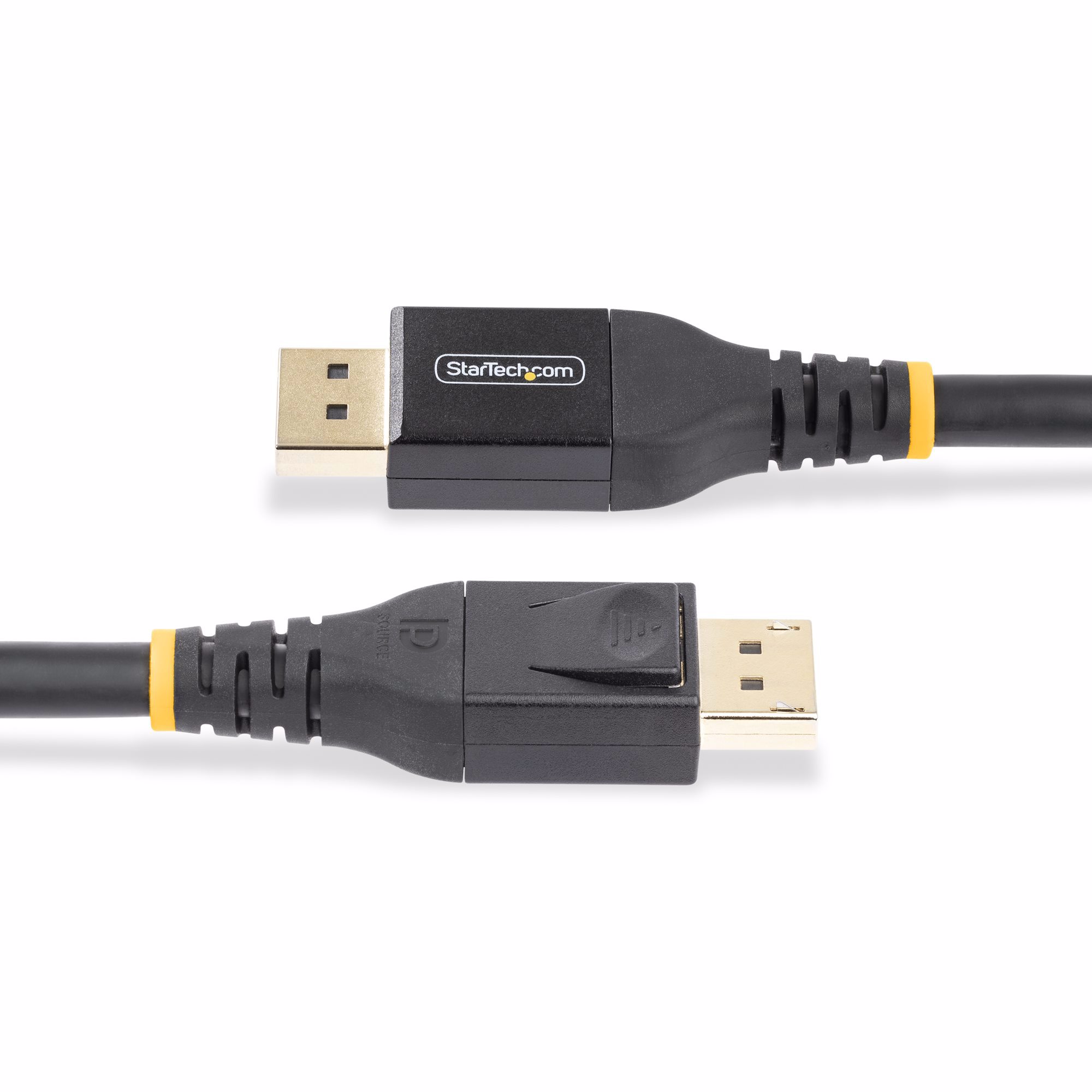

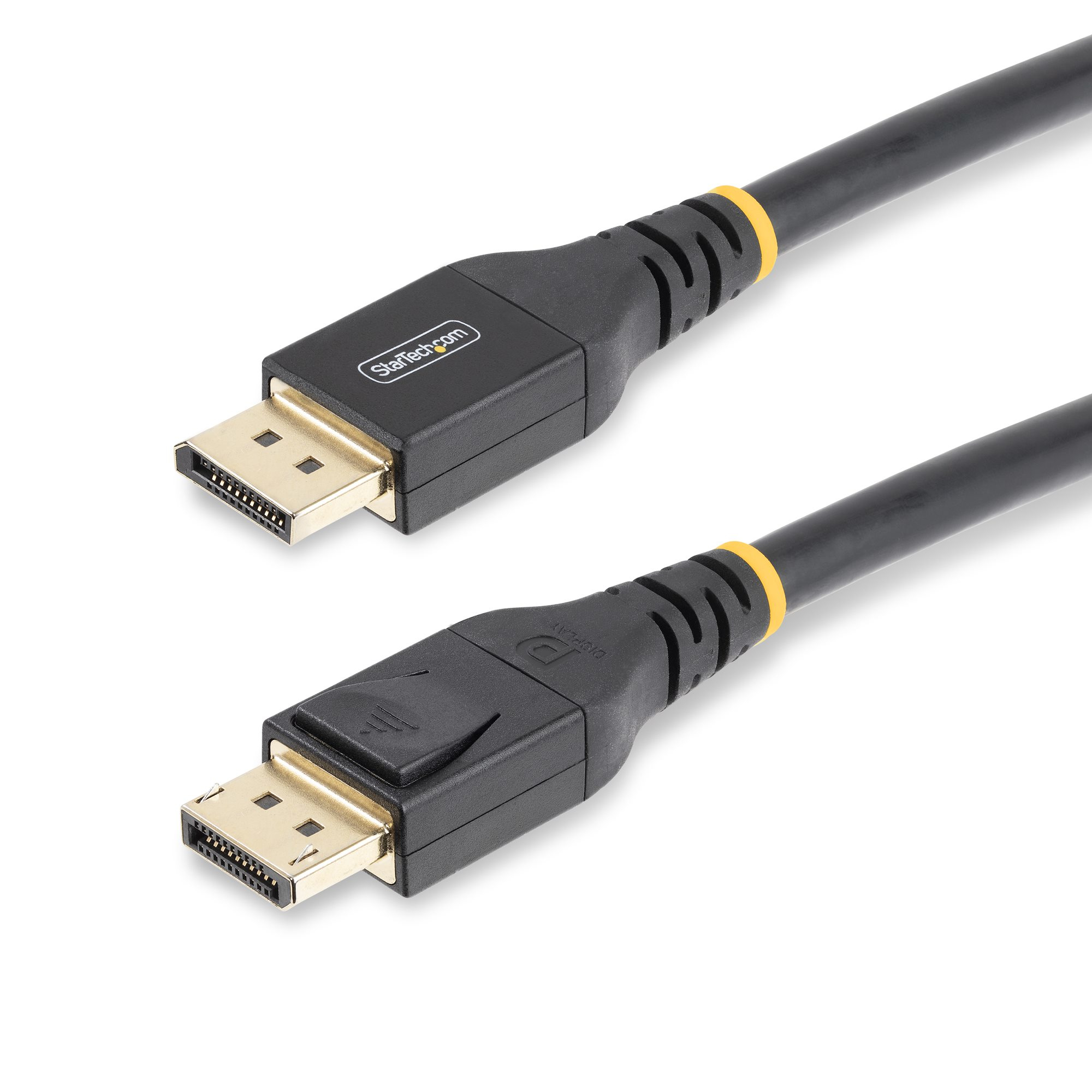

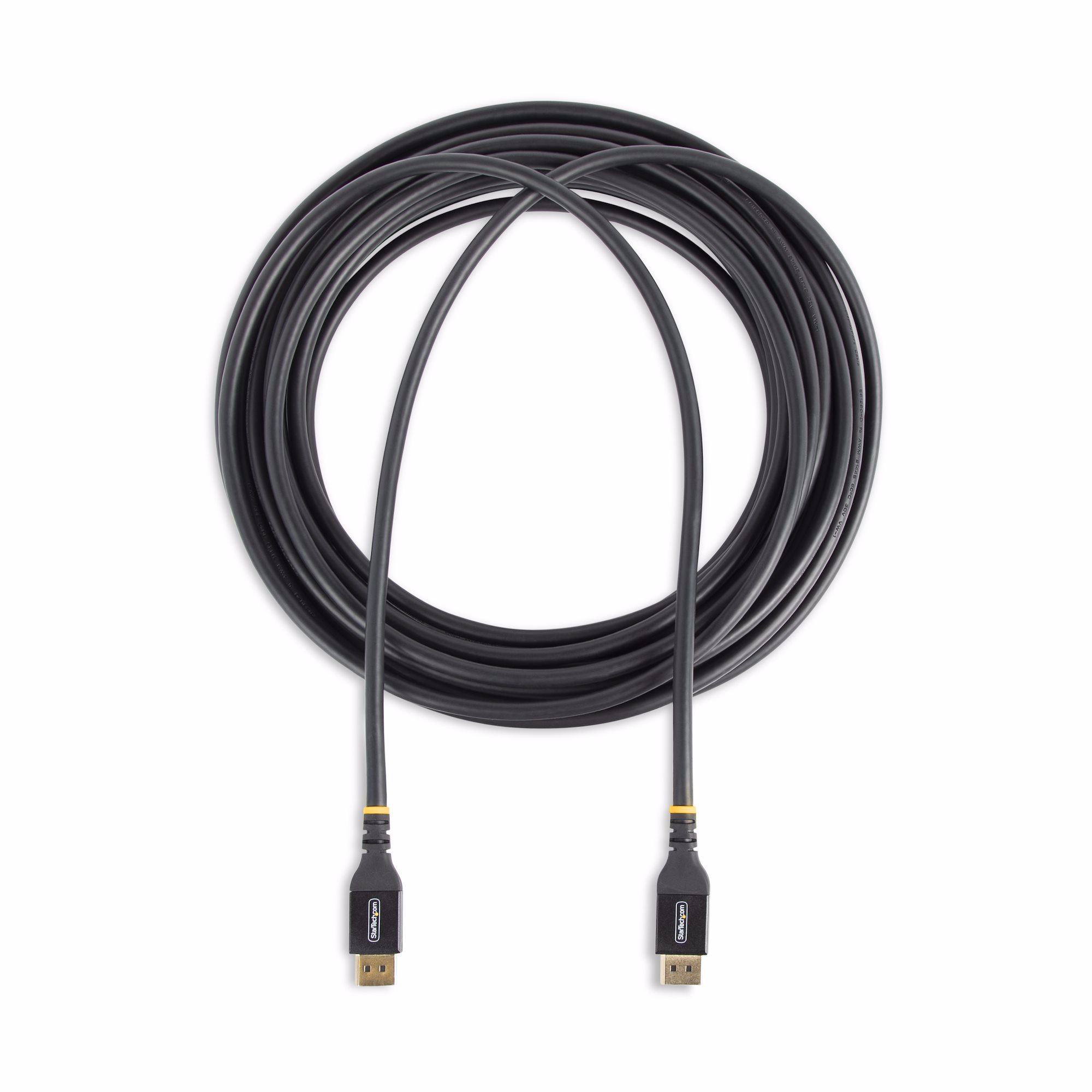

StarTech.com DP14A-15M-DP-CABLE DisplayPort kabel 15,3 m Sort

SKU: 1001657795
EAN: 0065030899970

StarTech.com DP14A-15M-DP-CABLE, 15,3 m, DisplayPort, DisplayPort, Hanstik, Hanstik, 7680 x 4320 pixel
Mere info
1.459,00 DKK Ex. moms: 1.167,20 DKK På lager

Produktbeskrivelse

Facilitate a longer 8K connection without requiring an external power source

Connect a 4K/8K DisplayPort 1.4-enabled monitor to a source or MST-enabled hub, using this VESA-Certified Active DisplayPort 1.4 Cable. The active signal booster ensures reliable audio and 8K video output at up to 50ft (15.2m) without a DisplayPort repeater and external power source. This active DP 1.4 cable is unidirectional with conveniently labeled connectors for source and display to simplify setup.

VESA-Certified DP8K

For seamless performance and compatibility between DisplayPort-enabled devices, the Active DisplayPort Cable is VESA Certified, for guaranteed DP 1.4 support and backward compatibility with DP 1.3/1.2

Durable Design

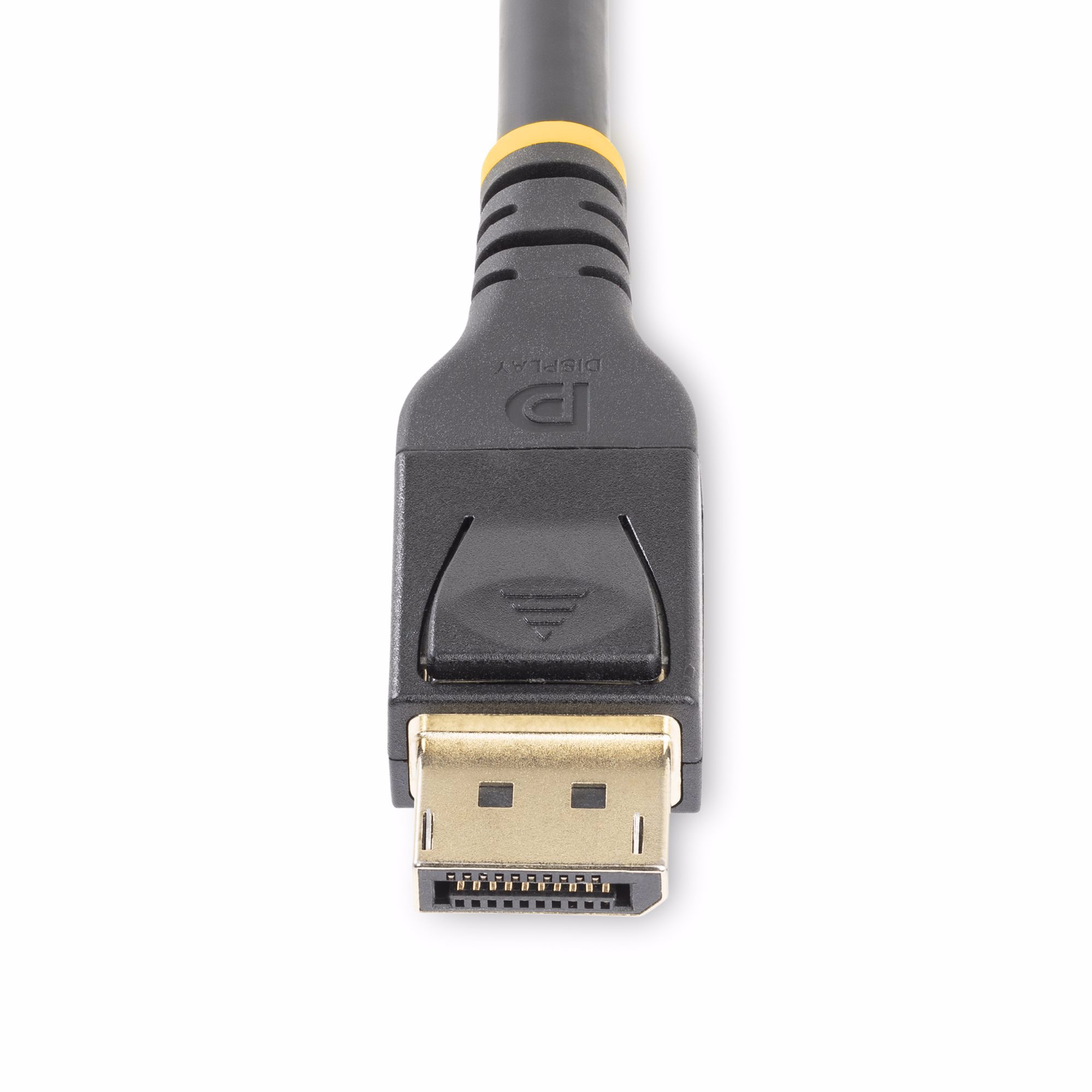

This long DisplayPort cable features a flexible TPE outer jacket to reduce wear from corner bends and long cable runs. Robust strain reliefs enable soft and flexible bends, for convenient positioning of the cable. The latching DP connectors are gold plated for improved conductivity and anti-tarnish properties, and attaches securely to the device to prevent accidental disconnection.

Supported DisplayPort 1.4 Features:

This 8K DisplayPort cable supports all DP 1.4 features:

• Resolutions up to 8K 60Hz, 4K 120Hz, 1440p 240Hz with a compatible DP source and display
• HDCP 2.2 support
• High Bit Rate 3 (HBR3) bandwidth of 32.4Gbps
• High Dynamic Range 10 (HDR10)
• Display Stream Compression 1.2 (DSC 1.2)

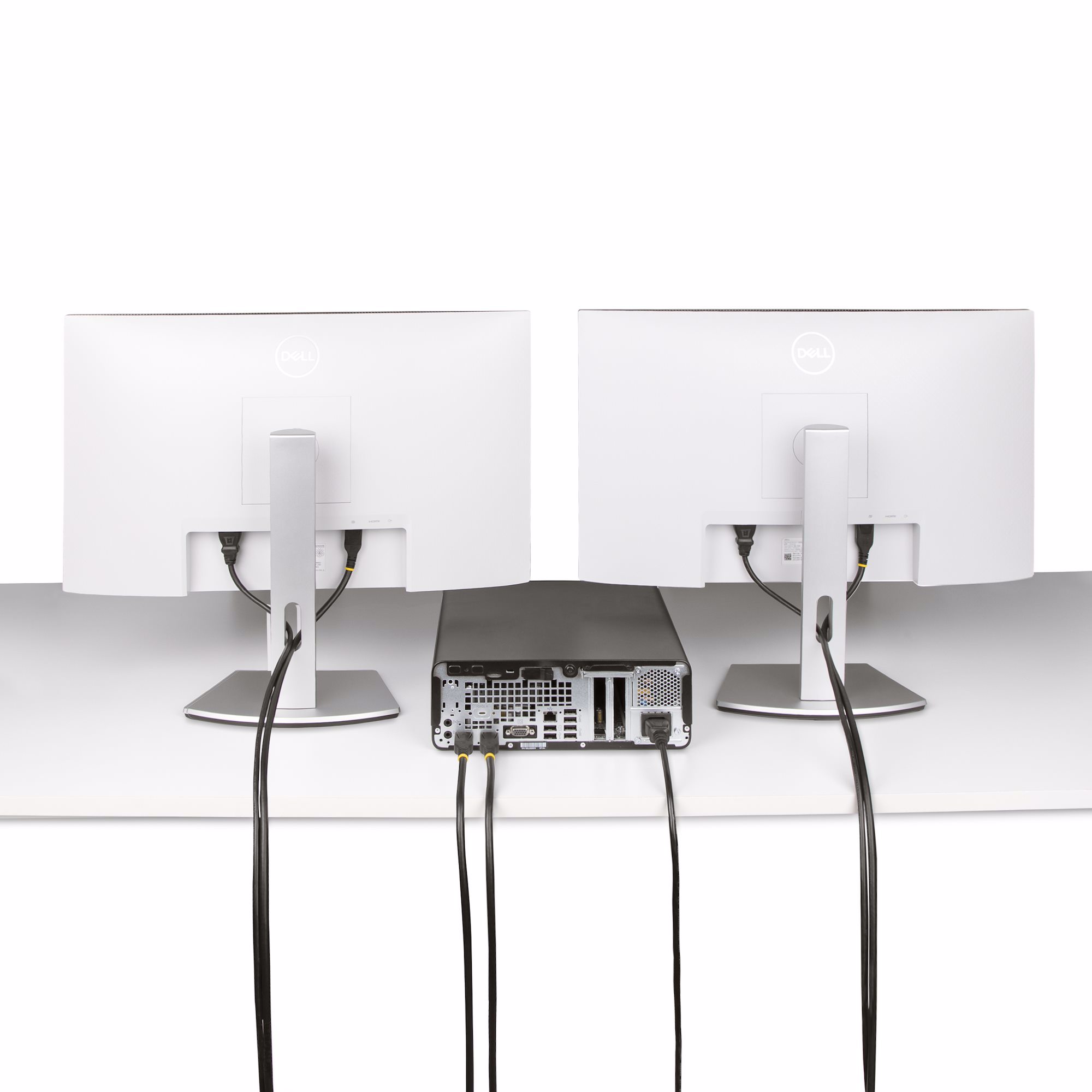

• Multi-Stream Transport (MST) for daisy-chaining multiple monitors
• 32 Uncompressed Digital Audio Channels
• Backward compatible with 5K 60Hz, 4K 120Hz and previous DP versions

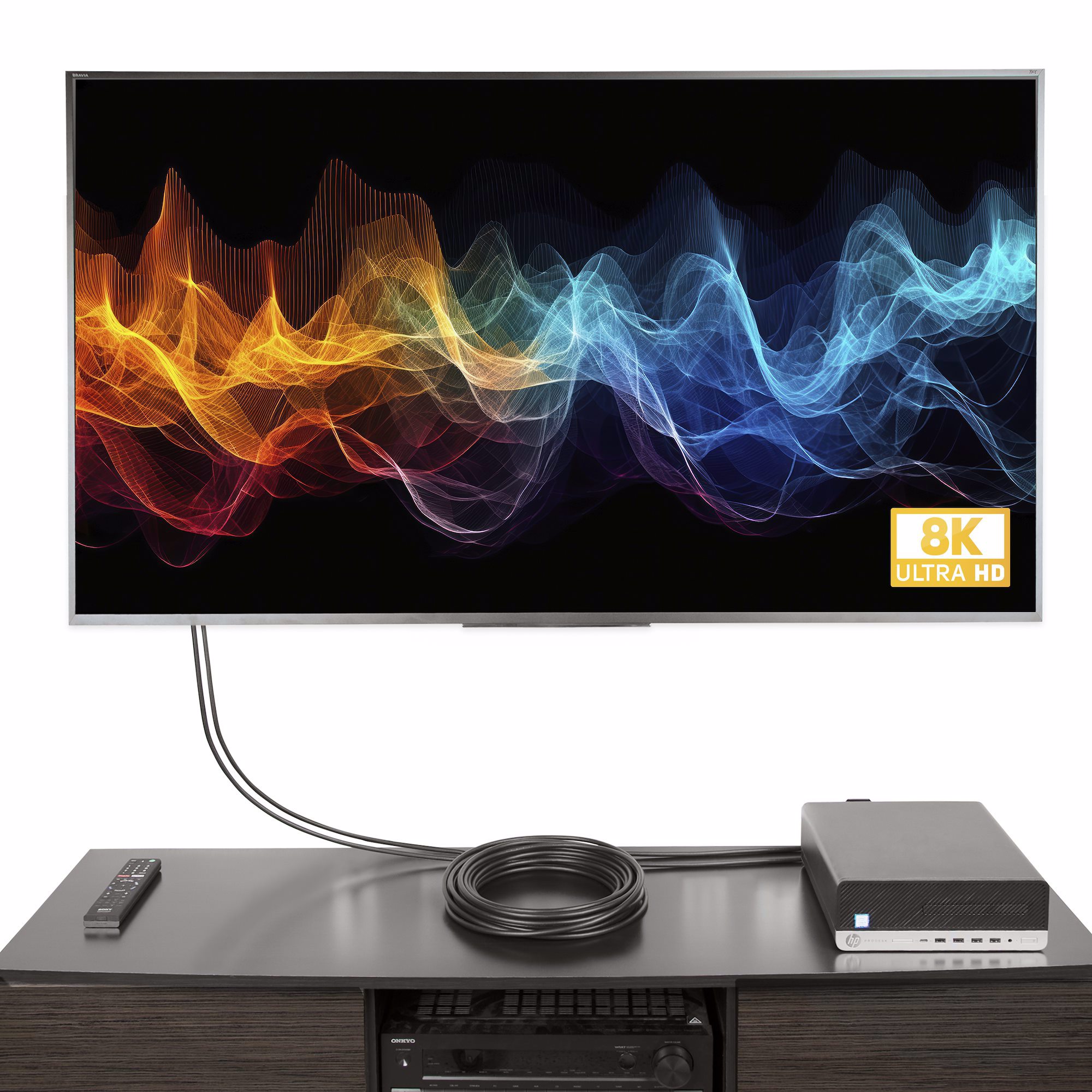

The Active DP Cable is constructed with aluminum-mylar shielding to minimize EMI interference for clear and reliable audio/video output. This VESA-certified DP cable is designed for long-term reliability, and is the ideal solution for setting up boardrooms, video walls, and TV signage.

The StarTech.com Advantage

Specifikationer

Kabellængde 15,3 m
Stik 1 DisplayPort
Stik 2 DisplayPort
Stik 1 køn Hanstik
Stik 2 køn Hanstik
Maksimal opløsning 7680 x 4320 pixel
Produktfarve Sort
Stik 1 formfaktor Lige
Stik 2 formfaktor Lige
Stikforbindelse kontakter plettering Guld
DisplayPort-version 1.4
Understøttede grafikopløsninger 3840 x 2160, 7680 x 4320
Maksimal opdateringshastighed 144 Hz
HDCP Ja
HDCP-version 2.2
Display Stream Compression (DSC) Ja
Display Stream Compression (DSC) version 1.2
Kabelmateriale Kobber
Kabelafskærmning Aluminium mylar folie
Materiale for kapper Termoplastisk elastomer (TPE)
AWG-ledningsstørrelse 24/28
Dataoverførselshastighed 25,92 Gbit/sek.
Båndbredde 32400 MB/s
HBR3-support Ja
Multi-Stream Transport (MST) Ja
Vurdering af brandmodstandsevne VW-1
Driftstemperatur (T-T) 0 - 50 °C
Opbevaringstemperatur (T-T) -20 - 60 °C
Relativ luftfugtighed ved drift (H-H) 0 - 85%
Compliance-certifikater RoHS
Kabeldiameter 7,5 mm
Pakkebredde 460 mm
Pakkedybde 350 mm
Pakkehøjde 150 mm
Pakkevægt 1 kg
Hovedkassens bredde (udvendigt) 400 mm
Hovedkassens længde (udvendigt) 330 mm
Hovedkassen højde (udvendigt) 270 mm
Produkter pr. hovedkasse (udvendigt) 8 stk
Overholdelse af bæredygtighed Ja
