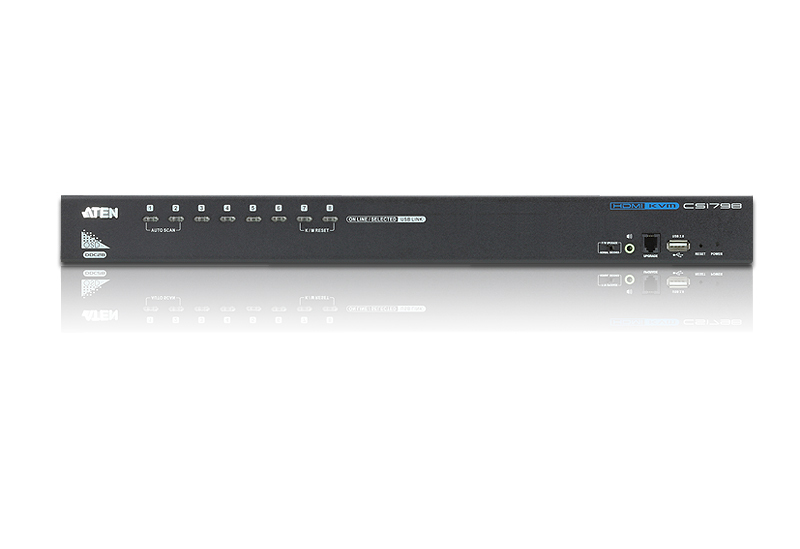

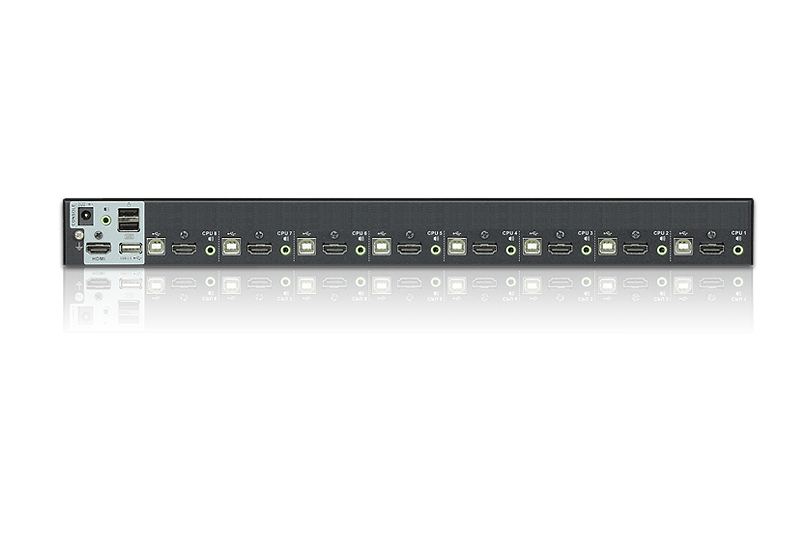

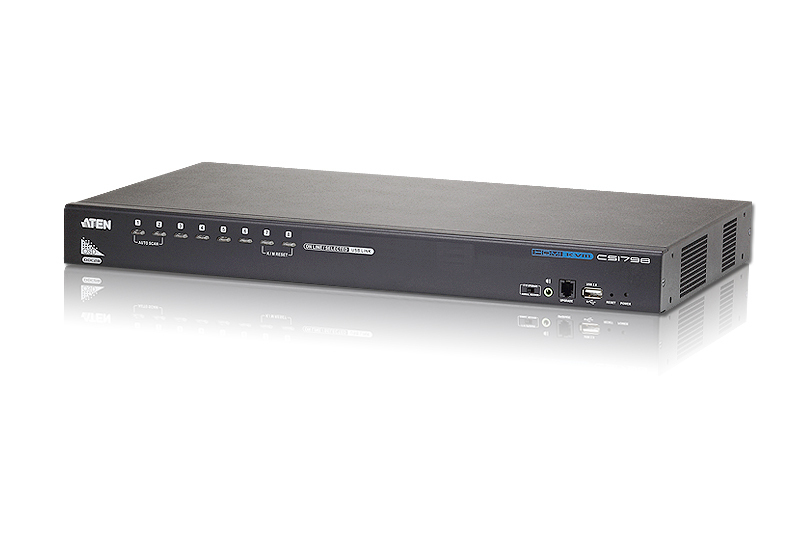

ATEN CS1798-AT-G KVM Switch Sort

SKU: 988864550
EAN: 4719264641596

ATEN CS1798-AT-G, 1920 x 1200 pixel, WUXGA, 8,56 W, Sort
Mere info
3.029,00 DKK Ex. moms: 2.423,20 DKK På lager

Produktbeskrivelse

The CS1798 8-port USB HDMI KVM Switch is a multi-purpose appliance that consolidates access and control of up to 8 HDMI computers from a single USB keyboard, USB mouse, and monitor console.
1x CS1798 8-Port USB HDMI KVM Switch
2x 2L-7D02UH Custom USB HDMI KVM Cable Sets
1x LIN5-04A2-J11G Firmware Upgrade Cable
1x LIN2-418K-E12G Power cord
1x 0AD8-8005-40MG Power Adaptor
1x Foot Pad Set (4 pcs)
&x Rackmounting Kit
1x User Instructions

Specifikationer

Harmoniseret systemkode (HS) 85176200
Produktfarve Sort
Pakkevægt 5,22 kg
Bredde 432,4 mm
Højde 440 mm
Vægt 4,63 kg
Dybde 257,2 mm
Relativ luftfugtighed ved drift (H-H) 0 - 80%
Opbevaringstemperatur (T-T) -20 - 60 °C
Pakkebredde 133 mm
Pakkedybde 499 mm
Pakkehøjde 324 mm
Understøttede Windows-operativsystemer Ja
Understøttede Linux-operativsystemer Ja
Driftstemperatur (T-T) 0 - 50 °C
Strømkilde DC
Strømforbrug (typisk) 8,56 W
Relativ luftfugtighed ved opbevaring (H-H) 0 - 80%
Hovedkassens bredde (udvendigt) 427 mm
Hovedkassens længde (udvendigt) 519 mm
Hovedkassen højde (udvendigt) 348 mm
Hovedkassens bruttovægt (udvendigt) 16,7 kg
Produkter pr. hovedkasse (udvendigt) 3 stk
LED-indikatorer Ja
Understøttede Mac-operativsystemer Ja
Udgange til hovedtelefoner 9
Indgangsspænding 5 V
Brugervejledning Ja
HD-type WUXGA
Husmateriale Metal
Maksimal opløsning 1920 x 1200 pixel
USB stik Ja
Antal kontrollerede computere 8
Tastatur porttype USB
Mus porttype USB
Video porttype HDMI
Konsol porte 3ˌ5 mm hovedtelefon, 3.5mm mic, HDMI, USB A
Antal USB 2.0 type-A hub porte 2
USB-stik type USB Type-A, USB Type-B
Indbygget skærm Ingen
Ydre emballage nettovægt 13,9 kg
Hurtig installationsvejledning Ja
Antal USB 2.0 Type-B porte 8
Antal konsol USB porte 2
Lydforbindelse Ja
Antal mikrofon-indgange 1
DC-in-stik Ja
Video båndbredde 60 Hz
Skanningsinterval 1,5,255 sek./side
Antal HDMI-porte 8
