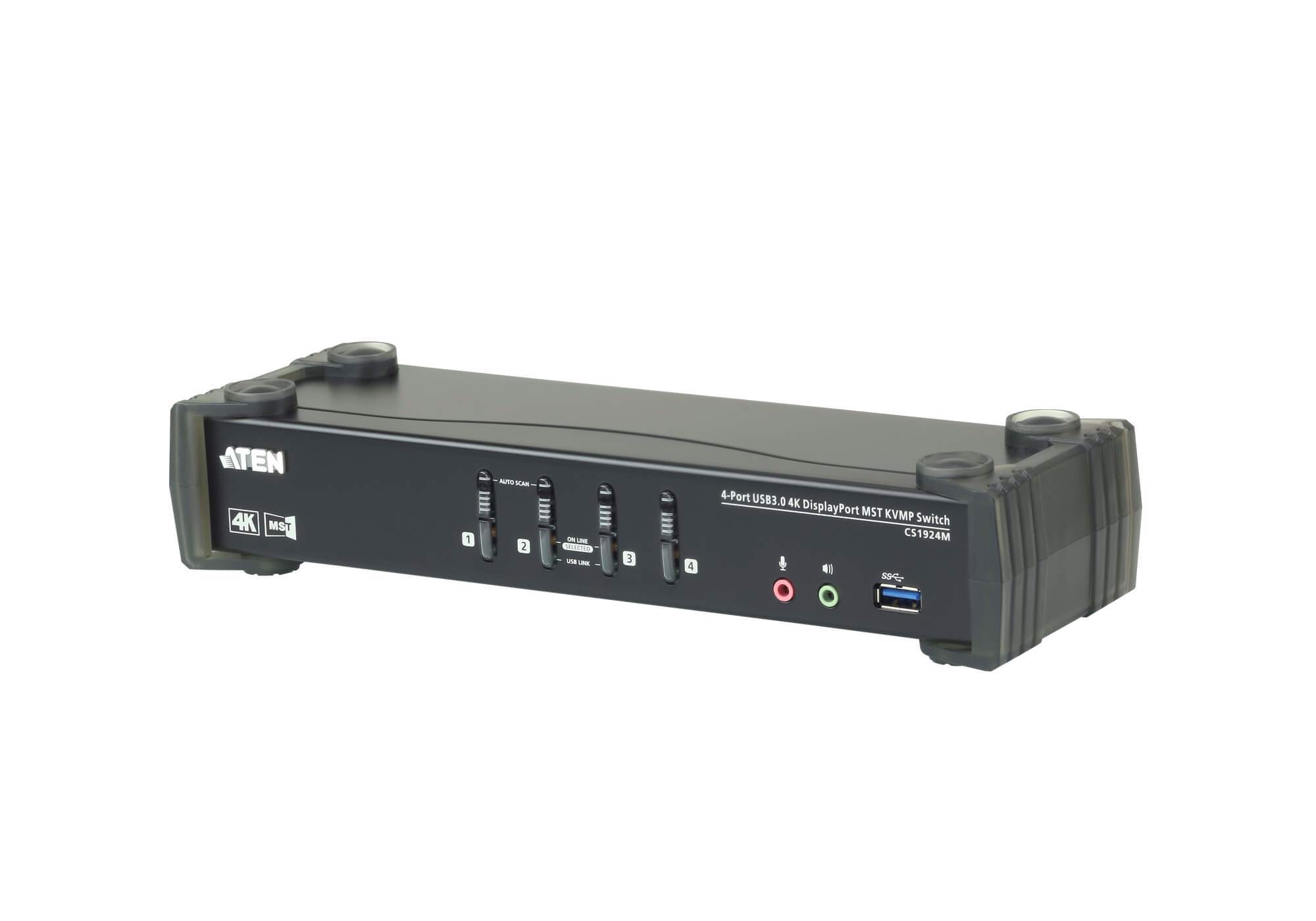

ATEN CS1924M-AT-G KVM Switch Sort

SKU: 993152416
EAN: 4719264645839

ATEN CS1924M-AT-G, 4096 x 2160 pixel, 4K Ultra HD, 4,89 W, Sort
Mere info
3.919,00 DKK Ex. moms: 3.135,20 DKK På lager

Produktbeskrivelse

Incorporating the latest Multi-Stream Transport (MST) technology, the CS1924M 4-Port USB 3.0 4K DisplayPort MST KVMP™ Switch is the world's first DisplayPort KVM switch with a built-in MST hub. The CS1924M enables users to adopt two console displays from a single DisplayPort 1.2 video source, providing an extended desktop mode and splitter mode at resolutions up to 4K for multitasking across two displays while reducing bulky cable connections.

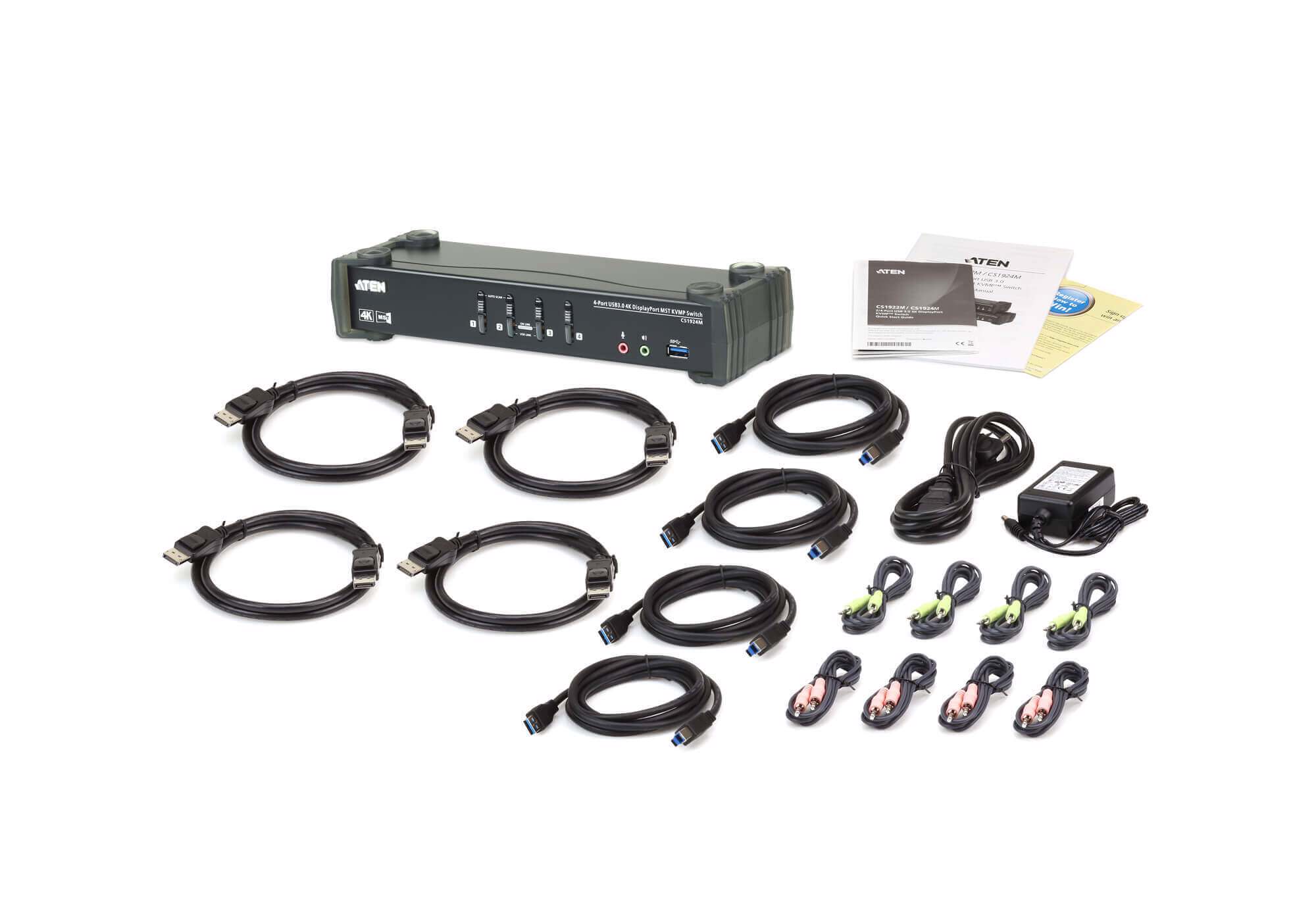

1x 4-Port USB 3.0 4K DisplayPort MST KVMP™ Switch
4x LIN5-20K1-K13G DisplayPort 1.2 Cables (1.5m/5ft)
4x LIN6-11C1-E12G USB Cables (USB 3.0-A to USB 3.0-B; 1.8m/6ft)
8x LIN5-0205-21DG/CD Audio Cables (1.8m/6ft)
1x LIN2-418K-E12G / 0AD8-8005-40MG Power Adapter
1x User Instructions

Specifikationer

Harmoniseret systemkode (HS) 85176200
Produktfarve Sort
Pakkevægt 2,56 kg
Bredde 270 mm
Højde 55,5 mm
Vægt 2,01 kg
Dybde 88 mm
Relativ luftfugtighed ved drift (H-H) 0 - 80%
Opbevaringstemperatur (T-T) -20 - 60 °C
Pakkebredde 98 mm
Pakkedybde 325 mm
Pakkehøjde 210 mm
Understøttede Windows-operativsystemer Ja
Driftstemperatur (T-T) 0 - 50 °C
Strømkilde DC
Strømforbrug (typisk) 4,89 W
Relativ luftfugtighed ved opbevaring (H-H) 0 - 80%
Hovedkassens bredde (udvendigt) 342 mm
Hovedkassens længde (udvendigt) 512 mm
Hovedkassen højde (udvendigt) 232 mm
Hovedkassens bruttovægt (udvendigt) 13,7 kg
Produkter pr. hovedkasse (udvendigt) 5 stk
LED-indikatorer Ja
Udgange til hovedtelefoner 6
Indgangsspænding 5 V
Brugervejledning Ja
HD-type 4K Ultra HD
Husmateriale Metal, Plast
Maksimal opløsning 4096 x 2160 pixel
USB stik Ja
Antal kontrollerede computere 4
Tastatur porttype USB
Mus porttype USB
Video porttype HDMI
Konsol porte 3ˌ5 mm hovedtelefon, 3.5mm mic, DisplayPort, HDMI, USB A
USB-stik type USB Type-A, USB Type-B
Indbygget skærm Ingen
Ydre emballage nettovægt 10,1 kg
Hurtig installationsvejledning Ja
Antal konsol USB porte 2
Lydforbindelse Ja
Antal mikrofon-indgange 6
DC-in-stik Ja
Video båndbredde 60 Hz
Skanningsinterval 1,5,99 sek./side
Trykknap Ja
Genvejstaster Ja
Antal DisplayPorts 4
Antal USB 3.2 Gen 1 (3.1 Gen 1) Type-B porte 2
Antal USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub porte 2
