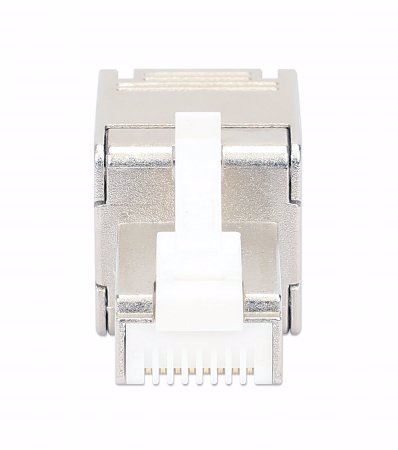

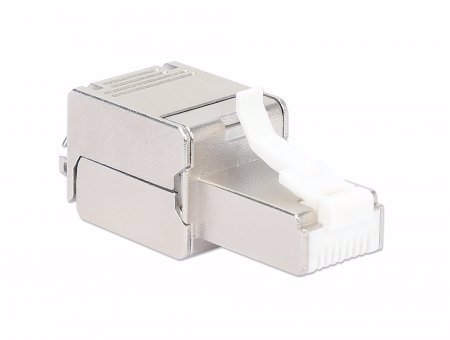

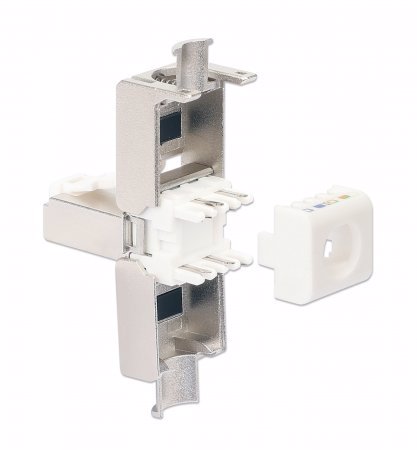

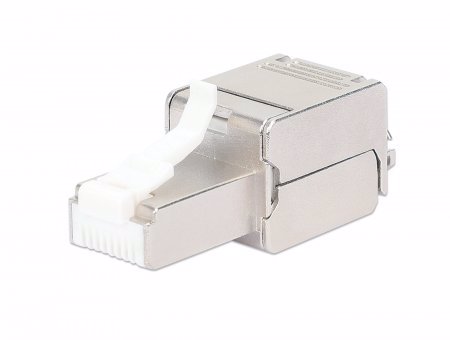

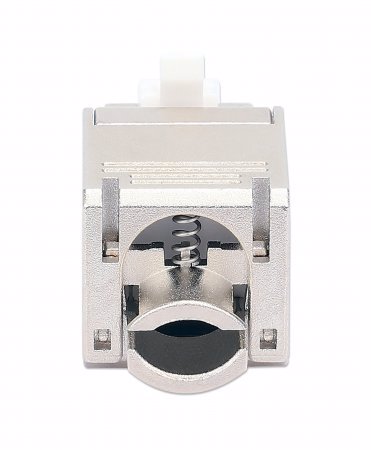

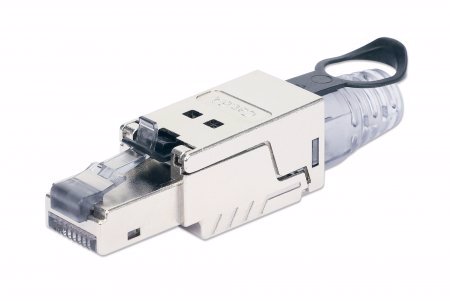

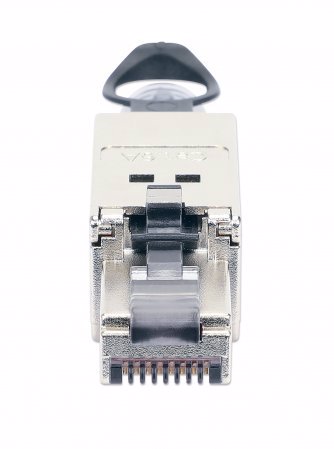

Intellinet 790741 kabelsamler RJ45 Rustfrit stål

SKU: 1000209580
EAN: 0766623790741

Intellinet 790741, RJ45, Rustfrit stål, Hanstik, Lige, Cat6a, U/FTP (STP)
Mere info
89,00 DKK Ex. moms: 71,20 DKK På lager

Produktbeskrivelse

Field-installable Cat6a STP RJ45 Modular Plug for easy, fast and tool-free high-quality cable assembly

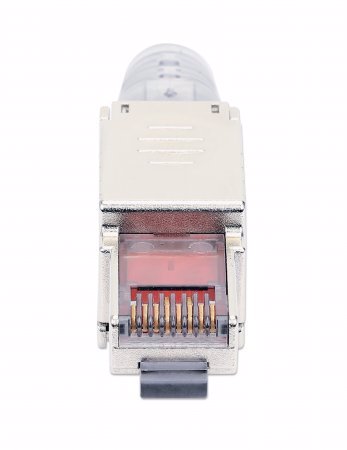

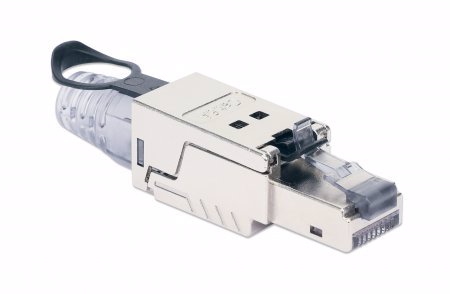

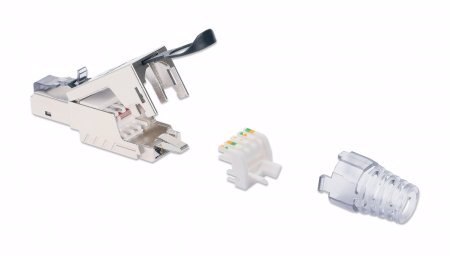

The Cat6a 10G Shielded Toolless RJ45 Modular Field Termination Plug with Pull-ring Release from Intellinet Network Solutions is designed for time-saving, high-quality cable terminations even when out in the field for such devices as security cameras, industrial electronics and more. Without any special tools, the cable can be assembled within two minutes. This plug is suitable for both stranded and solid conductor cables for high-performance network applications up to 10GBase-T with PoE applications up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE. For maximum signal integrity, it is equipped with gold-plated contacts and 360° STP shielding. A built-in pull-ring release tab makes disconnecting from the RJ45 port easier, especially in hard-to-reach places.

Specifikationer

Stik RJ45
Produktfarve Rustfrit stål
Stik køn Hanstik
Forbindelsesformfaktor Lige
Standard for kabler Cat6a
Kabelafskærmning U/FTP (STP)
Stikforbindelse kontakter plettering Guld
Strøm 1,5 A
Certificering CE RoHS FCC ISO/IEC 11801 IEC 60603-7-51 Cat5 (ANSI/TIA/EIA-568-D) Cat5e (TIA/EIA-568-D) Cat6 (ANSI/TIA-568-D) Cat6a (ANSI/TIA-568-D)
Vægt 25 g
Bredde 14 mm
Dybde 63 mm
Højde 17 mm
Driftstemperatur (T-T) -10 - 60 °C
Opbevaringstemperatur (T-T) -40 - 70 °C
