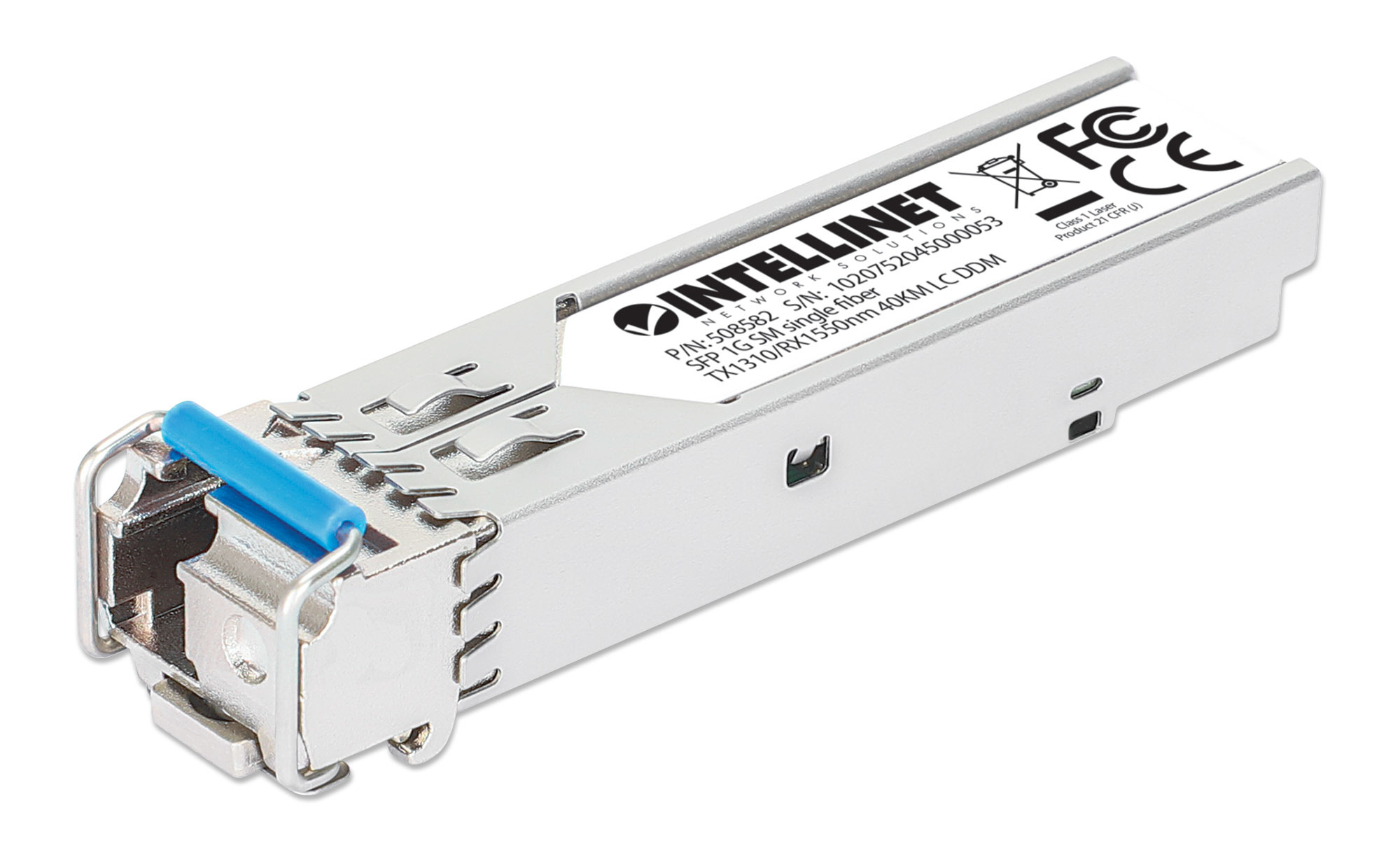

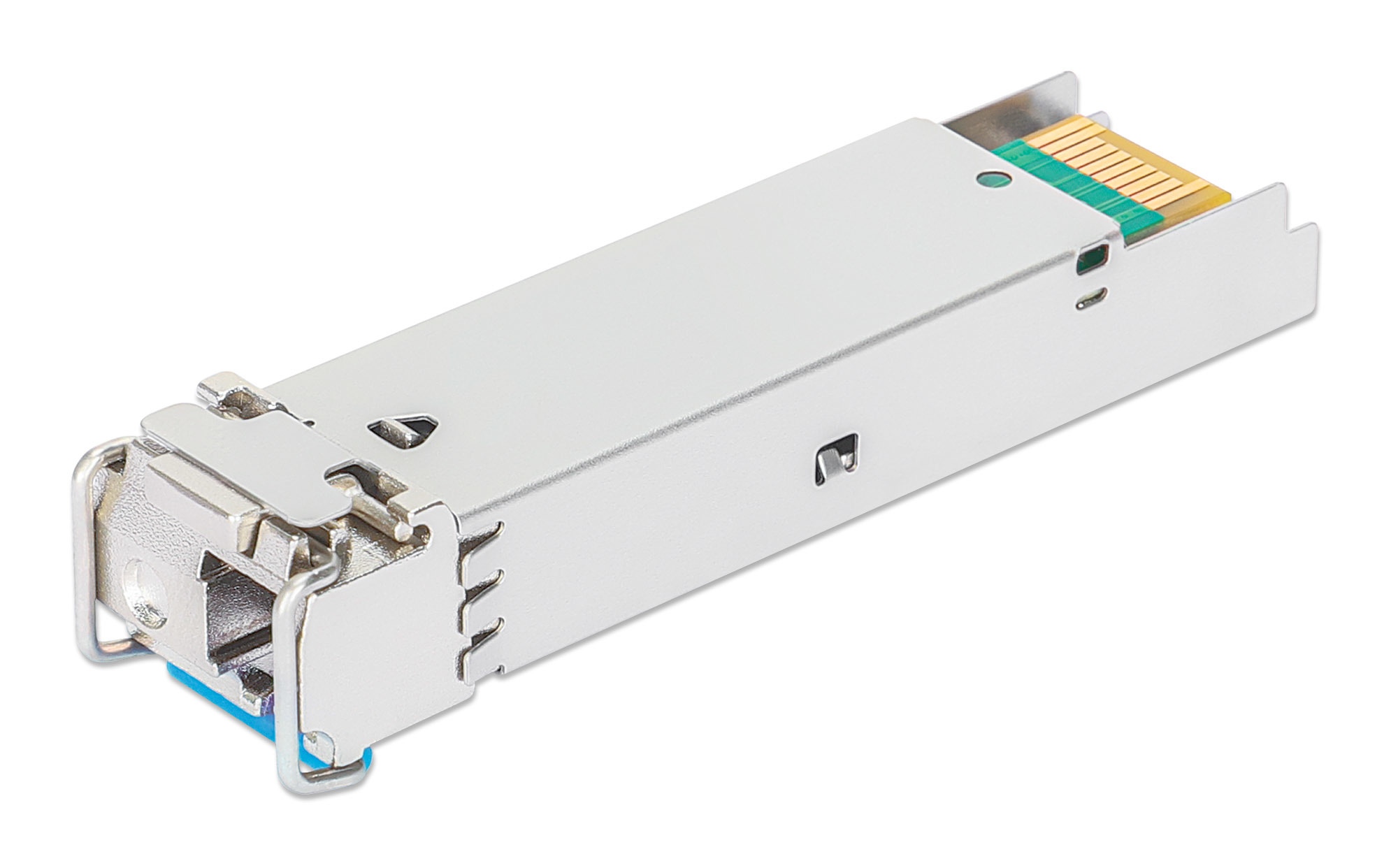

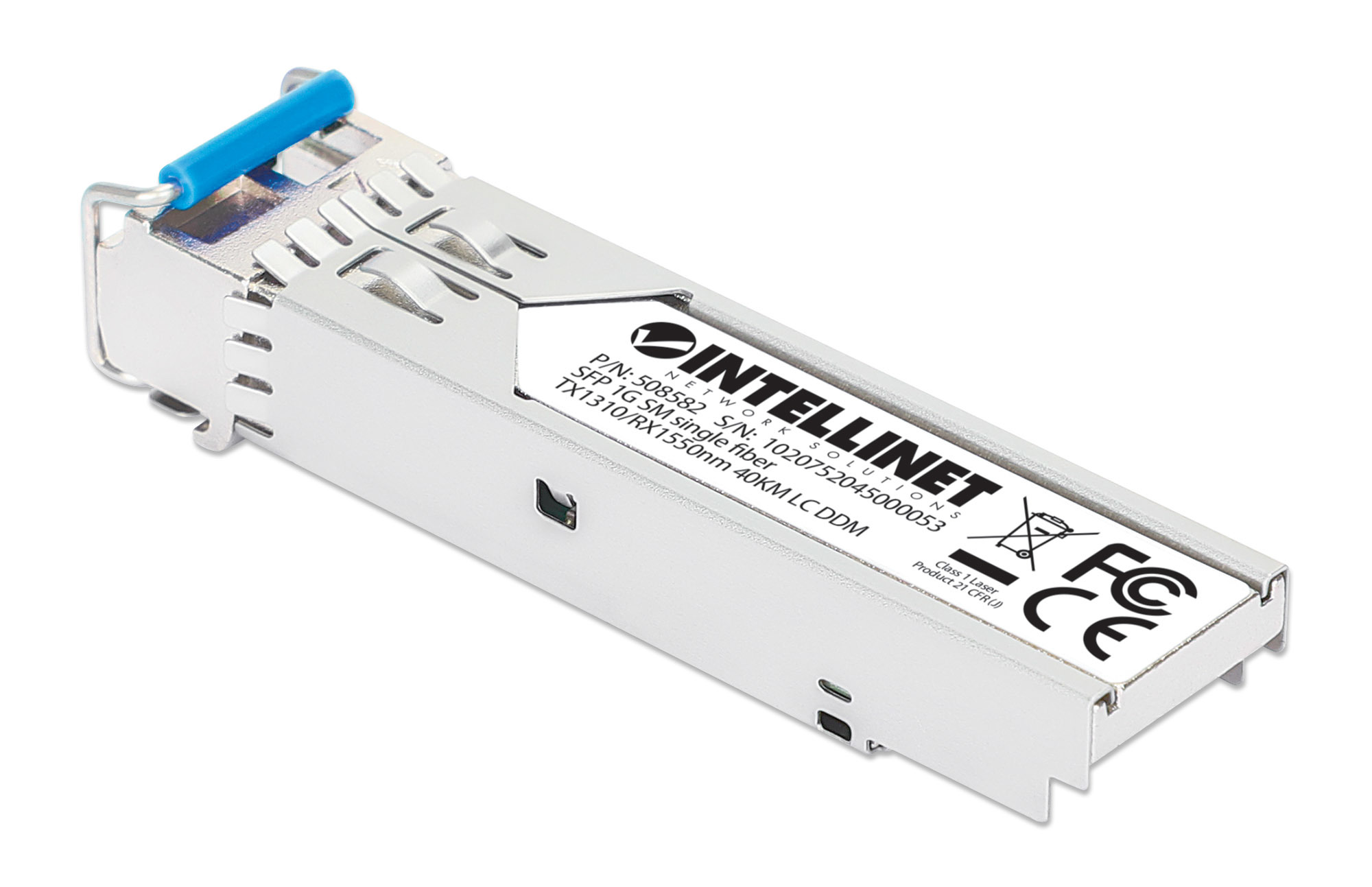

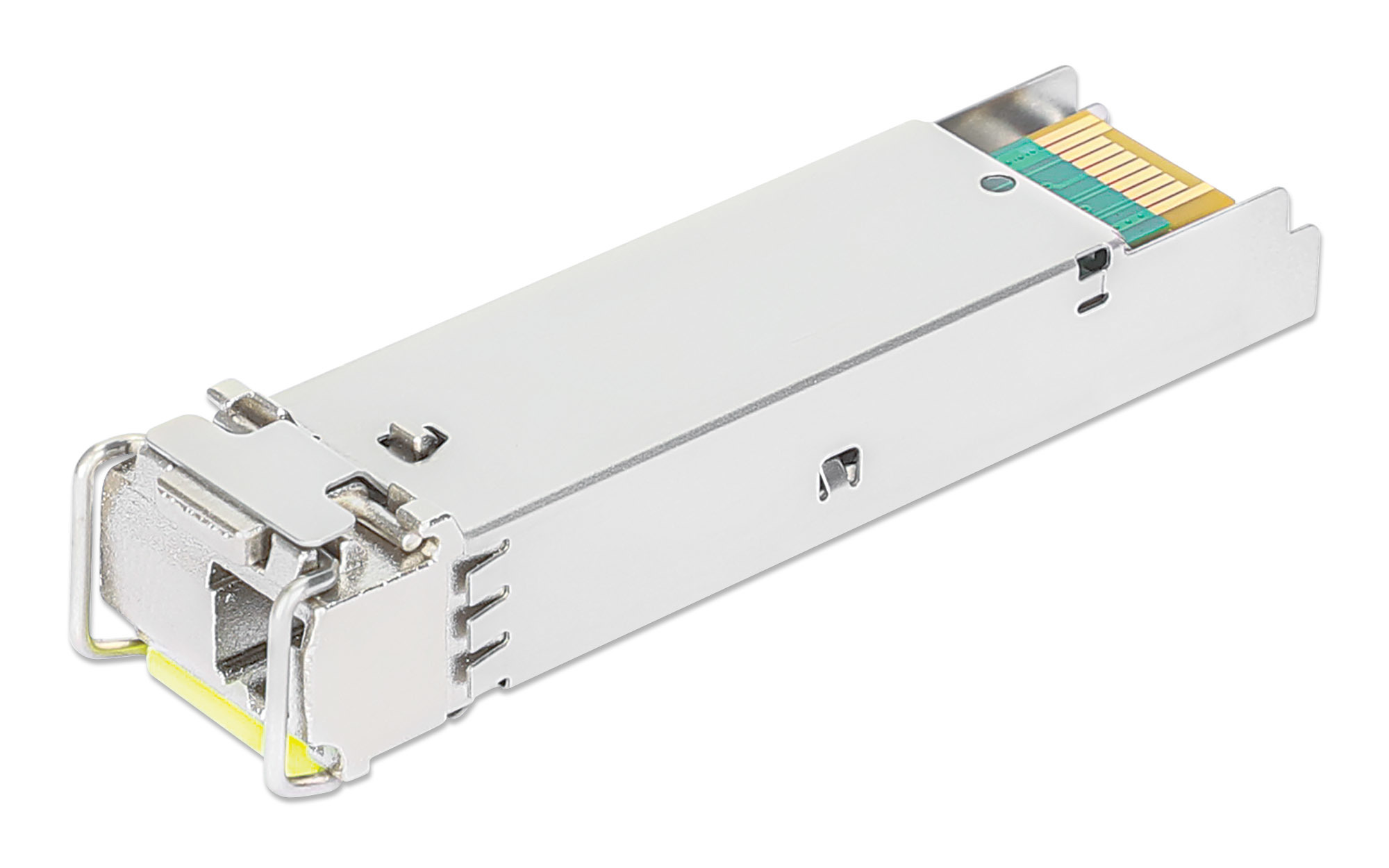

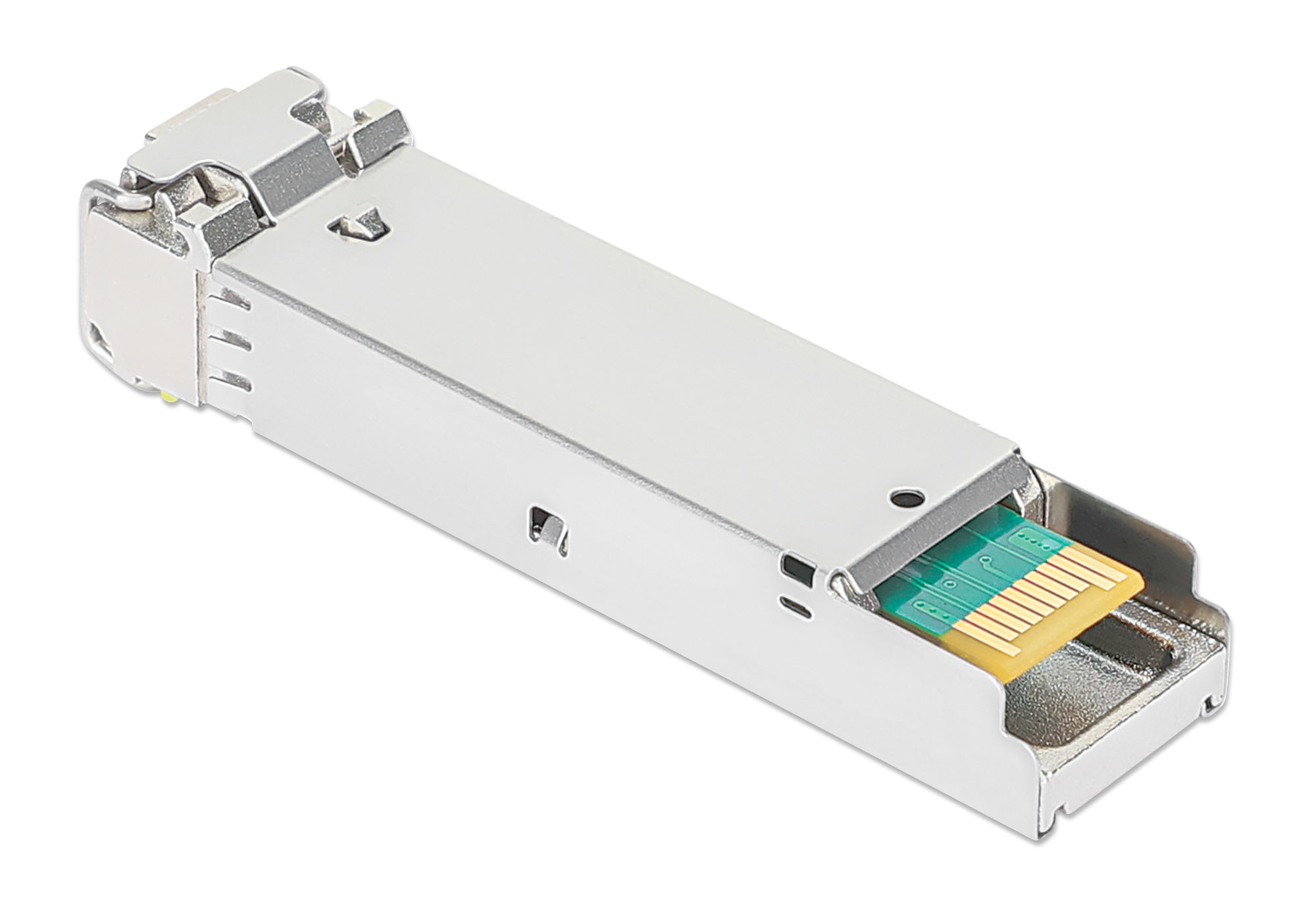

Intellinet 508582 modul til netværksmodtager Fiberoptisk 1000 Mbit/s SFP

SKU: 1001082625
EAN: 0766623508582

Intellinet 508582, Fiberoptisk, 1000 Mbit/s, SFP, LC, 9/125 µm, BX-U
Mere info
199,00 DKK Ex. moms: 159,20 DKK På lager

Produktbeskrivelse

Gigabit Fiber WDM Bi-Directional SFP Optical Transceiver Module – MSA compatible, affordable premium performance with WDM benefits

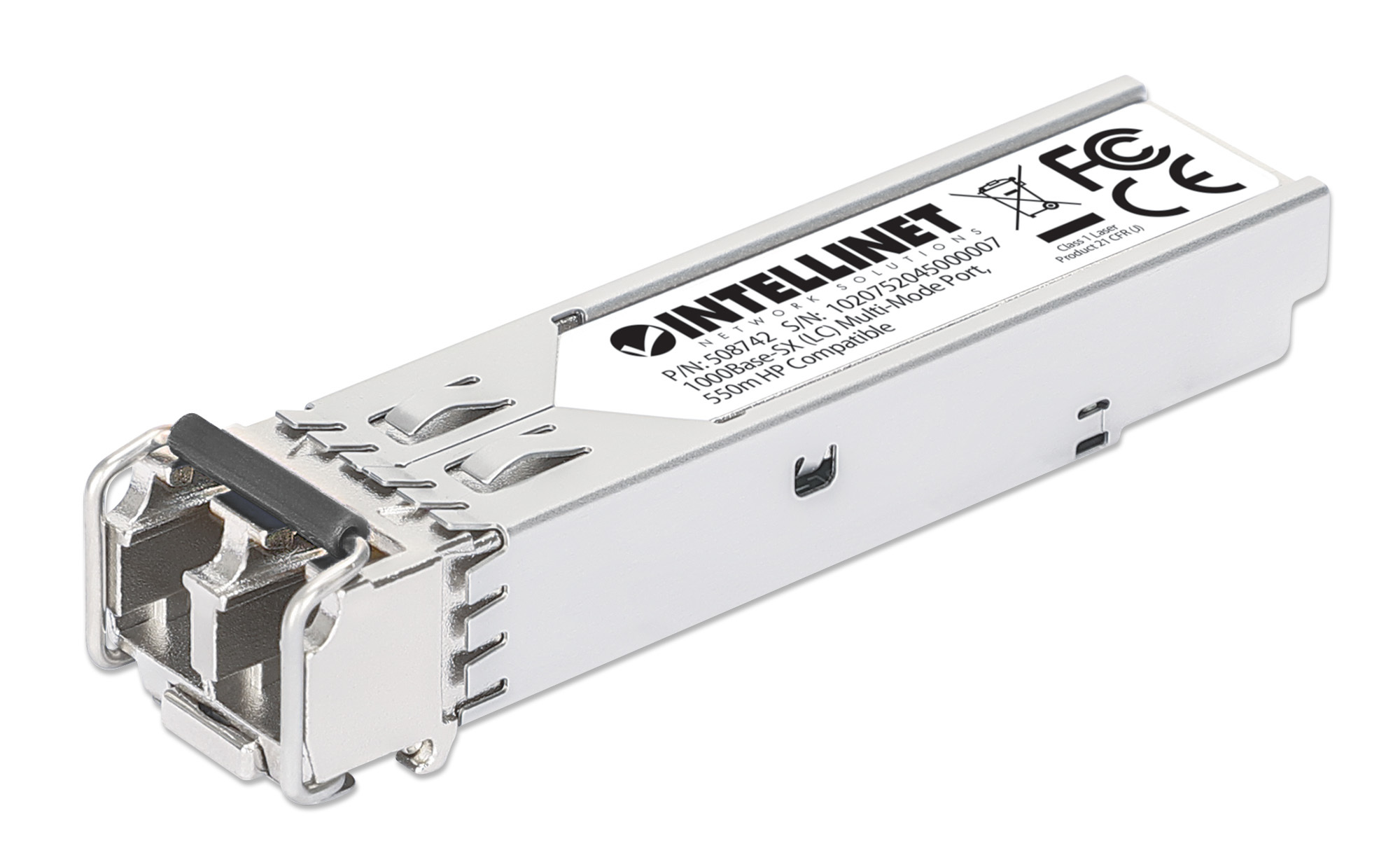

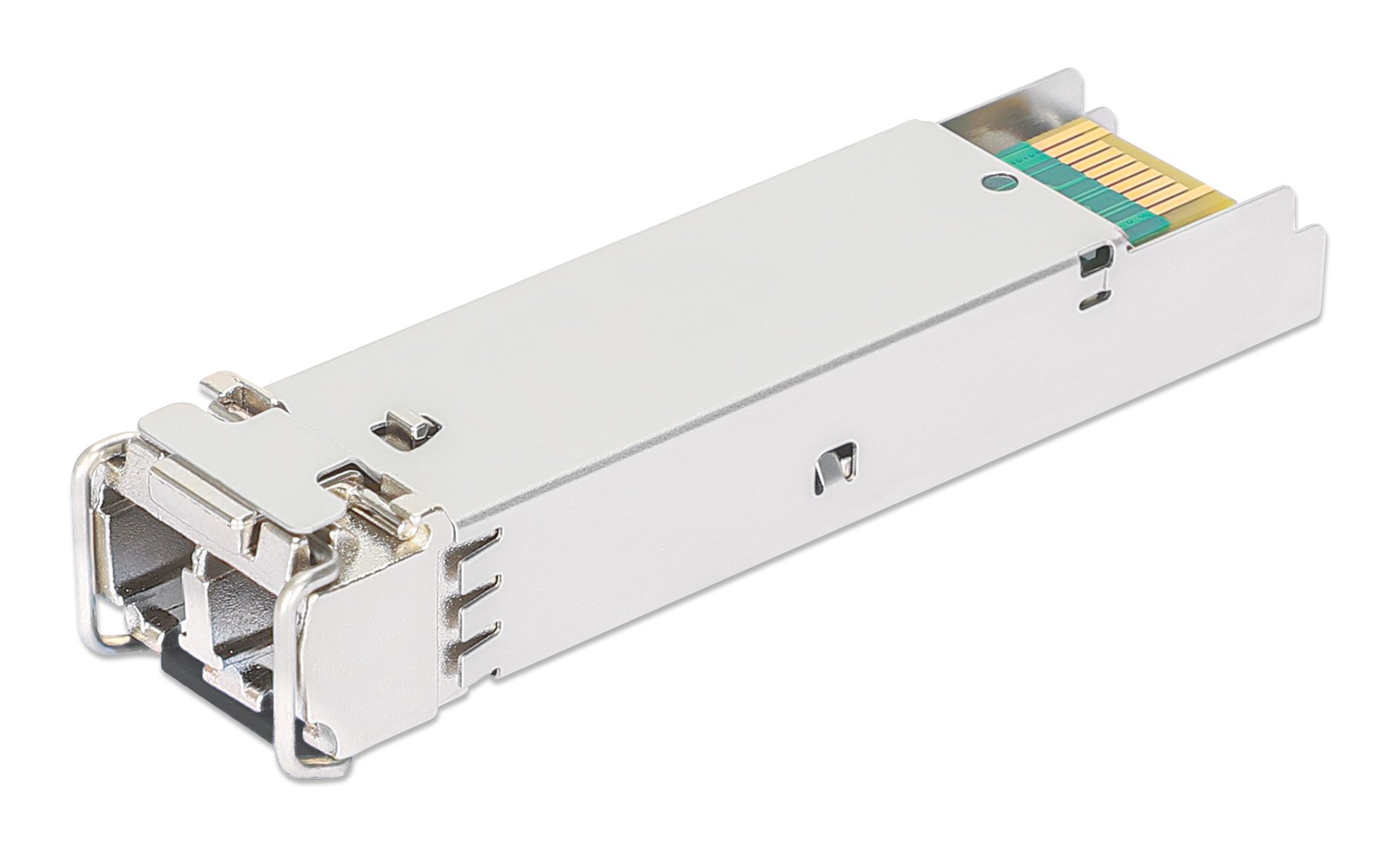

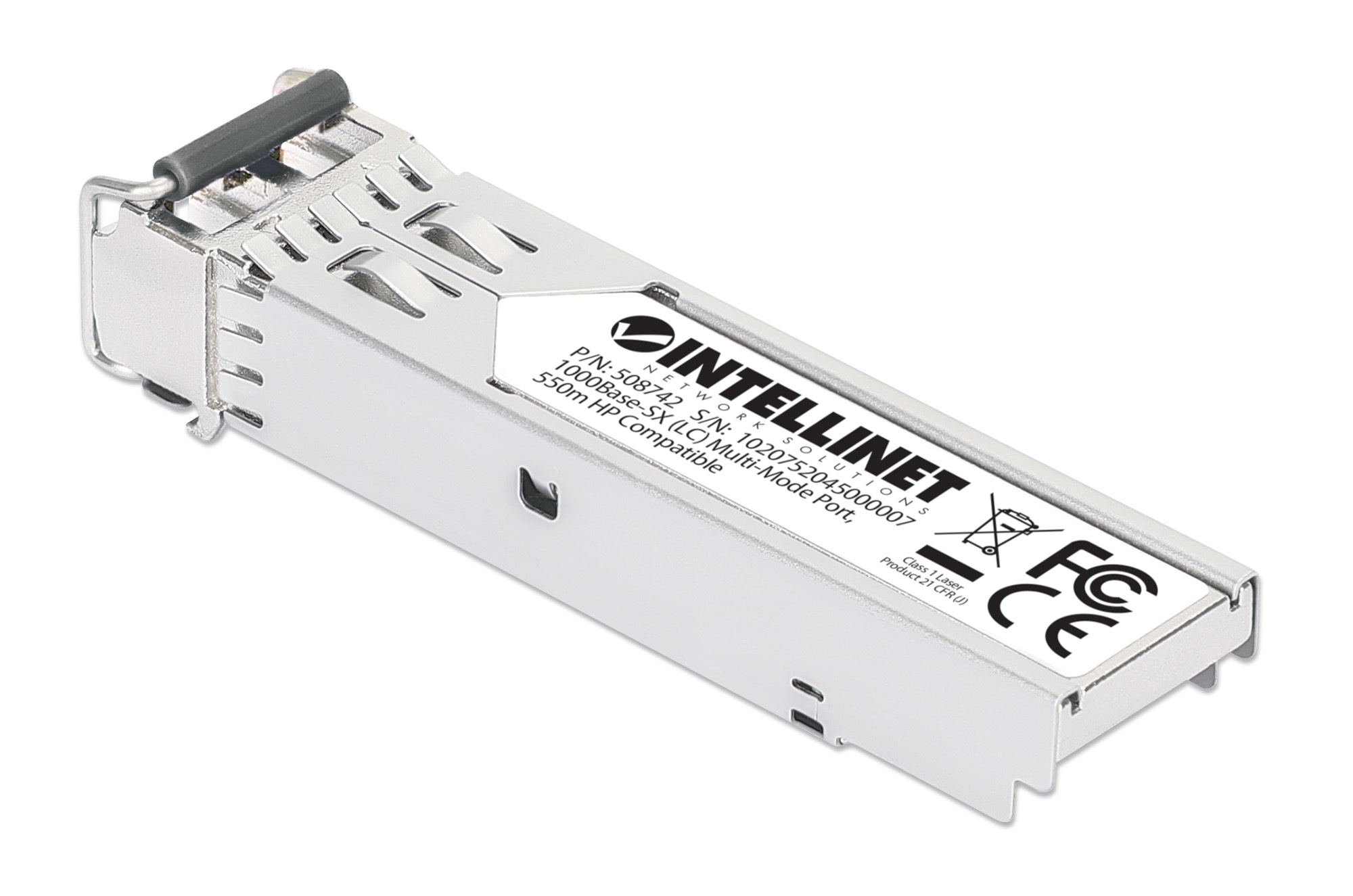

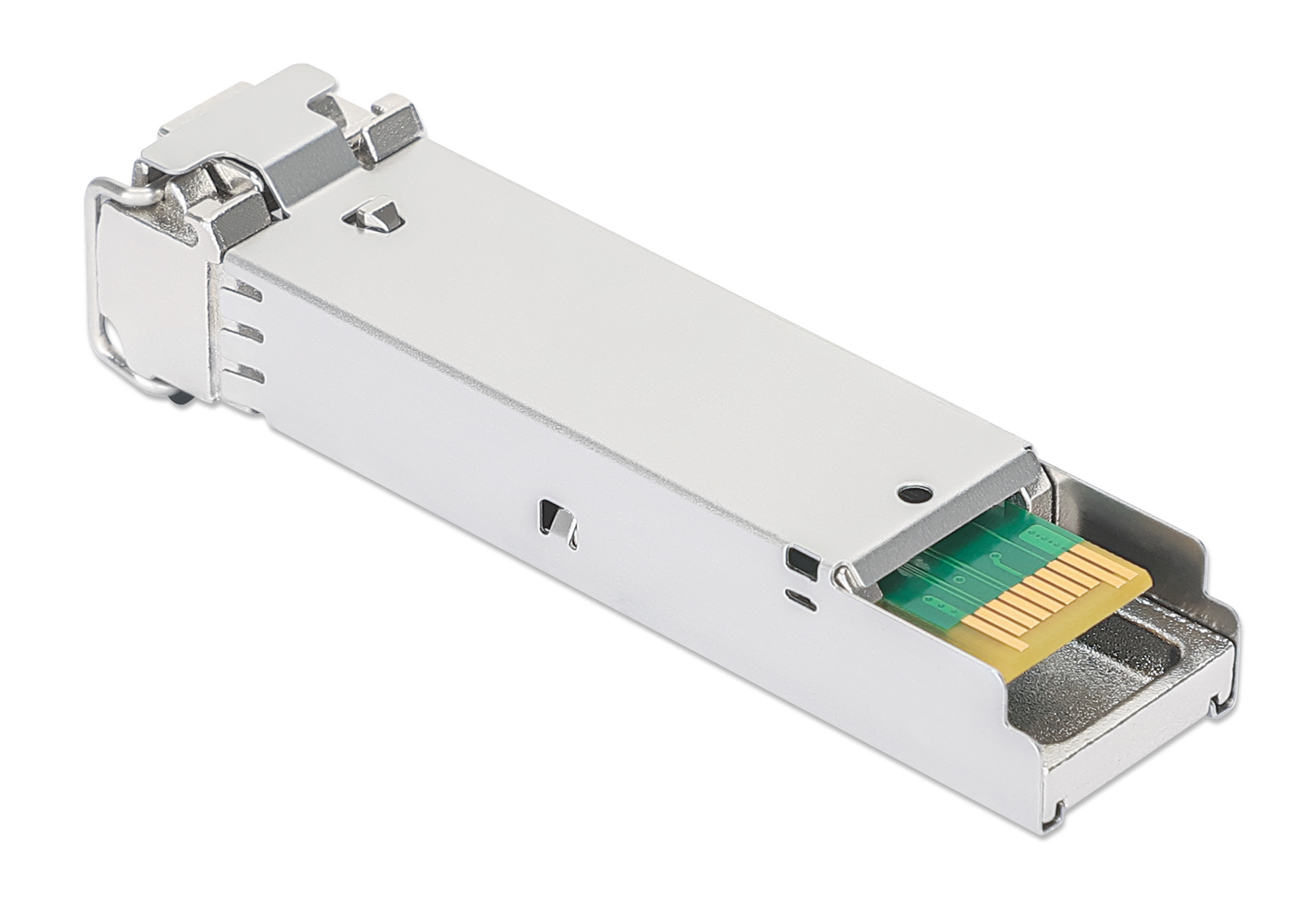

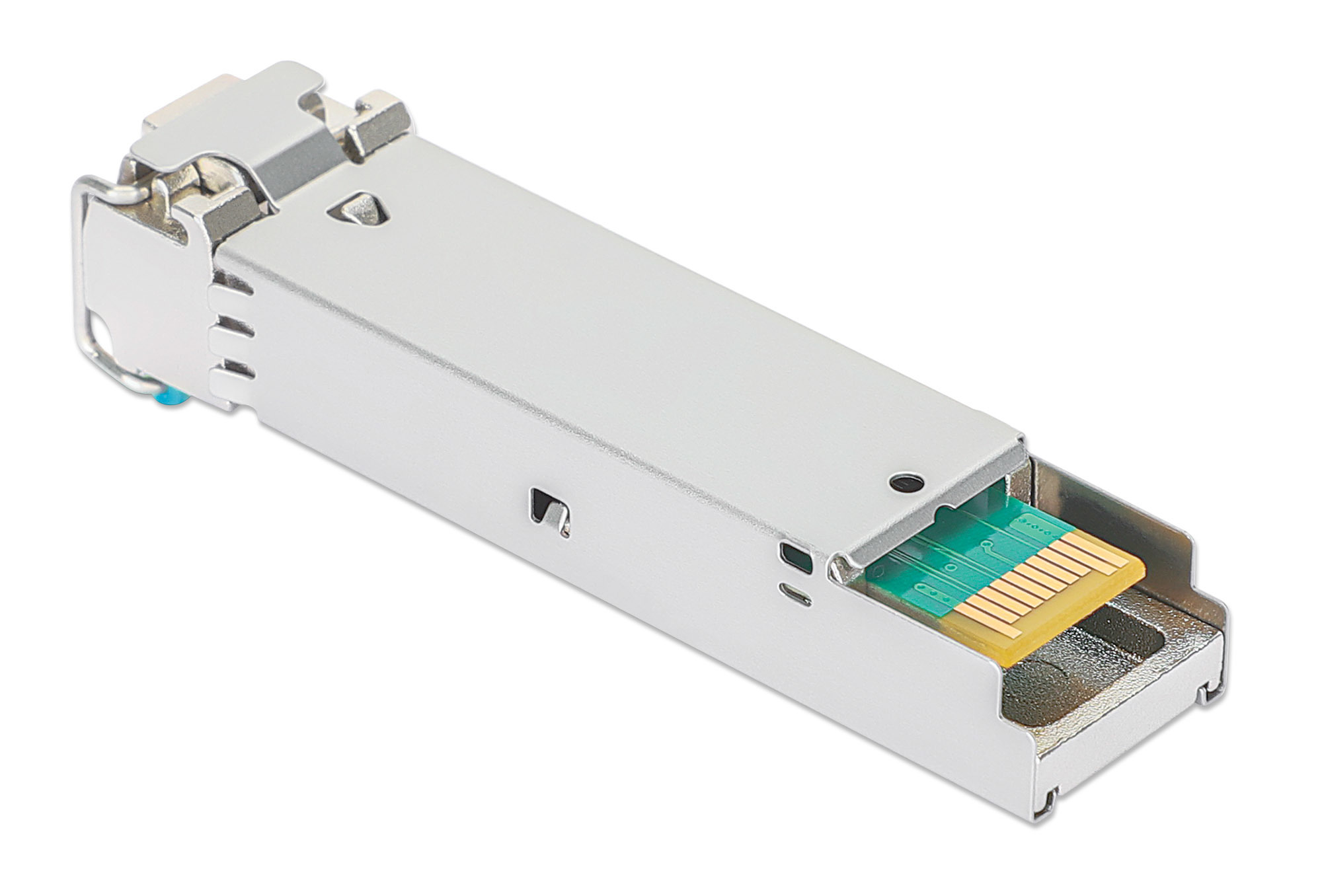

The Small Form Factor Pluggable (SFP) Transceiver from Intellinet Network Solutions combines performance and affordability. Also known as a mini-Gigabit Interface Converter (GBIC), this SFP module's metal housing offers increased durability while reducing electromagnetic interference.

Small Size for High-Density Fiber Connections
The transceiver's mini-GBIC form factor helps it take up less space on the equipment it plugs into. It's ideal in environments that require many fiber connections.

Multi-vendor Compatible
Compatibility in your network is everything, and this SFP Transceiver Module delivers. Use it with any Intellinet SFP equipped network switch or any other Multi Source Agreement (MSA) compliant SFP-enabled switch. It is designed, programmed and tested to work with compatible switches and routers from Cisco, Intellinet Network Solutions, ZyXEL, TP-Link, Ubiquiti, D-Link, Edimax, Allnet, Allied Telesis, Digitus, KTI Networks, LevelOne, PLANET, Tenda, TRENDnet, ZTE, Avaya, Mikrotik, Enterasys, Finisar, Dell Force10, Riverstone, Fortinet and more.

Hot-pluggable
There's no need to power down your LAN switch in order to install or remove the transceiver. This makes it very convenient and easy to make adjustments to your network that allow your business to keep pace with the changing demands of the market.

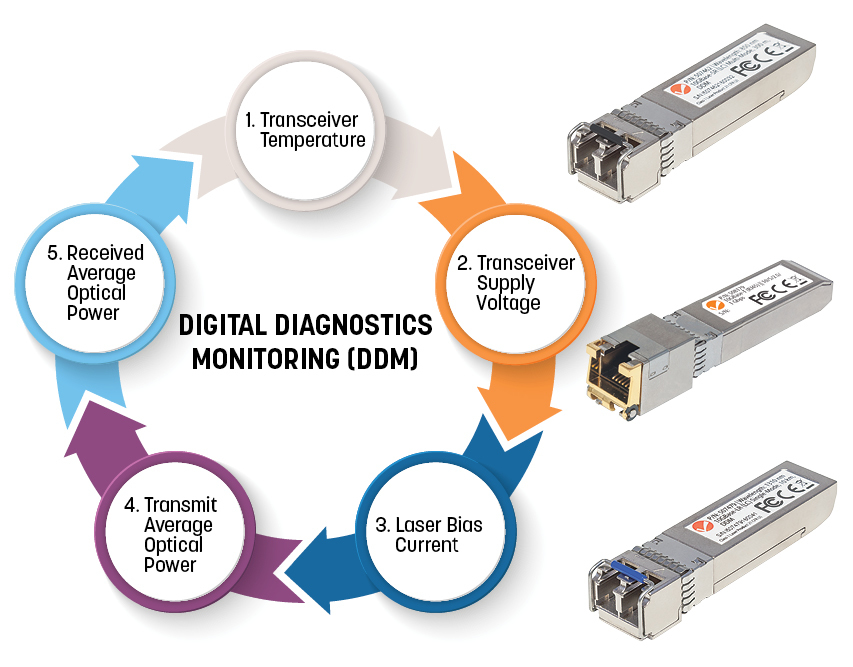

Digital Diagnostics Monitoring (DDM)
This transceiver supports standard digital diagnostics monitoring (DDM) functions, also known as digital optical monitoring (DOM). That gives the user the ability to monitor parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage, in real time.

WDM (bi-directional wavelength division multiplexing) Technology Advantage
This Gigabit Fiber WDM Bi-Directional SFP Optical Transceiver Module utilizes a single strand of fiber to transmit network traffic on separate receive and transmit wavelengths (1550/1310nm). This innovative technology allows you to effectively use the two strands for two independent connections or to double the capacity without laying a second fiber cable. Note that this transceiver (model 508582) must be used with Intellinet Network Solutions model 508599 or Cisco model GLC-BX40-D.

Specifikationer

Antal pr. pakke 1 stk
Produktfarve Sølv
Pakkevægt 50 g
Bredde 14 mm
Højde 12 mm
Vægt 20 g
Dybde 57 mm
Mærke kompatibilitet MSA Compliant
Relativ luftfugtighed ved drift (H-H) 10 - 85%
Opbevaringstemperatur (T-T) -40 - 85 °C
Pakkebredde 57 mm
Pakkedybde 118 mm
Pakkehøjde 25 mm
Driftstemperatur (T-T) 0 - 70 °C
Netværksstandarder IEEE 802.3z
Maksimal dataoverførselshastighed 1000 Mbit/s
Strømforbrug (typisk) 1 W
Hovedkassens bredde (udvendigt) 200 mm
Hovedkassens længde (udvendigt) 310 mm
Hovedkassen højde (udvendigt) 250 mm
Grænsefladetype SFP
Hovedkassens bruttovægt (udvendigt) 2,6 kg
Produkter pr. hovedkasse (udvendigt) 48 stk
SFP modtagertype Fiberoptisk
Enkelttilstand fiber (SMF) understøttet Ja
Fiber optisk strømstik LC
Fiber kabeldiametre understøttes (kerne/beklædning) 9/125 µm
Maksimal overførselsafstand 40000 m
Tx effekt (min.) -5 dBmW
Tx effekt (maks.) 0 dBmW
Maksimal spænding 3,3 V
Husmateriale Metal
SFP transceiver standard BX-U
Digital diagnose overvågning (DDM) Ja
Bølgelængde-division multipleksing (WDM) Ja
Overholdelse af bæredygtighed Ja
Understøtter hot-plug Ja
Fiber ethernet kabelteknologi 1000BASE
Tx bølgelængde (maks) 1310 nm
Rx bølgelængde (maks) 1550 nm
Compliance-certifikater CE, Federal Communications Commission (FCC), National Defense Authorization Act (NDAA), RoHS, UKCA
