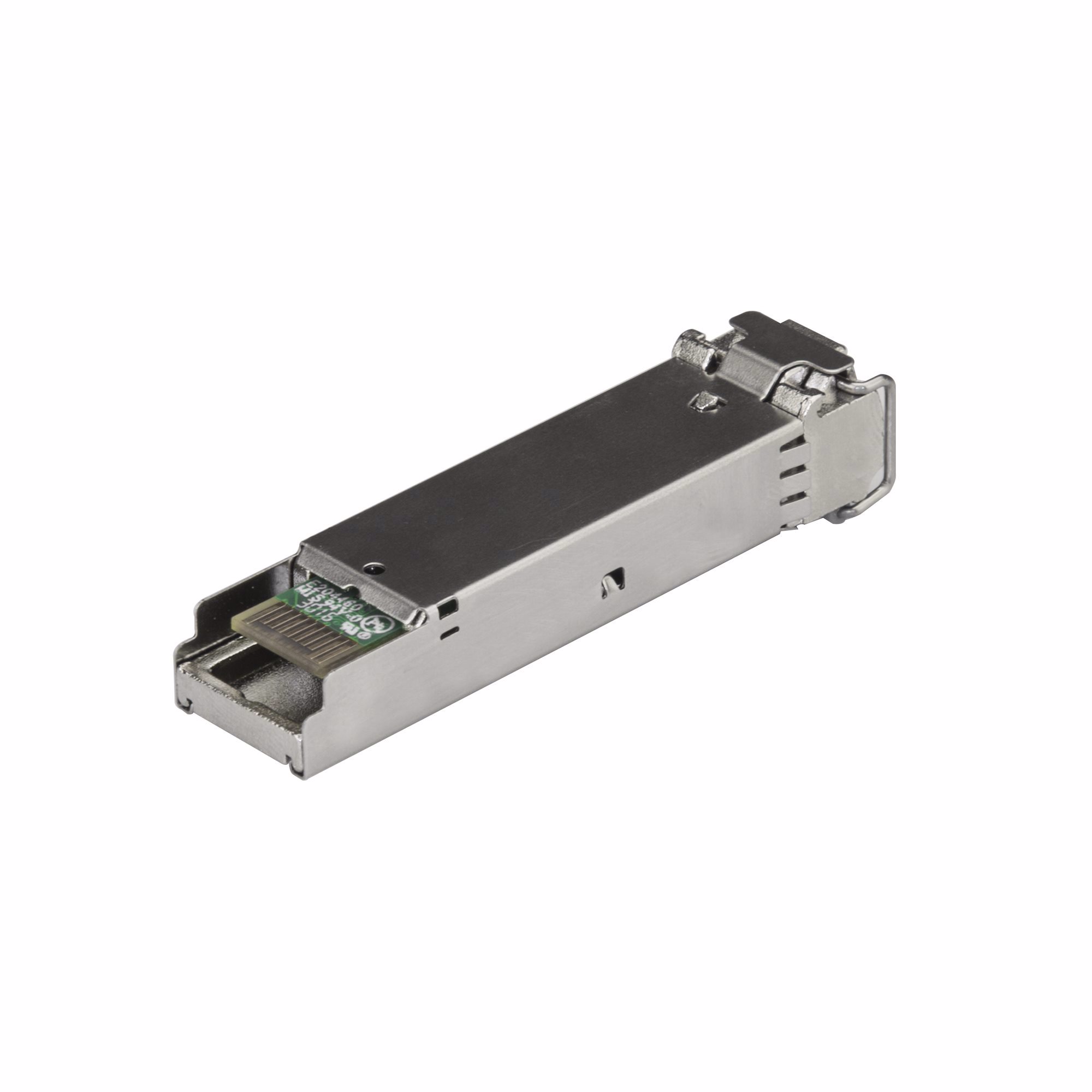

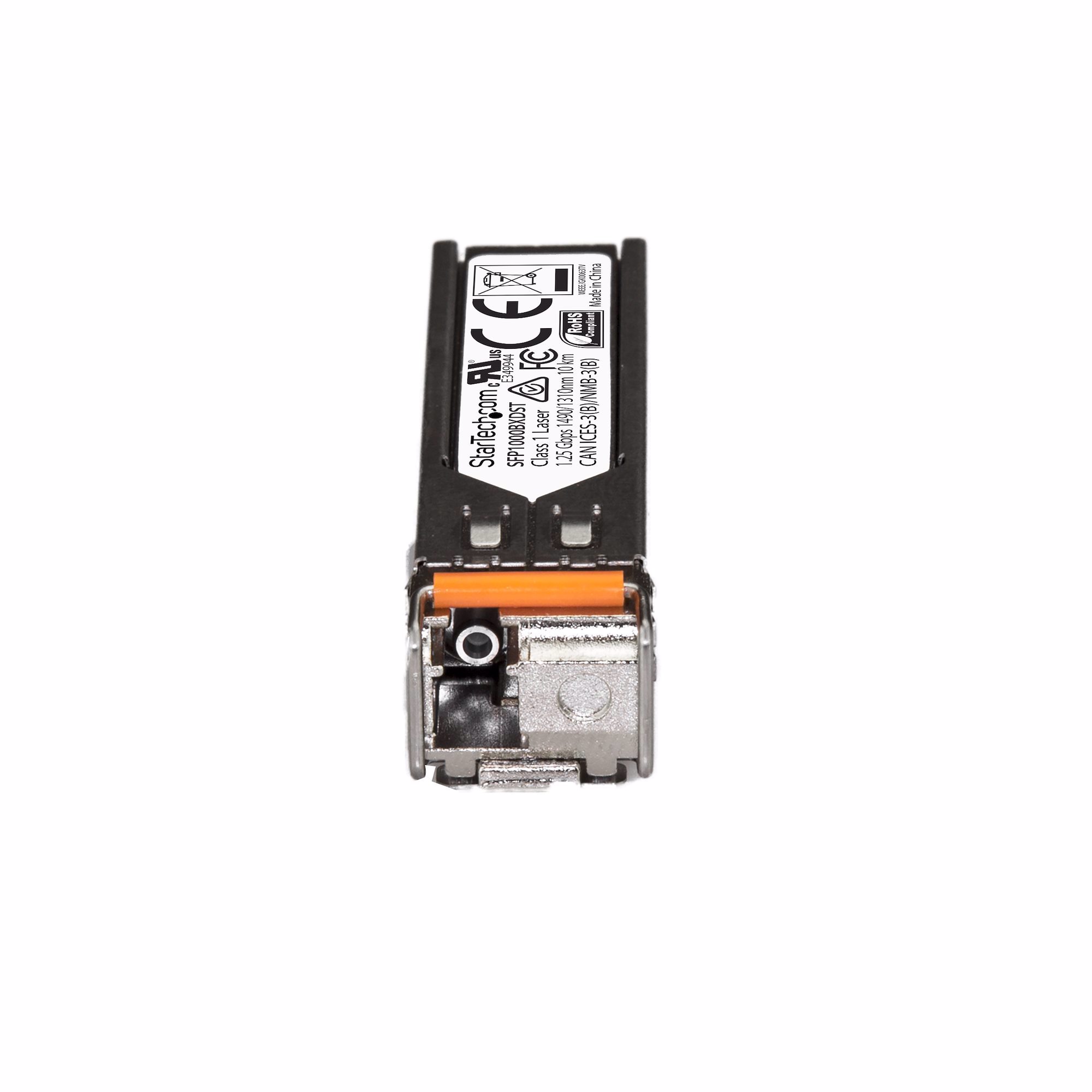

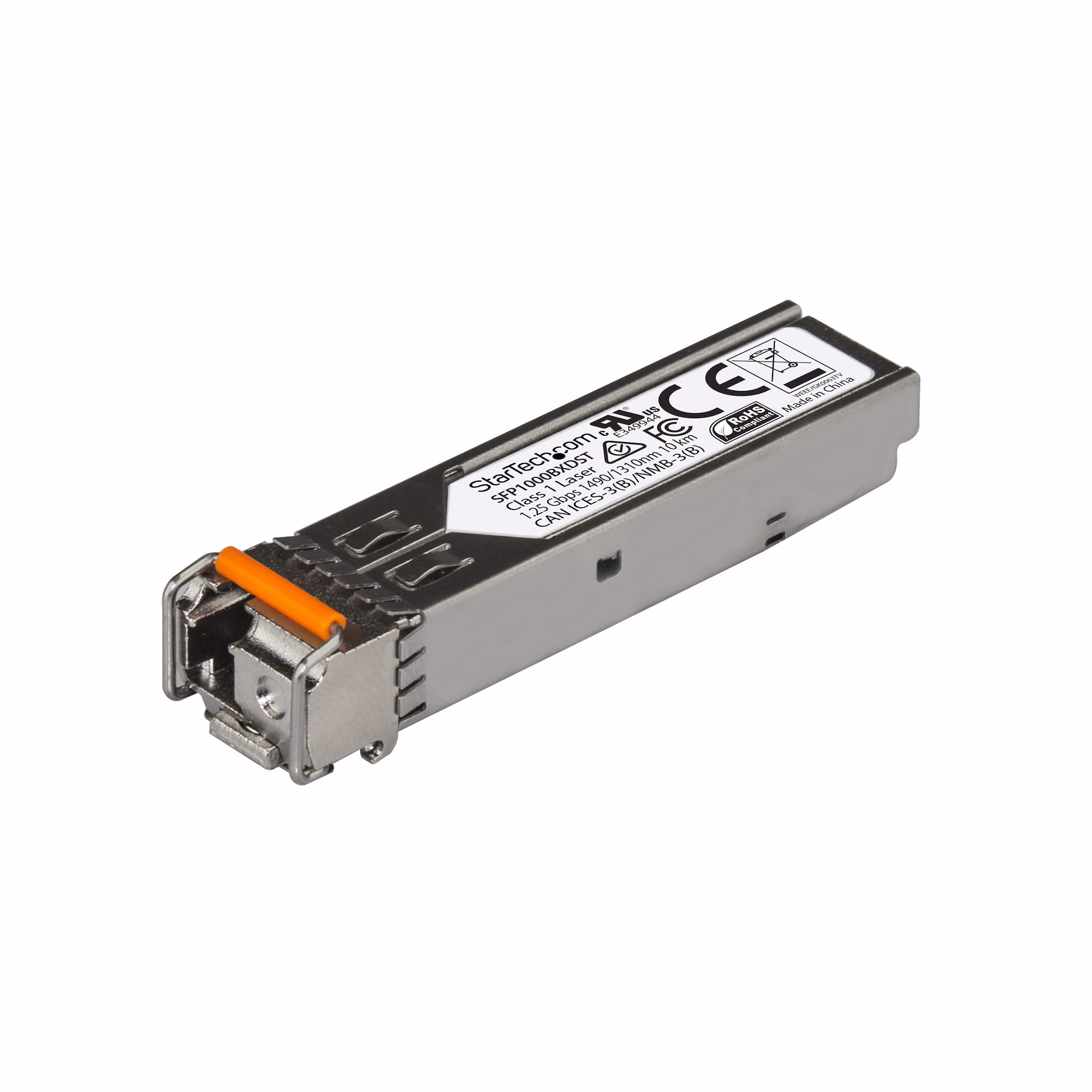

StarTech.com SFP1000BXDST modul til netværksmodtager Fiberoptisk 1250 Mbit/s SFP

SKU: 993158503
EAN: 0065030873505

StarTech.com SFP1000BXDST, Fiberoptisk, 1250 Mbit/s, SFP, LC, BX, 10000 m
Mere info
949,00 DKK Ex. moms: 759,20 DKK På lager

Produktbeskrivelse

1000 Mbps (1 Gbps) | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty

The SFP1000BXDST is an MSA compliant downstream fiber SFP transceiver which pairs with StarTech.com's SFP1000BXUST. They are designed, programmed and tested to work with 1000BASE-BX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 1 GbE connectivity over fiber cabling.

Technical Specifications:

• Wavelength: 1490nmTx/1310nmRx
• Maximum Data Transfer Rate: 1.25 Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• Power Consumption: Less than 1 Watt
• DDM: Yes

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

Specifikationer

Harmoniseret systemkode (HS) 85369010
Antal pr. pakke 1 stk
Produktfarve Sølv
Pakkevægt 48 g
Bredde 14 mm
Højde 13 mm
Vægt 19 g
Dybde 57 mm
Relativ luftfugtighed ved drift (H-H) 5 - 95%
Opbevaringstemperatur (T-T) -40 - 85 °C
Pakkebredde 92 mm
Pakkedybde 116 mm
Pakkehøjde 34 mm
Certificering CE, FCC, UR
Driftstemperatur (T-T) 0 - 70 °C
Netværksstandarder IEEE 802.3z
Maksimal dataoverførselshastighed 1250 Mbit/s
Strømforbrug (typisk) 1 W
Hovedkassens bredde (udvendigt) 198 mm
Hovedkassens længde (udvendigt) 304 mm
Hovedkassen højde (udvendigt) 164 mm
Grænsefladetype SFP
Produkter pr. hovedkasse (udvendigt) 20 stk
SFP modtagertype Fiberoptisk
Enkelttilstand fiber (SMF) understøttet Ja
Fiber optisk strømstik LC
Maksimal overførselsafstand 10000 m
Tx effekt (min.) 1490 dBmW
Duplex system Fuld
Husmateriale Aluminium
SFP transceiver standard BX
Digital diagnose overvågning (DDM) Ja
Bølgelængde-division multipleksing (WDM) Ja
Rx effekt (min.) 1310 dBmW
Understøtter hot-plug Ja
Compliance-certifikater RoHS
