Intellinet 561600 netværk forlænger Netværkssender Sort 10, 100, 1000 Mbit/s

SKU: 998114583
EAN: 0766623561600

Intellinet 561600, Netværkssender, 100 m, 6000 Mbit/s, Cat5e, 10,100,1000 Mbit/s, Fuld
Mere info
559,00 DKK Ex. moms: 447,20 DKK På lager

Produktbeskrivelse

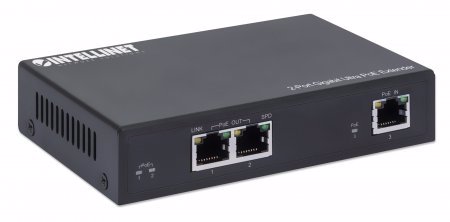

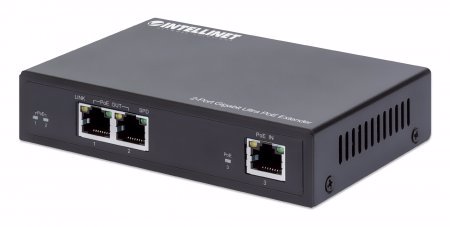

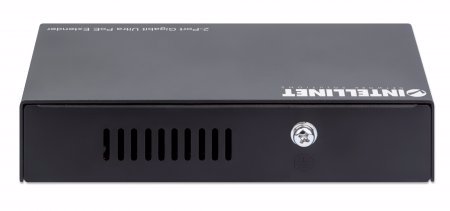

The Gigabit PoE Extender — for doubling the range of a Gigabit Power over Ethernet connection
The Intellinet Network Solutions 2-Port Gigabit Ultra PoE Extender adds up to 100 m (328 ft.) to the connection distance from a PoE source to two output devices via Cat5e or Cat6 cable. This PoE extender does not need an additional power supply since it draws its power from the PoE input.

Reduced Wiring Costs

This Ultra PoE Extender helps avoid the expense of running AC power lines for a wireless access point, network camera or IP phone. Simply connect the PoE Extender to the LAN switch port through existing Cat5e/6/6a cables to deliver DC power as well as transfer data.

Power over Ethernet 802.3bt Compliant

The Intellinet Network Solutions 2-Port Gigabit Ultra PoE Extender supports the IEEE 802.3bt protocol over four pairs (4PPoE), which allows for a power input of 60 W. It forwards data at Gigabit speeds and offers up to 30 watts per port to a connected IEEE 802.3at- or IEEE 802.3af-compliant device. The cable length on both ends can be up to 100 meters (328 ft.), bringing the total distance between PoE source and device to 200 m (656 ft.).

Simple Installation

This PoE Extender was designed to be as easy as possible to set up and use. All it takes to have it up and running is to connect its "PoE In" port to your PoE injector or PoE switch and to connect the "PoE Out" ports to the PoE devices you want to connect (e.g., a VoIP phone and a PoE network camera).

Specifikationer

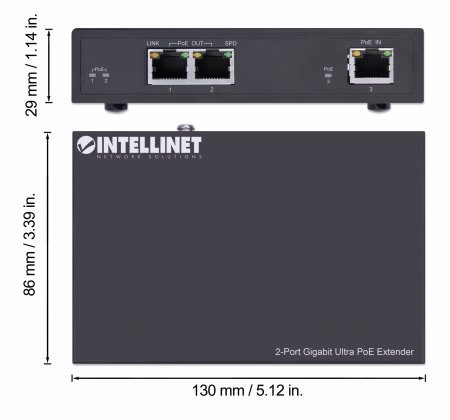

Dybde 86 mm
Højde 29 mm
Vægt 331 g
Brugervejledning Ja
Compliance-certifikater RoHS
Harmoniseret systemkode (HS) 85176990
Bredde 130 mm
Relativ luftfugtighed ved drift (H-H) 20 - 85%
Opbevaringstemperatur (T-T) -10 - 70 °C
Driftstemperatur (T-T) 0 - 40 °C
Power over Ethernet (PoE) spændingsområde 44 - 57 V
Total Power over Ethernet (PoE) 60 W
Strøm over Ethernet (PoE) Ja
Certificering FCC A, CE
LED-indikatorer Aktivitet, Link, PoE
Husmateriale Metal
Produktfarve Sort
Power over Ethernet (PoE) porte, antal 2
Ethernet LAN-porte (RJ-45) 3
Netværksstandarder IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x
Kabelteknologi 10/100/1000Base-T(X)
Flowkontrol support Ja
MAC adresselabel 2048 entries
Duplex system Fuld
Jumbo Frames support Ja
Ethernet LAN-datahastigheder 10,100,1000 Mbit/s
Understøttede kabeltyper Cat5e
Dataoverførselshastighed 6000 Mbit/s
Maksimal overførselsafstand 100 m
Type Netværkssender
