StarTech.com ST10GSPEXNB2 netværkskort Intern Ethernet 10000 Mbit/s

SKU: 1001516639
EAN: 0065030897549

StarTech.com ST10GSPEXNB2, Intern, Ledningsført, PCIe, Ethernet, 10000 Mbit/s, Sort
Mere info
2.079,00 DKK Ex. moms: 1.663,20 DKK På lager

Produktbeskrivelse

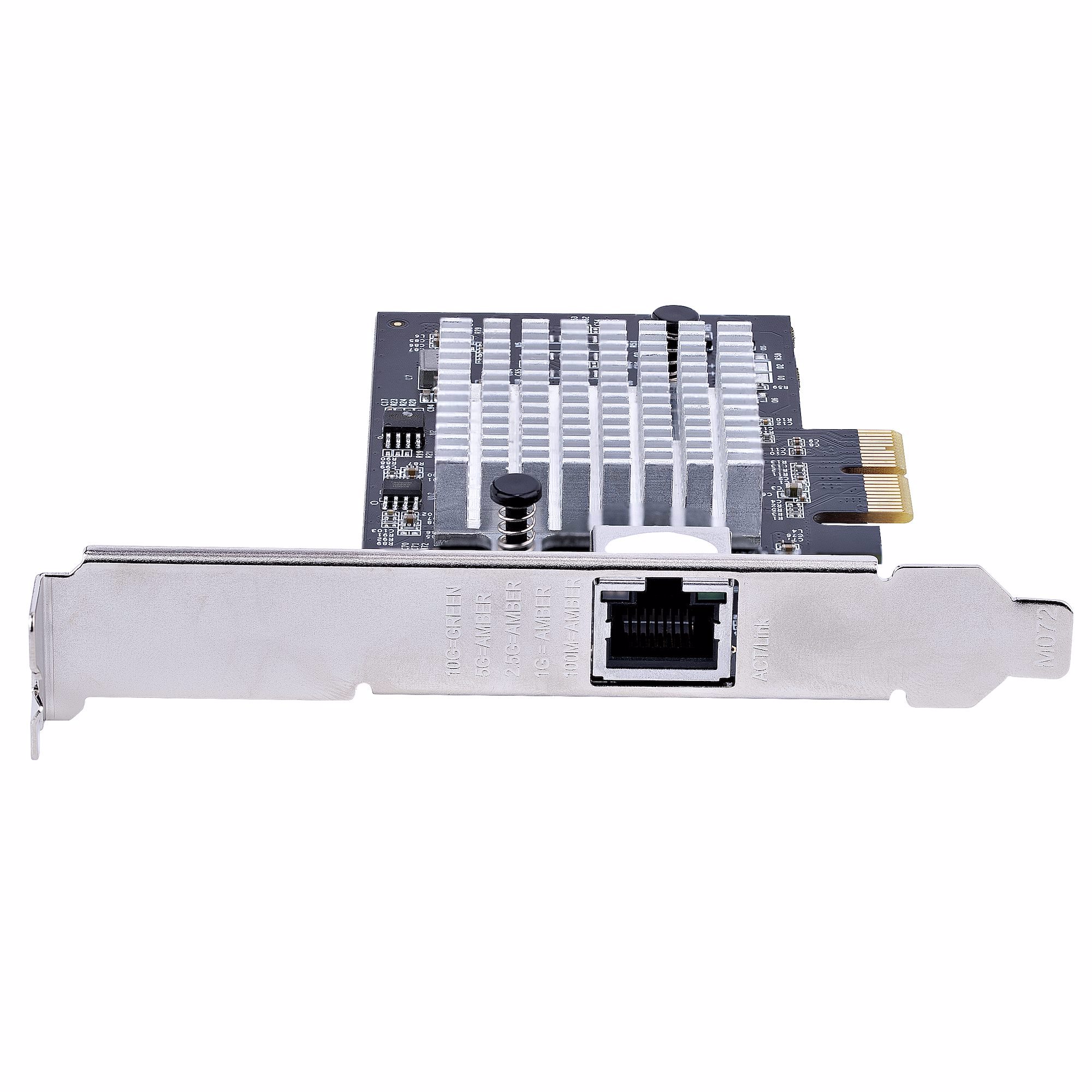

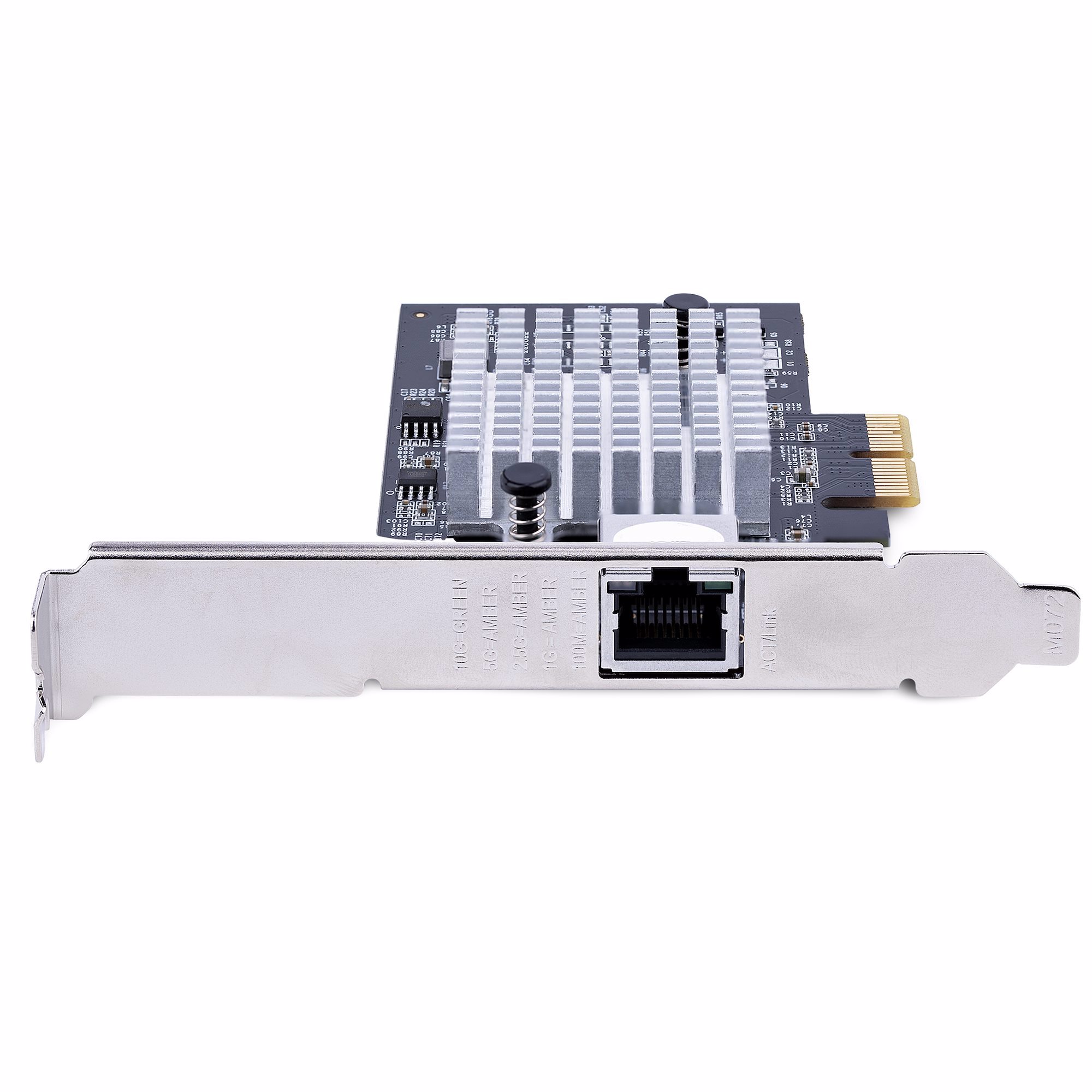

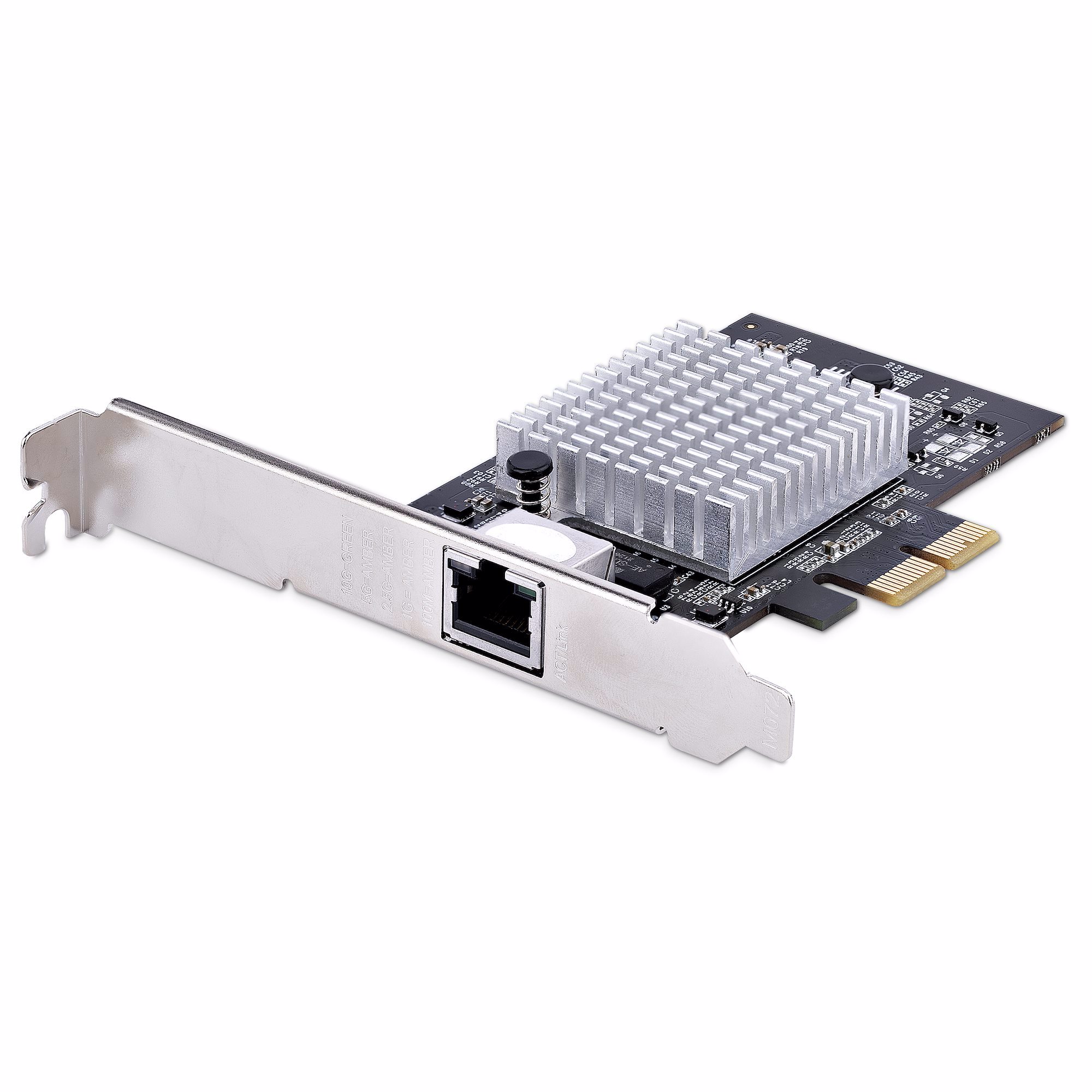

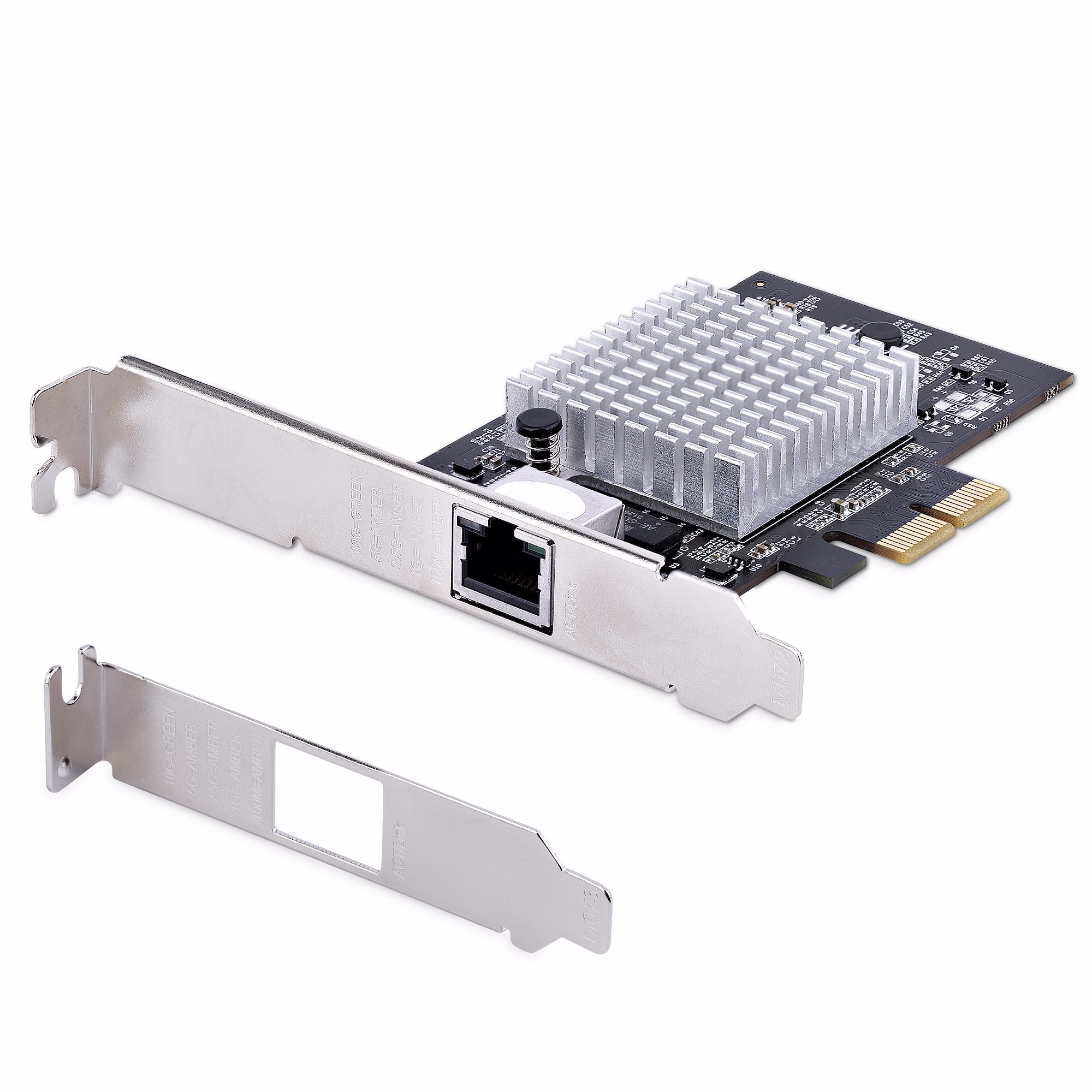

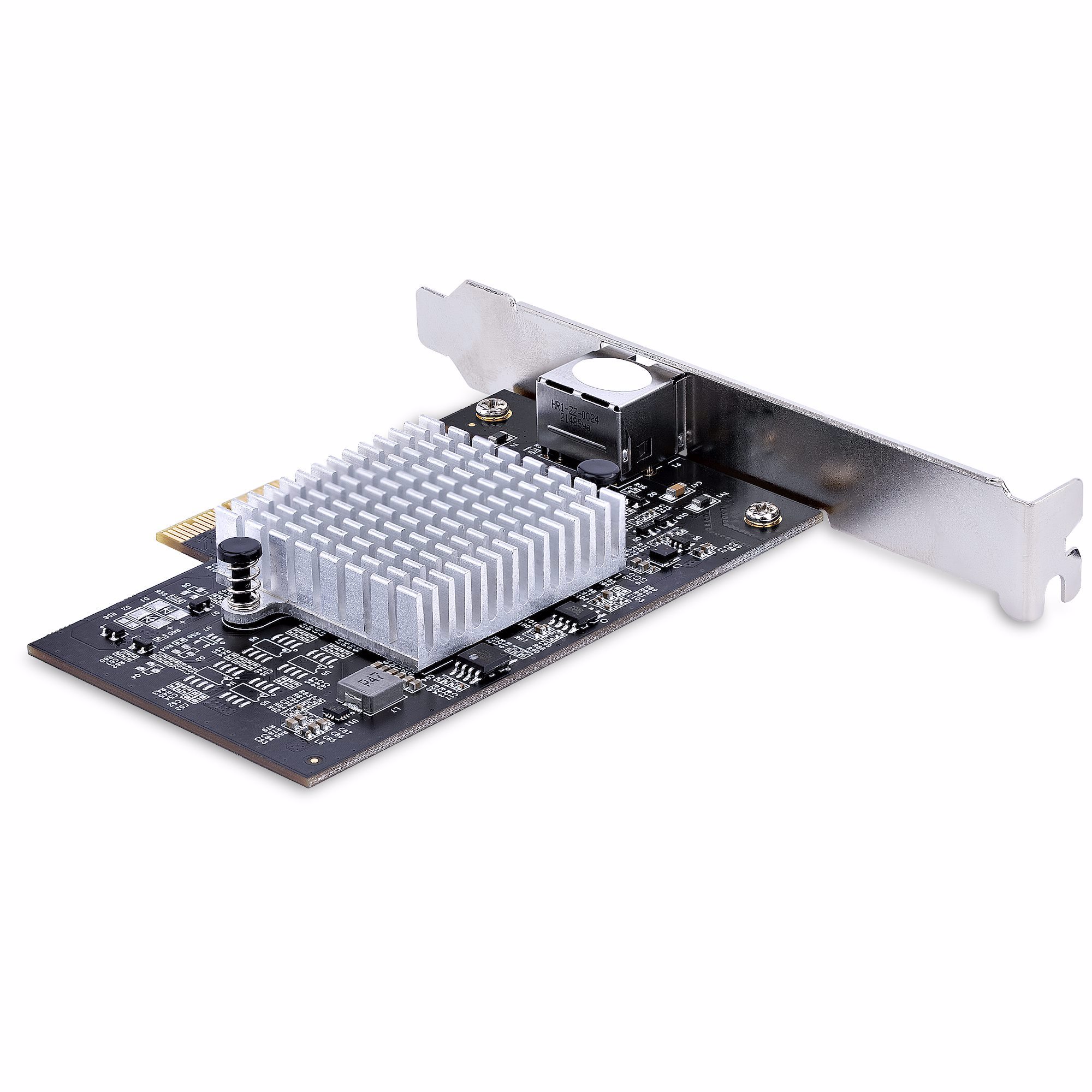

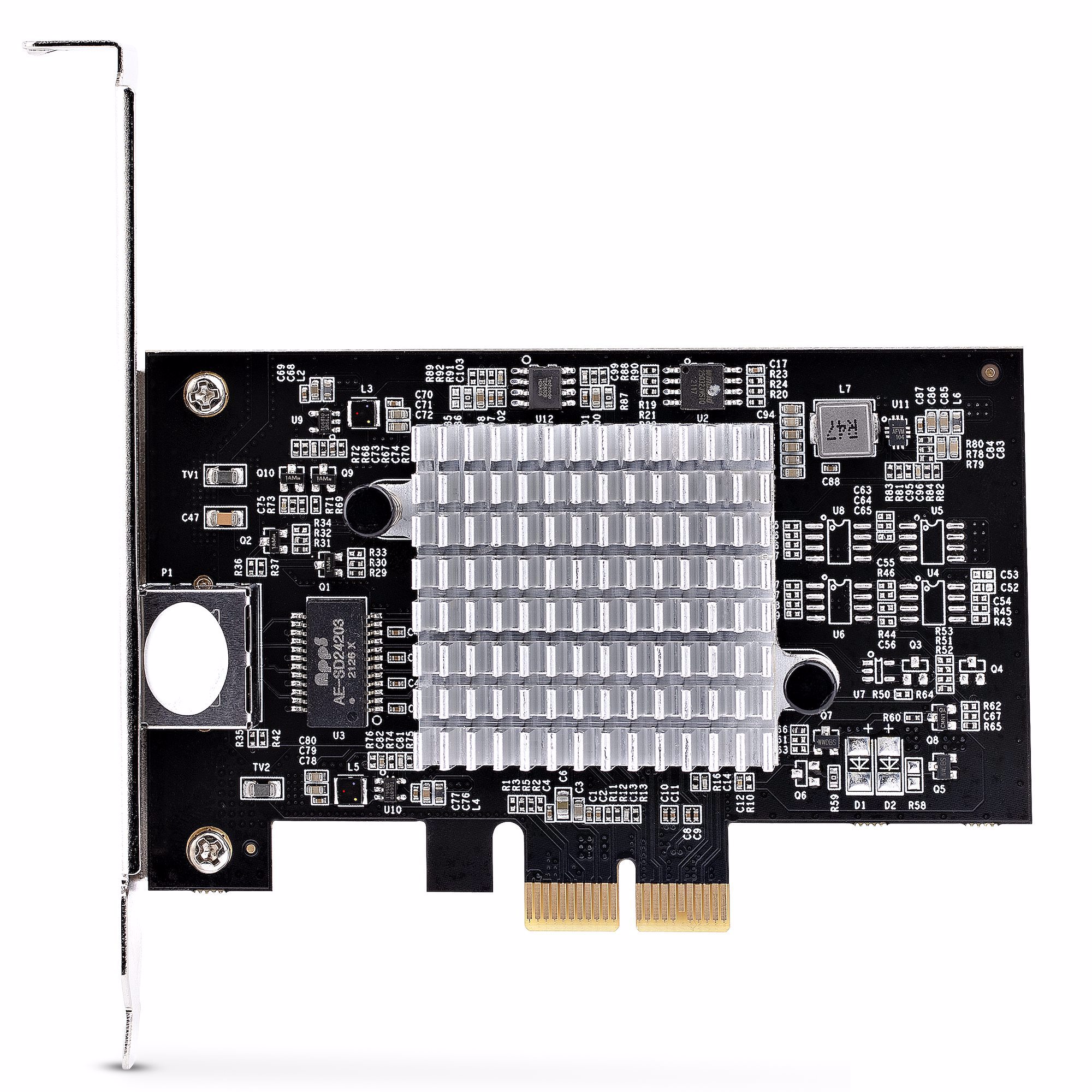

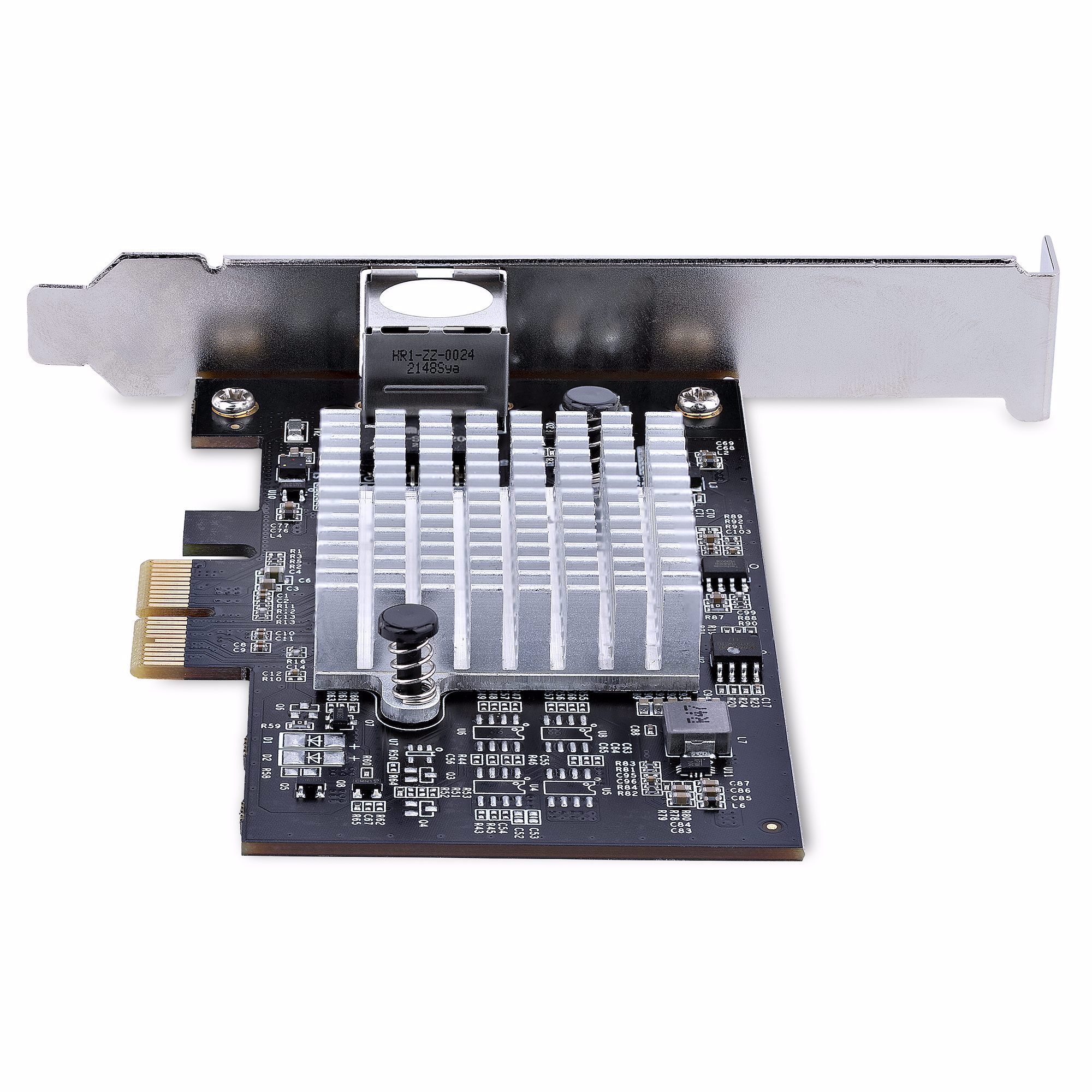

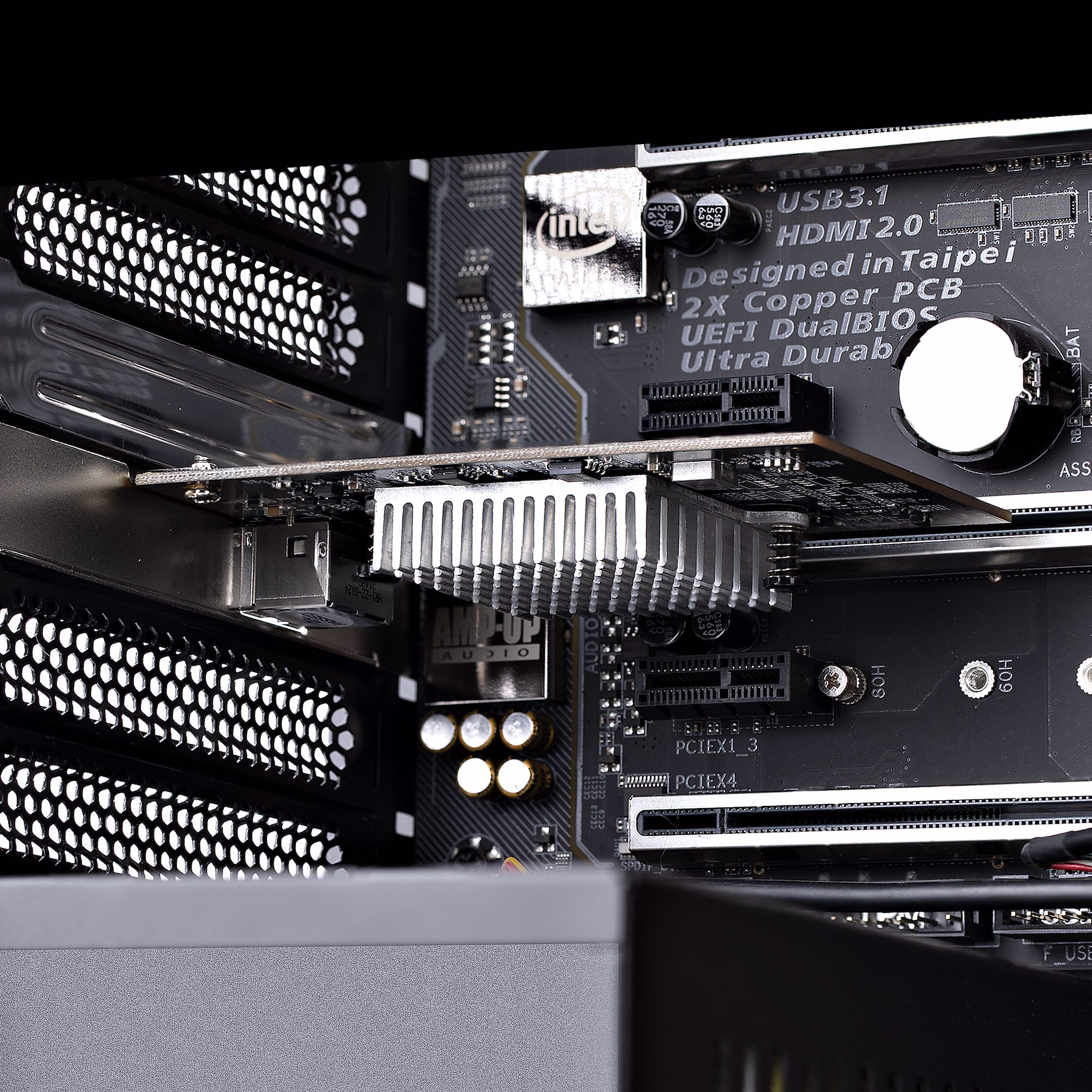

Six-Speed | AVB | PXE Boot | x2 PCIe 3.0 | Marvell AQC113CSInstall this single-port 10GbE PCI Express (PCIe) Network Interface Card (NIC) into a server or computer to enable faster network speeds and enhanced network functionality. This card supports six speeds: 10/5/2.5/1Gbps and 100/10Mbps. The variable speeds permit access to legacy hardware. Alternatively, the 10GBASE-T and NBASE-T capabilities ensure compatibility with the latest network switches and network access points manufactured by Cisco®; HPE®; and Juniper®.Increased Network SpeedsThis PCIe network card provides access to increased bandwidth. It reduces network slowdown/degradation when running data-intensive applications/processes such as FTPs, online storage/backup, and when streaming online content.NBASE-T technology maximizes the capability of Cat5e copper cabling over at distances of up to 100 meters. The Ethernet network card supports a 10 Gbps connection over copper using existing Cat6 (or better) copper cabling.Enhance Existing HardwareThe Network Interface Card connects via an available PCI Express x2 3.0/4.0 (or higher) expansion slot. The card is shipped with a standard-profile bracket and includes a low-profile bracket for installation in various systems. This card is compatible with Windows, Windows Server, and Linux.Take advantage of advanced features such as Audio-Video Bridging (AVB), VLAN tagging, 16 K jumbo frame, full-duplex, secure boot, and PXE.The PCI Express 10G NIC is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance.The StarTech.com Advantage

Specifikationer

Produktfarve Sort
Pakkevægt 120 g
Bredde 107 mm
Højde 22 mm
Vægt 70 g
Dybde 121 mm
Opbevaringstemperatur (T-T) -10 - 70 °C
Pakkebredde 210 mm
Pakkedybde 145 mm
Pakkehøjde 35 mm
Grænseflade Ethernet
Understøttede Windows-operativsystemer Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Understøttede Linux-operativsystemer Ja
Driftstemperatur (T-T) 0 - 60 °C
Intern Ja
Netværksstandarder IEEE 1588, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u
Fuld duplex Ja
Ethernet LAN-datahastigheder 10,100,1000,2500,5000,10000 Mbit/s
Maksimal dataoverførselshastighed 10000 Mbit/s
Forbindelsesteknologi Ledningsført
Værtsgrænseflade PCIe
Ethernet LAN-porte (RJ-45) 1
PCI version 3.0
PCI-kort formfaktor Fuld højde (lav profil)
Ethernet LAN Ja
Hovedkassens bredde (udvendigt) 445 mm
Hovedkassens længde (udvendigt) 375 mm
Hovedkassen højde (udvendigt) 320 mm
Produkter pr. hovedkasse (udvendigt) 40 stk
LED-indikatorer Ja
Jumbo Frames support Ja
Jumbo rammer 16000
Komponent til PC
Hurtig installationsvejledning Ja
Ethernet-grænsefladetype 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Hurtigt ethernet, Gigabit Ethernet
Kabelteknologi 10GBase-T
Auto MDIX IEEE Ja
Monteringsbeslag inkluderet Ja
