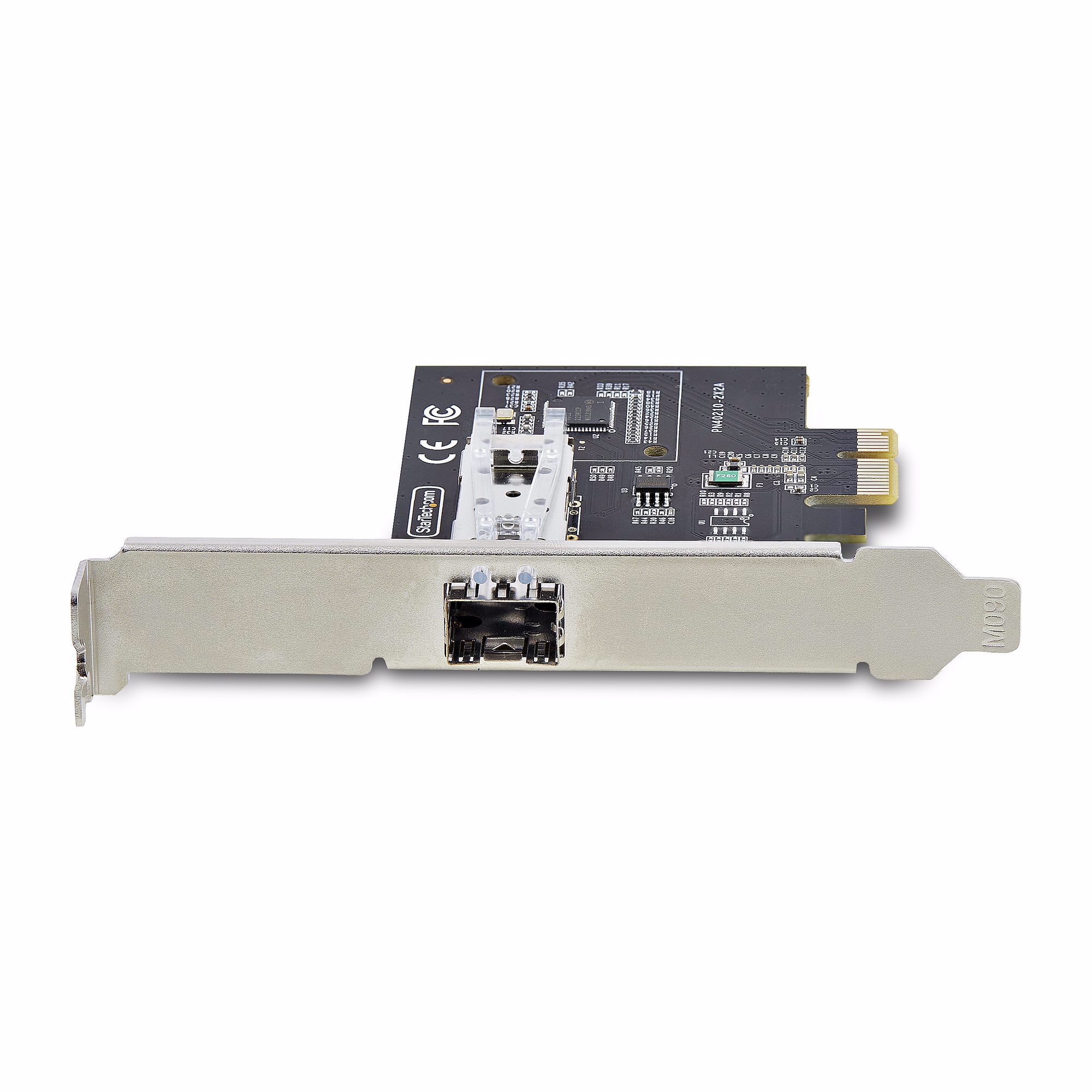

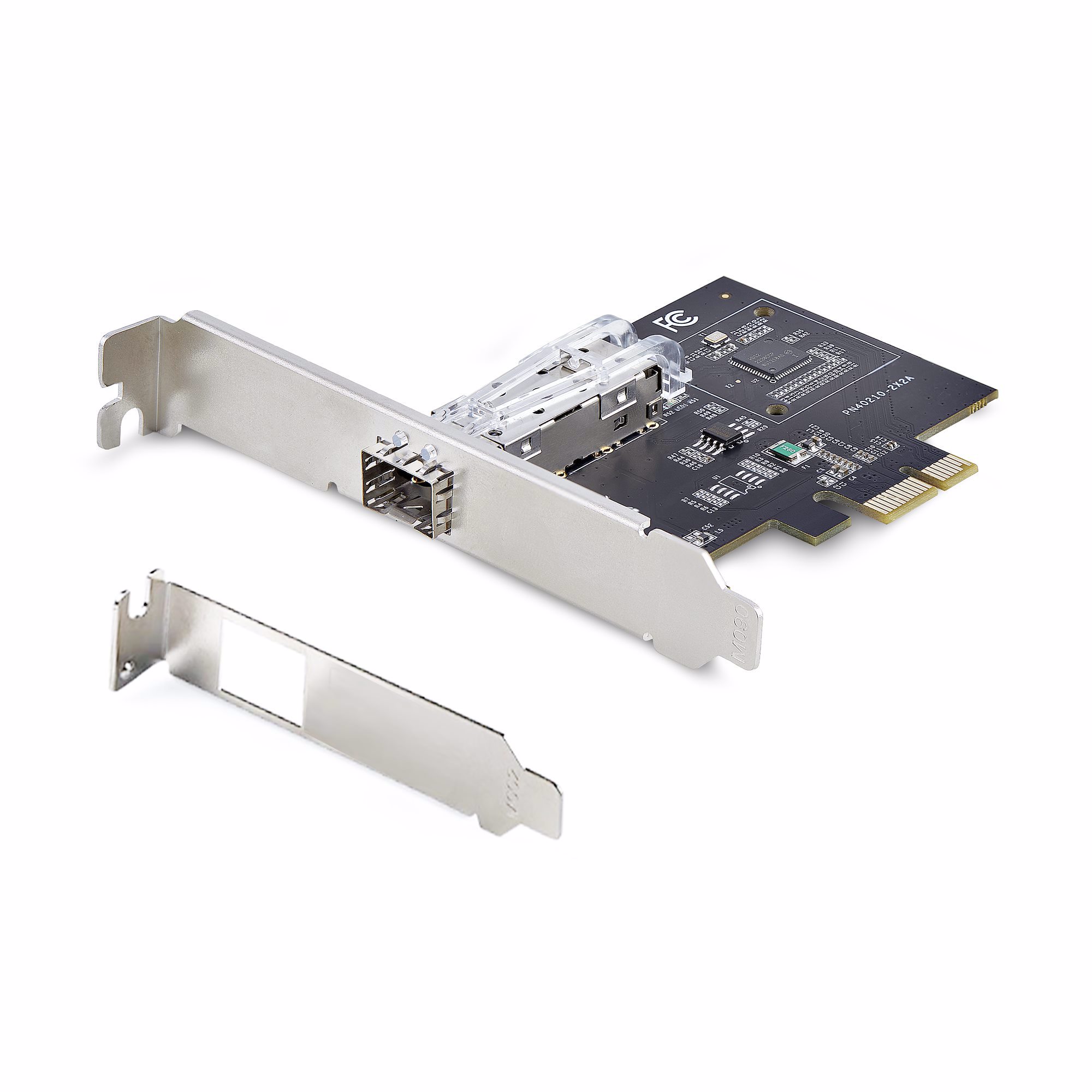

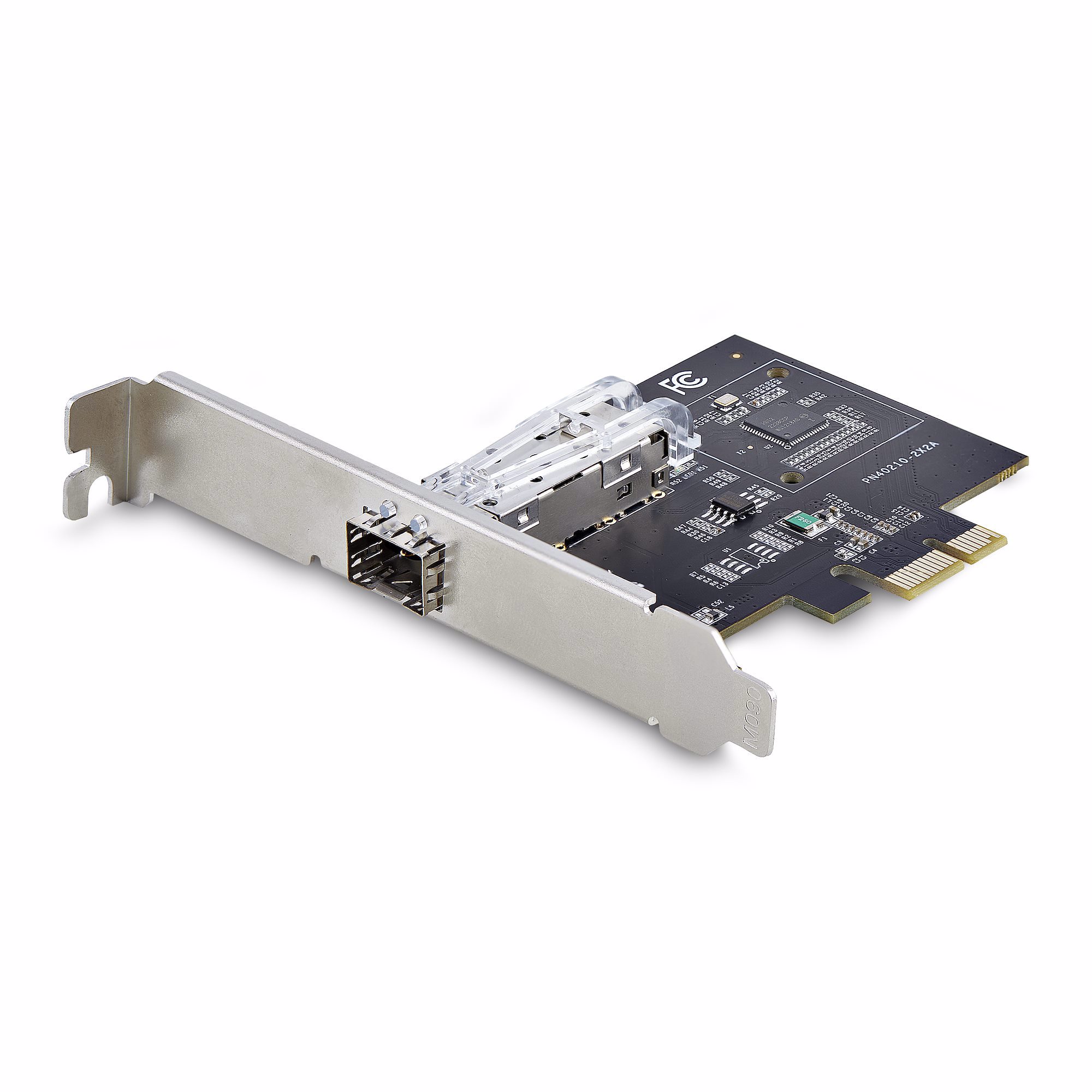

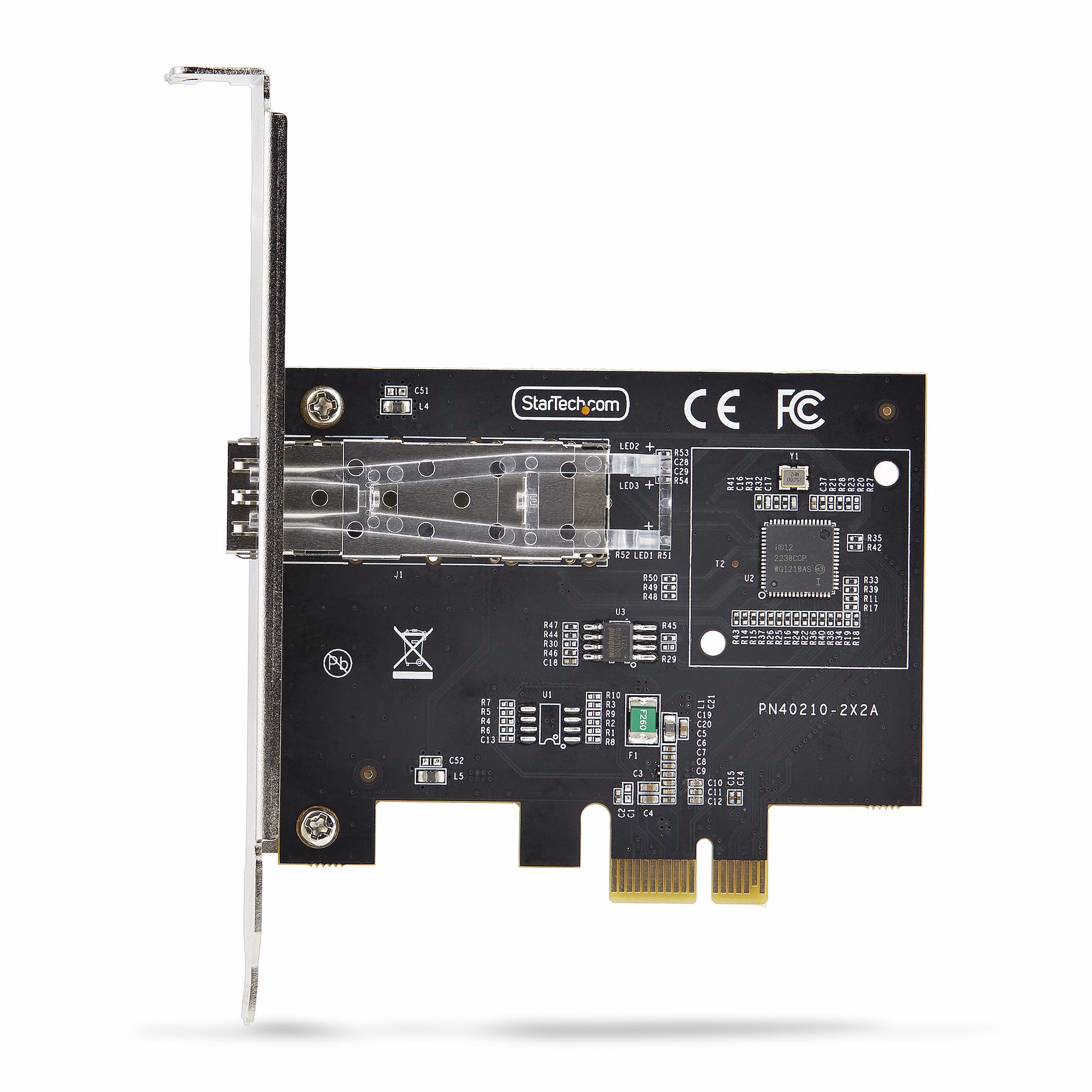

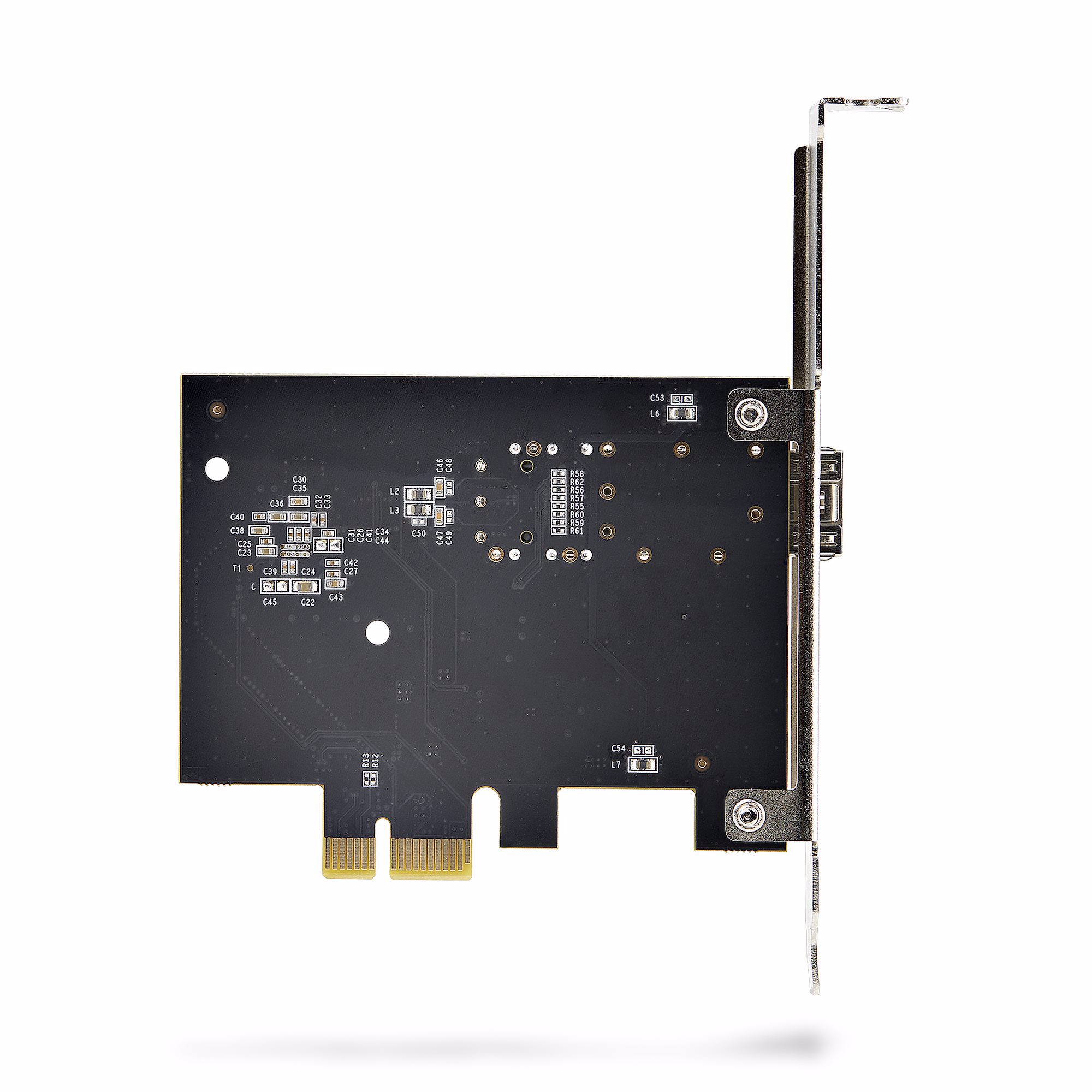

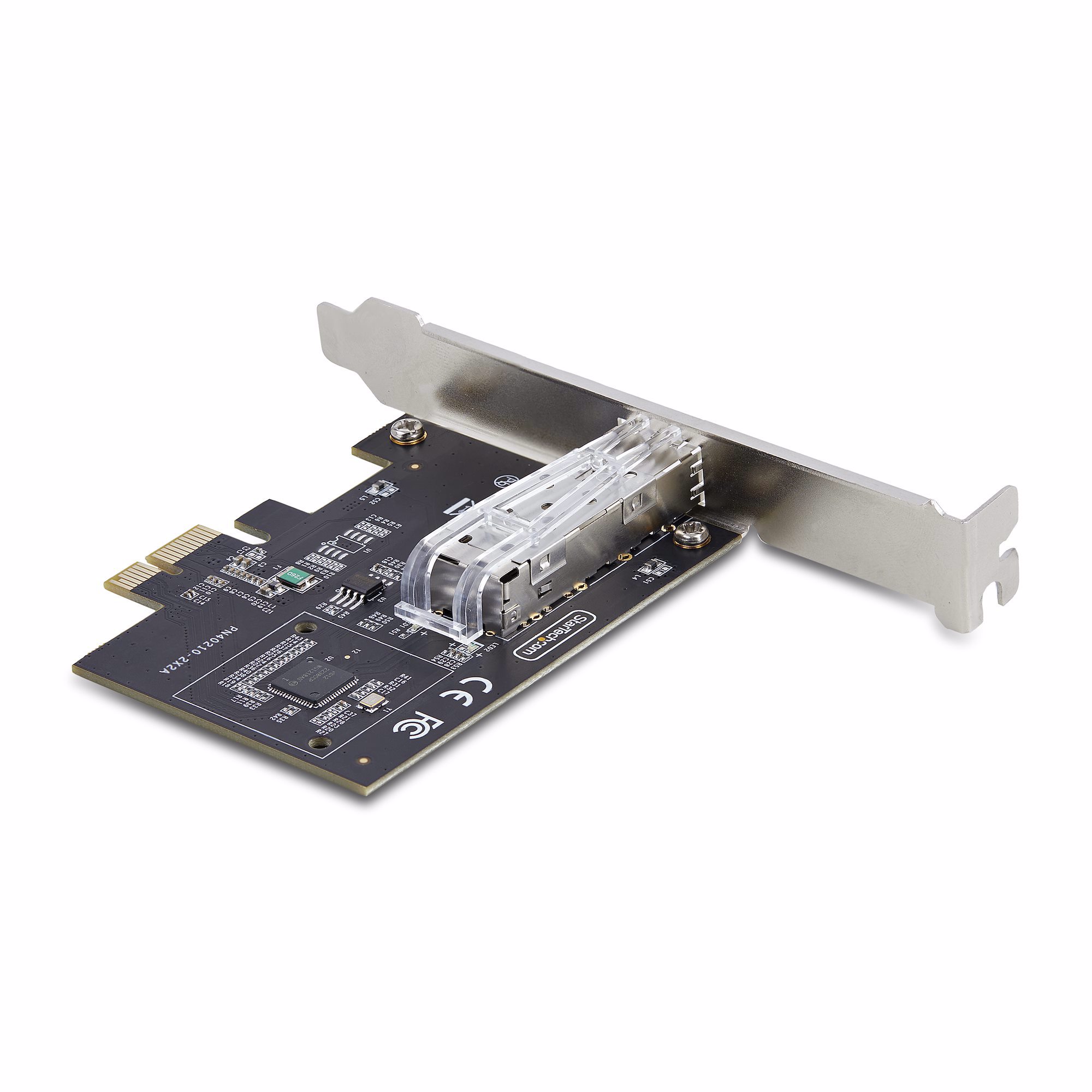

StarTech.com P011GI-NETWORK-CARD netværkskort Intern Fiber 1000 Mbit/s

SKU: 1001652701
EAN: 0065030899987

StarTech.com P011GI-NETWORK-CARD, Intern, Ledningsført, PCI Express, Fiber, 1000 Mbit/s, Sort
Mere info
1.499,00 DKK Ex. moms: 1.199,20 DKK På lager

Produktbeskrivelse

Add a fiber/copper GbE SFP transceiver or Direct Attach Cable to a workstation or serverAdd a 1GbE SFP module to a PCI Express (PCIe) 2.1 x1 (or higher) slot in an IT Administrator workstation or server backplane, using this 1-Port SFP Network Controller.High Performance Intel ChipsetThe network controller features an Intel I210 chip known for its reliability and high-performance capabilities, offering low-latency and low CPU utilization, ensuring smooth and efficient network data transfer, which is critical for business applications and services. Support for VMDq, SR-IOV, and Intel® VT-c technologies allow for enhanced virtual machine performance, reduced CPU overhead, and improved network virtualization capabilities. The PCIe network card supports PXE boot, enabling centralized operating system deployment and updates. It also features 9K jumbo frame support, reducing packet overhead for improved data transmission efficiency. VLAN tagging support allows for efficient network management and segmentation.Hardware and Operating System CompatibilityThe network interface controller connects to an available x1 PCI Express 2.1 (or higher) expansion slot. It is compatible with Windows Server 2012 and newer, Windows 10 and newer, Linux, VMware ESXi 7.x, and Microsoft Hyper-V. This NIC is compatible with both MSA-compliant and branded 1GB SFP modules, as well as direct attach copper cables (DACC). Includes a low-profile bracket designed for small form factor systems.Flexible Network ConnectionsThe card features an SFP slot for interchangeable SFP modules. Select fiber transceiver modules that best suit the network needs of the application, based on the distance and connector type. StarTech.com offers a wide variety of SFP transceiver modules to meet many GbE network applications.The StarTech.com Advantage

Specifikationer

Produktfarve Sort
Pakkevægt 47,5 g
Bredde 67 mm
Højde 16 mm
Vægt 40 g
Dybde 87 mm
Relativ luftfugtighed ved drift (H-H) 5 - 90%
Opbevaringstemperatur (T-T) -10 - 70 °C
Pakkebredde 170 mm
Pakkedybde 142 mm
Pakkehøjde 30 mm
Grænseflade Fiber
Understøttede Windows-operativsystemer Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Understøttede Linux-operativsystemer Ja
Driftstemperatur (T-T) 0 - 50 °C
Intern Ja
Netværksstandarder IEEE 802.1AX, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3ap, IEEE 802.3az, IEEE 802.3z
Fuld duplex Ja
Maksimal dataoverførselshastighed 1000 Mbit/s
Strømforbrug (typisk) 0,6 W
Forbindelsesteknologi Ledningsført
Værtsgrænseflade PCI Express
PCI version 2.1
Hovedkassens bredde (udvendigt) 605 mm
Hovedkassens længde (udvendigt) 325 mm
Hovedkassen højde (udvendigt) 385 mm
Produkter pr. hovedkasse (udvendigt) 80 stk
LED-indikatorer Hastighed, Status
Understøttede netværksprotokoller IPv4, IPv6, TCP/UDP
Jumbo Frames support Ja
Jumbo rammer 9000
Fiber optisk strømstik SFP
Fiberkanal porte 1
Komponent til PC
Hurtig installationsvejledning Ja
Understøttede operativsystemer til servere Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022
Auto MDIX IEEE Ja
Monteringsbeslag inkluderet Ja
