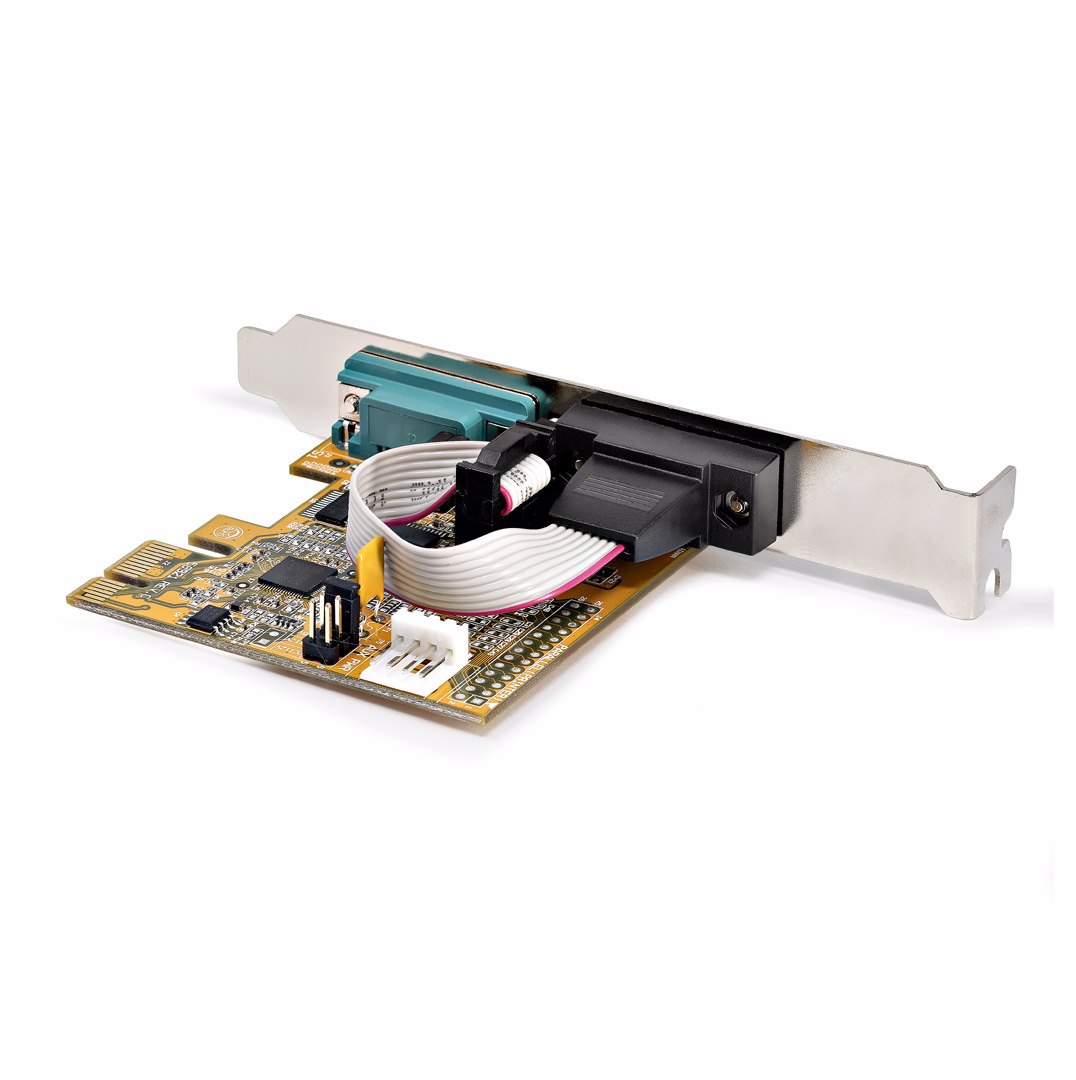

StarTech.com 21050-PC-SERIAL-LP interface-kort/adapter Intern Seriel

SKU: 1001097611
EAN: 0065030899376

StarTech.com 21050-PC-SERIAL-LP, PCIe, Seriel, Fuld højde/ lav profil, PCI 2.0, RS-232, Gul
Mere info
619,00 DKK Ex. moms: 495,20 DKK På lager

Produktbeskrivelse

Baud Rate 921.6 Kbps per Port | 256-byte FIFO | PCIe 2.0 x1

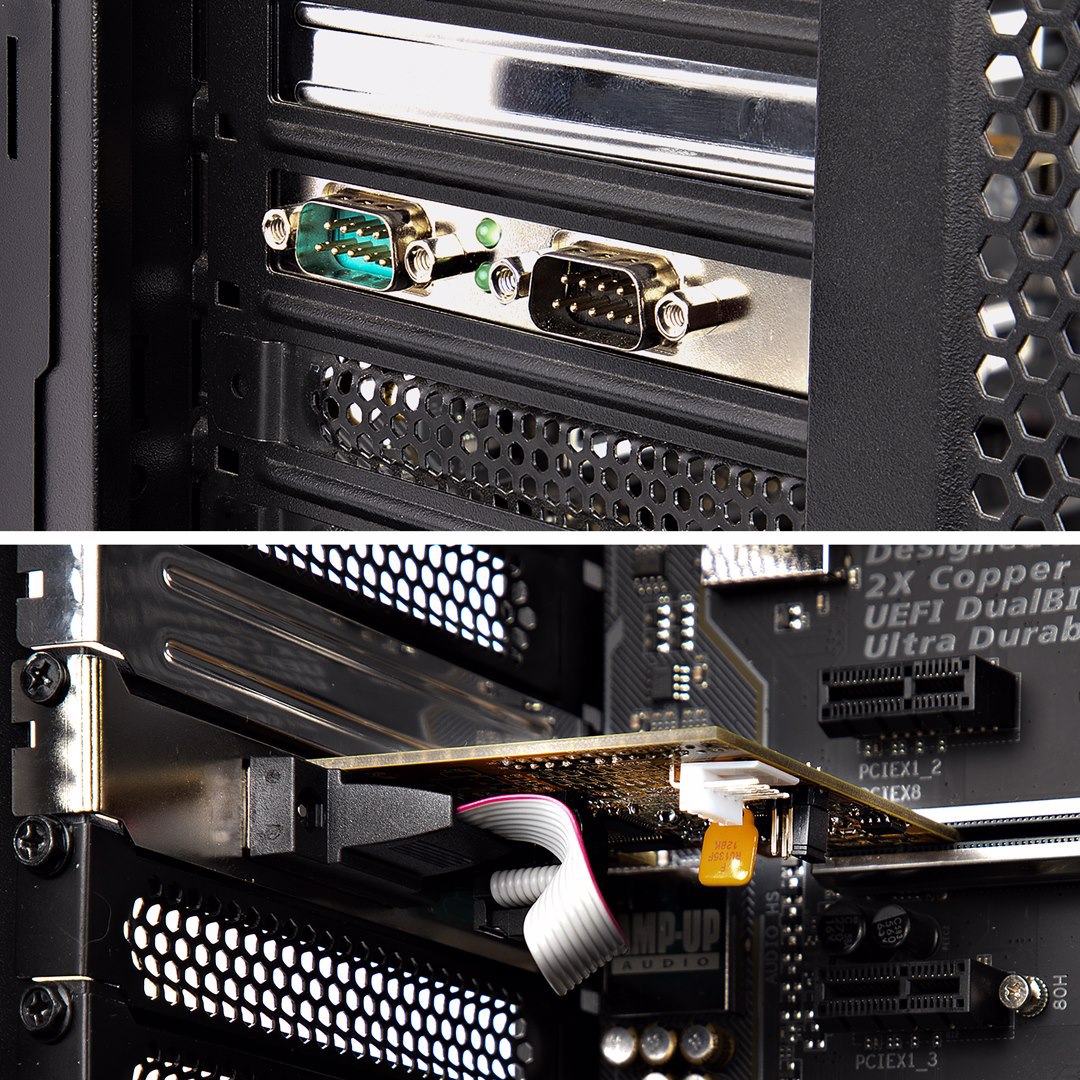

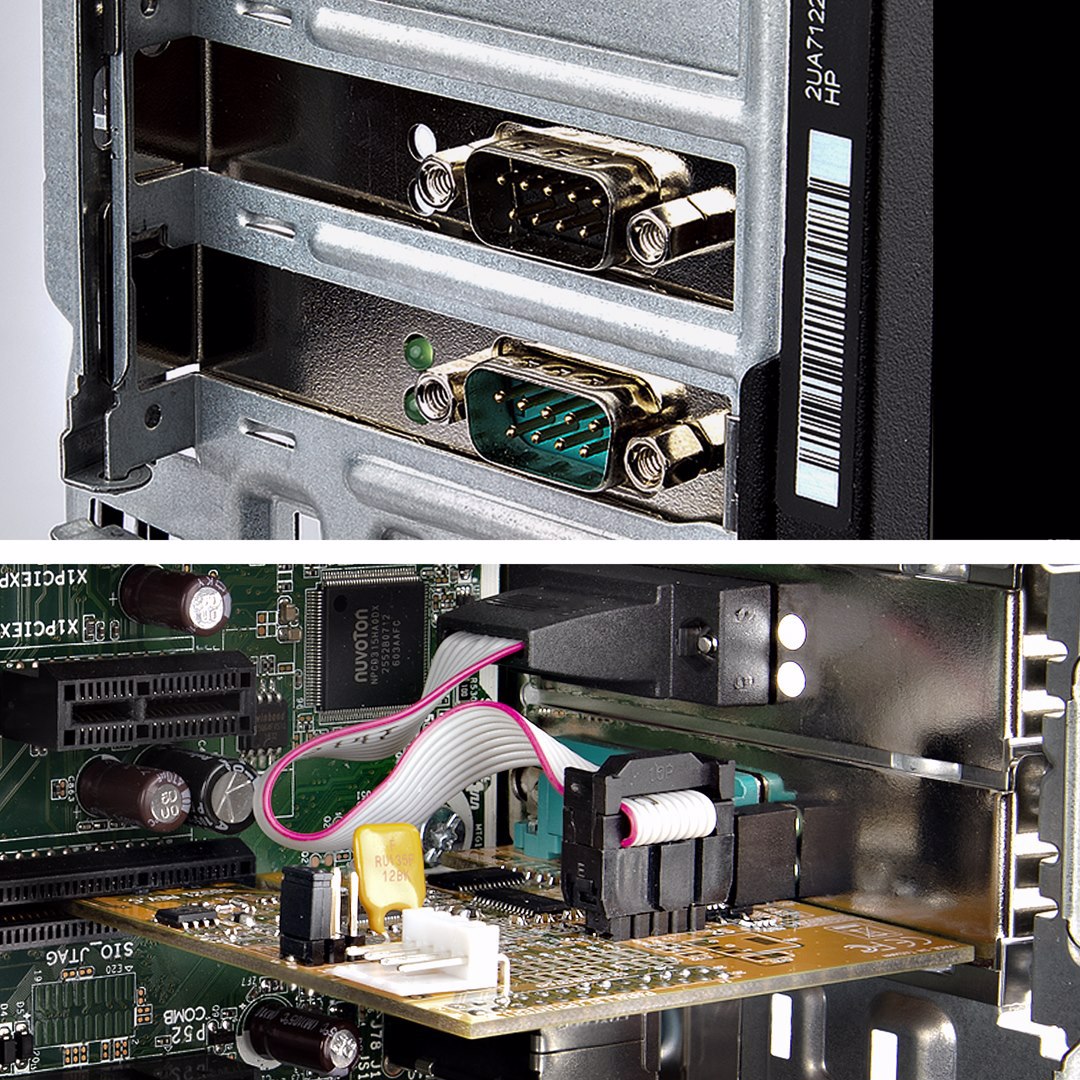

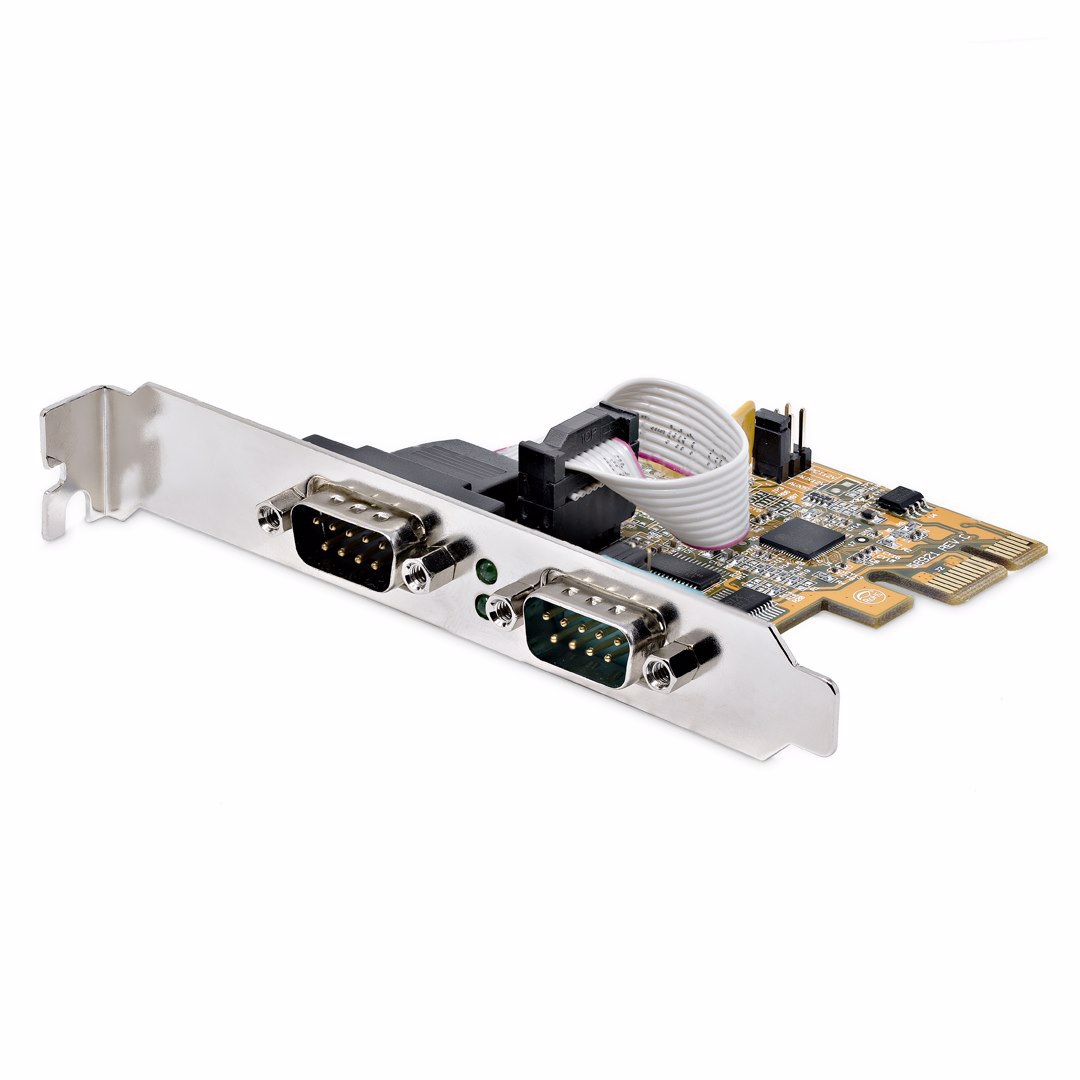

Add serial communication support to a Small Form Factor (SFF) or full-size system, using this two-port serial card. RS-232 (DB9) support enables control and communication with serial peripheral devices.

Legacy Connectivity

Install this card to enable the continued use of legacy serial devices, preventing down time and avoiding costly upgrades. The 2-port PCIe serial card is ideal for system upgrades in a wide range of applications for logistics, manufacturing, and freight sectors, and the IT industry, such as POS equipment, security systems, A/V installations, and more.

Connect with Ease

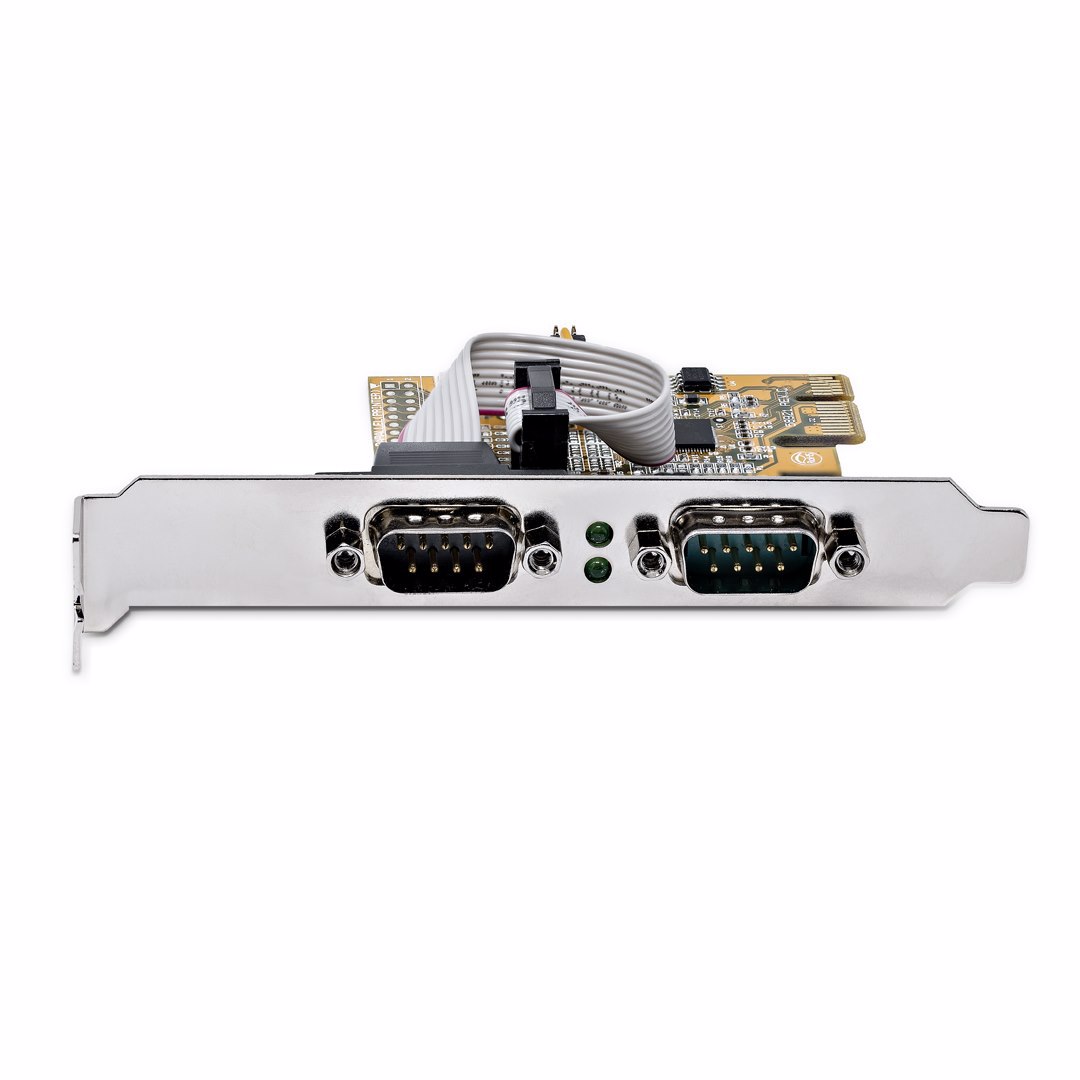

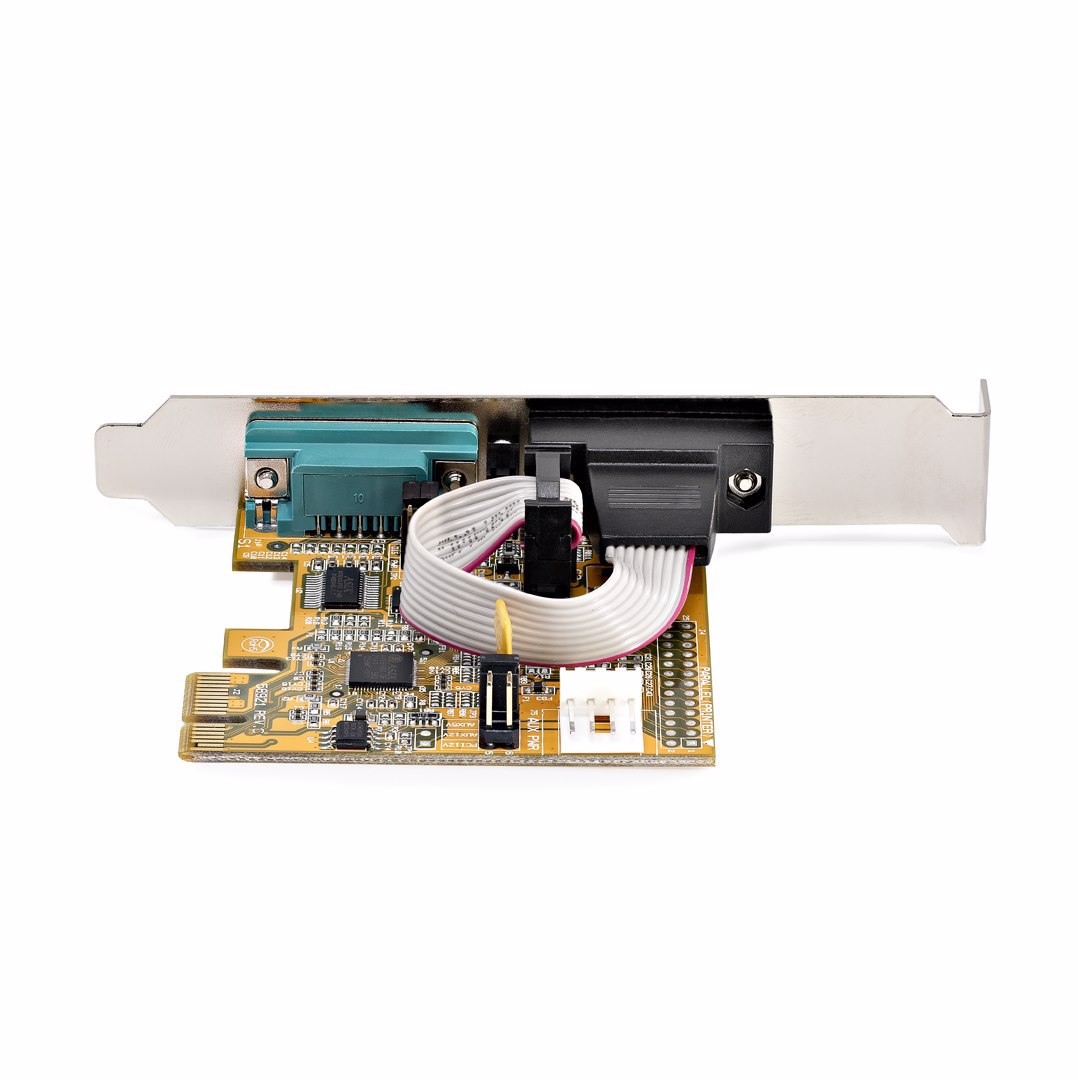

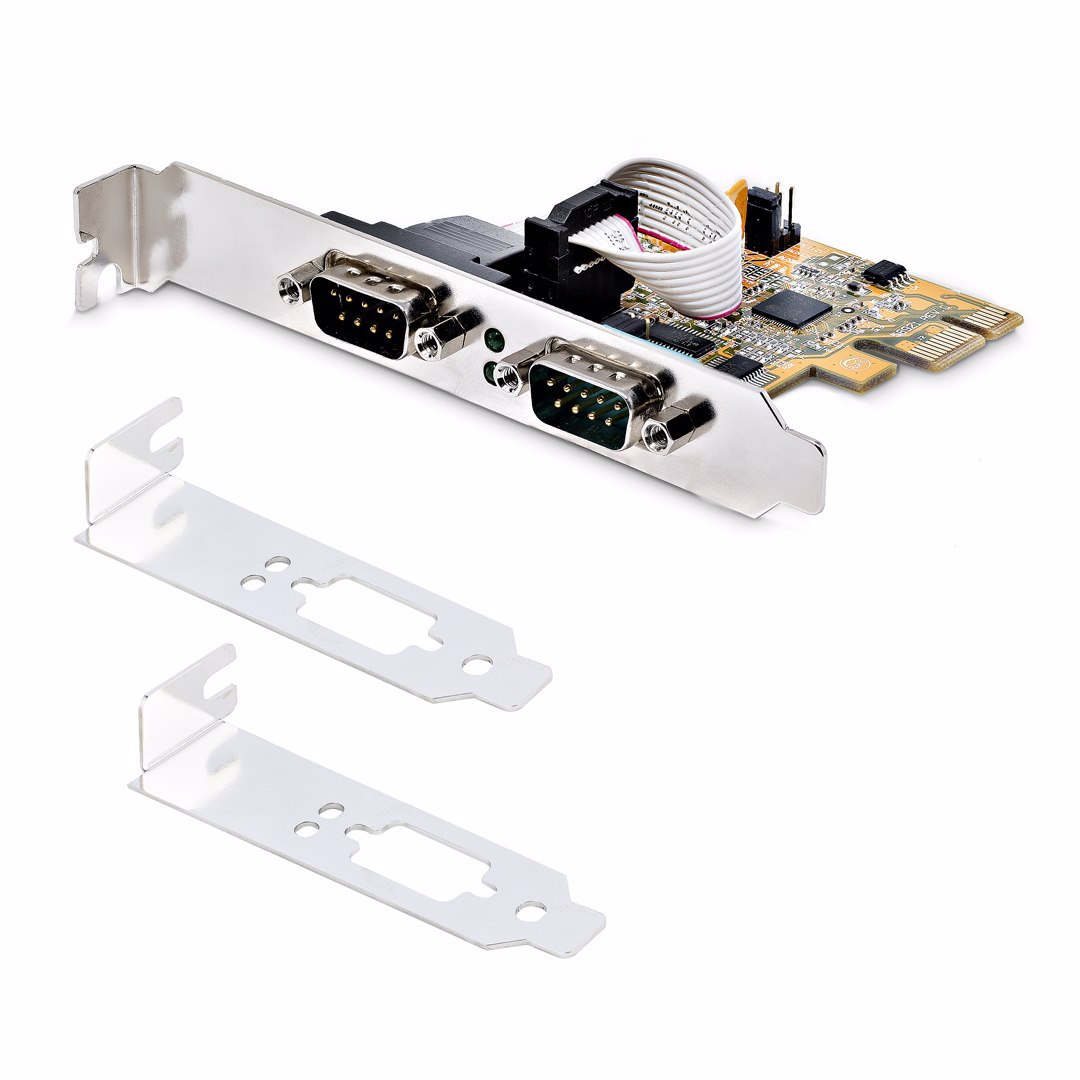

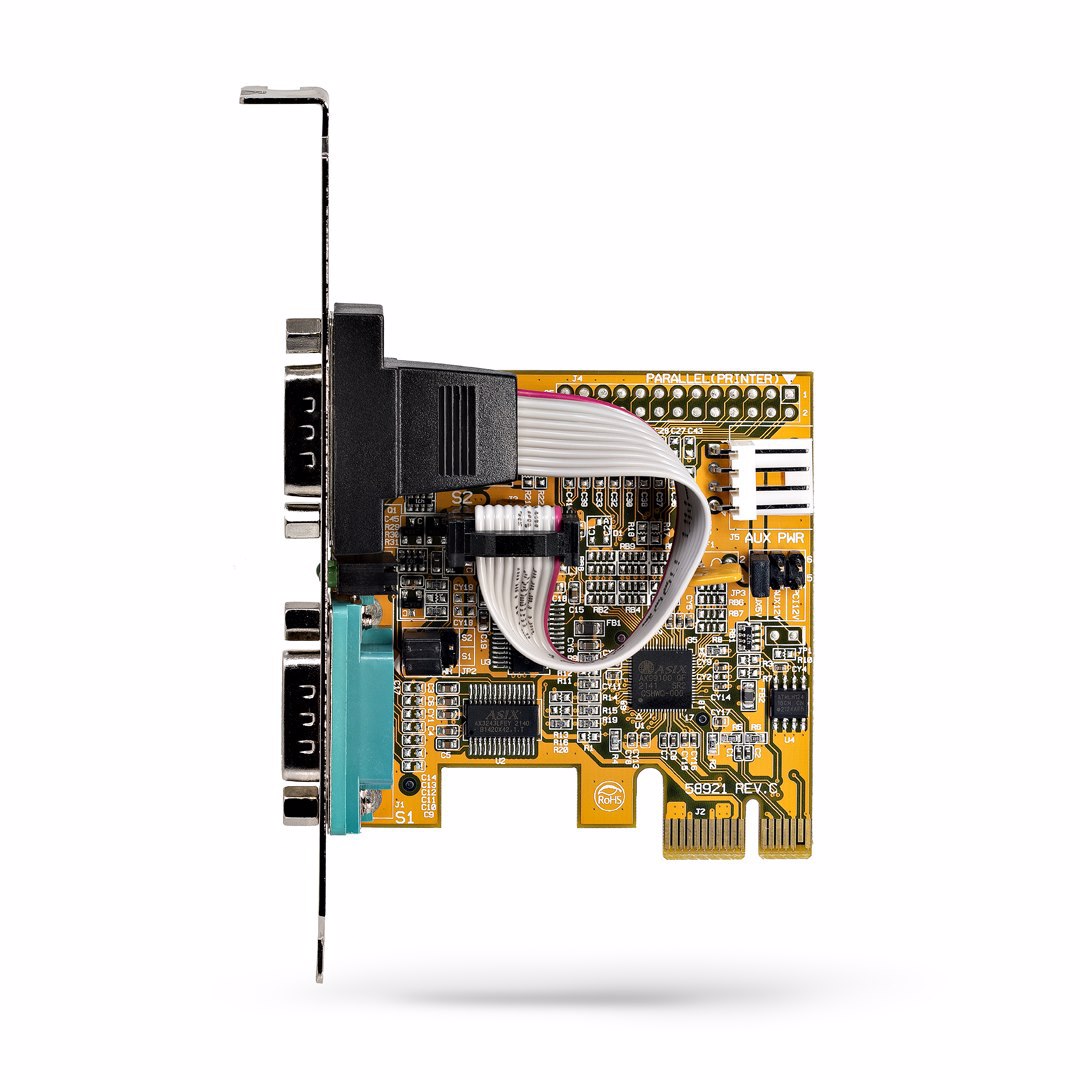

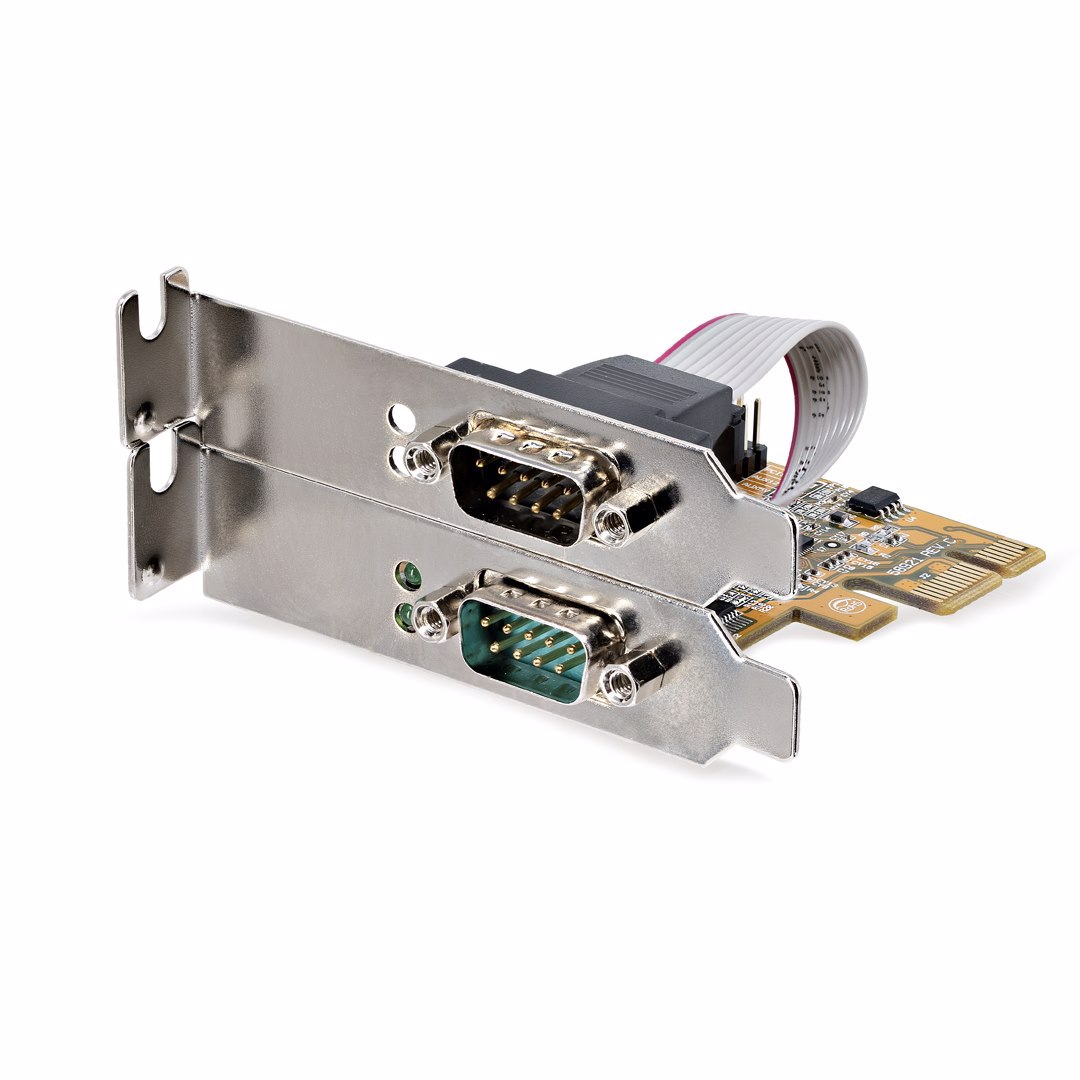

The RS-232 card features dual ports with 16C1050 UART support, 256-byte FIFO (transmit/receive), bi-directional speeds up to 921.6 Kbps per port, low-profile brackets are included for SFF systems, and serial port LED status lights. In addition, it supports Windows and Linux systems for maximum compatibility.

21050-PC-SERIAL-LP is backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.

The StarTech.com Advantage

Specifikationer

Produktfarve Gul
Pakkevægt 160 g
Bredde 66 mm
Højde 18 mm
Vægt 160 g
Dybde 67 mm
Relativ luftfugtighed ved drift (H-H) 5 - 95%
Opbevaringstemperatur (T-T) -40 - 75 °C
Pakkebredde 207 mm
Pakkedybde 144 mm
Pakkehøjde 38 mm
Understøttede Windows-operativsystemer Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Understøttede Linux-operativsystemer Ja
Driftstemperatur (T-T) 0 - 55 °C
Intern Ja
Værtsgrænseflade PCIe
Materiale Stål
Hovedkassens bredde (udvendigt) 530 mm
Hovedkassens længde (udvendigt) 440 mm
Hovedkassen højde (udvendigt) 340 mm
Produkter pr. hovedkasse (udvendigt) 50 stk
LED-indikatorer Aktivitet
Hurtig installationsvejledning Ja
Output-grænseflade Seriel
Chipsæt ASIX - AX99100, ASIX - ZT3243LFEY
Understøttede operativsystemer til servere Windows Server 2016, Windows Server 2019
Udvidelseskort formfaktor Fuld højde/ lav profil
Udvidelseskort standard PCI 2.0
Seriel grænsefladetype RS-232
Antal serielle porte 2
Monteringsbeslag inkluderet Ja
Baud hastighed 921,6 Kbit/s
FIFO (først ind, først ud) 256 B
Data-bits 5, 6, 7, 8, 9
Paritetsbit Endog, Mark, Ingen, Odd, Plads
