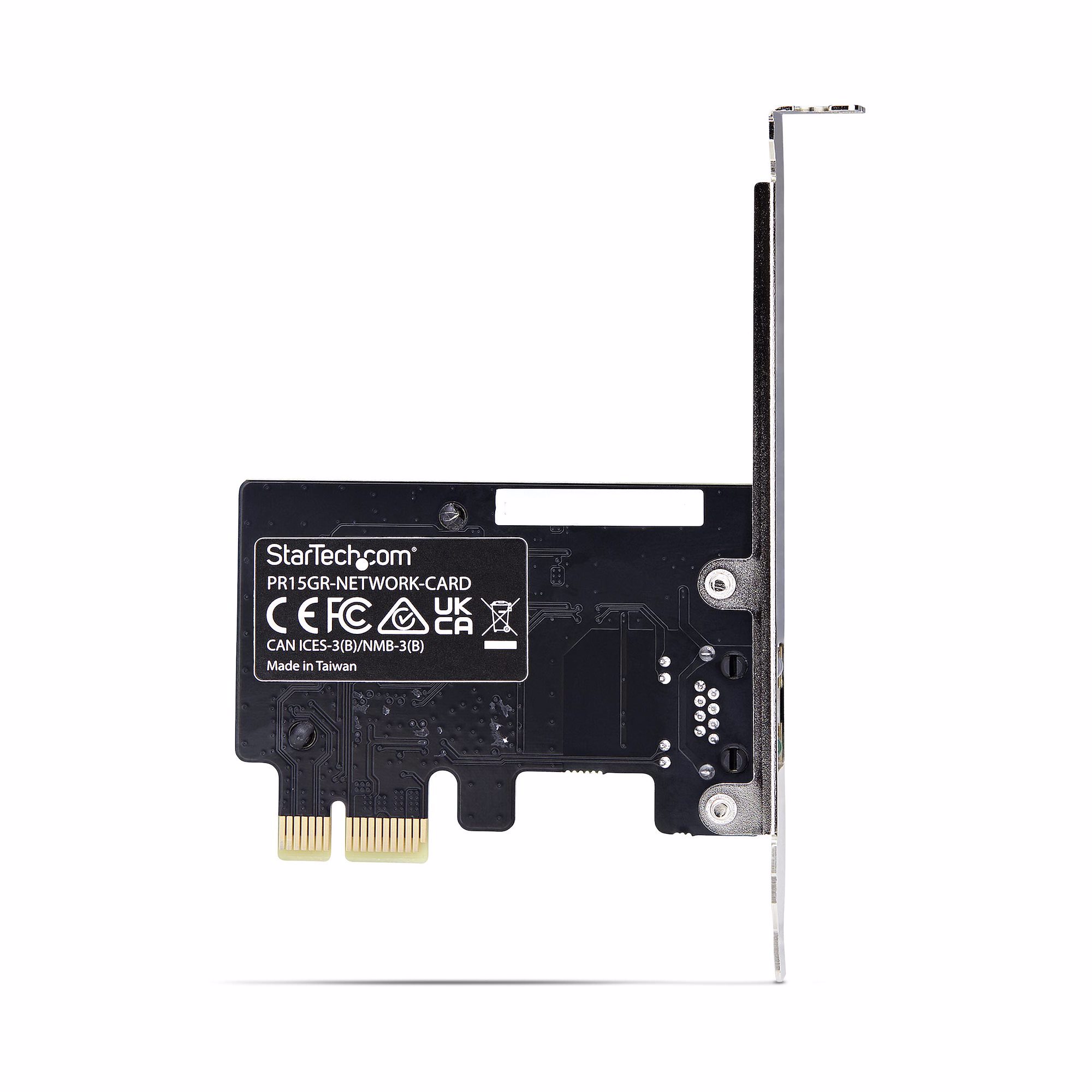

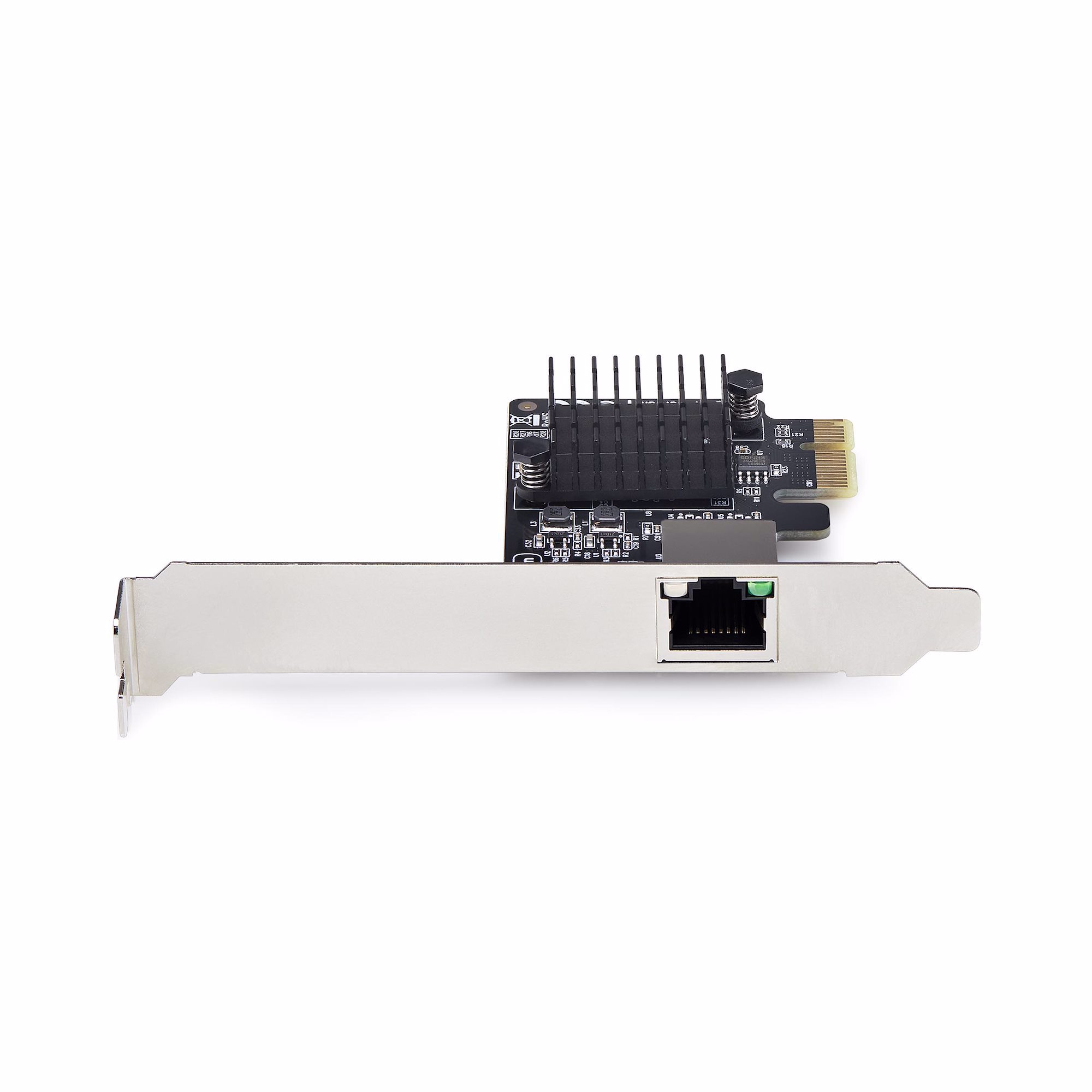

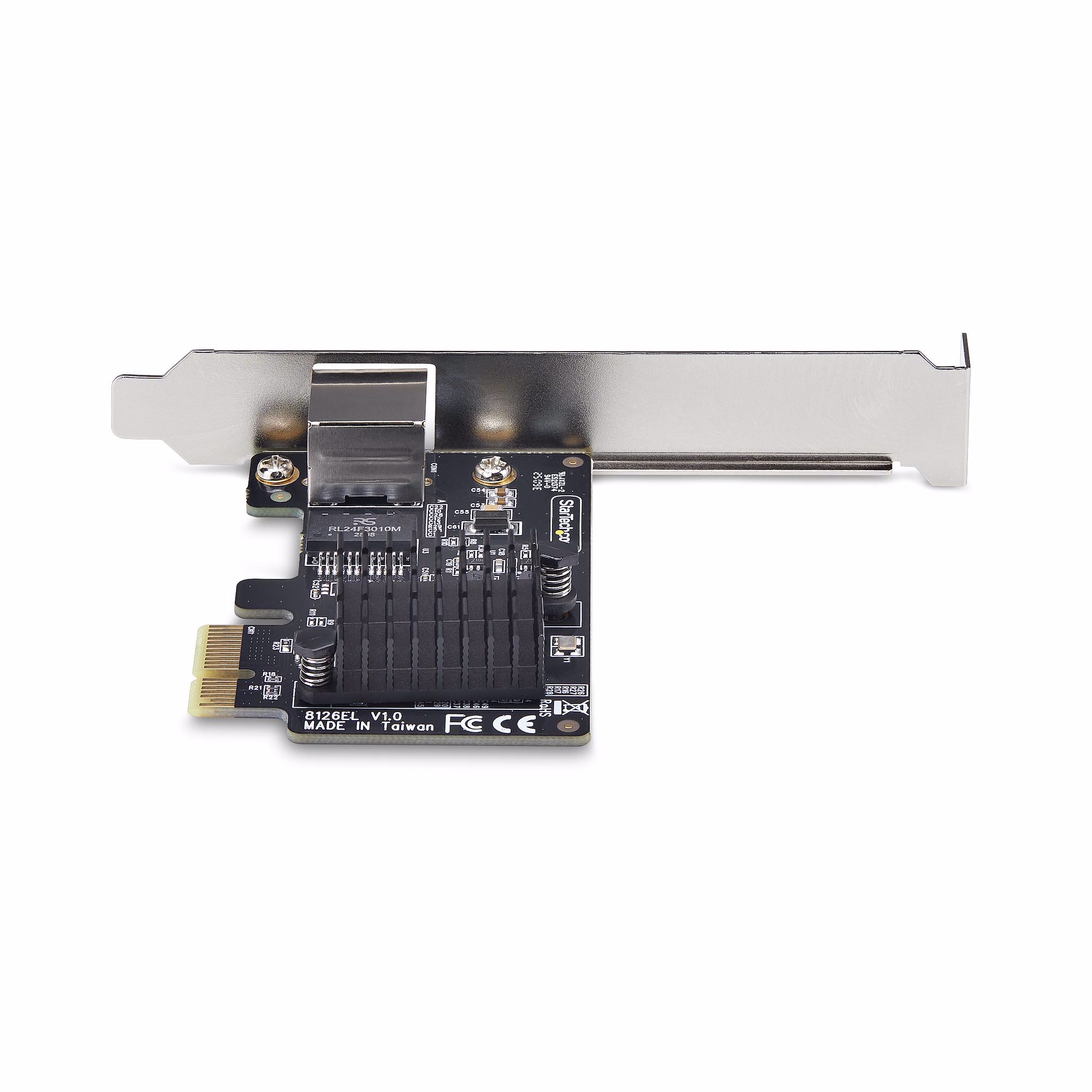

StarTech.com PR15GR-NETWORK-CARD netværkskort Intern Ethernet 5000 Mbit/s

SKU: 1003391974
EAN: 0065030911337

StarTech.com PR15GR-NETWORK-CARD, Intern, Ledningsført, PCI Express, Ethernet, 5000 Mbit/s, Sort, Sølv
Mere info
669,00 DKK Ex. moms: 535,20 DKK På lager

Produktbeskrivelse

Add a 5 Gbps Ethernet Port to a PCI Express-enabled computer

This TAA-compliant 5G Gigabit Ethernet card with Realtek RTL8126 chip adds a gigabit Ethernet interface to a desktop or server. 2.5G and 5G speeds maximize Cat5e infrastructure, providing multi-Gig performance without cabling upgrades.

Plug And Play Compatible

This 1-port network interface card is plug-and-play compatible, with drivers that auto-install on major operating systems such as Windows, Windows Server, and Linux. It is compatible with Intel and AMD hardware platforms equipped with PCI Express x1, x2, x4, x8, or x16 slots.

Performance and Management

This network card features link speed and activity LED indicators for visual network speed verification and issue diagnosis.

This PCIe network adapter supports 9K jumbo frames to minimize packet overhead, Wake-on-LAN (WoL) for remote system booting, auto-negotiation between 10/100M/2.5G/5G, and VLANs for streamlined network management. This network card supports virtually any environment, accommodating both the latest and slower legacy network connections. Futureproof your devices by ensuring your system is ready as more devices become 5G compatible.

Universal Fit

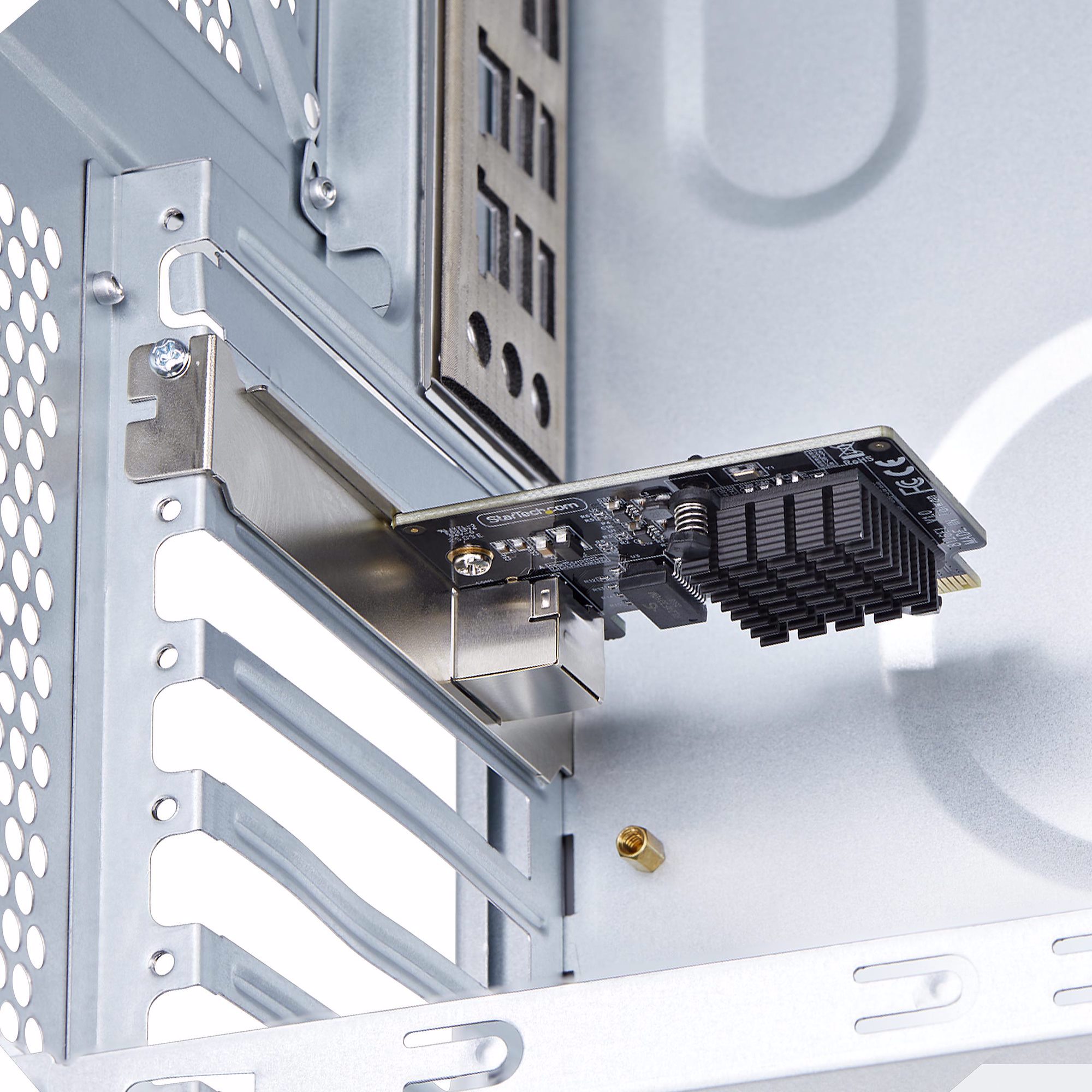

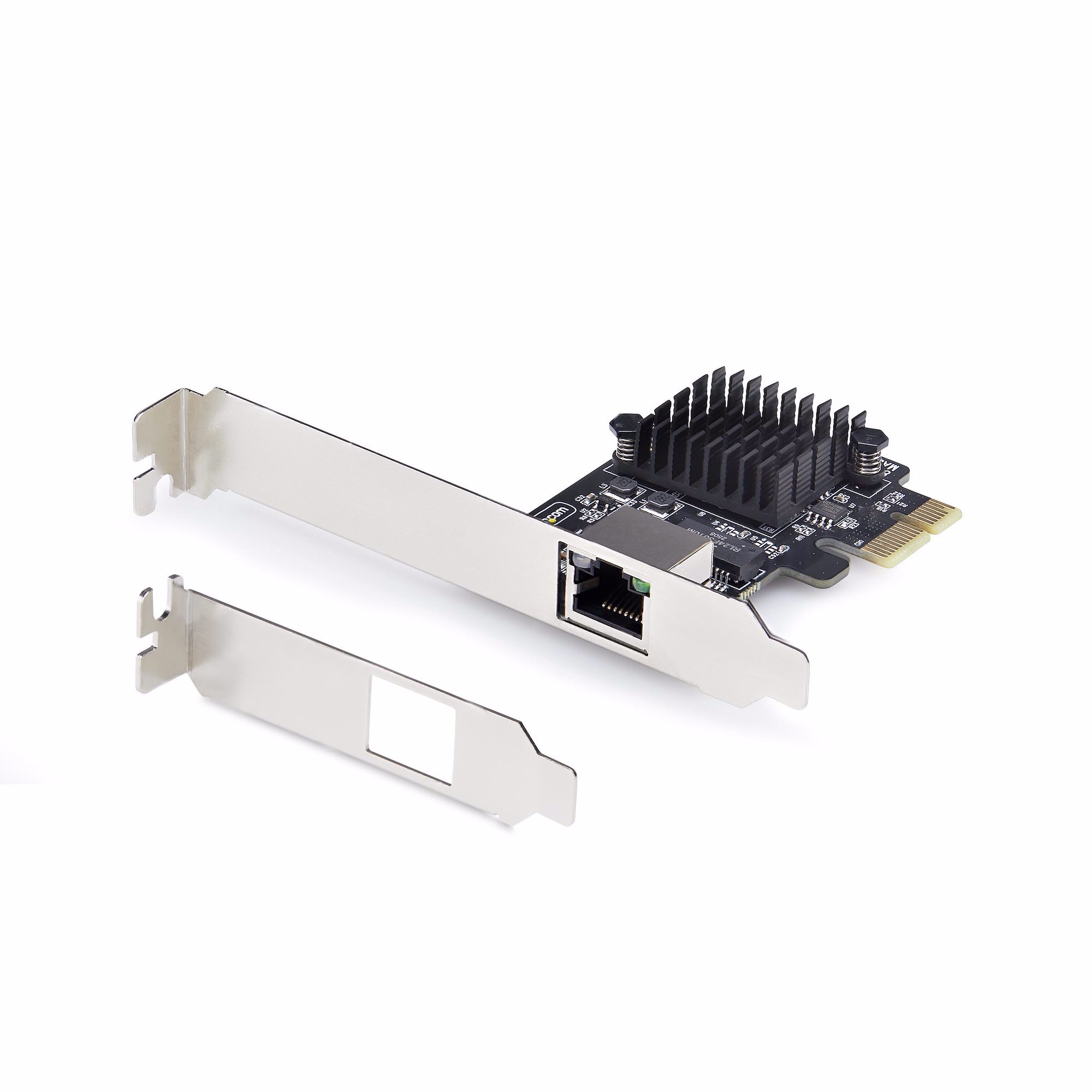

The PCI Express NIC includes full-height (pre-installed) and low-profile (accessory in the box) brackets for installation in compact and standard desktops or servers.

The StarTech.com Advantage

Specifikationer

Produktfarve Sort, Sølv
Pakkevægt 103,9 g
Bredde 120 mm
Højde 18 mm
Vægt 40,5 g
Dybde 72 mm
Relativ luftfugtighed ved drift (H-H) 10 - 80%
Opbevaringstemperatur (T-T) -30 - 90 °C
Pakkebredde 142 mm
Pakkedybde 170 mm
Pakkehøjde 30 mm
Grænseflade Ethernet
Understøttede Windows-operativsystemer Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Understøttede Linux-operativsystemer Ja
Driftstemperatur (T-T) 5 - 65 °C
Intern Ja
Netværksstandarder IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1ad, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
Ethernet LAN-datahastigheder 10,100,1000,2500,5000 Mbit/s
Maksimal dataoverførselshastighed 5000 Mbit/s
Forbindelsesteknologi Ledningsført
Værtsgrænseflade PCI Express
Ethernet LAN-porte (RJ-45) 1
Ethernet LAN Ja
Hovedkassens bredde (udvendigt) 685 mm
Hovedkassens længde (udvendigt) 345 mm
Hovedkassen højde (udvendigt) 306 mm
Produkter pr. hovedkasse (udvendigt) 75 stk
LED-indikatorer Hastighed, Status
Jumbo Frames support Ja
Jumbo rammer 9000
Komponent til PC/server
Hurtig installationsvejledning Ja
Ethernet-grænsefladetype 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Hurtigt ethernet, Gigabit Ethernet
Wake-on-LAN klar Ja
Chipsæt Realtek RTL8126
Understøttede operativsystemer til servere Windows Server 2019, Windows Server 2022
Auto MDIX IEEE Ja
Monteringsbeslag inkluderet Ja
Compliance-certifikater CE, Federal Communications Commission (FCC), RoHS
