StarTech.com PEX2S553 interface-kort/adapter Intern Seriel

SKU: 988492557
EAN: 0065030841740

StarTech.com PEX2S553, PCIe, Seriel, PCIe 1.0, RS-232, Grøn, ASIX - MCS9922CV-AA
Mere info
479,00 DKK Ex. moms: 383,20 DKK På lager

Produktbeskrivelse

Add 2 RS-232 serial ports to your standard or small form factor computer through a PCI Express expansion slot

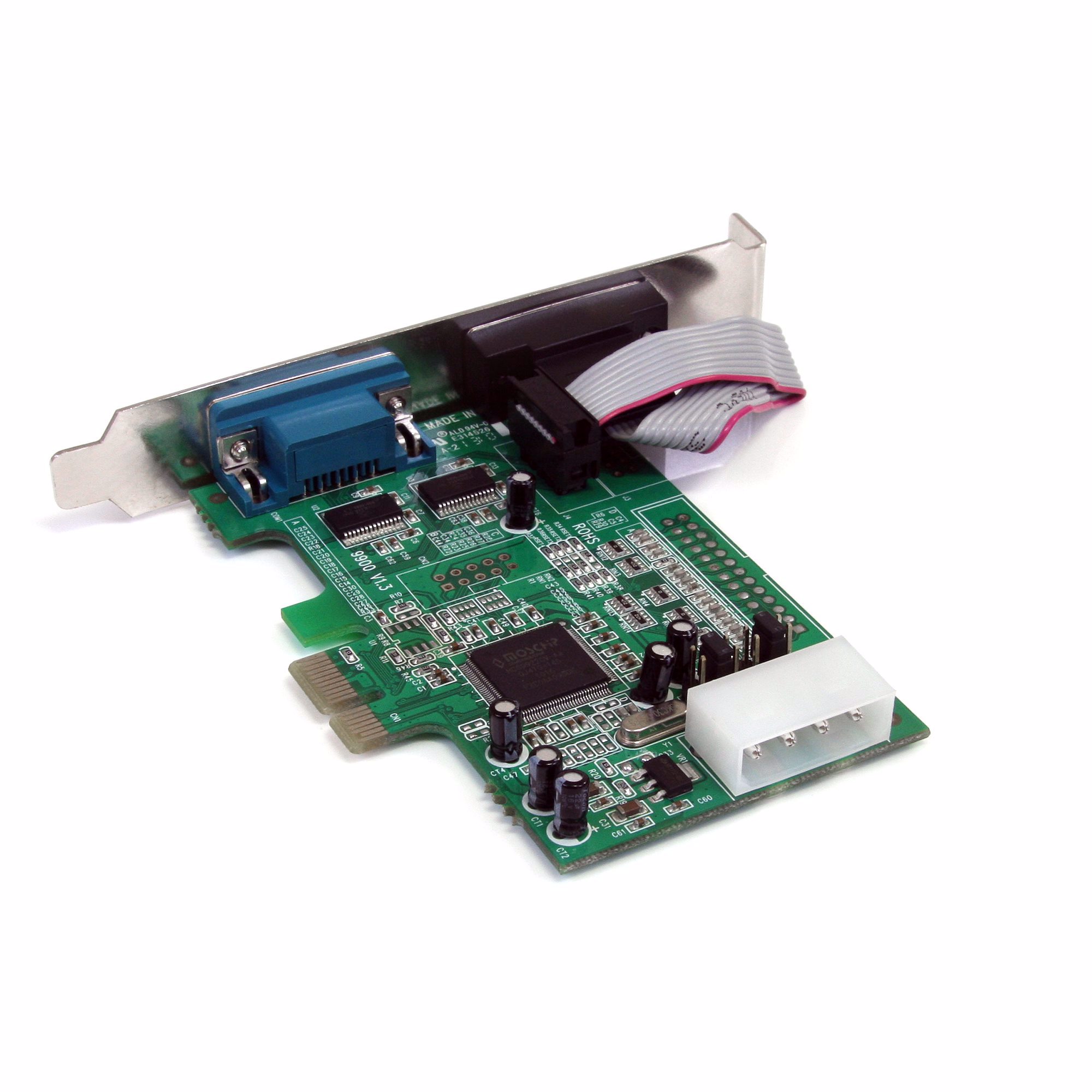

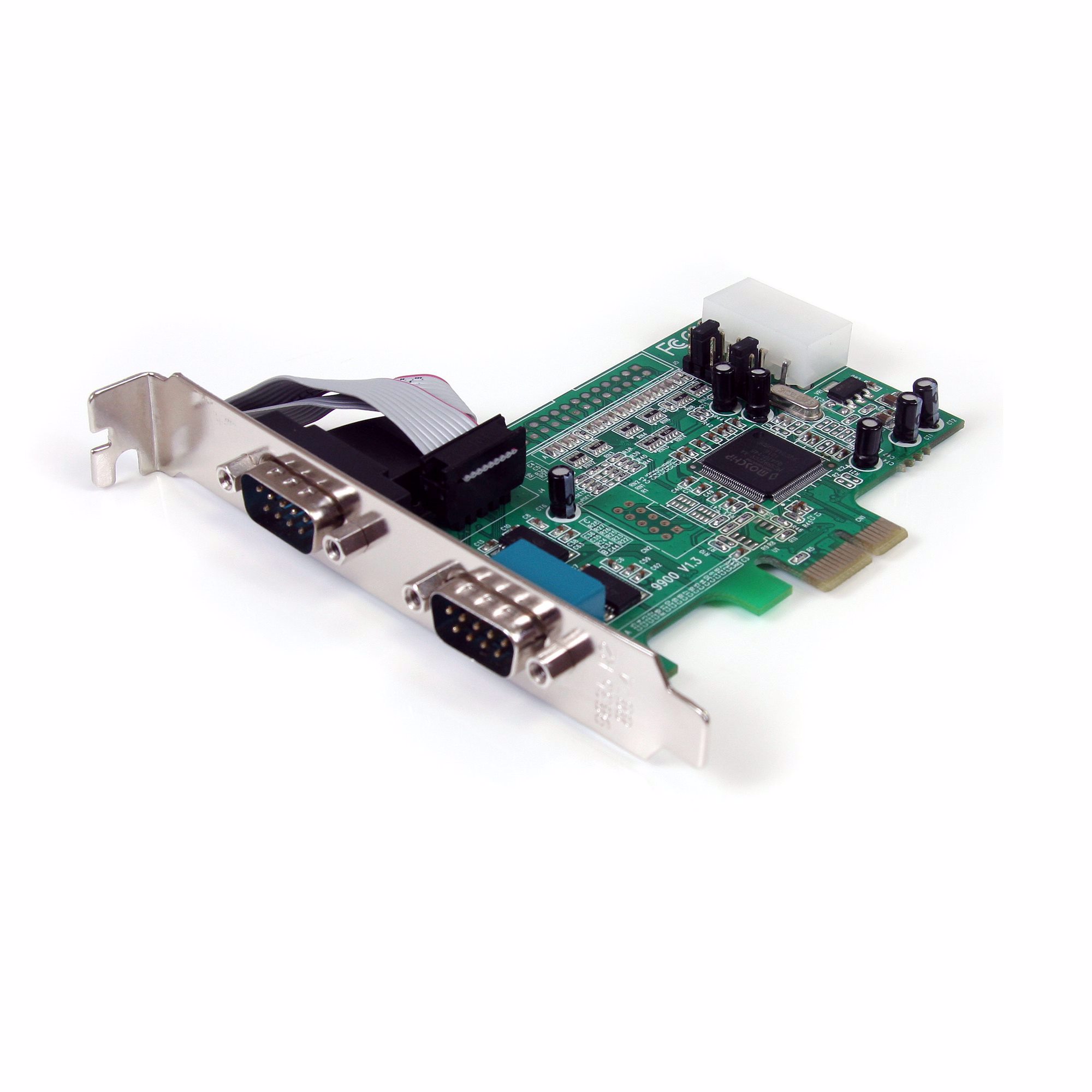

The PEX2S553 PCI Express serial card lets you turn a PCI Express slot into 2 RS232 (DB9) serial ports. Based on a native single chip design (no bridge chip), this 2-port serial adapter card allows you to harness the full capability offered by PCI Express (PCIe), and reducing the load applied to the CPU by as much as 48% over conventional serial cards.

The RS232 Serial Adapter Card (PEX2S553) is compatible with a broad range of operating systems including Windows® and Linux Kernel 2.6.11 to 4.11.x, and MAC OS 10.4 and above.

Plus, the serial card includes an optional half-height/low profile bracket that allows the card to be installed in any PCI Express slot, regardless of the size of the computer case.

This product is a replacement for our PEX2S552 card.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

Specifikationer

Harmoniseret systemkode (HS) 84733020
Produktfarve Grøn
Pakkevægt 151 g
Bredde 120 mm
Højde 20 mm
Vægt 61 g
Dybde 105 mm
Relativ luftfugtighed ved drift (H-H) 5 - 85%
Opbevaringstemperatur (T-T) -20 - 100 °C
Pakkebredde 145 mm
Pakkedybde 175 mm
Pakkehøjde 32 mm
Understøttede Windows-operativsystemer Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 2000, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 95, Windows 98SE, Windows CE, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Understøttede Linux-operativsystemer Ja
Driftstemperatur (T-T) -10 - 80 °C
Intern Ja
Værtsgrænseflade PCIe
Hovedkassens bredde (udvendigt) 355 mm
Hovedkassens længde (udvendigt) 690 mm
Hovedkassen højde (udvendigt) 310 mm
Produkter pr. hovedkasse (udvendigt) 75 stk
Understøttede Mac-operativsystemer Mac OS X 10.10 Yosemite, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Andre understøttede operativsystemer DOS, Windows Embedded POSReady 2009, Windows Embedded Standard 2009, Windows XP Embedded
Brugervejledning Ja
Output-grænseflade Seriel
Chipsæt ASIX - MCS9922CV-AA
Understøttede operativsystemer til servere Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Drivere inkluderet Ja
Udvidelseskort standard PCIe 1.0
Overholdelse af bæredygtighed Ja
Seriel grænsefladetype RS-232
Antal serielle porte 2
Baud hastighed 460,8 Kbit/s
FIFO (først ind, først ud) 128 B
Perifere (Molex) strømstik (4-pin) 1
Compliance-certifikater CE, RoHS
