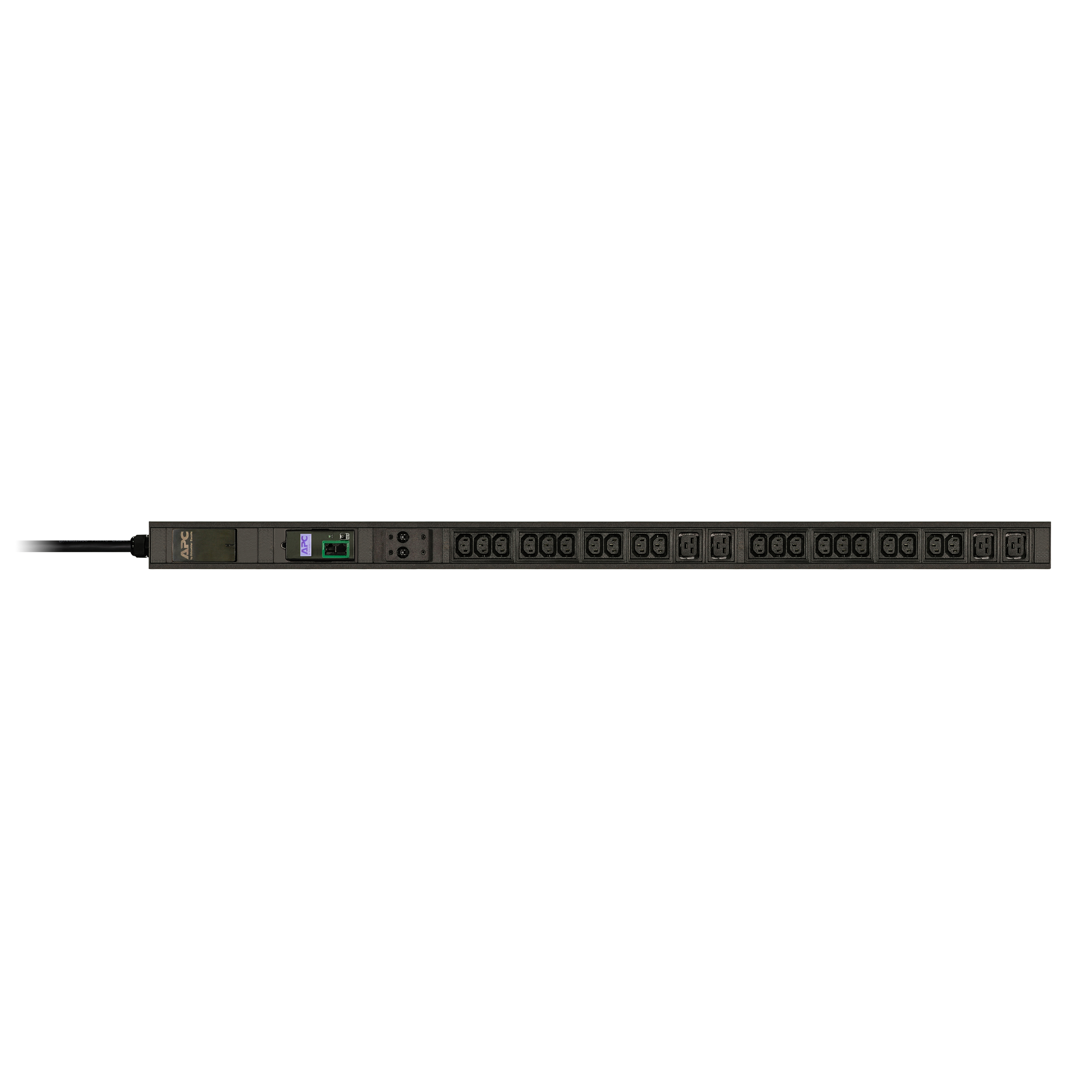

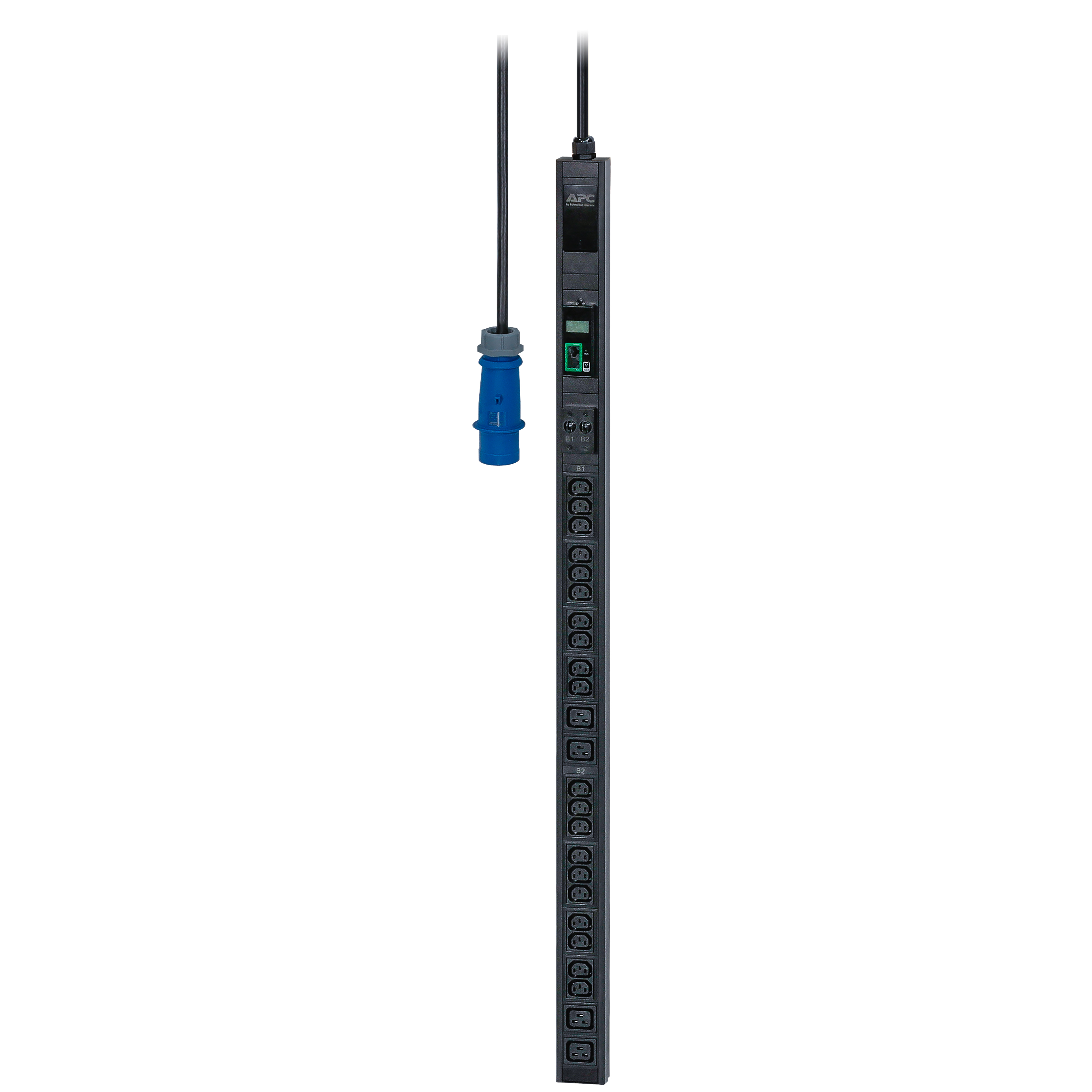

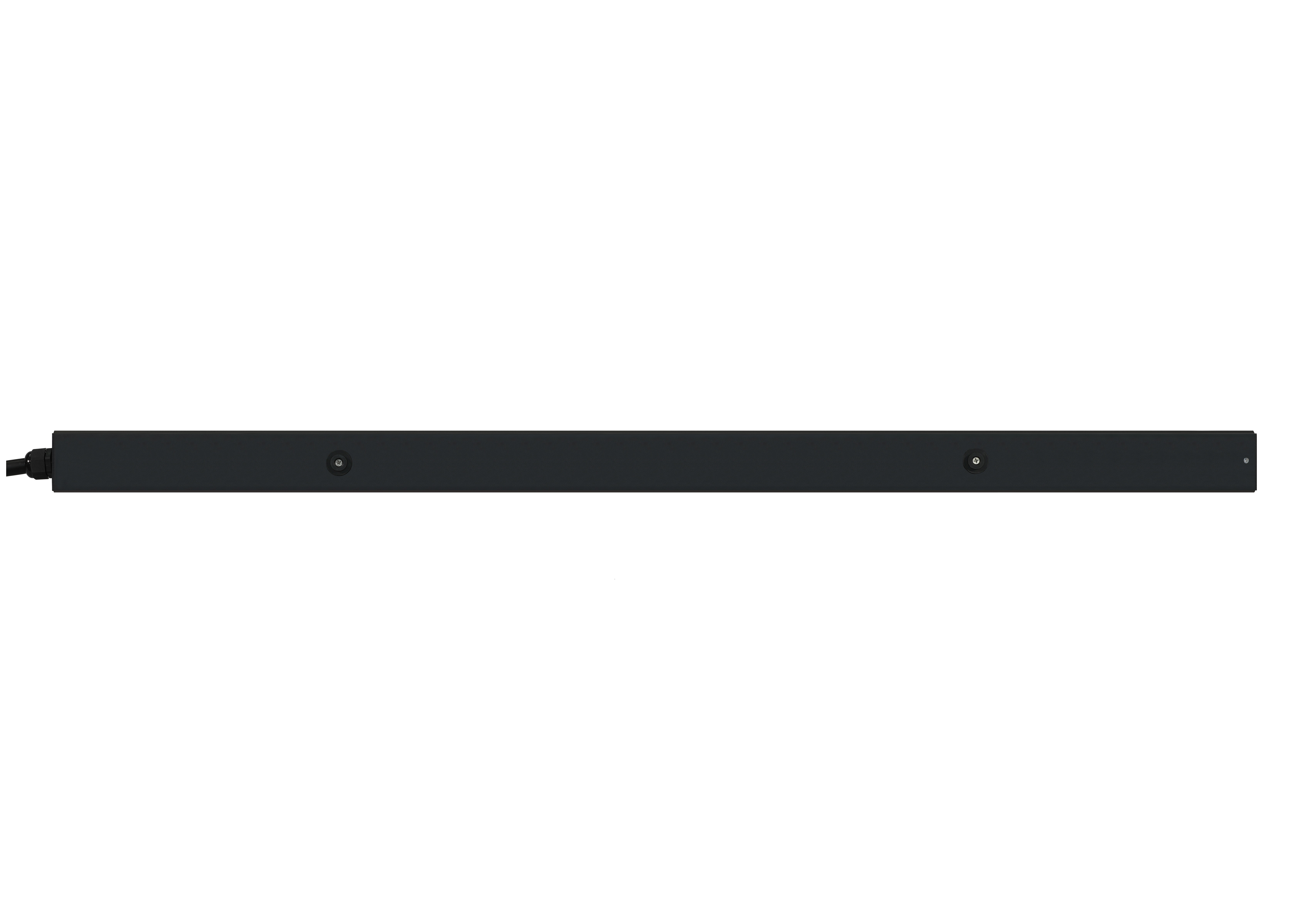

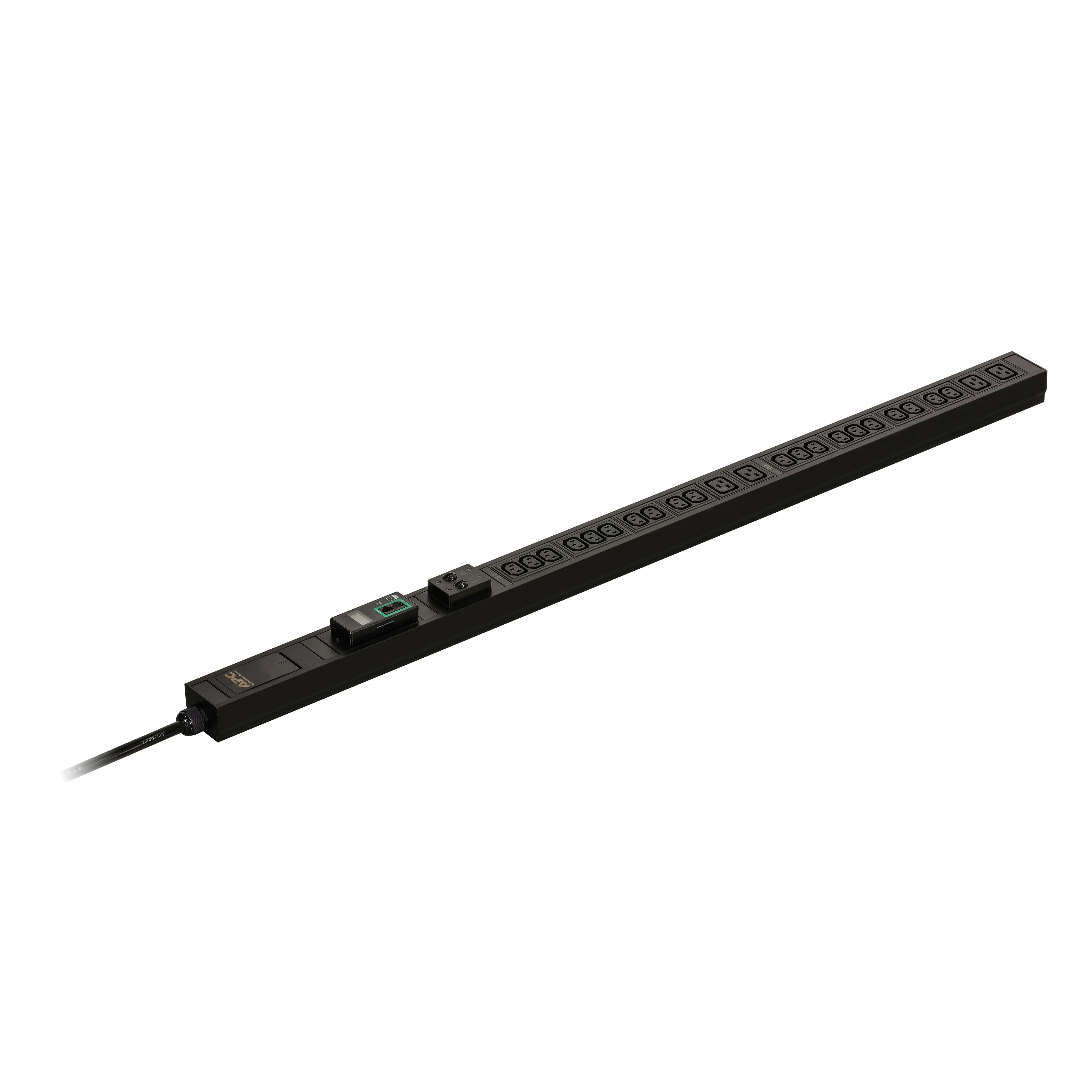

APC EPDU1132M strømforsyningsenhed (PDU) 24 AC stikkontakt(er) 0U Sort

SKU: 995772271
EAN: 0731304405092

APC EPDU1132M, Målte, 0U, Enfaset, Lodret, Aluminium, Sort
Mere info
5.349,00 DKK Ex. moms: 4.279,20 DKK På lager

Produktbeskrivelse

APC Easy Metered Rack PDU EPDU1132M is Easy-to-install and easy-to-use PDU, making rack power distribution easy and intelligent. This provides real-time remote monitoring, power management of connected loads, and much more features than the average power strip. EPDU1132M has IEC 60309 16A 2P+E type inlet, twenty IEC C13 and four IEC C19 type outlet sockets. This is integrated with Hydraulic-magnetic circuit breakers (in units with 32A input current). This is vertical rack mountable PDU in ultra light weight and smart, multifunctional new designed display. Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Full-featured user friendly network management web interface provides standards-based management via Web, SNMP, and Command Line Interface. Allows users to access, configure, and manage units from remote locations to save valuable time. Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits. Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. The packaging includes installation guide, user manual toolless mounting kit and vertical mounting brackets for quick and easy mounting in the enclosure. This can operate from -5° to +45°C temperation range and comes with 1 year of standard warranty.

Specifikationer

Type Enfaset
Produktfarve Sort
Pakkevægt 4,48 kg
Bredde 62 mm
Højde 1175 mm
Vægt 3,72 kg
Dybde 44 mm
Relativ luftfugtighed ved drift (H-H) 5 - 95%
Opbevaringstemperatur (T-T) -25 - 65 °C
Pakkebredde 160 mm
Pakkedybde 110 mm
Pakkehøjde 1320 mm
Certificering CE, TUV
Driftstemperatur (T-T) -5 - 45 °C
Vekselstrømsindgangsfrekvens 50 - 60 Hz
Relativ luftfugtighed ved opbevaring (H-H) 5 - 95%
LED-indikatorer Ja
Strømstik IEC 60309
Brugervejledning Ja
Strøm (maks.) 32 A
Montering Lodret
Skærm LCD
Husmateriale Aluminium
Driftshøjde 0 - 3000 m
Ikke-drift højde 0 - 15000 m
Rackkapacitet 0U
Tænd-/slukkontakt Ingen
Firmware kan opgraderes Ja
AC stikkontakt typer C13 forbinder, C19 forbinder
AC udgange, antal 24 AC stikkontakt(er)
Nominel udgangsspænding 230 V
Nominel indgangsspænding 200/208/230 V
Maksimal ydeevne 7360 W
PDU-typer Målte
Load-kapacitet 7360 VA
Maksimal input strøm pr. fase 32 A
Samlet CO2-fodaftryk (kg of CO2e) 28890,42
