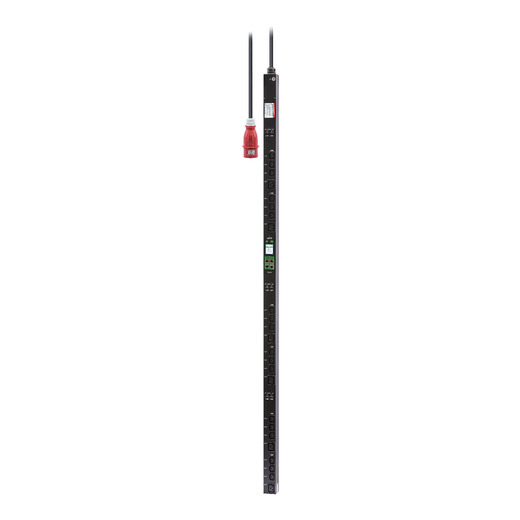

APC EPDU2232SMBO strømforsyningsenhed (PDU) 24 AC stikkontakt(er) 0U Sort

SKU: 1002204938
EAN: 0731304733478

APC EPDU2232SMBO, Målte, Omskiftet, 0U, Trefaset, Lodret, Metal, Sort
Mere info
19.329,00 DKK Ex. moms: 15.463,20 DKK På lager

Produktbeskrivelse

Easy rack PDU Metered-by-Outlet with Switching EPDU2232SMBO provides advanced power monitoring and control capabilities for individual outlets, empowering critical IT infrastructure. The Network Management Card NMC3 provides enhanced cybersecurity with secured interfaces and modified password policy. The rack PDU integrates with EcoStruxure IT through a Network Management Card (NMC3) and can be accessed and configured via Web, SNMP, and Command Line Interface. EPDU2232SMBO is designed for three phase applications of upto 22kw and industry standards of 1% metering accuracy. This comes with IEC 603093 32A 3P+N+PE type inlet, eighteen IEC C13 and six IEC C19 type outlet sockets. It features an ultra-lightweight aluminum housing, offering up to 50% weight reduction, along with environmental monitoring and an all-new improved display module. Vertical mounting capabilities allow users to mount the units in a rack or enclosure in zero U space without expending valuable rack space This is designed to operate within a temperature range of -5°C to +50°C and is backed by a standard 2-year warranty. Remotely manage outlets so users can turn outlets off that are not in use (prevent overloads) or recycle power to locked-up equipment (minimize costly downtime and avoid travel time to equipment) The rack PDU supports daisy-chain of up to 4 PDUs on a single IP address, thereby reducing networking cost.

Specifikationer

Bredde 55 mm
Dybde 56 mm
Højde 1800 mm
Vægt 8,68 kg
Pakkevægt 9,85 kg
Pakkebredde 195 mm
Pakkedybde 130 mm
Pakkehøjde 2030 mm
Driftshøjde 0 - 15000 m
Relativ luftfugtighed ved opbevaring (H-H) 5 - 95%
Relativ luftfugtighed ved drift (H-H) 5 - 95%
Opbevaringstemperatur (T-T) -25 - 65 °C
Driftstemperatur (T-T) -5 - 45 °C
Strømbeskyttelsesfunktioner Overbelastning
Load-kapacitet 22000 VA
Udgangsspænding 200-240 V
Vekselstrømsindgangsfrekvens 50/60 Hz
Strøm (maks.) 32 A
Nominel indgangsspænding 400 V
Kabellængde 3 m
Antal USB-porte 1
Ethernet LAN-porte (RJ-45) 1
Strømstik IEC 60309
AC stikkontakt typer C13 forbinder, C19 forbinder
AC udgange, antal 24 AC stikkontakt(er)
Skærm LCD
Produktfarve Sort
Husmateriale Metal
Montering Lodret
Type Trefaset
Rackkapacitet 0U
PDU-typer Målte, Omskiftet
