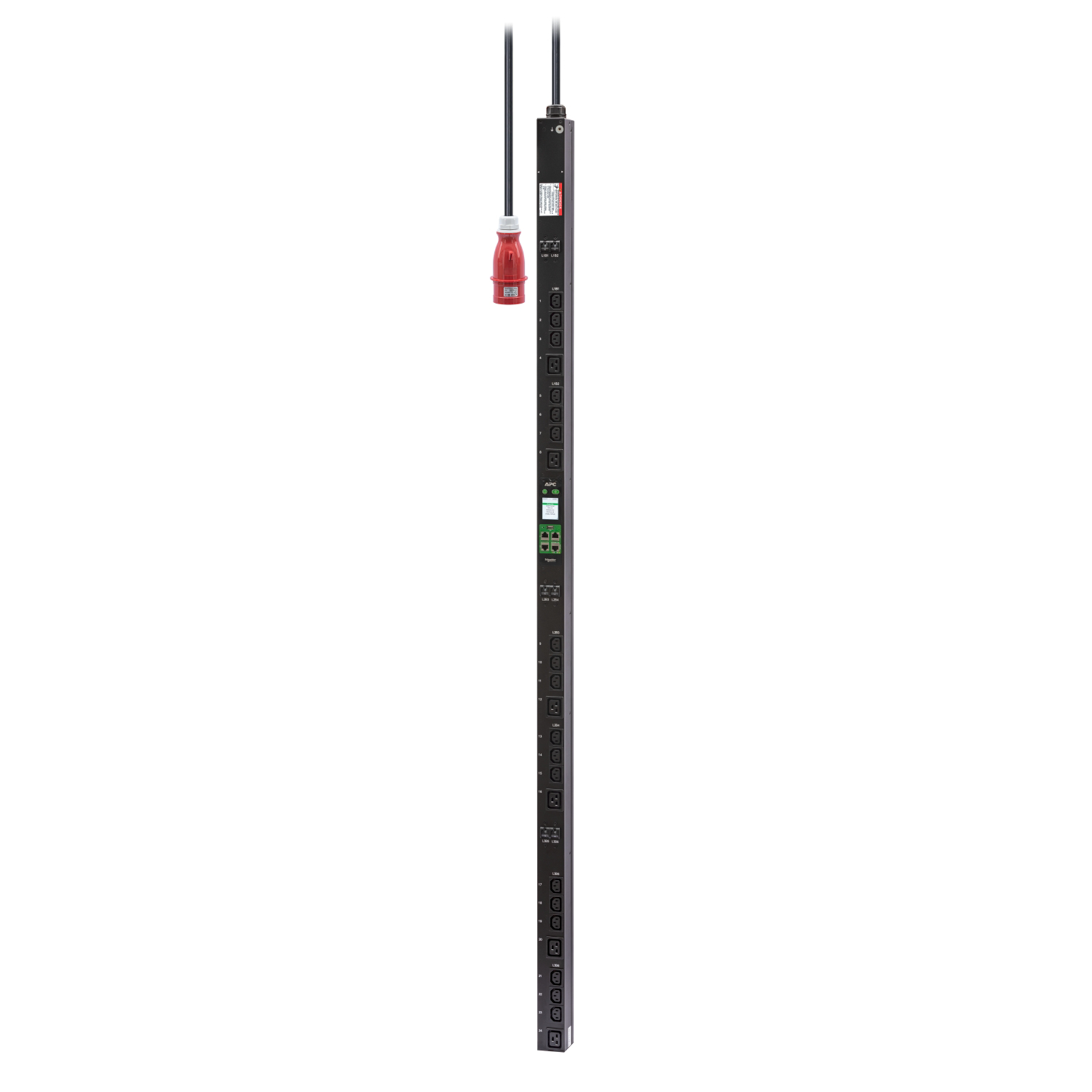

APC EPDU2232MBO strømforsyningsenhed (PDU) 32 AC stikkontakt(er) 0U Sort

SKU: 1002204937
EAN: 0731304733430

APC EPDU2232MBO, Målte, 0U, Trefaset, Lodret, Aluminium, Sort
Mere info
15.079,00 DKK Ex. moms: 12.063,20 DKK På lager

Produktbeskrivelse

Easy Metered-by-outlet rack PDU EPDU2232MB provides detailed energy analysis for individual outlets, enabling better capacity planning and resource allocation. The Network Management Card NMC3 provides enhanced cybersecurity with secured interfaces and modified password policy. The rack PDU integrates with EcoStruxure IT through a Network Management Card (NMC3) and can be accessed and configured via Web, SNMP, and Command Line Interface. EPDU2232MBO is designed for three phase applications of upto 22kw and industry standards of 1% metering accuracy. This comes with IEC 603093 32A 3P+N+PE type inlet, eighteen IEC C13 and six IEC C19 type outlet sockets. It features an ultra-lightweight aluminum housing, offering up to 50% weight reduction, along with environmental monitoring and an all-new improved display module. Vertical mounting capabilities allow users to mount the units in a rack or enclosure in zero U space without expending valuable rack space This is designed to operate within a temperature range of -5°C to +50°C and is backed by a standard 2-year warranty. The rack PDU supports daisy-chain of up to 4 PDUs on a single IP address, thereby reducing networking cost. Environmental monitoring ports for external temperature/humidity monitoring is available (sensor sold separately).

Specifikationer

Type Trefaset
Produktfarve Sort
Pakkevægt 9,55 kg
Bredde 55 mm
Højde 1800 mm
Vægt 8,38 kg
Dybde 56 mm
Relativ luftfugtighed ved drift (H-H) 5 - 95%
Opbevaringstemperatur (T-T) -25 - 65 °C
Pakkebredde 195 mm
Pakkedybde 130 mm
Pakkehøjde 2030 mm
Certificering CE, TUV, EN 62368-1, RCM, UKCA
Driftstemperatur (T-T) -5 - 50 °C
Vekselstrømsindgangsfrekvens 50/60 Hz
Relativ luftfugtighed ved opbevaring (H-H) 5 - 95%
LED-indikatorer Ja
Strømstik C13 forbinder
Strøm (maks.) 32 A
Montering Lodret
Skærm LCD
Kabellængde 3 m
Husmateriale Aluminium
Driftshøjde 0 - 3000 m
Ikke-drift højde 0 - 15000 m
Rackkapacitet 0U
Tænd-/slukkontakt Ingen
Udgangsspænding 230 V
Knap til nulstilling Ja
AC stikkontakt typer C13 forbinder, C19 forbinder
AC udgange, antal 32 AC stikkontakt(er)
Nominel udgangsspænding 230 V
Nominel indgangsspænding 400 V
Maksimal ydeevne 22000 W
PDU-typer Målte
Load-kapacitet 22000 VA
Overvågning Strøm, Strøm, Spænding
Daisy kæde Ingen
Antal faser 3
Compliance-certifikater CE, RCM, REACH, RoHS, cTUVus, UKCA
