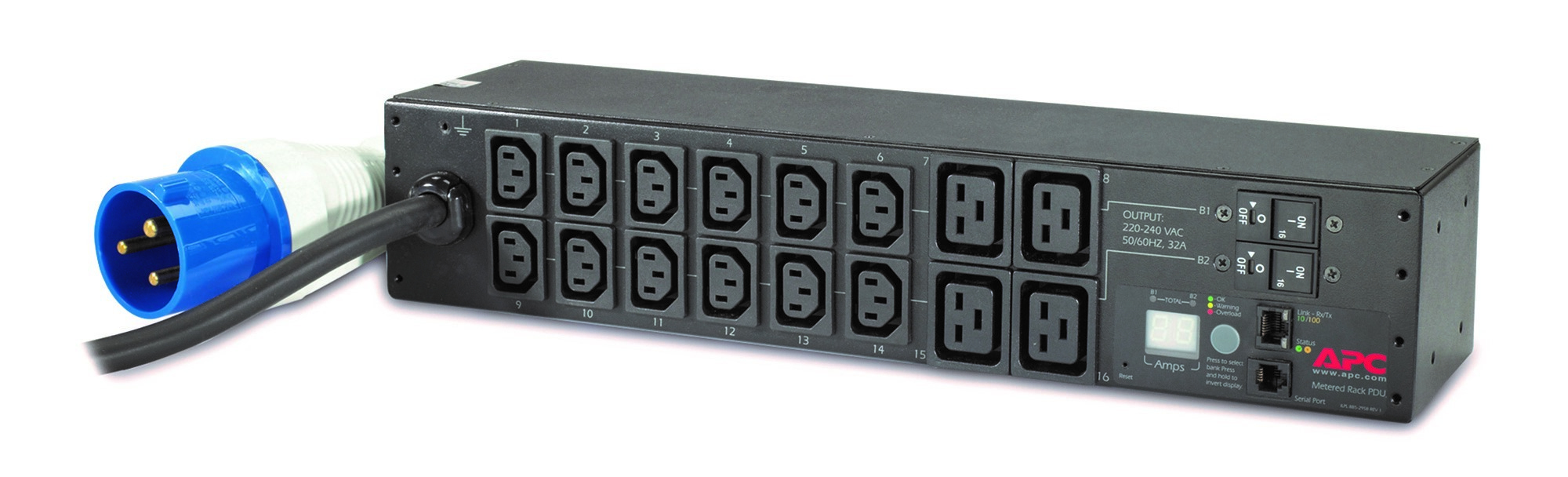

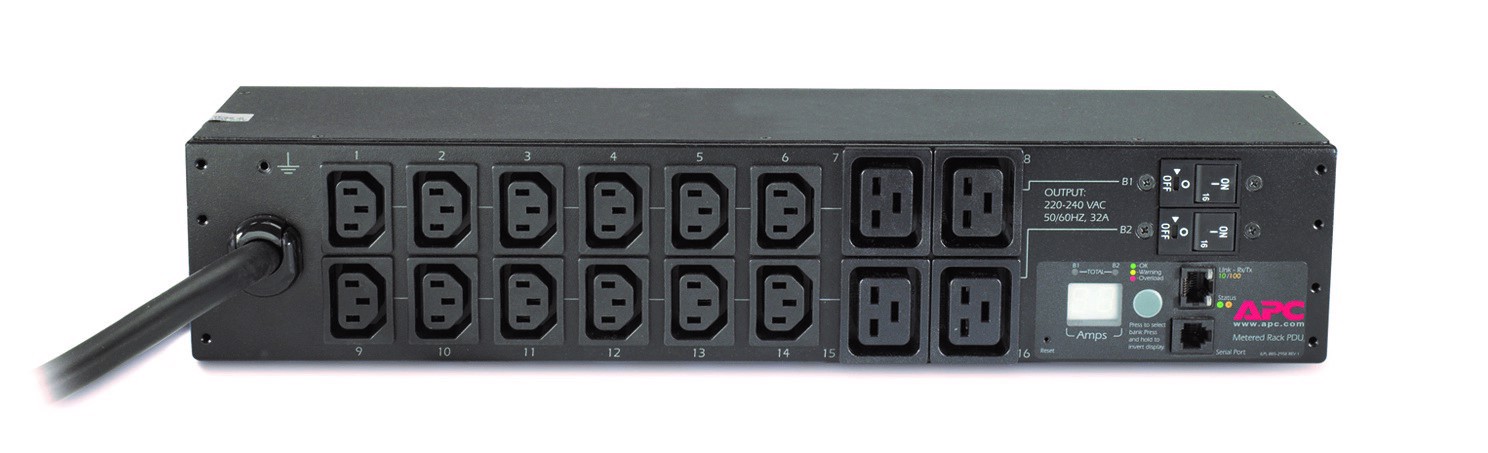

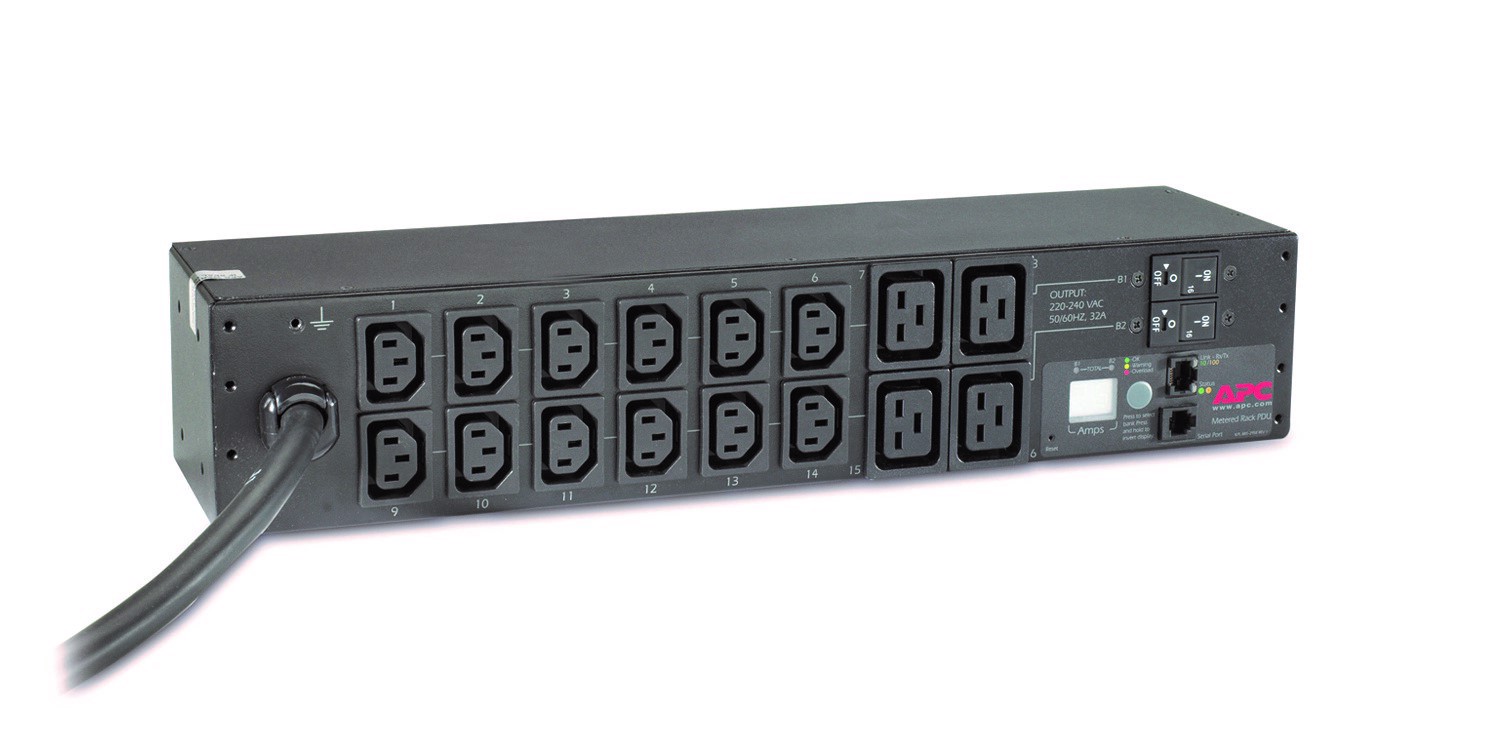

APC AP7822B strømforsyningsenhed (PDU) 16 AC stikkontakt(er) 2U Sort

SKU: 991867713
EAN: 0731304331520

APC AP7822B, Målte, 2U, Enfaset, Horisontal/vertikal, Sort, 16 AC stikkontakt(er)
Mere info
10.629,00 DKK Ex. moms: 8.503,20 DKK På lager

Produktbeskrivelse

APC Metered Rack PDUs offer resilient power distribution and actively measure, display, and log amperage to support real-time monitoring and historical reporting. This PDU remote monitoring and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment. The historical reporting enables users to optimize energy use and plan for capacity with confidence. This PDU can operate at up to 60 degrees Celsius and can be accessed, configured, and managed remotely via EcoStruxure IT, Web, SNMP and Command Line Interface. Power is supplied to the PDU at 200-230 volts via IEC 309 plug with a 3.6m (11 ft) cord while power comes out at 230 volts through (36) IEC 320 C13 and (6) IEC 320 C19 outlets. As a Green Premium product, this unit comes with a verified product environment profile, including carbon footprint, scope 3 emissions and end of life instructions.

Specifikationer

Type Enfaset
Produktfarve Sort
Pakkevægt 5,41 kg
Bredde 444 mm
Højde 88 mm
Vægt 3,36 kg
Dybde 112 mm
Relativ luftfugtighed ved drift (H-H) 5 - 95%
Opbevaringstemperatur (T-T) -25 - 65 °C
Pakkebredde 508 mm
Pakkedybde 368 mm
Pakkehøjde 140 mm
Certificering C-tick, CE, FCC 15 A, GOST, ICES-003, IRAM, MIC, VDE, VCCI
Driftstemperatur (T-T) -5 - 45 °C
Vekselstrømsindgangsfrekvens 50 - 60 Hz
Relativ luftfugtighed ved opbevaring (H-H) 5 - 95%
LED-indikatorer Ja
Strømstik IEC309
Strøm (maks.) 32 A
Montering Horisontal/vertikal
Kabellængde 3,66 m
Rackkapacitet 2U
Tænd-/slukkontakt Ja
Strømbeskyttelsesfunktioner Overbelastning
AC stikkontakt typer C13 forbinder, C19 forbinder
AC udgange, antal 16 AC stikkontakt(er)
Nominel indgangsspænding 208-230 V
Input forbindertype IEC 309 32A 2P+E
Output-forbindere 12 x C13 4 x C19
Maksimal ydeevne 7680 W
PDU-typer Målte
Load-kapacitet 7680 VA
Maksimal input strøm pr. fase 32 A
Overvågning Strøm, Strøm, Spænding
Maksimal strømtræk pr. fase 32 A
Compliance-certifikater RoHS
Samlet CO2-fodaftryk (kg of CO2e) 8952,07
