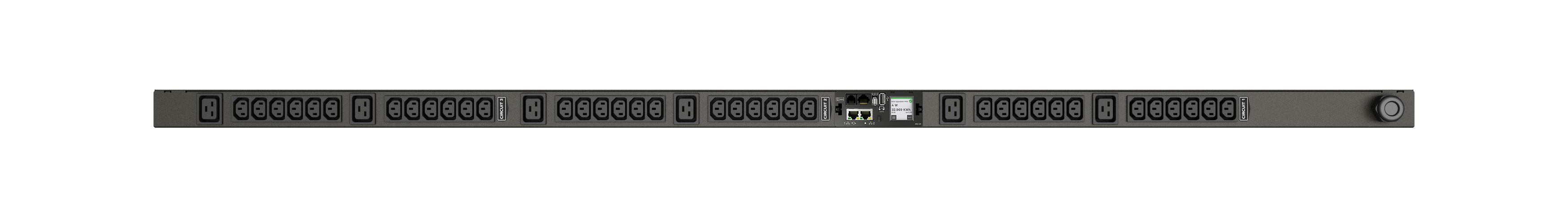

Vertiv Geist VP4G20AE strømforsyningsenhed (PDU) 42 AC stikkontakt(er) 0U Sort

SKU: 1002238620
EAN: 4061471343573

Vertiv Geist VP4G20AE, Overvåget, 0U, Trefaset, Lodret, Sort, LCD
Mere info
7.349,00 DKK Ex. moms: 5.879,20 DKK På lager

Produktbeskrivelse

The Vertiv Geist Monitored RPDU VP4G20AE is a 16A, 230V/400V, 0U, vertical rack power distribution unit with input power monitoring. It has (36) IEC C13 and (6) IEC C19 outlets and a 3P+N+E (IP44) providing 11kW of power capacity. This device offers quick access to critical power usage information down to the device level to evaluate energy usage trends and maximize uptime. It is integrated with the Vertiv Geist Next-Generation IMD which displays power data via its 128x128 high-visibility touchscreen LCD. It has an internal sensor that intelligently adjusts the orientation based on horizontal or vertical installation. This includes a redundant power-sharing port that connects two IMDs in the rack and provides backup power in case of power loss. Enhanced security with a secure boot is added to the device to help ensure data and operations are protected. The units are CE Marked, comply with IEC 60950-1 (CB Certificate Available), RoHS certified, and are individually tested for functionality and reliability.

Specifikationer

Type Trefaset
Produktfarve Sort
Pakkevægt 7,26 kg
Bredde 51 mm
Højde 1683 mm
Dybde 51 mm
Certificering CE Mark, UKCA Mark, Complies with IEC 62368-1, RCM Mark (EMC Only)
Vekselstrømsindgangsfrekvens 50 - 60 Hz
Ethernet LAN-porte (RJ-45) 2
Strømstik IEC 60309
Understøttede netværksprotokoller DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+, Modbus TCP
Strøm (maks.) 16 A
Montering Lodret
Skærm LCD
Kabellængde 3 m
Rackkapacitet 0U
Tænd-/slukkontakt Ingen
Knap til nulstilling Ja
AC stikkontakt typer C13 forbinder, C19 forbinder
AC udgange, antal 42 AC stikkontakt(er)
Nominel indgangsspænding 200-240/346-415 V
Antal USB-porte 1
Antal serielle porte 1
Maksimal ydeevne 11000 W
PDU-typer Overvåget
Load-kapacitet 230 VA
Overvågning Strøm, Strøm, Spænding
Compliance-certifikater RoHS
