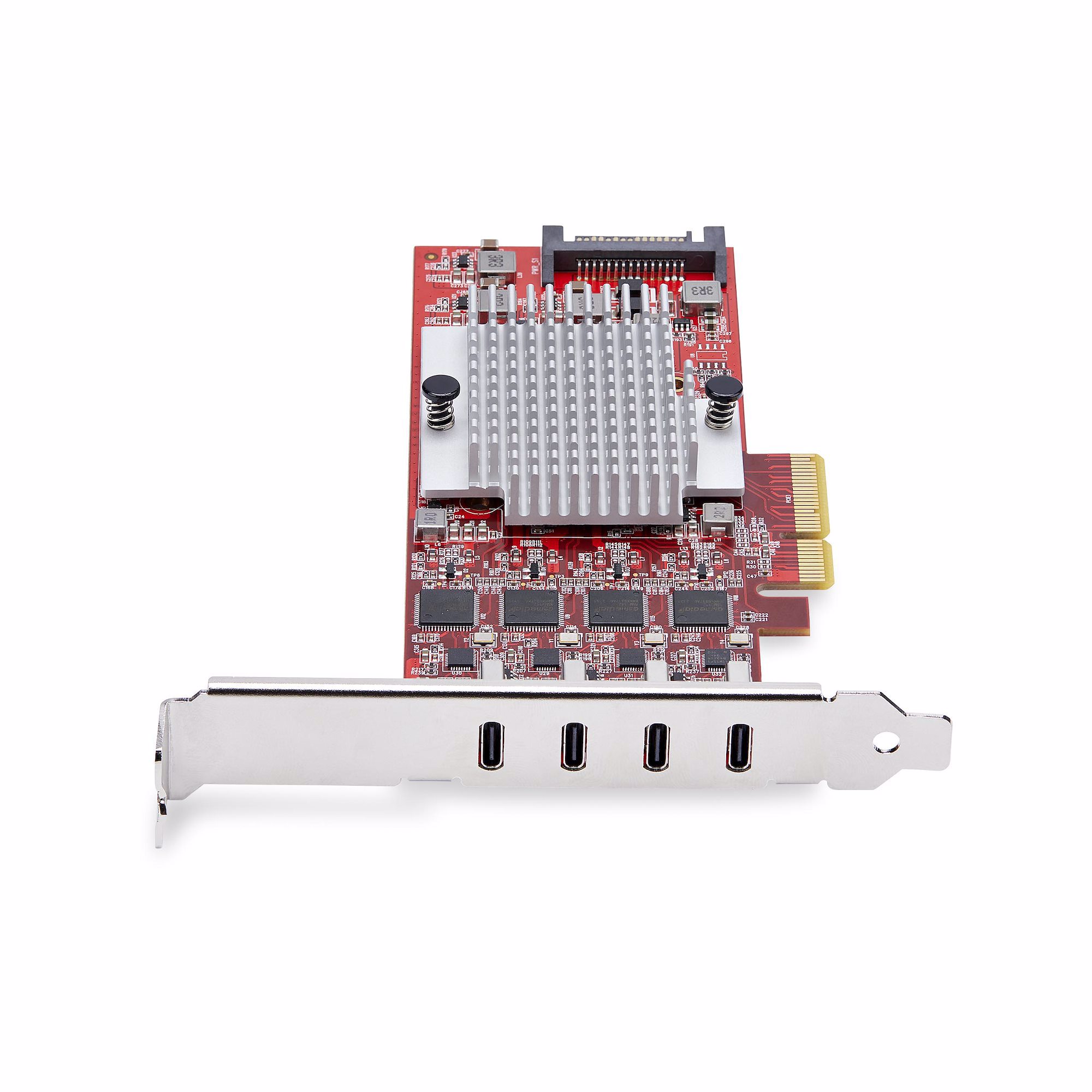

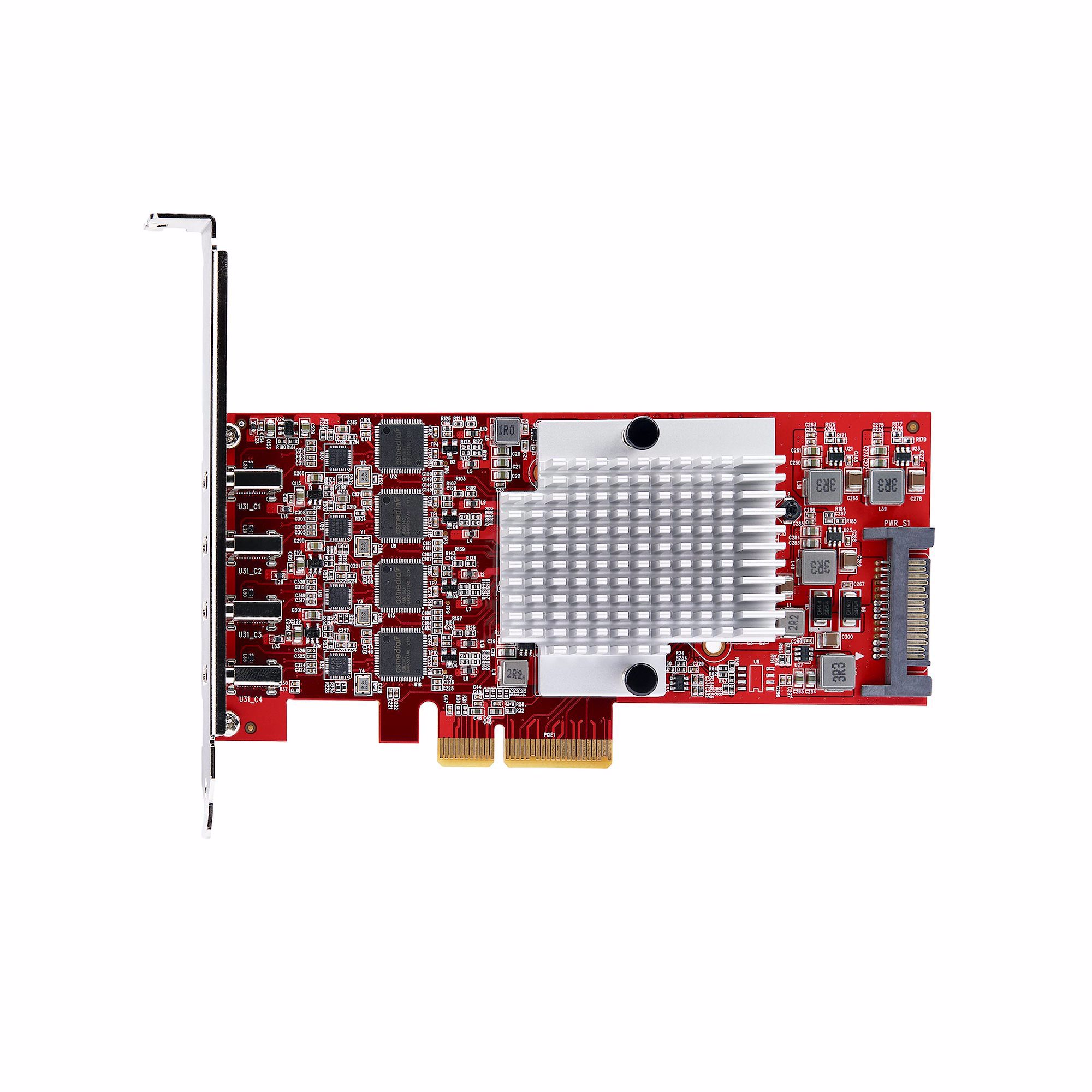

StarTech.com P10Q4C-USB-CARD interface-kort/adapter Intern USB Type-C

SKU: 1003436822
EAN: 0065030911436

StarTech.com P10Q4C-USB-CARD, PCIe, USB Type-C, PCI 3.0, Rød, ASMedia - ASM3142 x4, ASMedia - ASM1543 x4, ASMedia - ASM2812X, 10 Gbit/sek.
Mere info
3.529,00 DKK Ex. moms: 2.823,20 DKK På lager

Produktbeskrivelse

Add four 10Gbps USB Type-C ports to a server or desktop computer through PCI Express

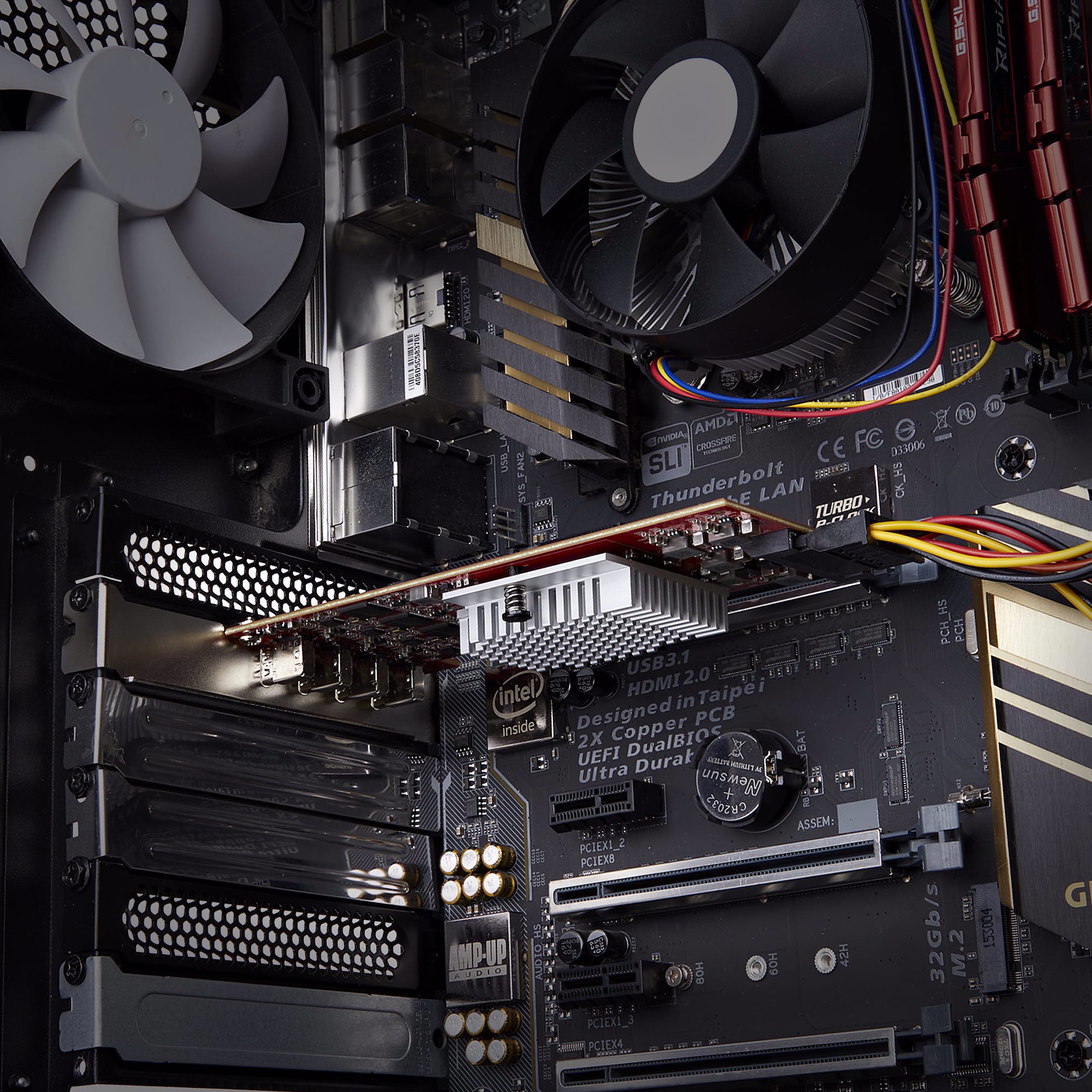

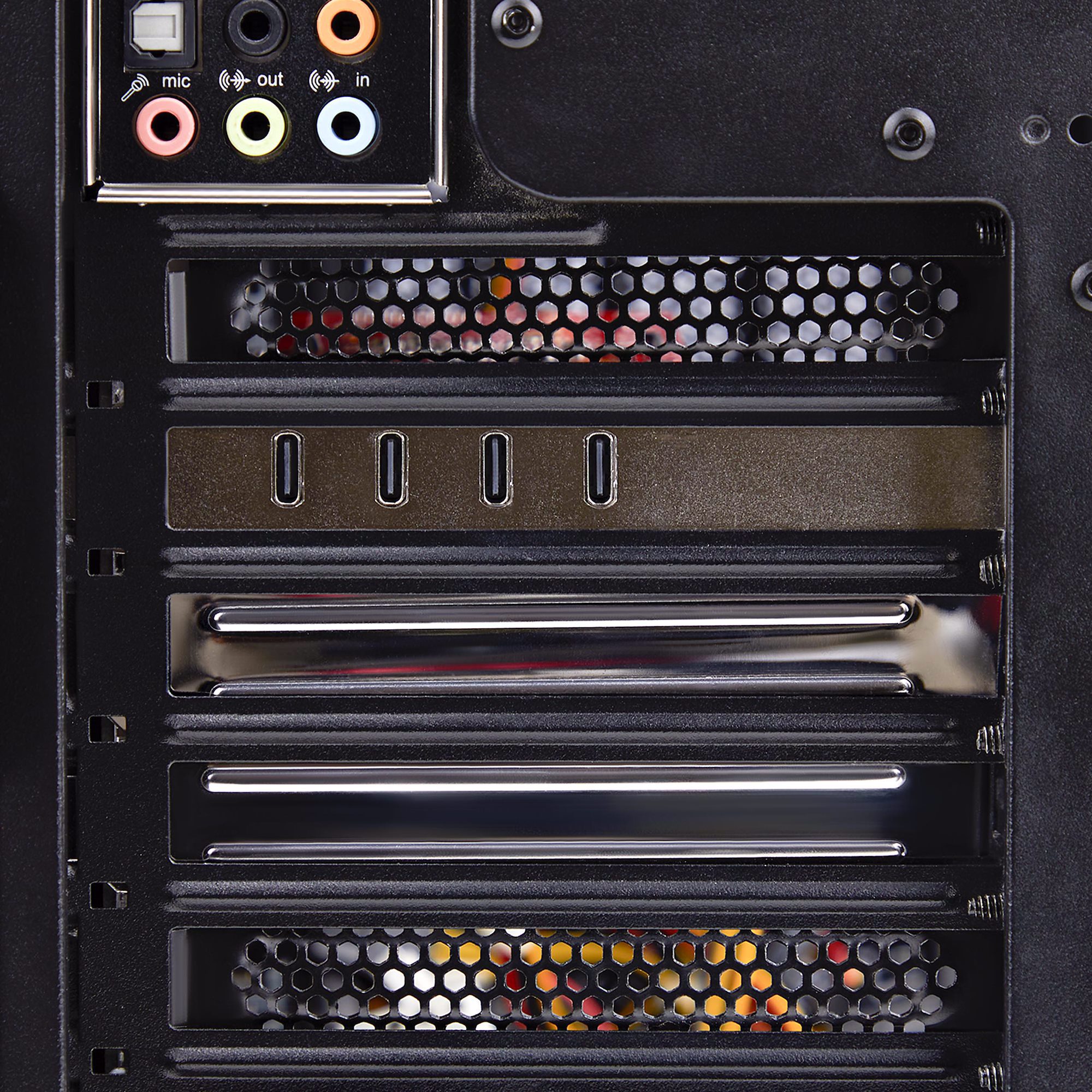

Expand the USB connectivity of a desktop computer or server by adding four external USB Type-C 10Gbps ports with this internal PCI Express 3.0 expansion card.

Dedicated USB Controllers

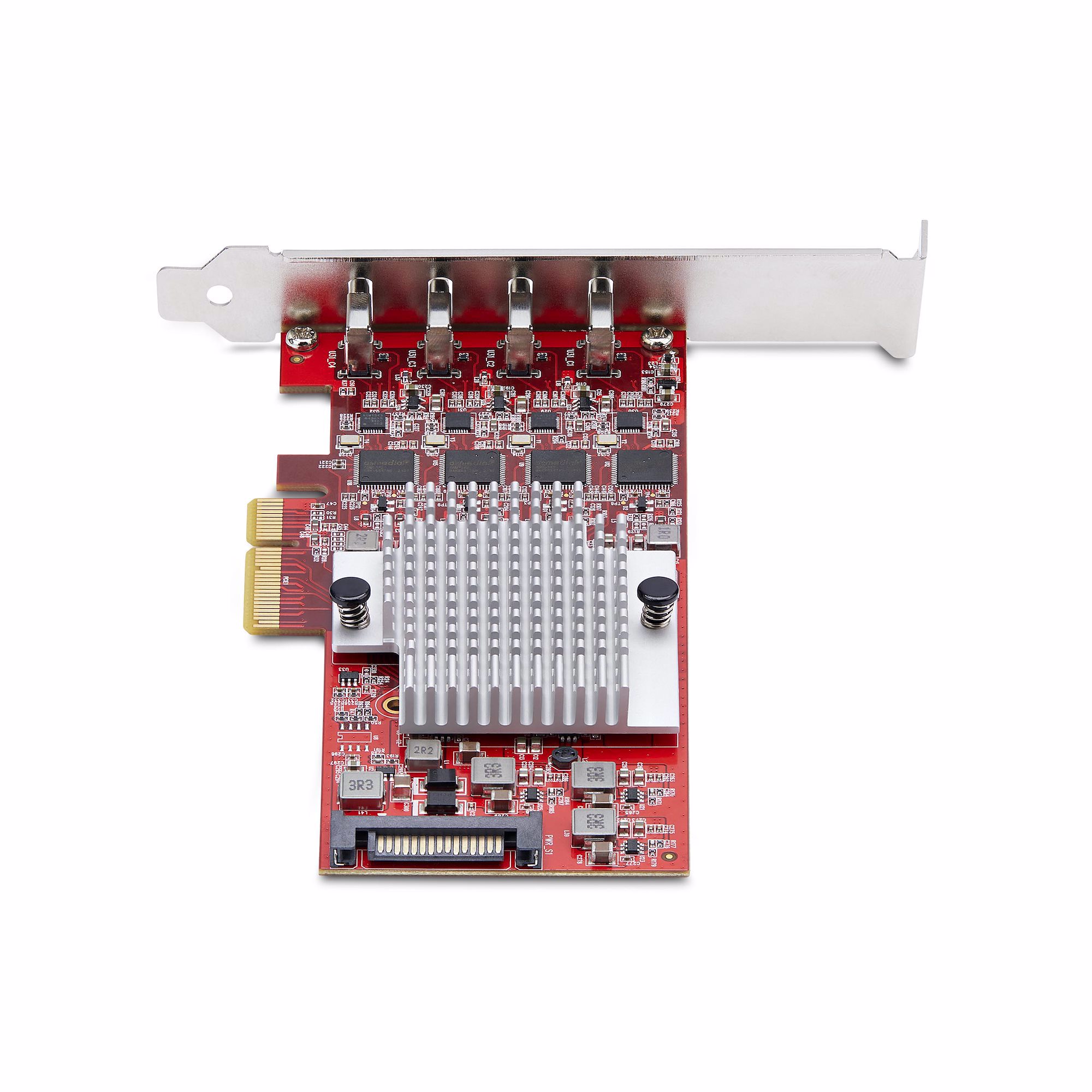

Traditional single-controller USB cards share bandwidth across all ports. With its four independent USB controllers, this USB-C expansion card enables each port to achieve up to 10Gbps, reducing bottlenecks and increasing data throughput.

USB 3.2 Gen 2 (10Gbps) Performance

The high bandwidth makes the card ideal for transferring large files, real-time editing of high-resolution photos and videos on external storage, off-loading media from mobile devices, using high-resolution video capture devices, tethered photography equipment, or high-speed USB network adapters like 10G Ethernet copper or fiber adapter.

Charge and Sync USB Devices

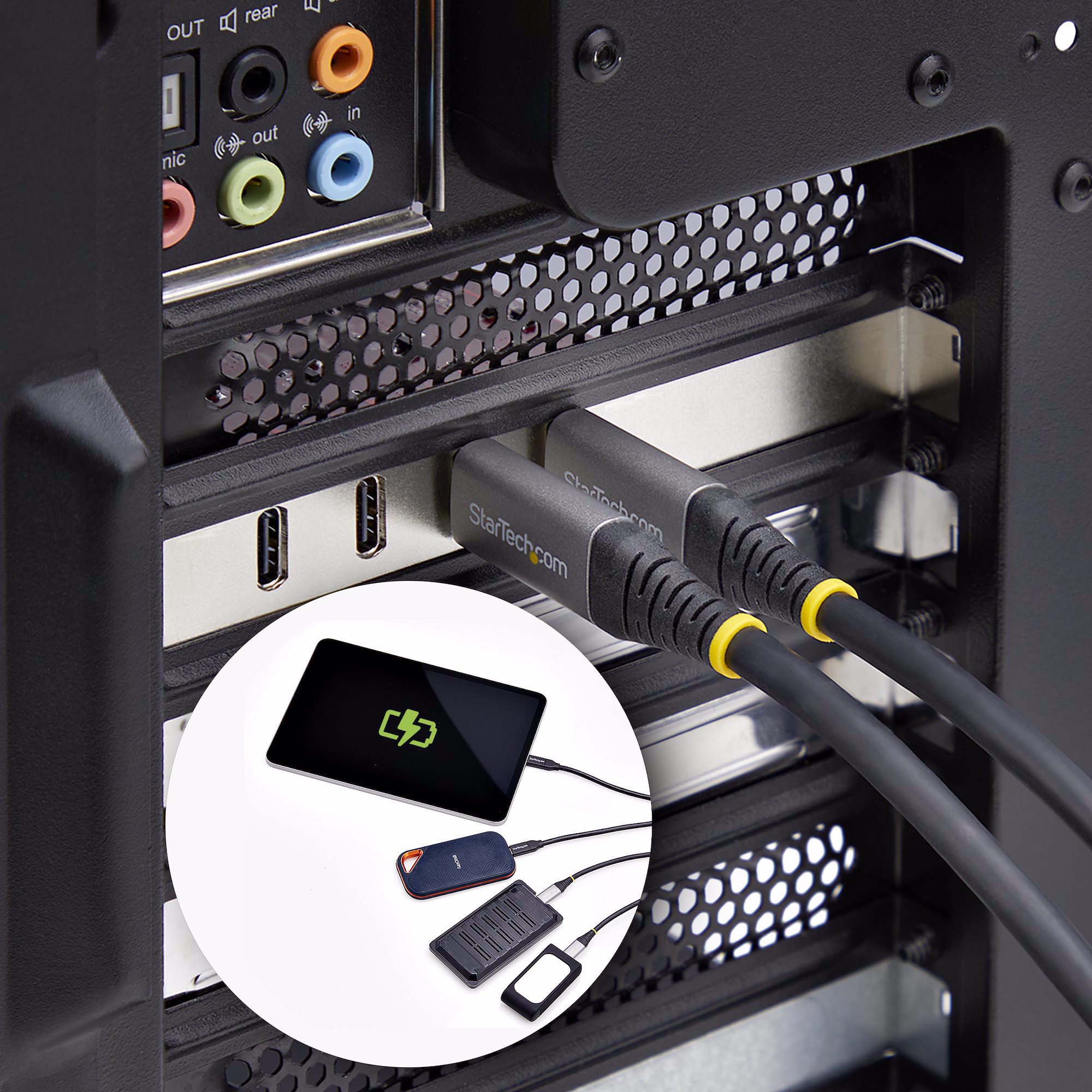

This USB PCI Express card can provide up to 5V 3A (15W) per USB-C port, enabling sync and charge of portable devices. If the motherboard can't supply enough power, a built-in SATA power connector can supply additional power to the card.

Compatibility

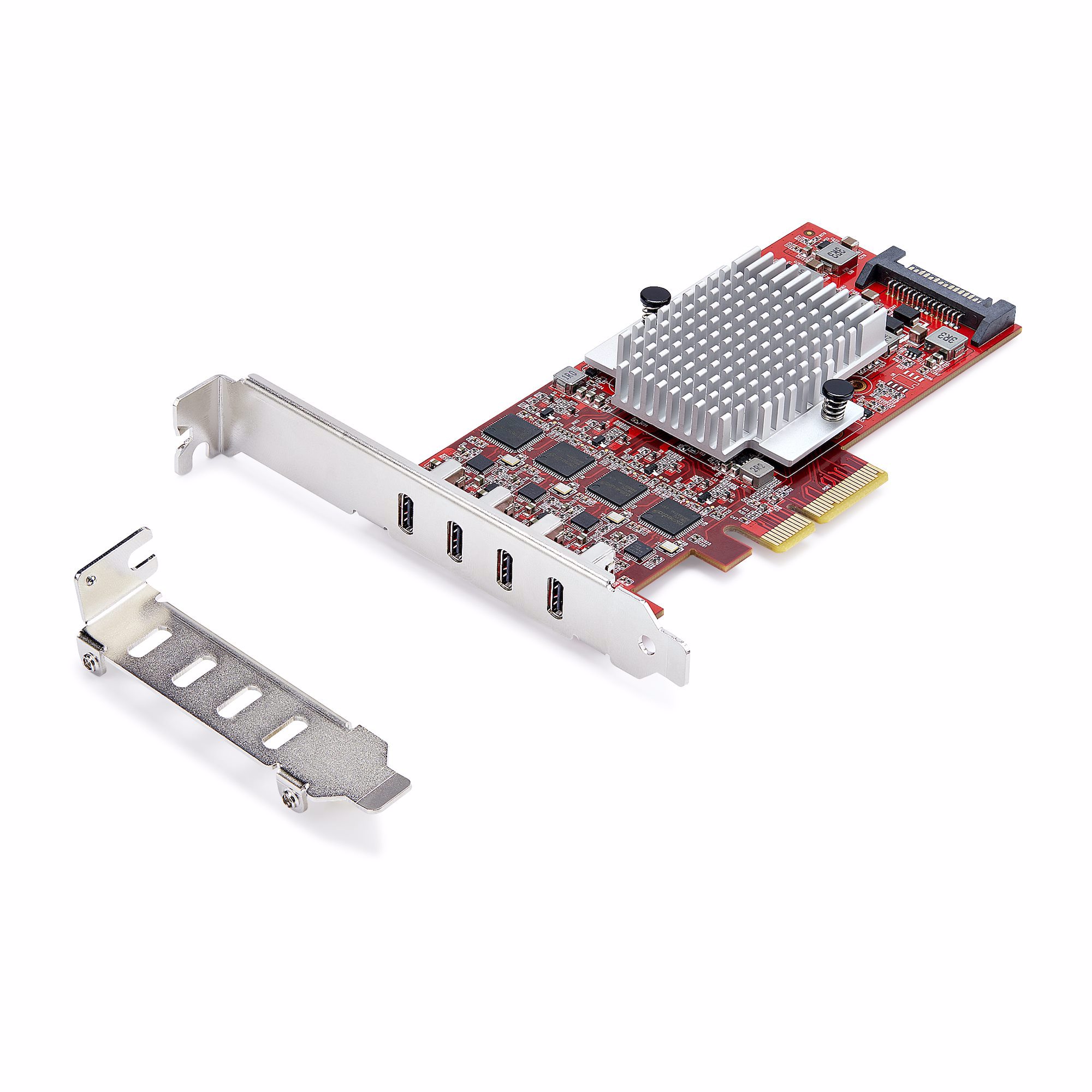

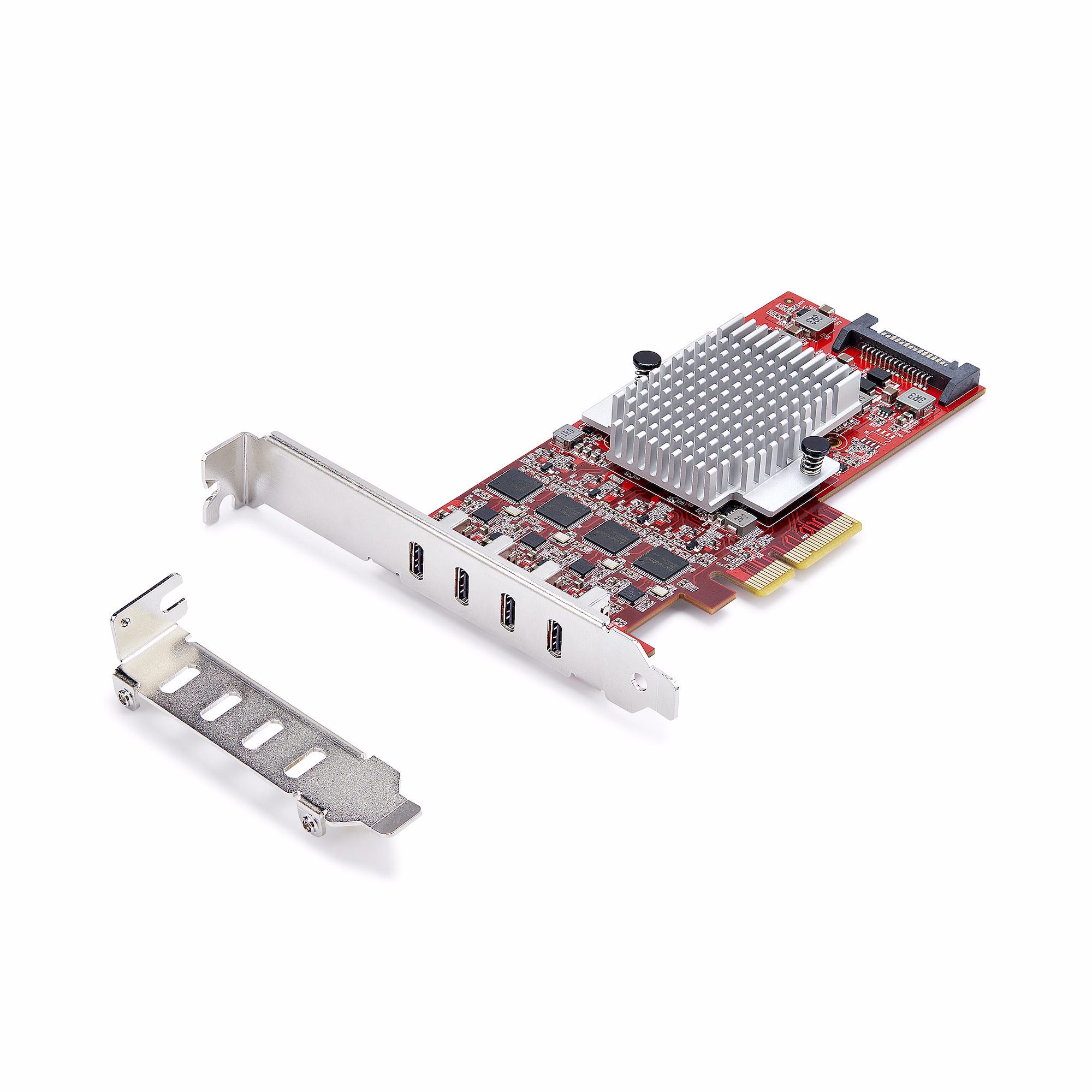

The PCI Express USB card is plug-and-play in most major operating systems, including Windows, macOS, and Linux. The card is compatible with PCI Express 3.0 and x4, x8, and x16 slots. The USB expansion card also ships with a pre-installed standard profile bracket and includes a low-profile bracket for maximum compatibility.

The StarTech.com Advantage

Specifikationer

Produktfarve Rød
Pakkevægt 160 g
Bredde 56,2 mm
Højde 119,9 mm
Vægt 120 g
Dybde 140 mm
Relativ luftfugtighed ved drift (H-H) 20 - 80%
Opbevaringstemperatur (T-T) -25 - 85 °C
Pakkebredde 142 mm
Pakkedybde 170 mm
Pakkehøjde 30 mm
Understøttede Windows-operativsystemer Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Understøttede Linux-operativsystemer Ja
Driftstemperatur (T-T) 0 - 85 °C
Intern Ja
Værtsgrænseflade PCIe
Hovedkassens bredde (udvendigt) 380 mm
Hovedkassens længde (udvendigt) 310 mm
Hovedkassen højde (udvendigt) 500 mm
Produkter pr. hovedkasse (udvendigt) 60 stk
Hurtig installationsvejledning Ja
Output-grænseflade USB Type-C
Chipsæt ASMedia - ASM3142 x4, ASMedia - ASM1543 x4, ASMedia - ASM2812X
Understøttede operativsystemer til servere Windows Server 2019, Windows Server 2022
Udvidelseskort standard PCI 3.0
Dataoverførselshastighed (maks.) 10 Gbit/sek.
Monteringsbeslag inkluderet Ja
Antal interne SATA-porte 1
Antal USB 3.2 Gen 2 (3.1 Gen 2) type-C-porte 4
