AG Neovo TX-2202A computerskærm 54,6 cm (21.5") 1920 x 1080 pixel Fuld HD LCD Berøringsskærm Hvid

SKU: 1002205872
EAN: 4710739597974

AG Neovo TX-2202A, 54,6 cm (21.5"), 1920 x 1080 pixel, Fuld HD, LCD, 5 ms, Hvid
Mere info
7.769,00 DKK Ex. moms: 6.215,20 DKK På lager

Produktbeskrivelse

The TX-2202A White touch screen monitor utilises PCAP multi-touch technology, which is minimally affected by contamination. It offers 10-point multi-touch capability for an accurate and responsive touch experience, including responsiveness to latex gloves. Featuring a medical-grade power supply and versatile connectivity options (such as DisplayPort, HDMI, and VGA inputs), the TX-2202A White is ideal for uses like medical carts or information kiosks in healthcare settings. The screen is further enhanced by its IP65 and IK08 ratings, metal casing, and an edge-to-edge 7H tempered glass design, ensuring durability for continuous use in clinical environments.

10-Point PCAP Touch Screen
The TX-2202A White touch screen incorporates PCAP touch technology, offering a 10-point multi-touch capability that remains unaffected by contamination. This results in a fast, accurate, and responsive touch experience, comparable to that of smartphones and tablets, and is responsive even when wearing latex gloves.

Enhanced Safety with Medical-grade Power Supply
Compliance with IEC/EN 60601-1 standards for power supplies ensures the safety of staff and patients in clinical settings by preventing electric shocks and reducing energy-related and heat-related hazards.

Front IP65 Dust and Water Protection
The TX-2202A White’s multi-touch monitor features a front-sided IP65 rating, protecting against dust and liquid spills, making it ideal for high-traffic public areas.

Impact-Resistant Against Vandalism
With an IK08 rating and a metal casing, the touch display is protected against impacts and acts of vandalism, ensuring a long service life in high-traffic areas.

Ergonomic Monitors with Flexible Mounting
The TX-2202A White 22” 10-point touch screen monitor is VESA compatible, offering various mounting options, including desk, wall, or monitor arm mounting. The included ergonomic stand allows for a wide tilt range of -2 to 180 degrees, enhancing ergonomics during use.

Seamless integration
Touch support is compatible with various operating systems, including Windows, Linux, macOS, and certain Android versions. This allows for greater flexibility in choosing your operating system.

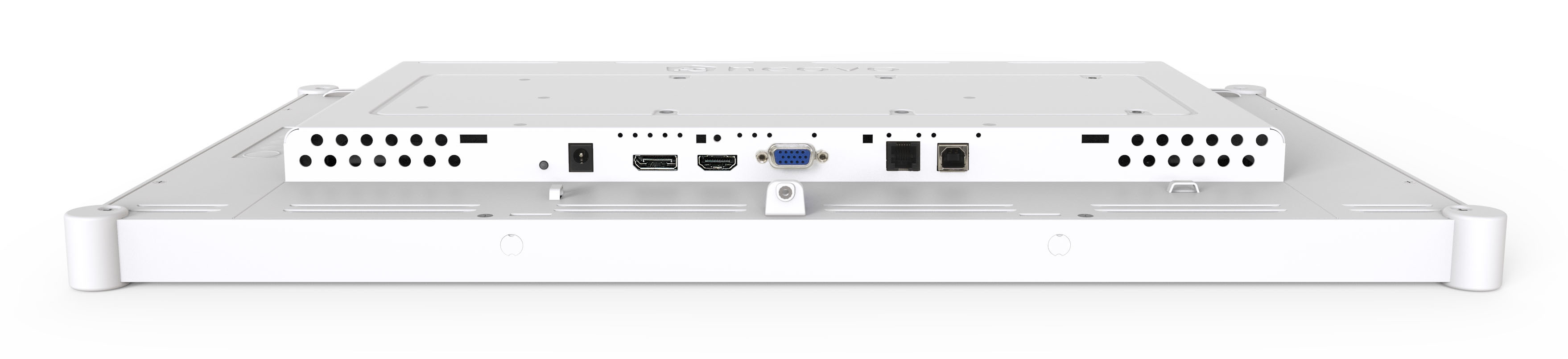

Versatile Connectivity
The TX-2202A White offers a range of connectivity options, making it easy for users to connect their devices, such as high-performance PCs or media players, using DisplayPort, HDMI, or VGA inputs.

Specifikationer

Produktfarve Hvid
Pakkevægt 9,8 kg
Relativ luftfugtighed ved drift (H-H) 20 - 80%
Opbevaringstemperatur (T-T) -20 - 60 °C
Pakkebredde 610 mm
Pakkedybde 320 mm
Pakkehøjde 460 mm
Understøttede Windows-operativsystemer Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Strømforbrug (standby) 0,7 W
Driftstemperatur (T-T) 0 - 40 °C
Strømforbrug (typisk) 15 W
Relativ luftfugtighed ved opbevaring (H-H) 10 - 90%
Udgangseffekt (RMS) 4 W
Hurtig start guide Ja
Understøttede Mac-operativsystemer Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave
Andre understøttede operativsystemer Android
Hældningsvinkelområde -5 - 90°
Skærm diagonal 54,6 cm (21.5")
Skærmopløsning 1920 x 1080 pixel
Naturligt aspektforhold 16:9
Skærmteknologi LCD
Berøringsskærm Ja
HD-type Fuld HD
Paneltype VA
Kontrastforhold (typisk) 1000:1
Vis antal farver 16.7 millioner farver
Skærmens lysstyrke (typisk) 250 cd/m²
Responstid 5 ms
Synsvinkel, horisontal 178°
Synsvinkel, vertikal 178°
Pixel pitch 0,248 x 0,248 mm
Horisontal scanningsområde 30 - 84 kHz
Vertikalt scanningsområde 50 - 76 Hz
Indbyggede højttaler(e) Ja
Indbygget kamera Ingen
Antal VGA-porte (D-sub) 1
Lydindgang Ja
VESA montering Ja
Panel montering grænseflade 100 x 100 mm
Energieffektivitetsklasse (SDR) E
Energiforbrug (SDR) pr. 1000 timer 15 kWh
Kabler inkluderet Vekselstrøm, Lyd, HDMI, USB, VGA
Bredde (med stativ) 528,6 mm
Dybde (med stativ) 214,2 mm
Højde (med stativ) 346,7 mm
Vægt (med stativ) 6,7 kg
Bredde (uden stativ) 528,6 mm
Dybde (uden stativ) 48,5 mm
Højde (uden stativ) 324,3 mm
Vægt (uden stativ) 4,8 kg
Husmateriale Metal
Strømforsyningstype Ekstern
Skærm form Flad
NVIDIA G-SYNC Ingen
AMD FreeSync Ingen
Markedspositionering Medicinsk
Indbygget USB-hub Ingen
HDMI Ja
Udgang til hovedtelefoner Ingen
Strømforbrug (slukket) 0,3 W
Antal HDMI-porte 1
Antal DisplayPorts 1
Beskyttelsesfunktioner Støvresistent, Vandtæt
Antal højttalere 2
Overholdelse af bæredygtighed Ja
Kode for international beskyttelse (IP) IP65
HDMI-version 1.4
Overførselshastighed 90%
USB upstream port type USB Type-B
Tågehastighed 25%
Overfladehårdhed 7H
Antal USB Type-B opstrømsporte 1
Energieffektivitetsklasse (HDR) Ikke tilgængelig
Berøringsskærm teknologi Kapacitiv
Berøringsteknologi Multi-touch
Antal simultane touchpunkter 10
Glas tykkelse 2,05 mm
Antirefleksskærm Ja
Strømadapter inkluderet Ja
Kode for europæisk produktregister for energimærkning (EPREL) 1372216
Compliance-certifikater CE, Lavspændingsdirektivet (LVD), REACH, RoHS, UKCA, WEEE
