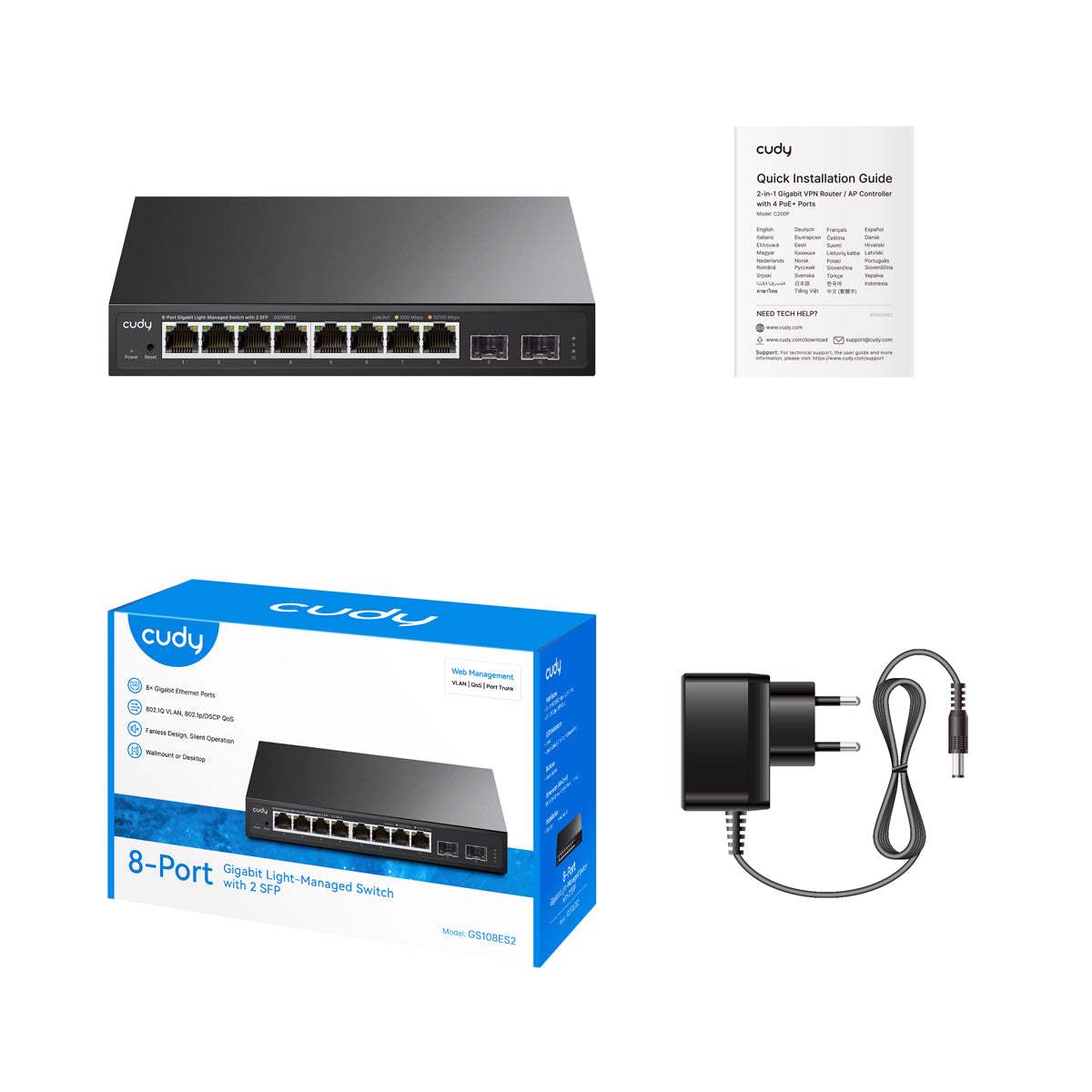

Cudy 8-Port Gigabit Easy-Managed Switch with 2 SFP, GS108ES2 1.0 Administreret L2 Gigabit Ethernet (10/100/1000) Sort

SKU: 1003838879
EAN: 6971690794927

Cudy 8-Port Gigabit Easy-Managed Switch with 2 SFP, GS108ES2 1.0, Administreret, L2, Gigabit Ethernet (10/100/1000), Kan monteres på væggen
Mere info
339,00 DKK Ex. moms: 271,20 DKK På lager

Produktbeskrivelse

Super-Fast Gigabit
Eight 10/100/1000 Mbps Ethernet ports enable instant transferring of data. Two SFP allows long-distance connections.

Quiet Fanless Cooling
Metal casing enables effcient cooling, delivering stable performance.

Wall Mounting
Provides two mounting holes on the bottom of the casing, catering to wall-mounting placement demand.

Extra Electrical Protection
Improves connection reliability with built-in lightning surge and ESD protection.

Cudy Cloud for Remote Management
Centralized Management

Monitor all your Cudy easy-managed cloud switches from a single, unified dashboard within the Cudy App, accessible from anywhere.

Monitor and Fix Issues Remotely
Tweak settings on your phone via Cudy Cloud. No need to go to the site anymore for a small task.

Secure and High-Performance Switching
802.1Q/MTU/Port-Based VLAN

802.1Q VLANs allows creating secure and high-performance network segments across different managed switches. The other MTU/Port-Based VLAN enable simpler local VLAN configuration.

DSCP/802.1p/Port-Based QoS
DSCP/802.1p QoS identifies DSCP packets in the tranmission and prioritize those latency-sensitive data.

Link Aggregation
Allows creating multiple LAG groups and multiply the transmission speed of the backbone in your networks.

DHCP Snooping
Assign an authorized DHCP server to prevent downtime when other rogue DHCP server connects into the network.

Traffic Optimization
Identifies the multicast groups with IGMP Snooping and sends data to the exact ports instead of broadcasting them.

Loop Detection/Prevention
Automatically detects network loops, indicates affected ports with blinking LEDs, and blocks the loop.

Specifikationer

Produktfarve Sort
Pakkevægt 714,9 g
Bredde 190 mm
Højde 28 mm
Vægt 461,5 g
Dybde 100 mm
Relativ luftfugtighed ved drift (H-H) 10 - 90%
Opbevaringstemperatur (T-T) -40 - 70 °C
Pakkebredde 209 mm
Pakkedybde 132 mm
Pakkehøjde 81,5 mm
Driftstemperatur (T-T) 0 - 40 °C
Switch-type Administreret
Servicekvalitet support (QoS) Ja
Basis omskiftning RJ-45 Ethernet porte, antal 8
Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000)
Netværksstandarder IEEE 802.3x, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3az, IEEE 802.1p, IEEE 802.1Q
10G understøttelse Ingen
Flowkontrol support Ja
MAC adresselabel 4096 entries
Switch kapacitet 21 Gbit/sek.
Stabelbar Ingen
Strømkilde DC
Vekselstrømsindgangsspænding 100 - 240 V
Vekselstrømsindgangsfrekvens 50/60 Hz
Strøm over Ethernet (PoE) Ingen
Relativ luftfugtighed ved opbevaring (H-H) 5 - 90%
Hovedkassens bredde (udvendigt) 438 mm
Hovedkassens længde (udvendigt) 428 mm
Hovedkassen højde (udvendigt) 151 mm
Hovedkassens bruttovægt (udvendigt) 7,9 kg
Produkter pr. hovedkasse (udvendigt) 10 stk
LED-indikatorer Strøm, Link, Aktivitet
Strømstik DC-in-stik
Kobber ethernet kabelteknologi 10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-X
Kan monteres på væggen Ja
Strømforsyning inkluderet Ja
Indgangsstrøm 1 A
Strømforbrug (maks.) 4,5 W
Jumbo Frames support Ja
Jumbo rammer 15000
Pakke bufferlager 0,18 MB
DC indgangsspænding 12 V
Brugervejledning Ja
Husmateriale Metal
Gigabit Ethernet (kobber) porte, antal 8
Hastighed for videresendelse 14,88 Mpps
Flashhukommelse 16 MB
Understøttede kabeltyper Cat3, Cat5, Cat5e, Cat6
Ydre emballage nettovægt 7,2 kg
VLAN understøttelse Ja
Webbaseret administration Ja
Knap til nulstilling Ja
Firmware kan opgraderes Ja
Beskyttelse ved overspænding Ja
Switch lag L2
Antal SFP modulslots 2
Port-spejlning Ja
Broadcast stormkontrol Ja
Begrænsning af hastighed Ja
DHCP funktioner DHCP snooping
IGMP snooping Ja
Vituelle LAN funktioner MTU VLAN, Port-based VLAN, Voice VLAN
Antal VLAN'er 4096
Loop beskyttelse Ja
Antal trunks 2
Antal installerede SFP+ moduler 0
Overspændingsbeskyttelse 8 kV
Antal installerede SFP moduler 0
Strømbesparende tilstand (EEE) Ja
