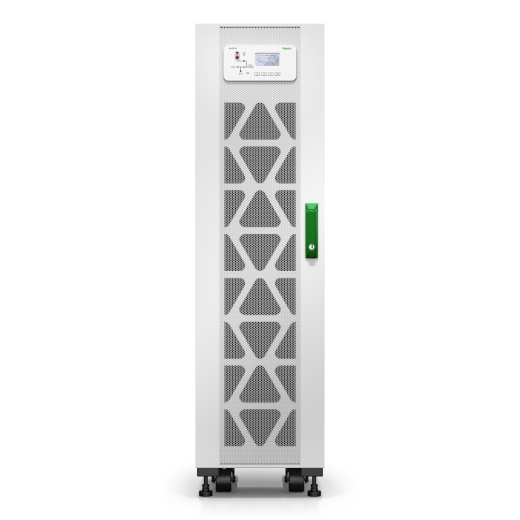

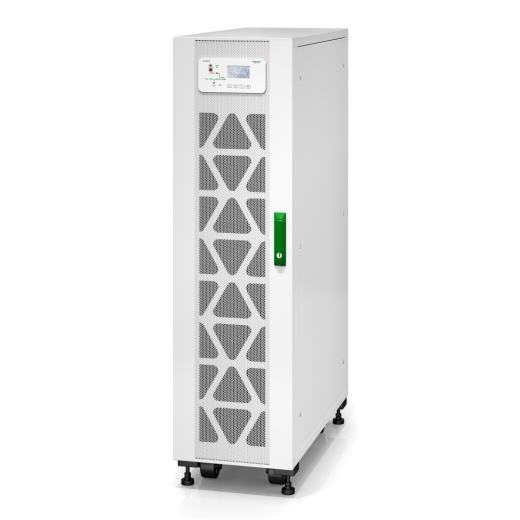

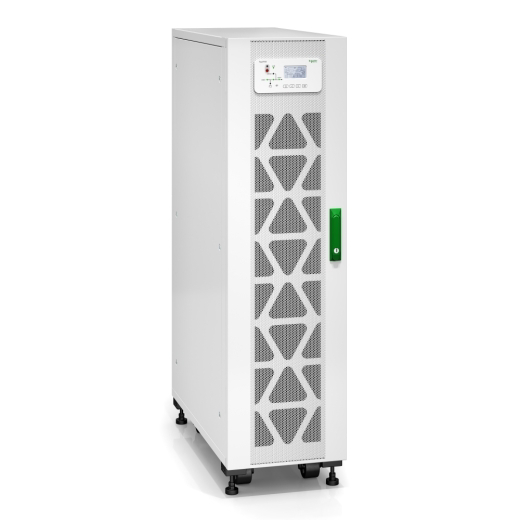

APC E3SUPS10K3IB1 UPS-enhed Dobbeltkonvertering (online) 10 kVA 10000 W

SKU: 999080461
EAN: 0731304428138

APC E3SUPS10K3IB1, Dobbeltkonvertering (online), 10 kVA, 10000 W, 304 V, 477 V, 45/65 Hz
Mere info
57.599,00 DKK Ex. moms: 46.079,20 DKK På lager

Produktbeskrivelse

Easy to install fast

Quickly roll the compact and lightweight UPS into position.

ECO Mode

Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection

Easy Loop Test

Verifies UPS performance before you connect your load, without the need for a load bank.

Straightforward installation

Including the input, output, and bypass breakers, as well as the Emergency Power Off (EPO) switch, simplifies installation planning and speeds up deployment.

Front-access servicing

Simplifies installation and UPS maintenance while minimizing space requirements.

Intuitive user interface

The intuitive graphical user interface allows for easy system configuration.

Replaceable dust filters

protect the UPS in harsh environments.

Optional SNMP Card

When you purchase the SNMP card, you can monitor and manage UPS status remotely through the UPS Web interface or through EcoStruxure IT's cloud-based and on-premise software suites. Click here for more information about EcoStruxure IT.

Wide Input Voltage Window

Saves your battery power for when you really need it - during power cuts!

Parallel capability

Multiple units can be placed in parallel to meet power capacity and redundancy requirements

Specifikationer

UPS topologi Dobbeltkonvertering (online)
Output strømkapacitet (VA) 10 kVA
Udgangseffekt 10000 W
Indgående driftsspænding (min.) 304 V
Indgående driftsspænding (maks.) 477 V
Indgangsfrekvens 45/65 Hz
Udgangs driftsspænding (min.) 220 V
Udgangs driftsspænding (maks.) 240 V
Uddgående frekvens 50/60 Hz
Indgående strømfaktor 0,99
Crestfaktor 3:1
ECO-tilstand Ja
Udgangsspænding total harmonisk forvrængning (THD) 5,5%
THD, indgående strøm 4%
Støjniveau 60 dB
Strømbeskyttelsesfunktioner Overbelastning
Batteriteknologi Blybatterier (VRLA)
Batterispænding 240 V
Formfaktor Tower
Produktfarve Hvid
Kode for international beskyttelse (IP) IP20
Driftstemperatur (T-T) 0 - 40 °C
Opbevaringstemperatur (T-T) -15 - 40 °C
Relativ luftfugtighed ved drift (H-H) 0 - 95%
Relativ luftfugtighed ved opbevaring (H-H) 0 - 95%
Driftshøjde 0 - 1000,05 m
Ikke-drift højde 0 - 15240 m
Compliance-certifikater RoHS
Hurtig installationsvejledning Ja
Bredde 380 mm
Dybde 907 mm
Højde 14000 mm
Vægt 157 kg
Pakkebredde 563 mm
Pakkedybde 1014 mm
Pakkehøjde 1640 mm
Harmoniseret systemkode (HS) 85078000
