Neomounts DS70S-950WH1 skærmbeslag og -stativer 124,5 cm (49") Skrivebord Hvid

SKU: 1001625720
EAN: 8717371441418

Neomounts DS70S-950WH1, Klemme/strømpe, 18 kg, 43,2 cm (17"), 124,5 cm (49"), 100 x 100 mm, Hvid
Mere info
1.719,00 DKK Ex. moms: 1.375,20 DKK På lager

Produktbeskrivelse

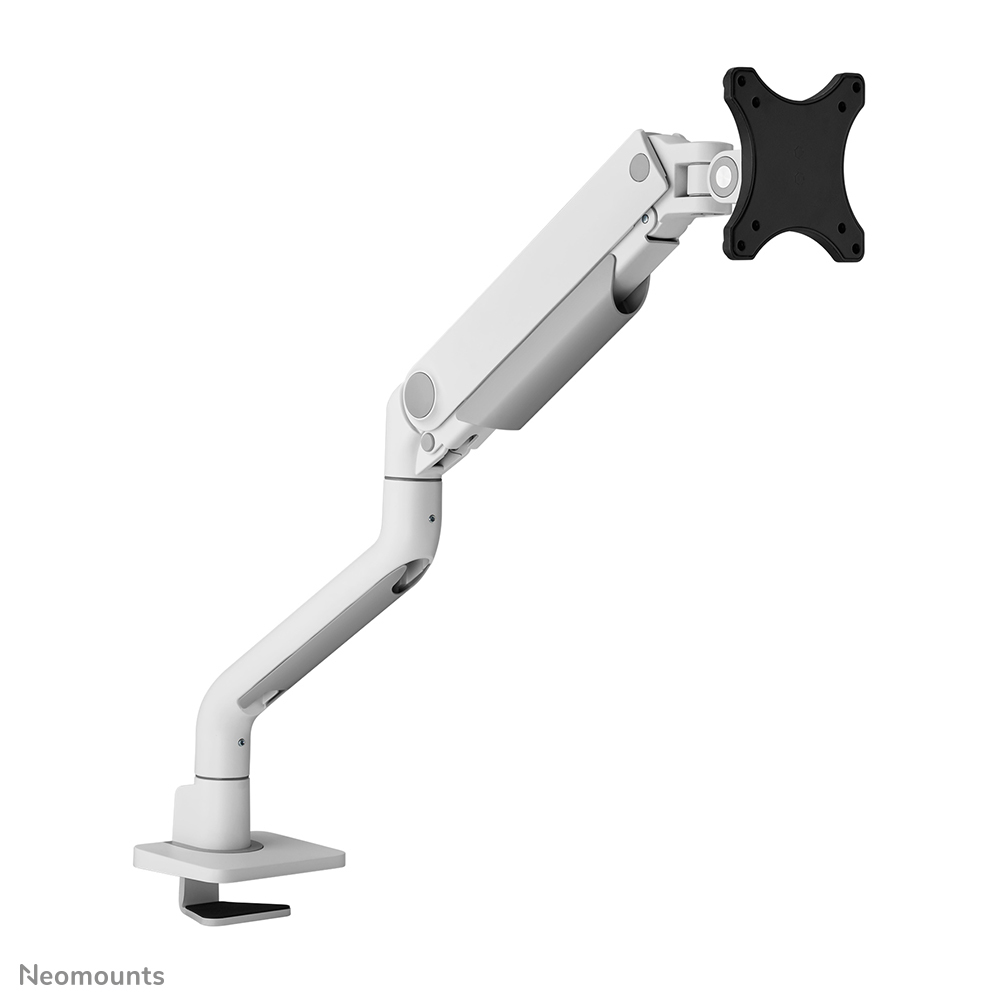

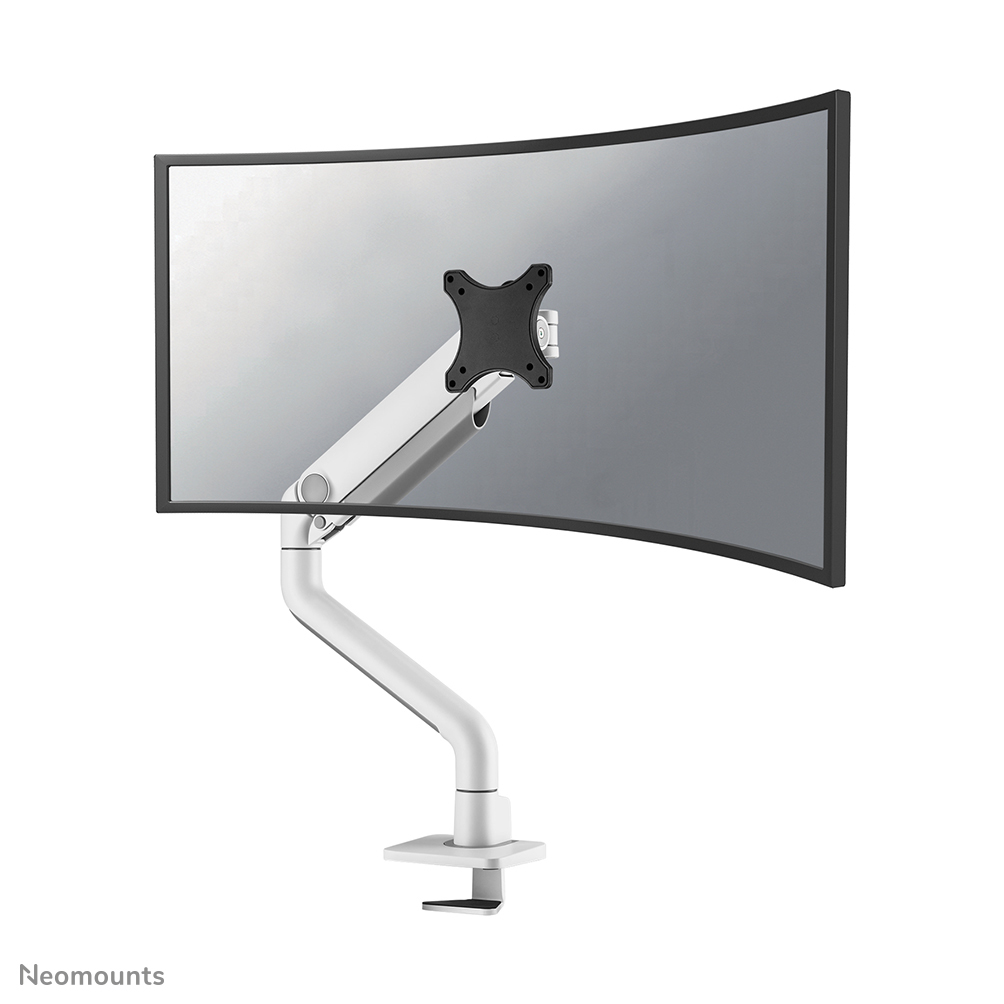

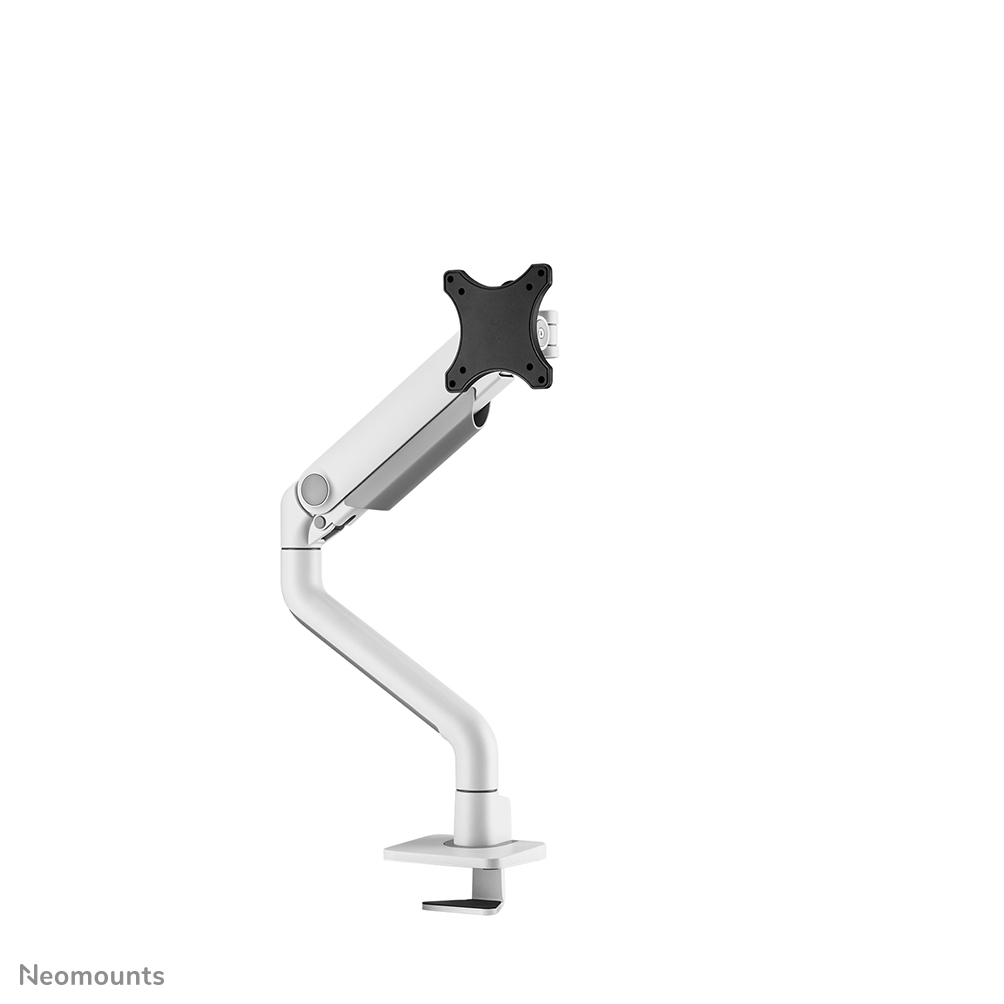

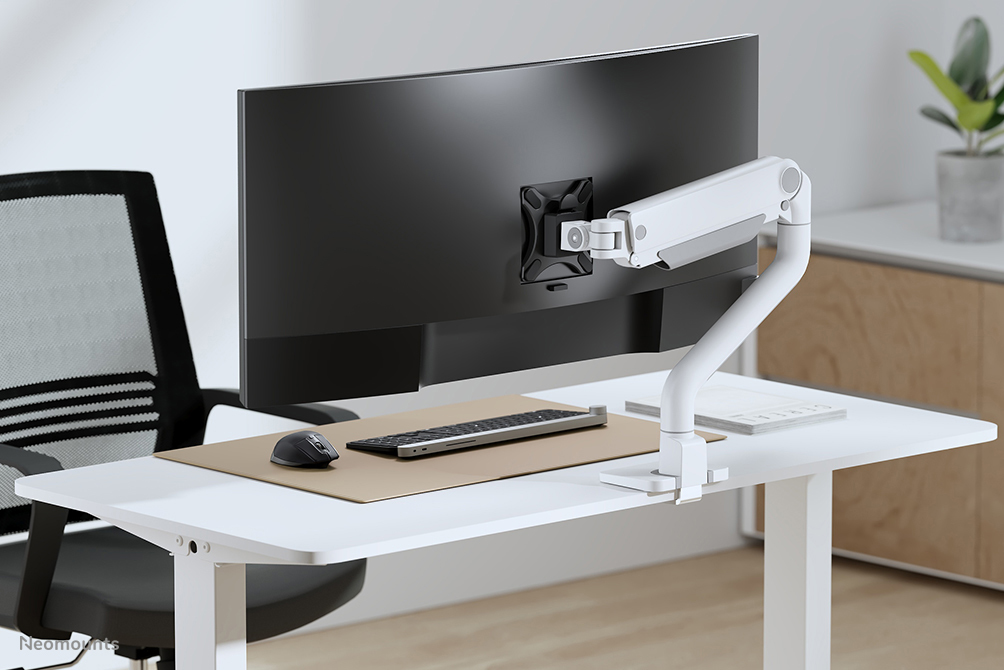

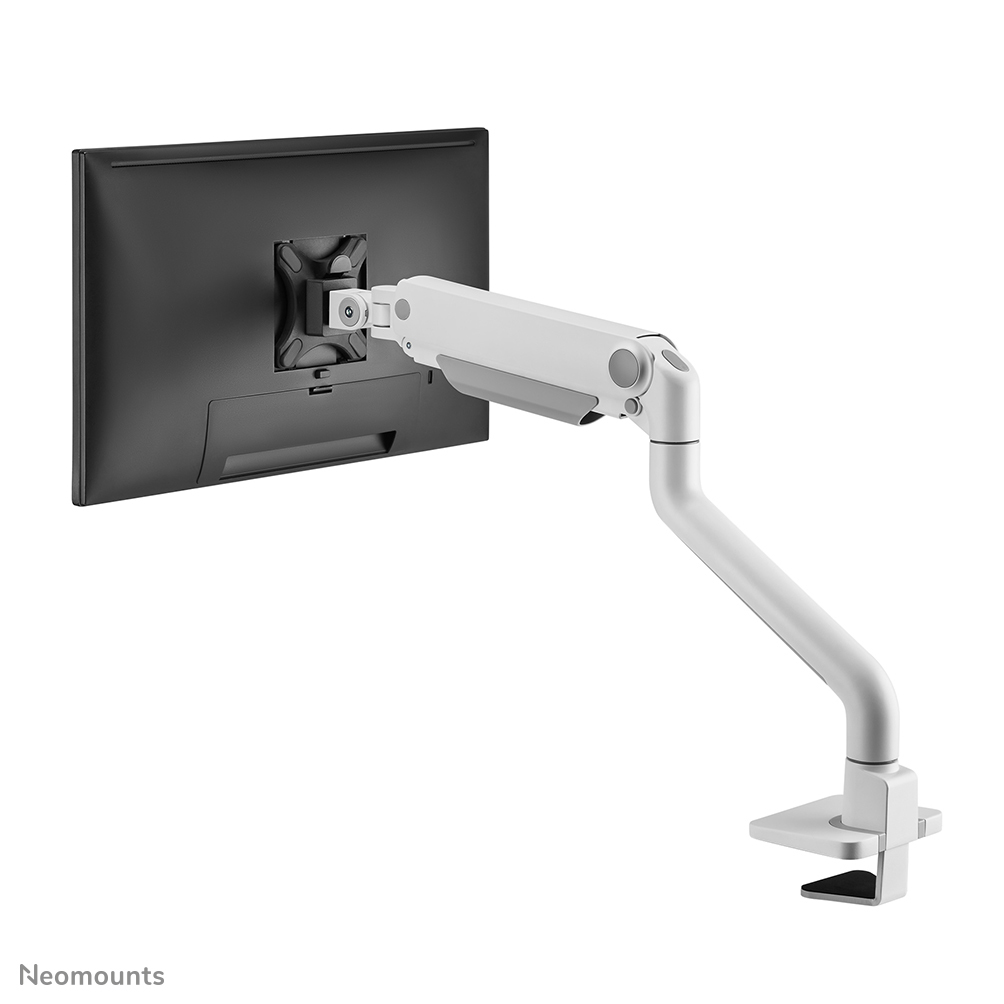

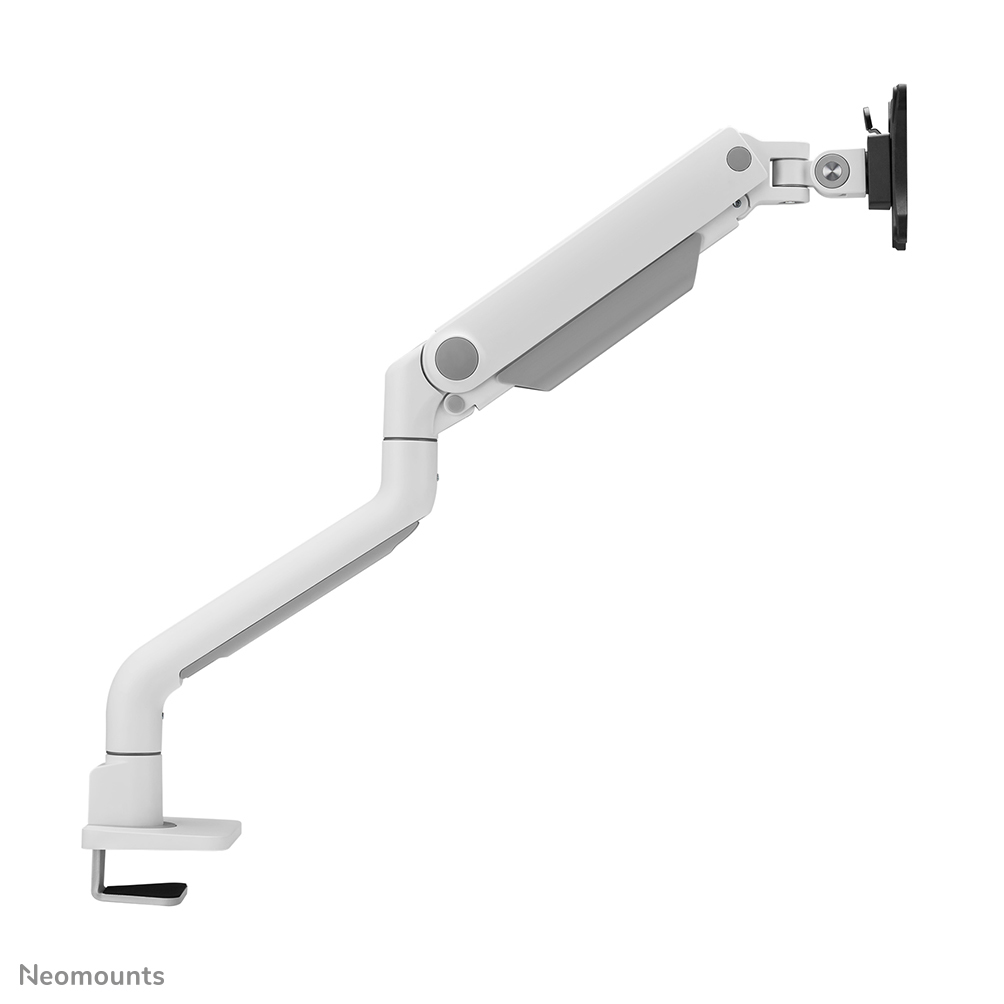

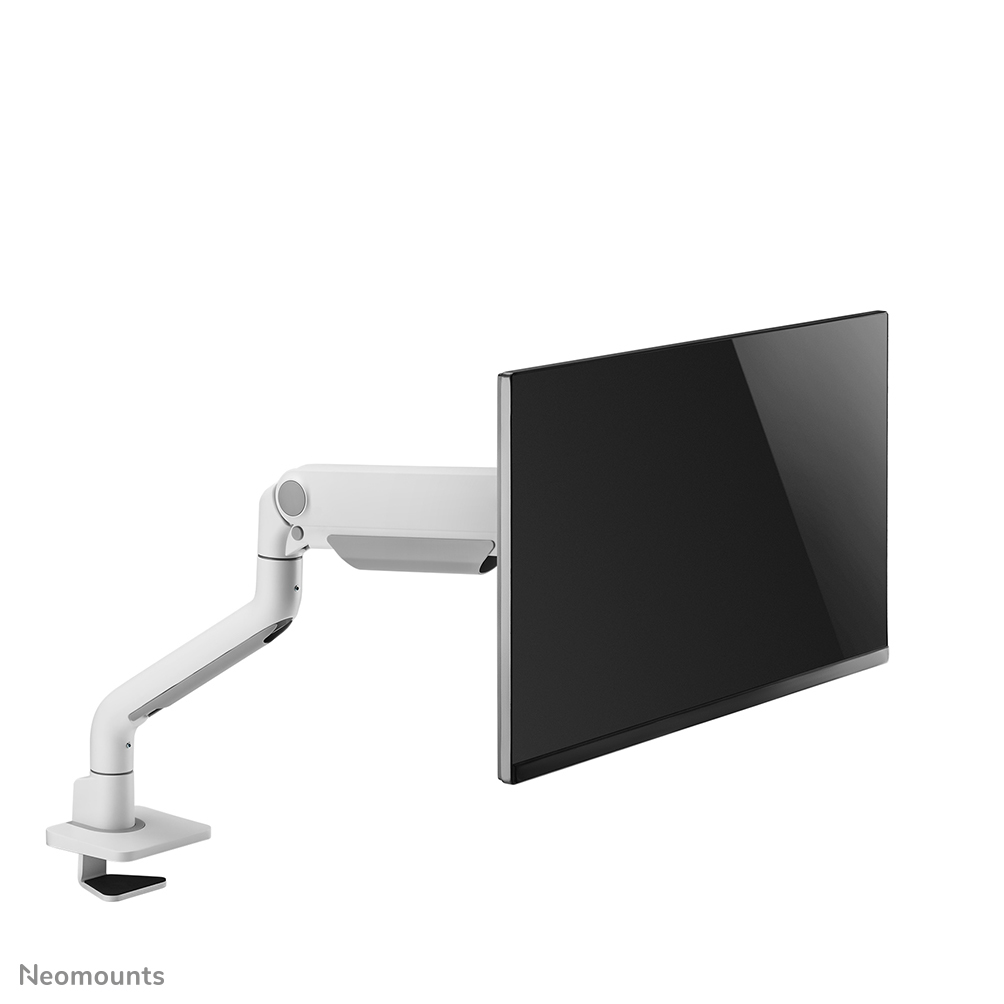

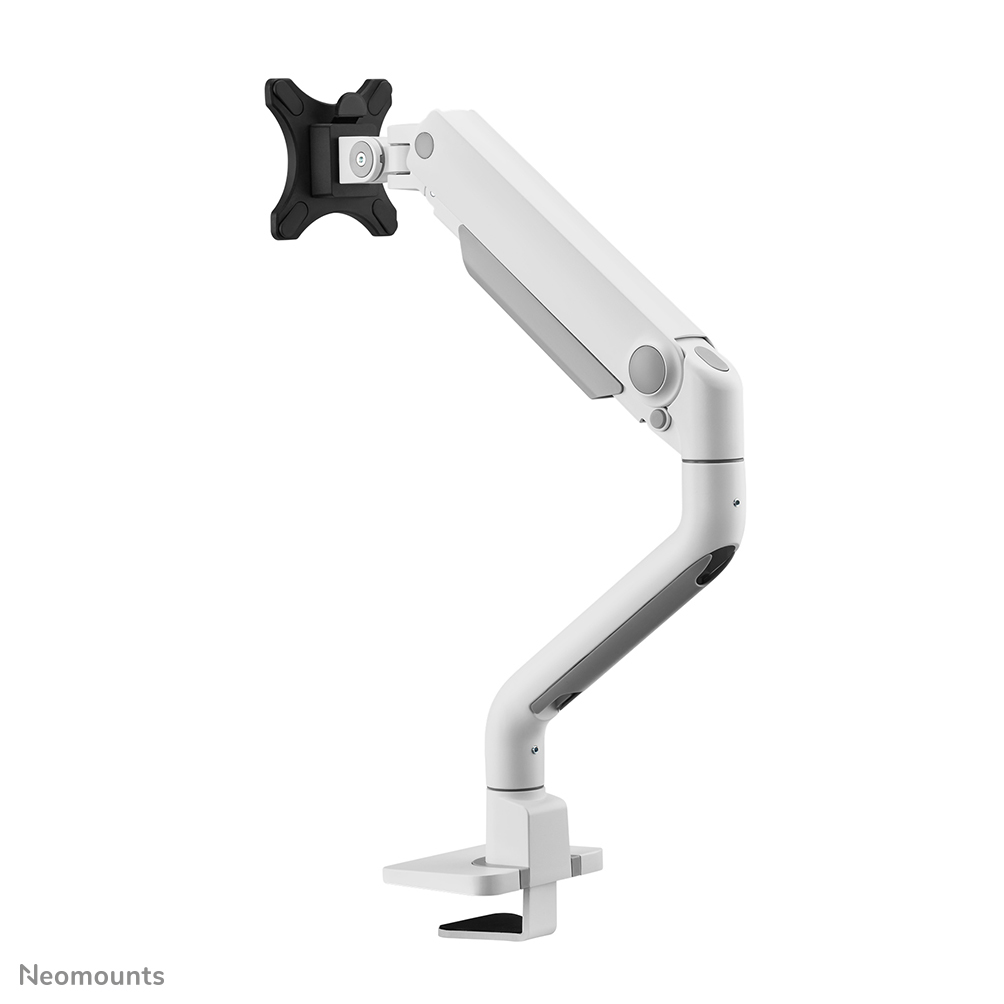

The Neomounts DS70S-950WH1 NEXT One is a full motion desk mount for screens up to 49". The DS70S-950WH1 is a true all-in one solution for small to large displays. The NEXT One features a strengthened head specifically designed to also support curved ultra-wide screens and features a higher maximum weight capacity up to 18 kg (curved 15 kg). The versatile tilt (180°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (20-52 cm) and depth adjustment (8,8-62,5 cm), to create the perfect working position.

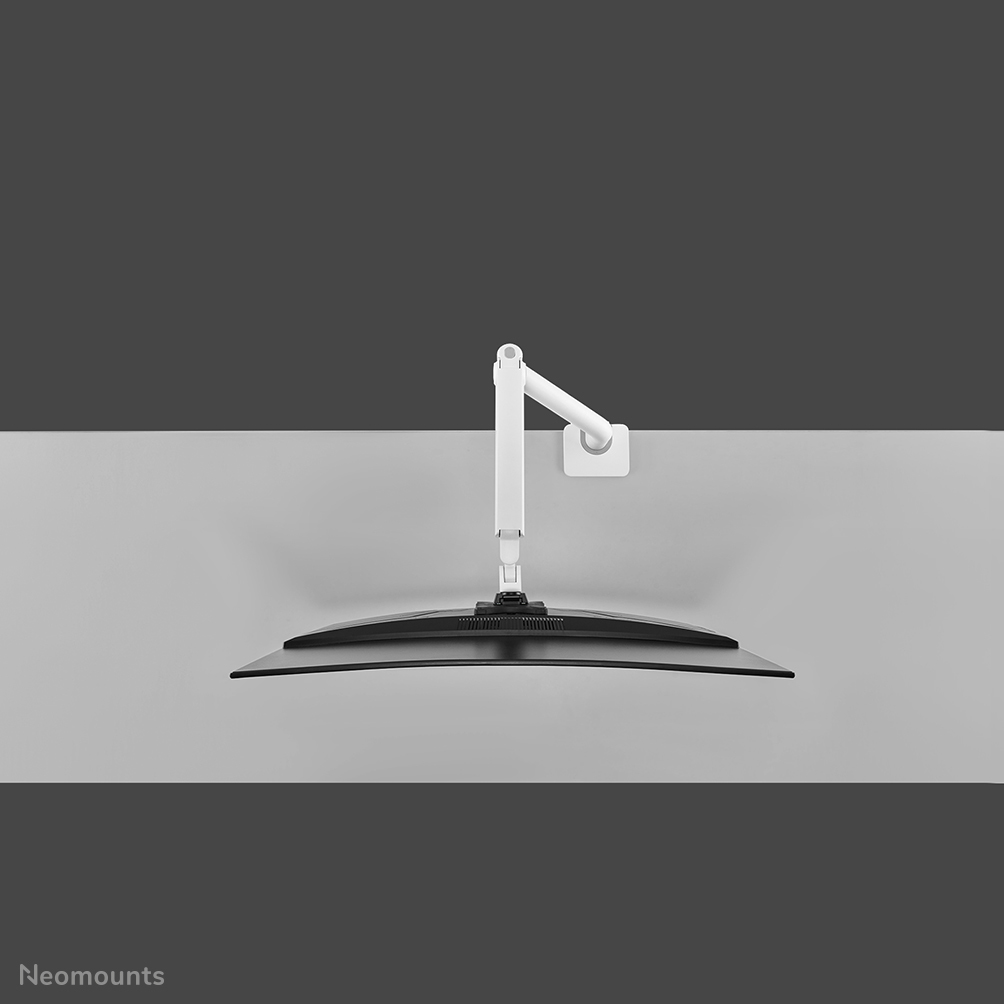

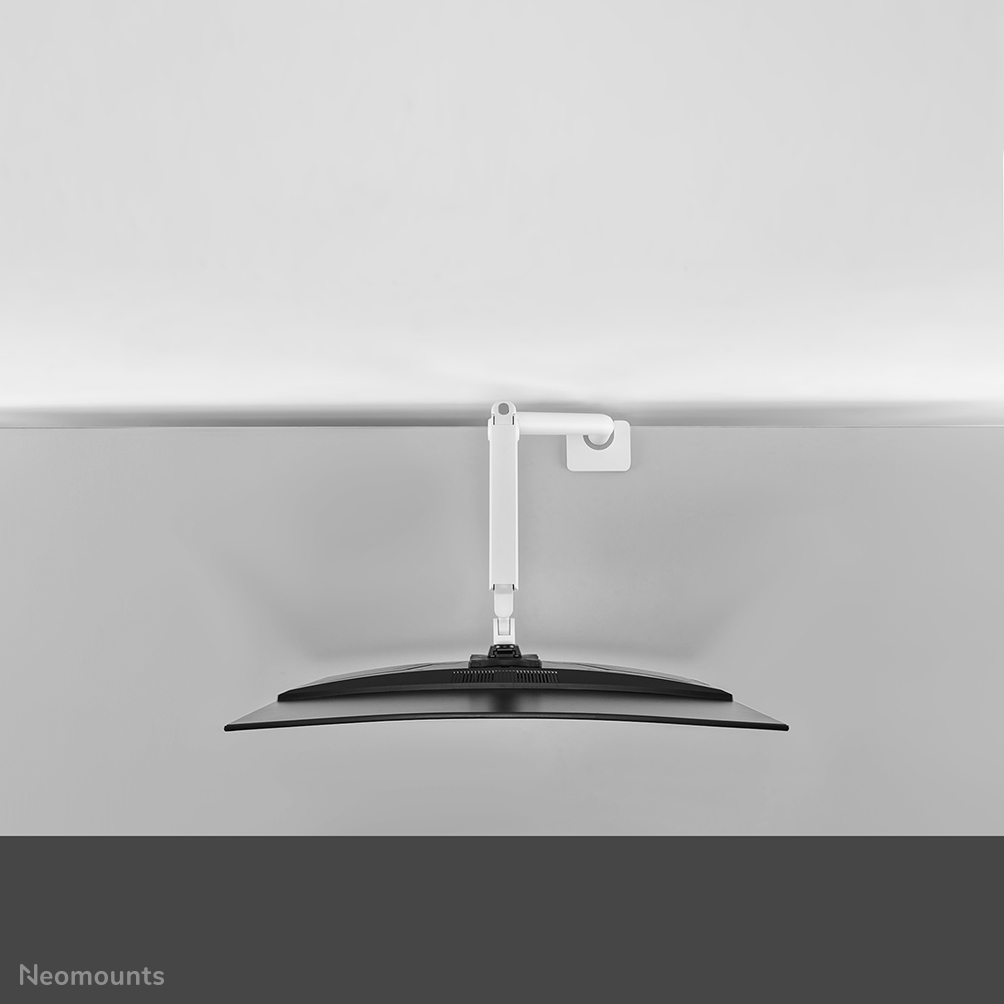

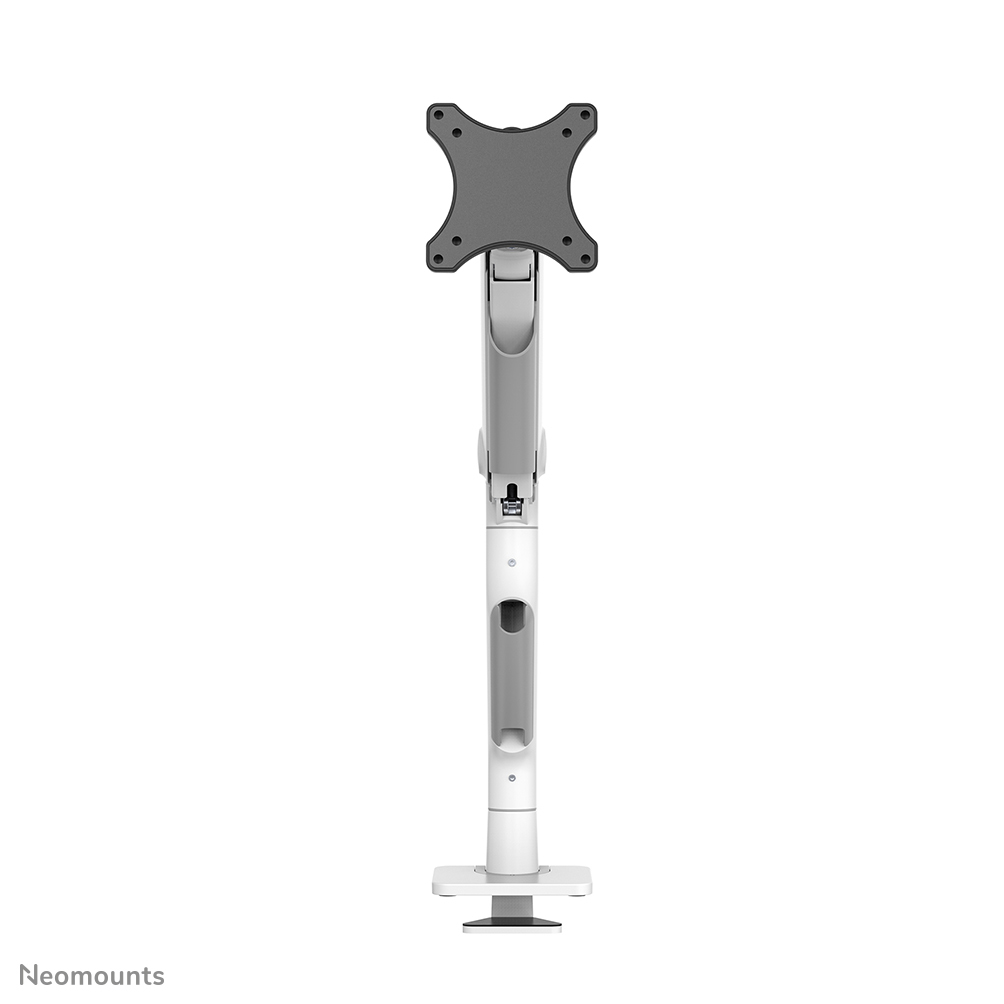

The DS70S-950WH1 features the nifty 180° stop mechanism, that prevents the mount from making contact with the wall or separation panel when installed near it. The smart cable management system ensures orderly routing of the cables.

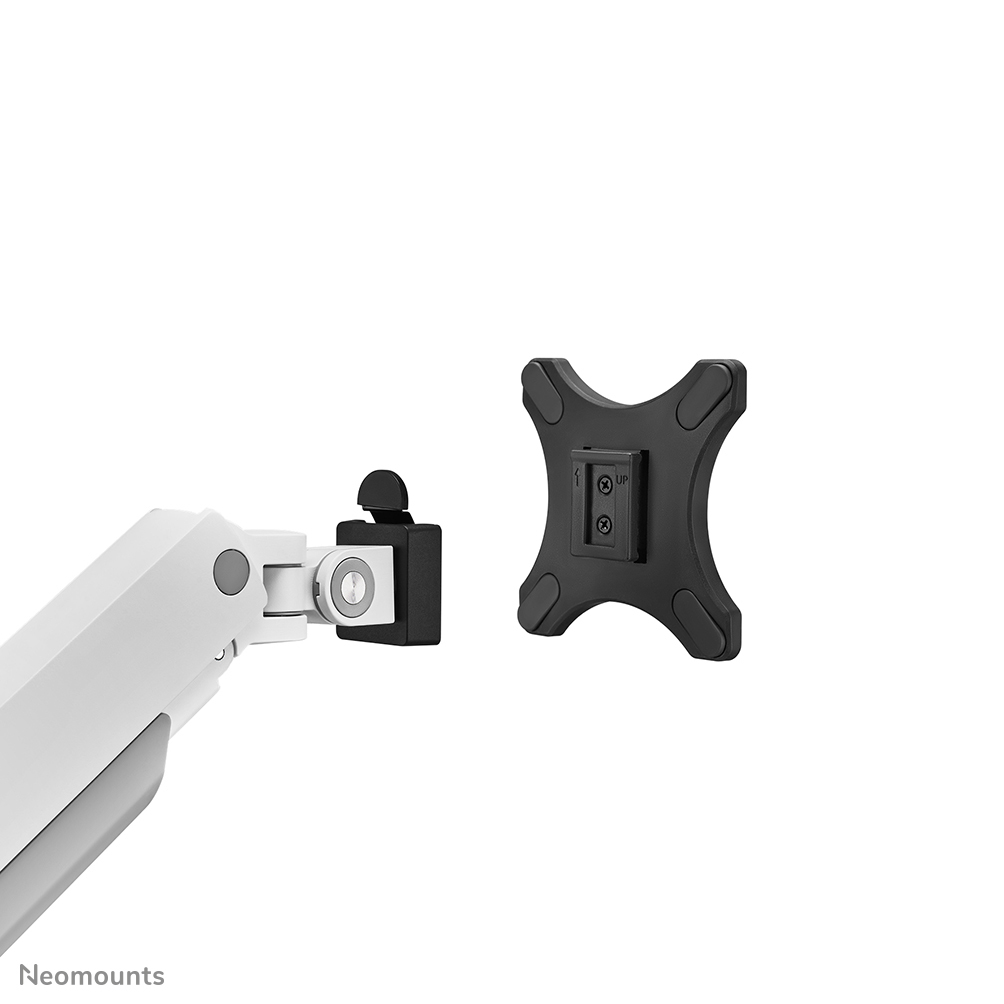

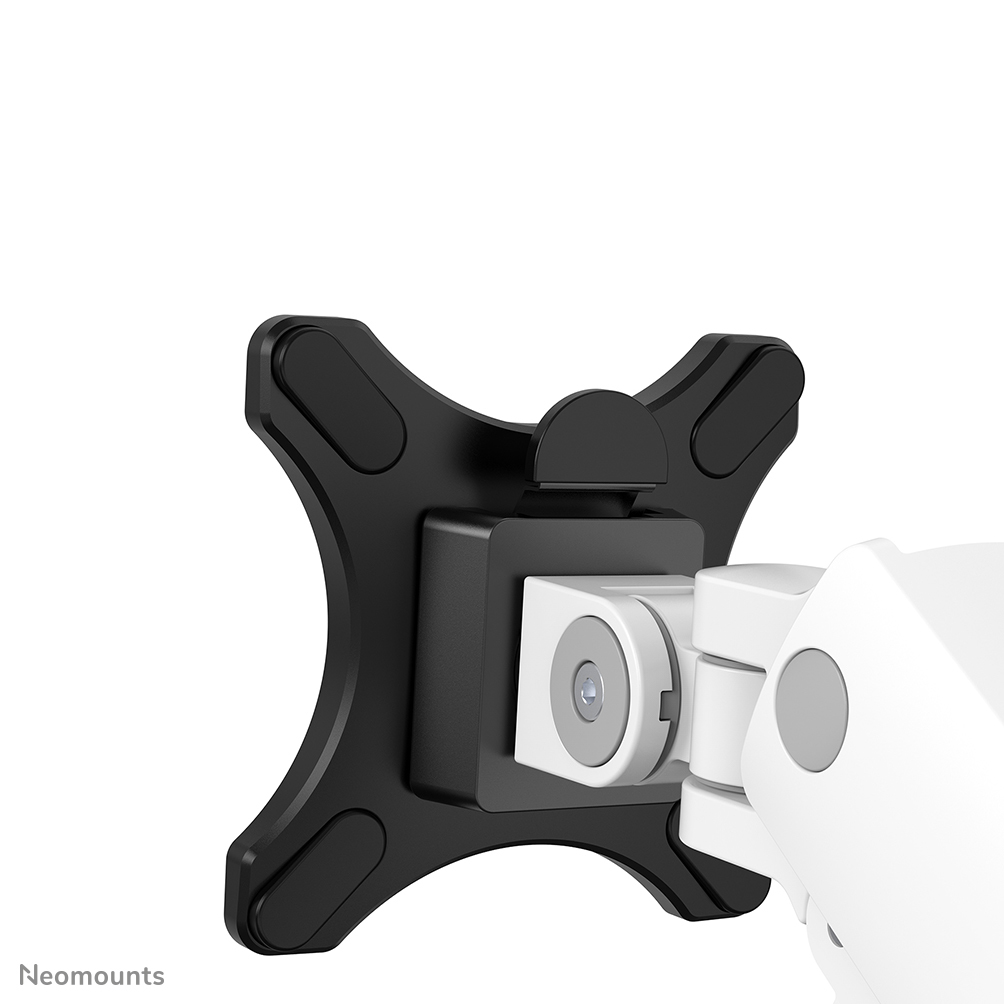

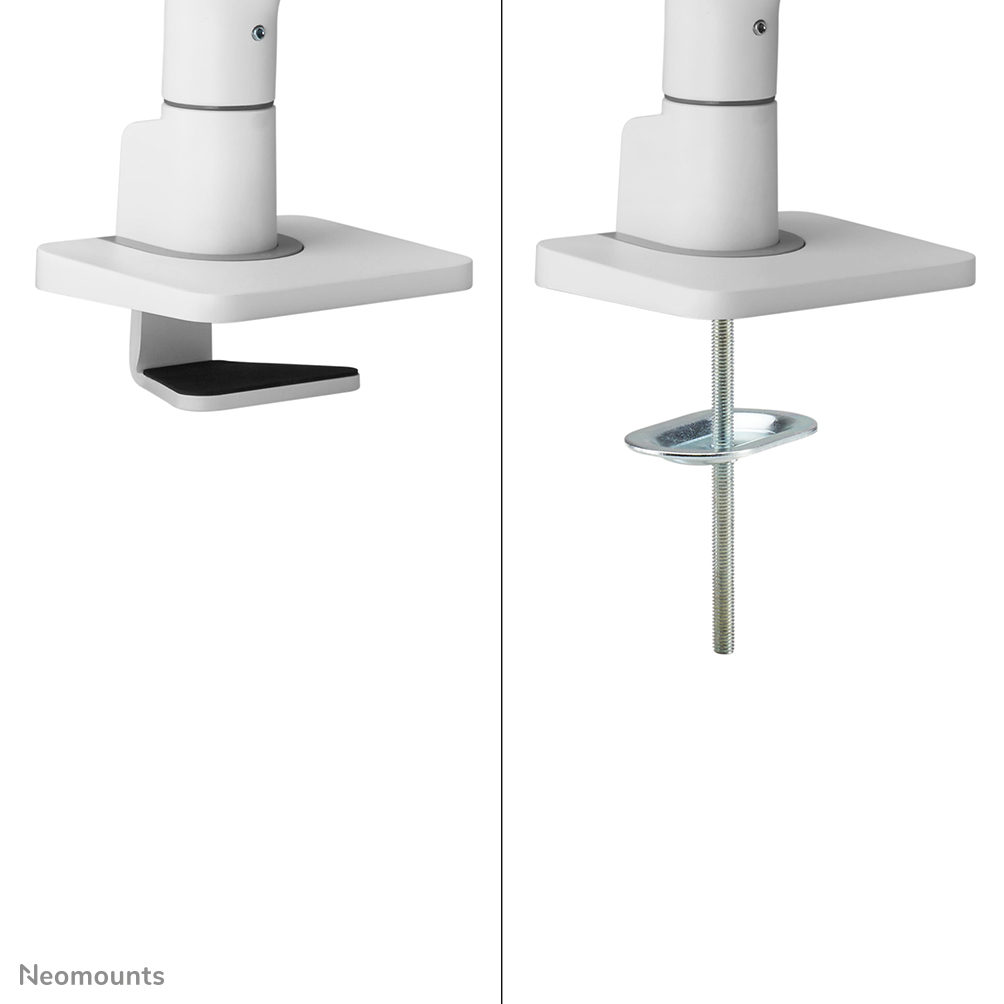

The black VESA plate of the NEXT One integrate stylishly with the black back of your screen. The DS70S-950WH1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. For non-standard hole patterns, Neomounts has various optional VESA adapter plates available. The monitor arm is equipped with a Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.

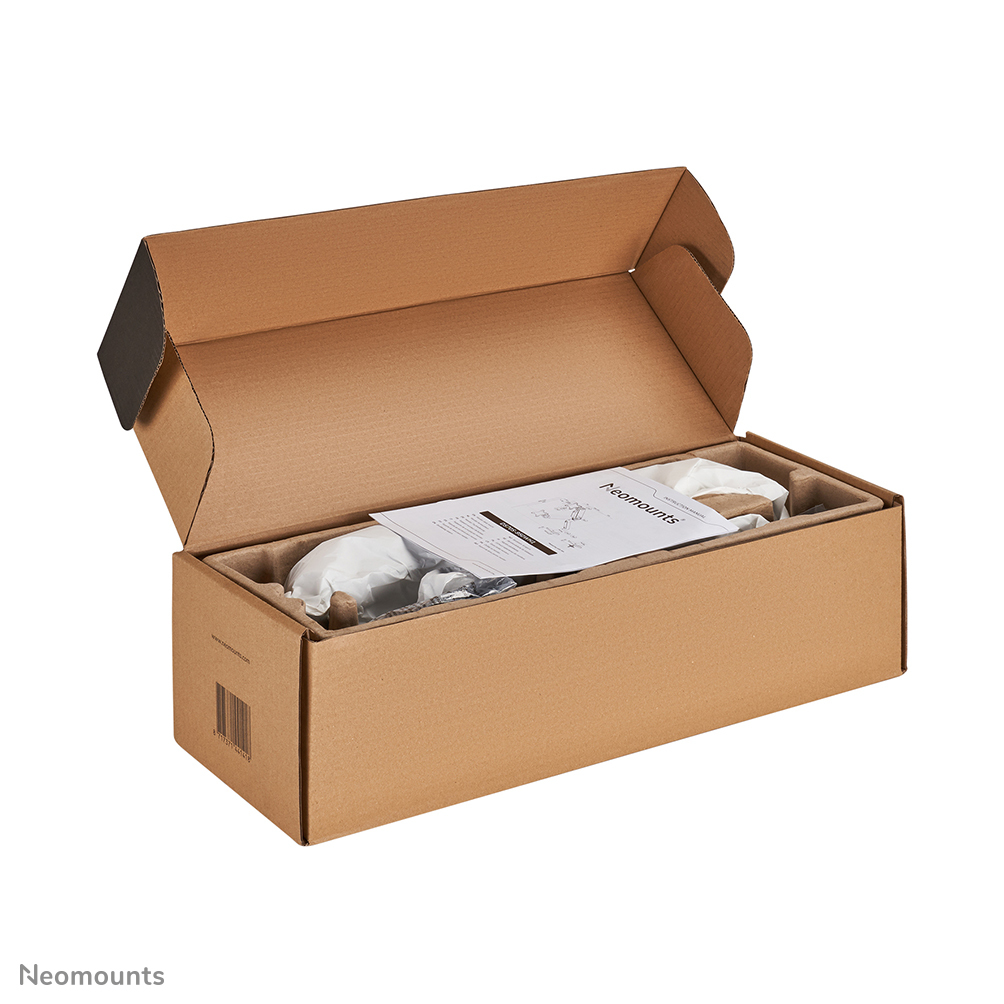

The packaging of the DS70S-950WH1 desk mount 100% plastic free and entirely made from cardboard and paper. The NEXT One products have an extended warranty period of 10-years.

Specifikationer

Antal understøttede skærme 1
Maksimal vægtkapacitet (pr. skærm) 18 kg
Maksimal skærmstørrelse kompatibilitet 124,5 cm (49")
Monteringstype Skrivebord
Maksimal vægtkapacitet 18 kg
Minimal skærmstørrelse kompatibilitet 43,2 cm (17")
Montering interface kompatibilitet (min.) 75 x 75 mm
Montering interface kompatibilitet (maks.) 100 x 100 mm
Maksimal vægtkapacitet (pr. buet/ultrabred skærm) 15 kg
Montering Klemme/strømpe
Panel montering grænseflade 100 x 100,75 x 75 mm
Skrivebord tykkelse (min) 1 cm
Skrivebord tykkelse (maks.) 5,5 cm
Klemmemontering skrivebordstykkelse (maks.) 5 cm
Grommet montering skrivebordstykkelse (maks.) 5,5 cm
Afstand til væggen (min.) 11,9 cm
Afstand til væggen (maks.) 65,6 cm
Højdejustering Ja
Højdejusteringstype Gasfjeder

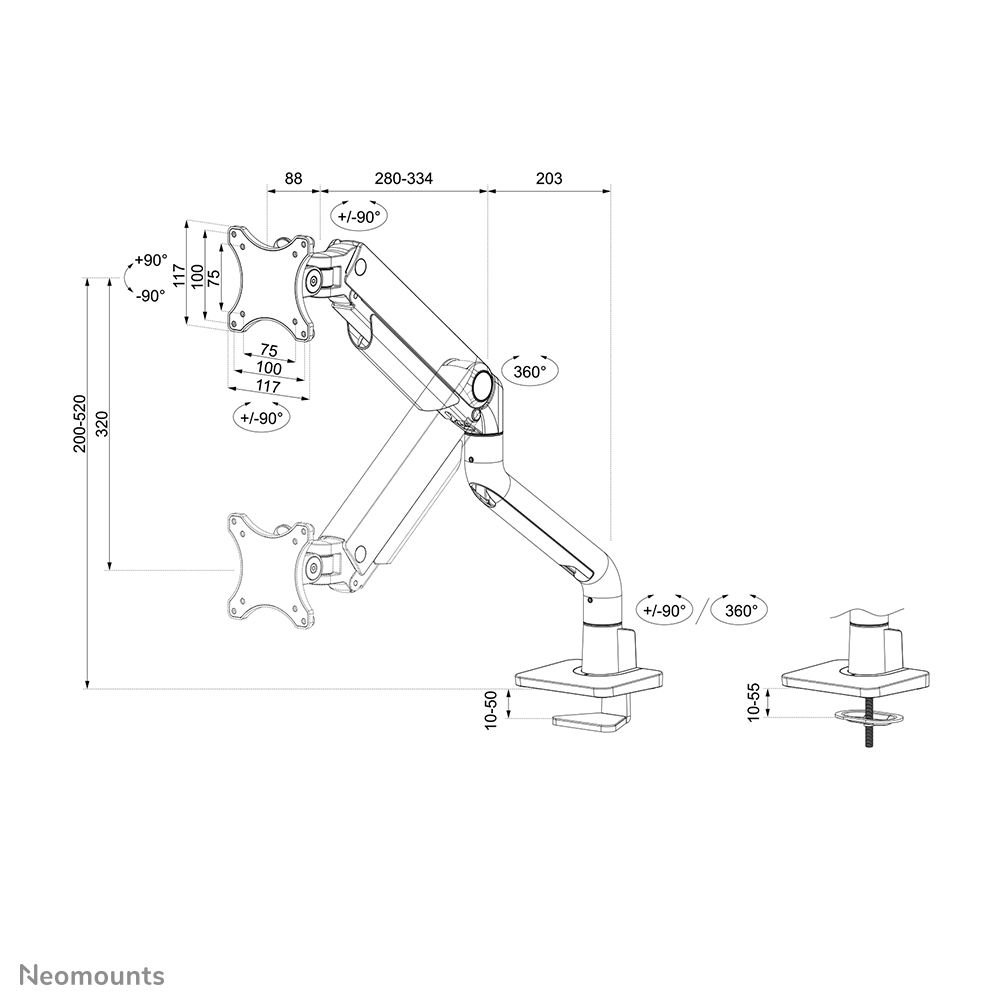

Højdejusteringsområde 200 - 520 mm
Justerbar dybde Ja
Dybdejusteringsområde 88 - 625 mm
Justering af bredden 107,4 cm
Hældningsindstilling Ja
Hældningsvinkelområde -90 - 90°
Drejelig Ja
Drejevinkel område -90 - 90°
Rotation Ja
Rotationsvinkel 360°
Pivot vinkel -180 - 180°
Antal arme 1
Forbedret kabelstyring Ja
Produktfarve Hvid
Husmateriale Aluminium
Nem at installere Ja
Bredde 135 mm
Dybde 656 mm
Højde 579 mm
Vægt 3,72 kg
Pakkebredde 333 mm
Pakkedybde 122 mm
Pakkehøjde 423 mm
Pakkevægt 4,3 kg
Pakketype Kasse
Minimumsvægt 1 kg
Bredde justeringsområde 0 - 1074 mm
Garantiperiode 10 År
Hovedkassens bredde (udvendigt) 355 mm
Hovedkassens længde (udvendigt) 290 mm
Hovedkassen højde (udvendigt) 490 mm
Hovedkassens bruttovægt (udvendigt) 18,1 kg
Produkter pr. hovedkasse (udvendigt) 4 stk
Oprindelsesland Kina
Ydre emballage nettovægt 15 kg
Harmoniseret systemkode (HS) 7616991099
Antal pr. EUR-palle 80 stk
Pakke nettovægt 4,3 kg
