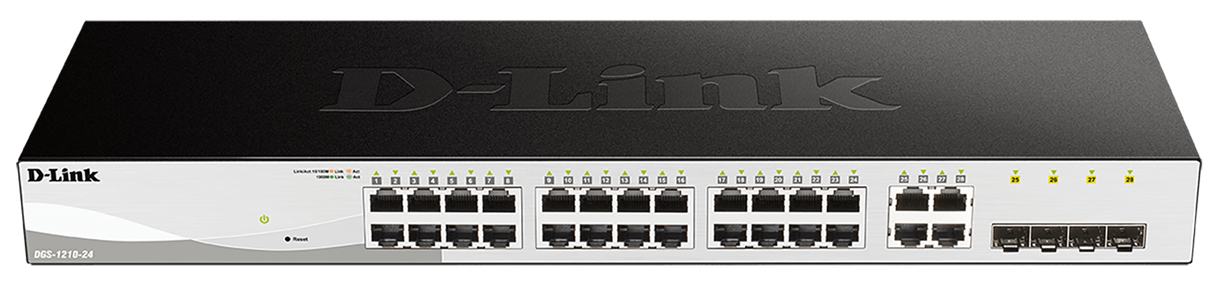

D-Link DGS-1210-24 netværksswitch Administreret L2 Gigabit Ethernet (10/100/1000) 1U Sort

SKU: 987681298
EAN: 0790069332302

D-Link DGS-1210-24, Administreret, L2, Gigabit Ethernet (10/100/1000), Fuld duplex, Stativ-montering, 1U
Mere info
1.979,00 DKK Ex. moms: 1.583,20 DKK På lager

Produktbeskrivelse

With increased PoE output and advanced Layer 2 management and security features, D‑Link’s DGS‑1210 Smart Managed Gigabit Switches provide a cost‑efficient and flexible solution for expanding any business network.

Advanced Layer 2 Management
The DGS-1210 Smart family features advanced network management accessible via the Web-based UI that equip your business with network capabilities such as VLANs, Spanning Tree Protocol (STP), link aggregation, and dual configuration files.

With powerful security features including IGMP snooping, access control lists, and port security the DGS-1210 Smart family is a versatile solution for access-edge network environments.

Fibre Uplinks
Use fibre uplinks to connect across longer distances, like factory lines and university campuses, using lightweight, secure, and energy-efficient fibre optic cabling that’s immune to interference and which has access to higher throughput to protect the future demands of your business network.

PoE and PoE+, with budgets up to 193W
The DGS-1210 Smart Series includes a range of PoE-enabled switches for businesses looking to power VoIP phones, wireless access points or network cameras.

Free Network Design and Management Software
D-Link’s free Network Assistant (DNA) displays all connected devices and speeds up the first time configuration. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools. Optional upgrade licenses allow you to broaden your network and analysis.

Smart Energy-Saving Design
D-Link Green technology enables the DGS-1210 Smart series to save power without any sacrifices. The majority of the family utilises a fanless design, helping reduce energy usage.

Surveillance Mode
Select Surveillance Mode in the Web UI to take advantage of easy-to-use surveillance features which also enable you to manage your surveillance network effortlessly. It automatically detects your security devices and segments them into a dedicated Auto Surveillance VLAN to handle video surveillance traffic securely and efficiently.

Specifikationer

Produktfarve Sort
Bredde 440 mm
Højde 44 mm
Vægt 2,15 kg
Dybde 140 mm
Relativ luftfugtighed ved drift (H-H) 0 - 95%
Opbevaringstemperatur (T-T) -20 - 70 °C
Driftstemperatur (T-T) -5 - 50 °C
Switch-type Administreret
Servicekvalitet support (QoS) Ja
Basis omskiftning RJ-45 Ethernet porte, antal 24
Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000)
Netværksstandarder IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Fuld duplex Ja
Flowkontrol support Ja
MAC adresselabel 8000 entries
Switch kapacitet 56 Gbit/sek.
Stativ-montering Ja
Stabelbar Ja
Støjniveau 0 dB
Gennemsnitstid mellem fejl (MTBF) 992594 t
Strømkilde Vekselstrøm
Vekselstrømsindgangsspænding 100 - 240 V
Vekselstrømsindgangsfrekvens 50/60 Hz
Strøm over Ethernet (PoE) Ingen
Relativ luftfugtighed ved opbevaring (H-H) 0 - 95%
Formfaktor 1U
LED-indikatorer Ja
Strømstik AC-in jack
Kobber ethernet kabelteknologi 10BASE-T, 100BASE-TX, 1000BASE-T
Auto MDI/MDI-X Ja
Auto-forhandling Ja
Opbevar-og-frem Ja
Strømforsyning inkluderet Ja
Strømforbrug (maks.) 17,32 W
Varmeafgivelse 59,09 BUT/t
Jumbo Frames support Ja
Jumbo rammer 10000
Pakke bufferlager 4,1 MB
Hastighed for videresendelse 41,7 Mpps
Flashhukommelse 32 MB
VLAN understøttelse Ja
Webbaseret administration Ja
Filtrering af MAC-adresser Ja
System hændelseslog Ja
Intern hukommelse 128 MB
Switch lag L2
ARP inspektion Ja
MIB support Y
Port-spejlning Ja
Link aggregering Ja
Broadcast stormkontrol Ja
Spanning tree protokol Ja
DHCP funktioner DHCP server, DHCP client
Adgangskontrolliste (ACL) Ja
IGMP snooping Ja
Multicast-understøttelse Ja
Hukommelsestype DDR3-SDRAM
Antal VLAN'er 256
Head-of-line (HOL) blokering Ja
Kombo SFP porte, antal 4
Konfigurerer lokationsindstillinger (CLI) Ja
Loop beskyttelse Ja
Antal installerede SFP+ moduler 0
Antal installerede SFP moduler 0
