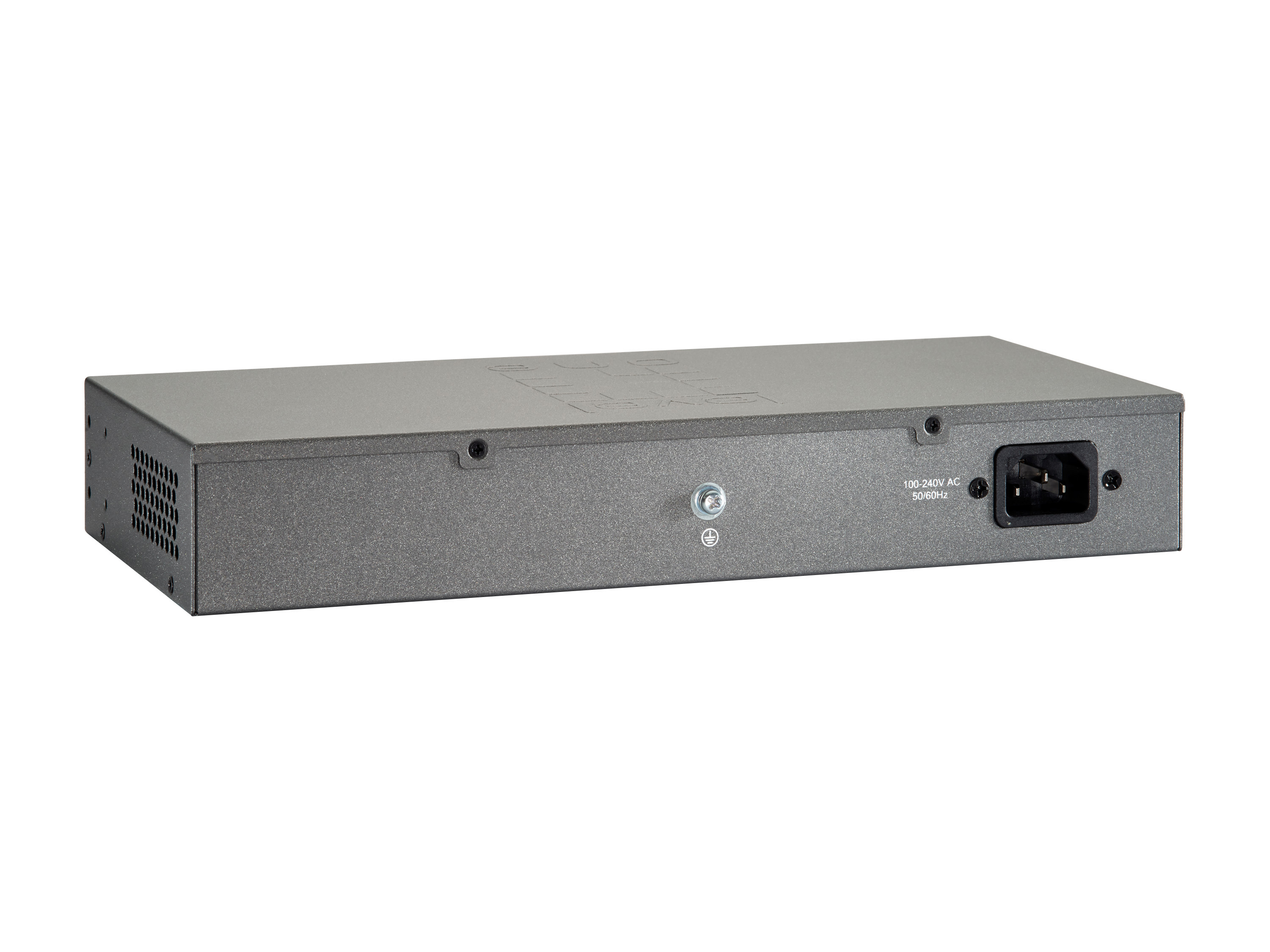

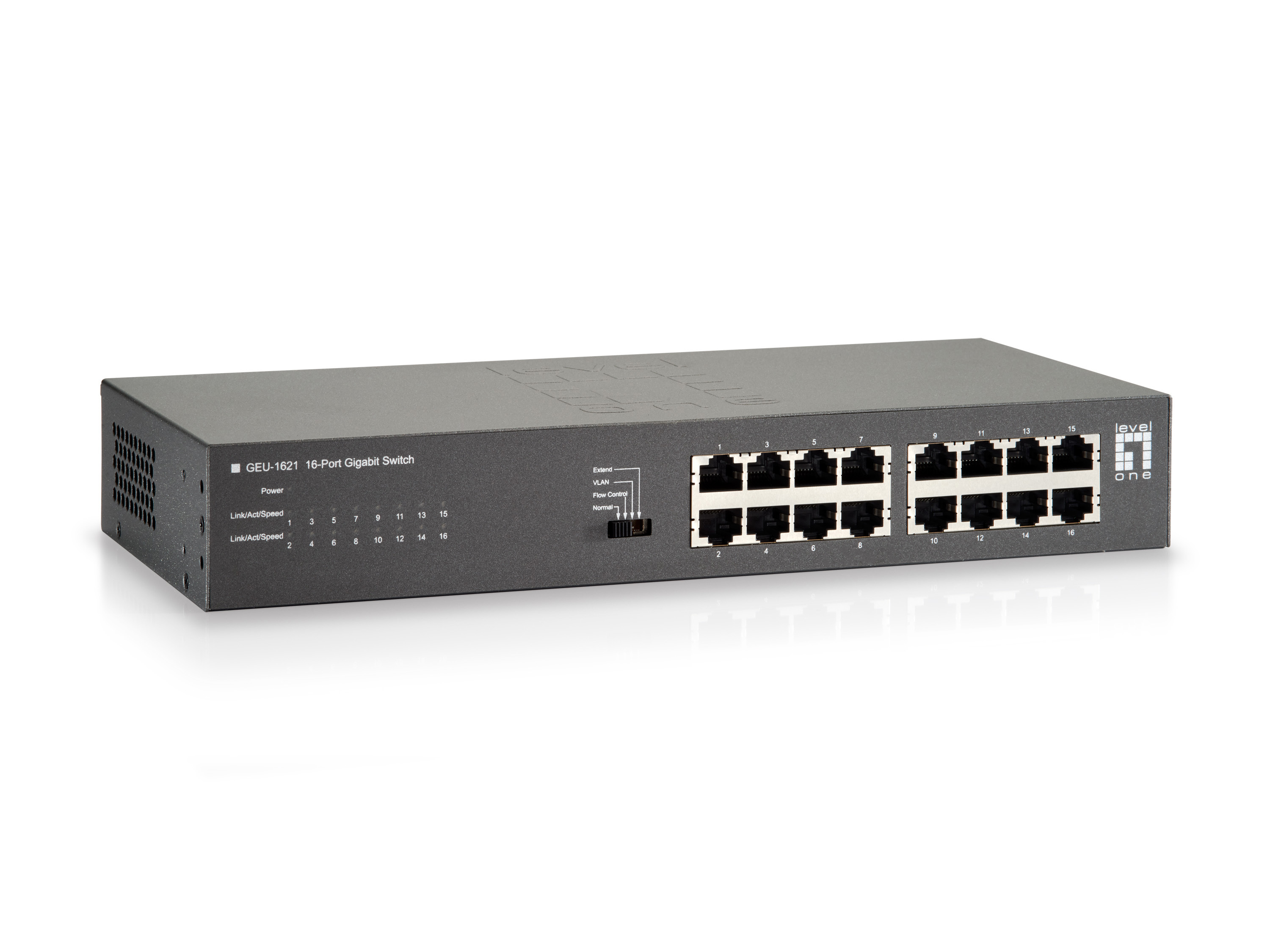

LevelOne GEU-1621 netværksswitch Gigabit Ethernet (10/100/1000) Grå

SKU: 987694516
EAN: 4015867164914

LevelOne GEU-1621, Gigabit Ethernet (10/100/1000), Fuld duplex, Stativ-montering
Mere info
919,00 DKK Ex. moms: 735,20 DKK På lager

Produktbeskrivelse

The GEU-1621 is equipped with 16 Gigabit ports that lead you to a real Gigabit connections. Users are able to transfer large and high bandwidth-needed files faster, and hence get a real improvement of efficiency.Offers a fast and reliable networkThe store-and-forward architecture filters errors and forwards packets in a non-blocking environment. Flow control ensures the correctness of data transmitting. The IEEE 802.3x and backpressure flow control mechanisms work respectively for full and half duplex modes.Power Saving FeaturesThe GEU-1621 supports IEEE 802.3az Energy Efficient Ethernet to provide power-saving benefits without compromising the performance. The switch automatically enters the sleep mode, if there is no link activity detected, using less energy than idling at full power.Easy Installation and MaintenanceThe switch supports Nway auto-negotiation protocol to detect the networking speed (10/100/1000 Mbps) and the duplex modes (Full/Half) automatically. Auto-MDI/MDI-X function eliminates the effort to use crossover cables. Diagnostic LEDs are provided to get real-time information of the connection status and network.

Specifikationer

Basis omskiftning RJ-45 Ethernet porte, antal 16
Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000)
Antal installerede SFP moduler 0
Antal installerede SFP+ moduler 0
Gigabit Ethernet (kobber) porte, antal 16
Netværksstandarder IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G understøttelse Ingen
Fuld duplex Ja
Halv dupleks Ja
Flowkontrol support Ja
Auto MDI/MDI-X Ja
Auto-forhandling Ja
MAC-adresse auto-indlæring understøttet Ja
MAC-adresse auto-forældelse understøttet Ja
MAC adresselabel 8000 entries
Switch kapacitet 32 Gbit/sek.
Hastighed for videresendelse 1,488 Mpps
Opbevar-og-frem Ja
Jumbo Frames support Ja
Jumbo rammer 9000
Stativ-montering Ja
Produktfarve Grå
Indbygget processer Ja
Processormodel Realtek RTL8382L
Flashhukommelse 4 MB
Vekselstrømsindgangsspænding 100 - 240 V
Vekselstrømsindgangsfrekvens 50 - 60 Hz
Strømforbrug (typisk) 10,1 W
Strøm over Ethernet (PoE) Ingen
Driftstemperatur (T-T) 0 - 40 °C
Opbevaringstemperatur (T-T) -40 - 70 °C
Relativ luftfugtighed ved drift (H-H) 10 - 90%
Relativ luftfugtighed ved opbevaring (H-H) 5 - 90%
Bredde 280 mm
Dybde 180 mm
Højde 44 mm
Vægt 2,6 kg
Brugervejledning Ja
Rack monteringskit Ja
Pakketype Kasse
Pakkebredde 258 mm
Pakkedybde 340 mm
Pakkehøjde 66 mm
Pakkevægt 1,7 kg
Pallens bruttolængde 80 cm
Pallens bruttobredde 120 cm
Pallehøjde (luft) 155,5 cm
Produkter pr. palle 22 stk
Oprindelsesland Kina
Hovedkassens bredde (udvendigt) 353 mm
Hovedkassens længde (udvendigt) 355 mm
Hovedkassen højde (udvendigt) 280 mm
Harmoniseret systemkode (HS) 85176990
Hovedkassens bruttovægt (udvendigt) 10,4 kg
Produkter pr. hovedkasse (udvendigt) 5 stk
