Manhattan 168397 AV forlænger AV sender & modtager

SKU: 1000779726
EAN: 0766623168397

Manhattan 168397, 3840 x 2160 pixel, AV sender & modtager, 70 m, Ledningsført, HDCP
Mere info
699,00 DKK Ex. moms: 559,20 DKK På lager

Produktbeskrivelse

4K HDMI Extender - Easily extend an Ultra-High-Definition (UHD) signal via a single Ethernet cable to achieve long-distance transmissions

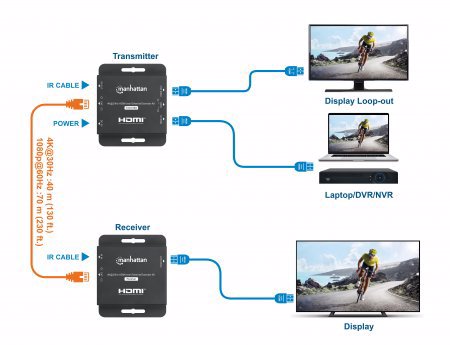

The Manhattan 4K HDMI over Ethernet Extender Kit lets you transmit an audio/video signal in 4K@30Hz (3840 × 2160) up to 40 m (164 ft.) or 1080p@60Hz up to 70 m (230 ft.) via a single RJ45 Cat6 Ethernet cable. The Kit provides reliable video and multichannel audio transmission from your streaming device, gaming console (PS4, PS4 Pro, PS5, Xbox Series X/S, Switch etc.), Blu-ray player, satellite receiver, PC, laptop, MacBook® or other HDMI device over longer distances than standard HDMI cables alone can achieve. The transmitter and receiver have additional 3.5 mm jacks for Infrared (IR) inputs that let you control the source or display at either end of the setup.

Flexible Solution for Many A/V Applications
Ideal for trade shows, classrooms, home theater, conference rooms, business office and retail applications, the Manhattan 4K@30Hz HDMI over Ethernet Extender Kit is a cost-effective solution that boosts and extends an HDMI signal to where it's needed. Ethernet cabling - shielded or unshielded - has a higher range than HDMI cabling with in-line signal repeaters. When used with our Extender Kit, network cable delivers the clear, sharp and vivid picture that you've come to expect from HDMI cable.

Quality Construction and Easy Installation
HDCP 1.4 compliant with HDMI, the Manhattan 4K HDMI over Ethernet Extender Kit is tested to guarantee performance and reliability. It installs quickly without having to run software or install additional hardware. Built into the modules are mounting brackets that let you tidily install their metal housings on the wall or ceiling.

Only one power adapter needed thanks to Power over Cable (PoC)
Extend your HDMI signals to locations that lack power outlets. The included power adapter connects to the transmitter and powers the receiver through the connected Ethernet cable.

Specifikationer

Type AV sender & modtager
Pakkevægt 390 g
Bredde 69 mm
Højde 17 mm
Vægt 262 g
Dybde 80 mm
Relativ luftfugtighed ved drift (H-H) 20 - 90%
Opbevaringstemperatur (T-T) -20 - 60 °C
Pakkebredde 69 mm
Pakkedybde 80 mm
Pakkehøjde 17 mm
Certificering CE FCC RoHS UKCA
Driftstemperatur (T-T) 0 - 40 °C
Pakketype Kasse
Vekselstrømsindgangsspænding 100 - 240 V
Vekselstrømsindgangsfrekvens 50 - 60 Hz
Forbindelsesteknologi Ledningsført
Strømkilde type Vekselstrøm
Materiale Metal
Båndbredde 10,2 Gbit/sek.
Båndbredde 340 MHz
Strømforbrug (maks.) 1,86 W
Brugervejledning Ja
Maksimal overførselsafstand 70 m
HDCP Ja
Kabler inkluderet Vekselstrøm, IR
Maksimal opløsning 3840 x 2160 pixel
Understøttede videotilstande 480p, 720p, 1080i, 1080p
Understøttede kabeltyper Cat6
Udgangsstrøm 1 A
HDMI-version 1.4
RJ-45 udgangs-porte 2
HDCP-version 1.4
Antal HDMI-udgange 3
EDID-ledelse Ja
